Schema OperationsControl.xsd

AIM Bookshelf	Click for OC message overviews.
Message ID	Associated Complex types
OC001	CreateFlightLegType
OC002	CancelFlightLegType
OC003	DeleteFlightLegType

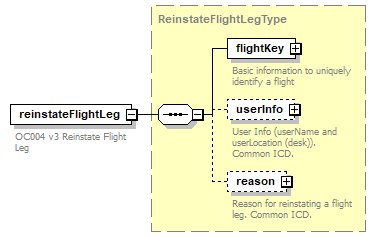

OC004	ReinstateFlightLegType

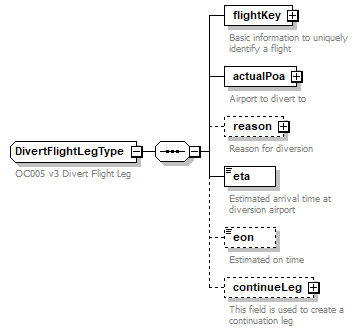

OC005	DivertFlightLegType

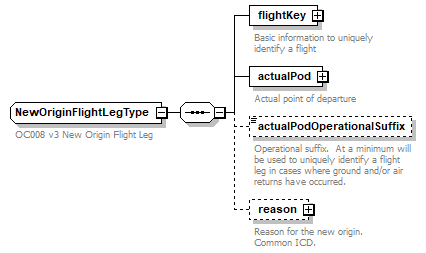

OC008	NewOriginFlightLegType

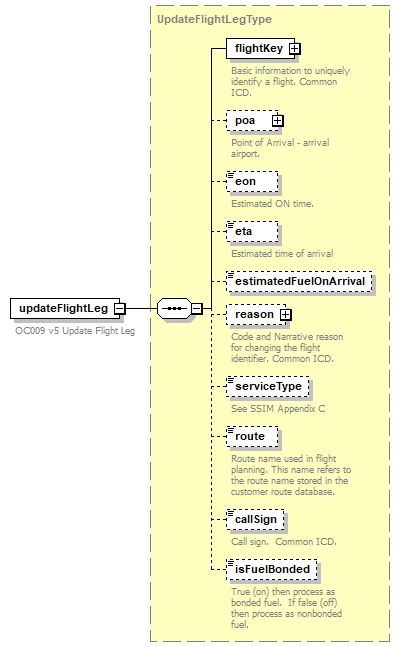

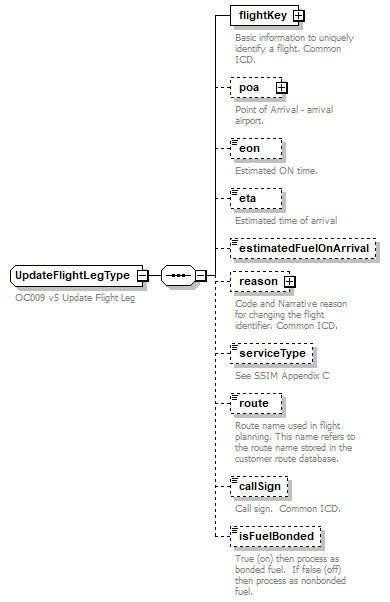

OC009	UpdateFlightLegType

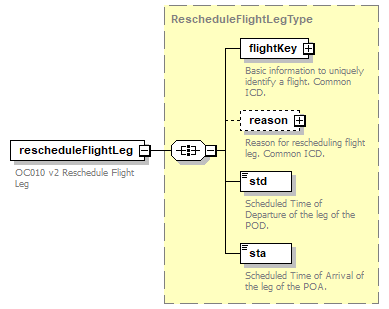

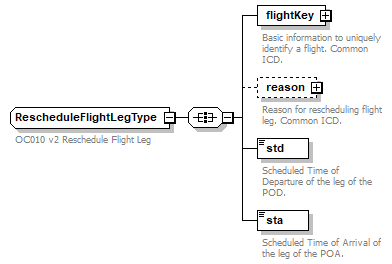

OC010	RescheduleFlightLegType
OC011	AircraftAssignmentType

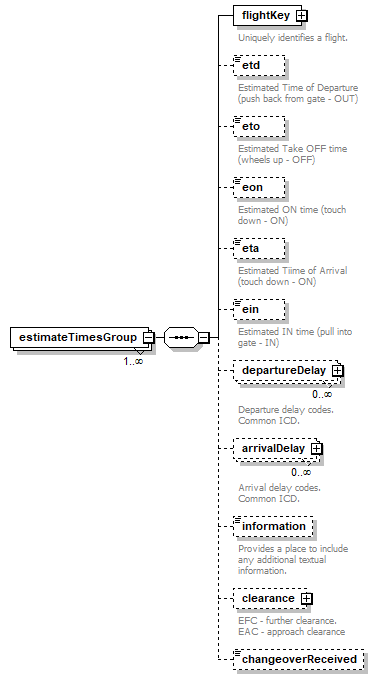

OC012	EstimateTimesType

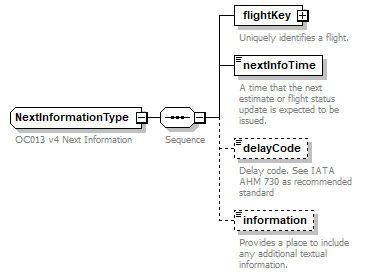

OC013	NextInformationType
OC014	ArrivalType
OC015	OffType

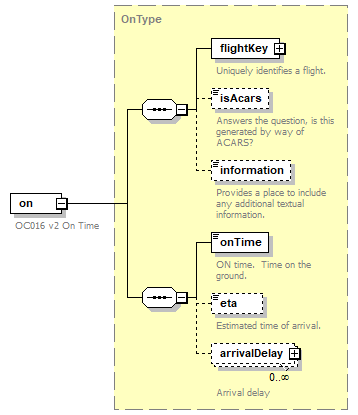

OC016	OnType
OC017	DepartureType

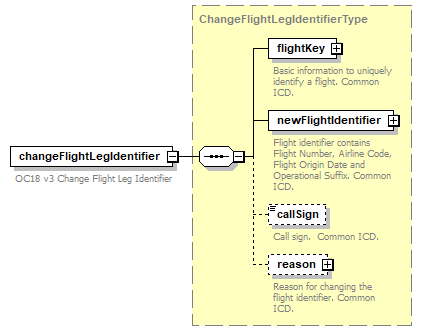

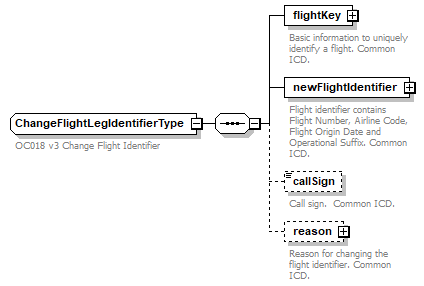

OC018	ChangeFlightLegIdentifierType
OC020	AirReturnType

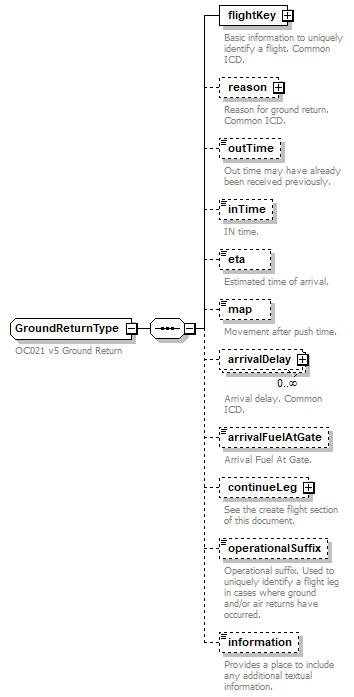

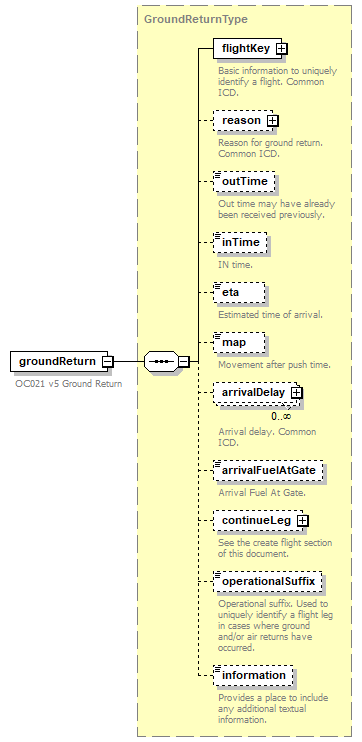

OC021	GroundReturnType
OC022	DelayType
OC023	OutType

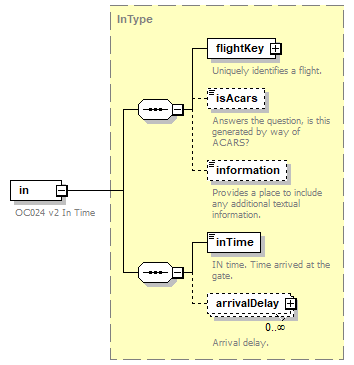

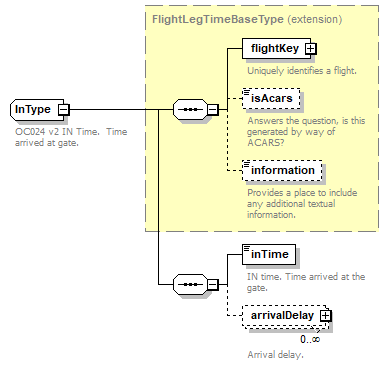

OC024	InType

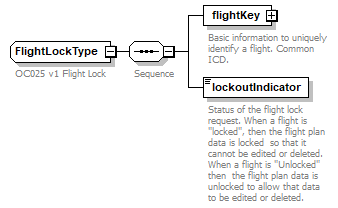

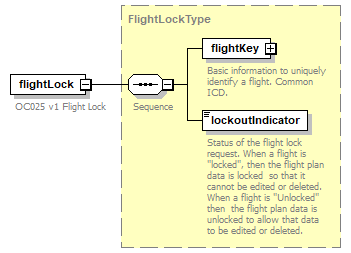

OC025	FlightLockType

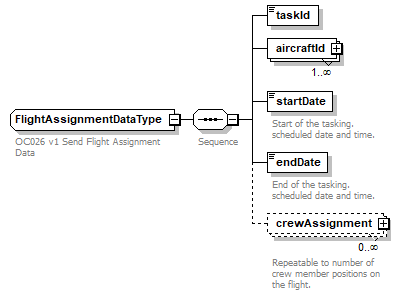

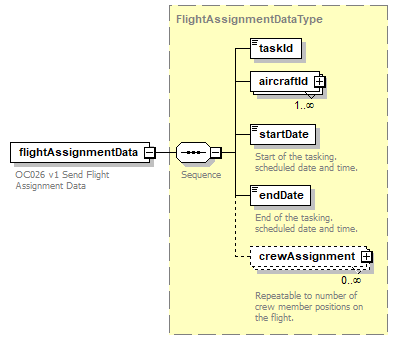

OC026	FlightAssignmentDataType

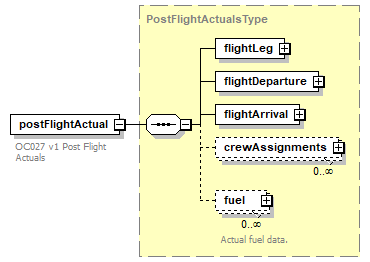

OC027	PostFlightActualsType

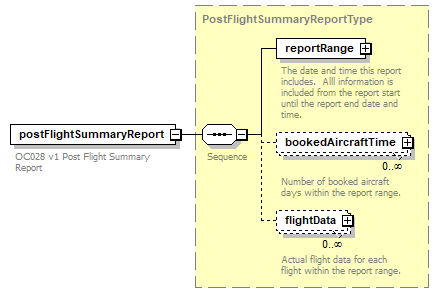

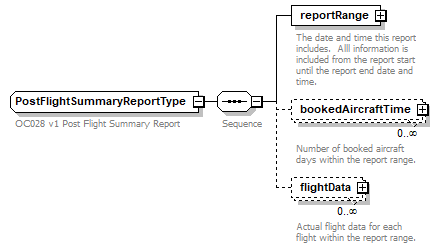

OC028	PostFlightSummaryReportType

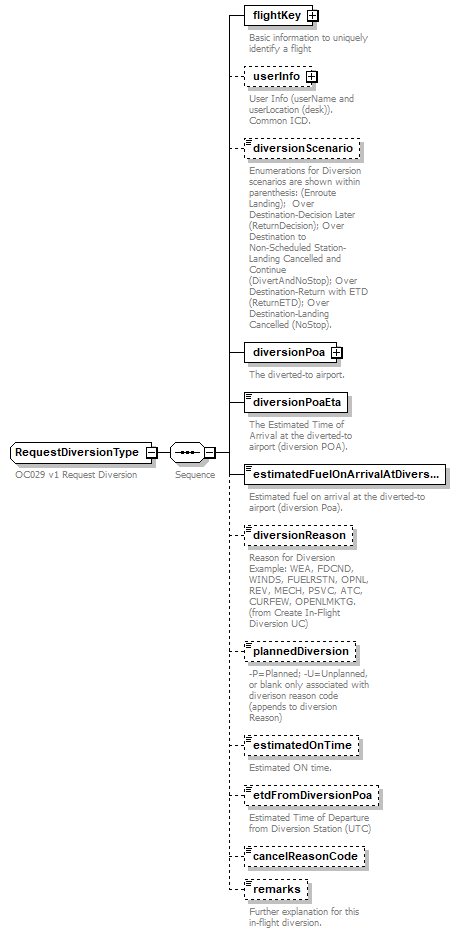

OC029	RequestDiversionType

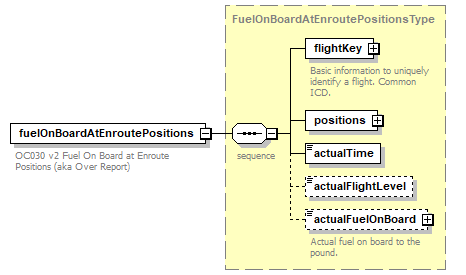

OC030	FuelOnBoardAtEnroutePositionsType

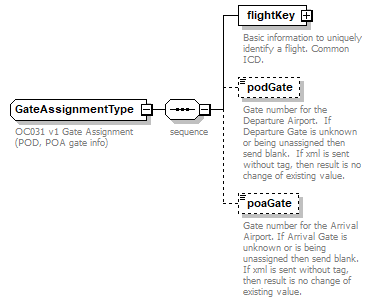

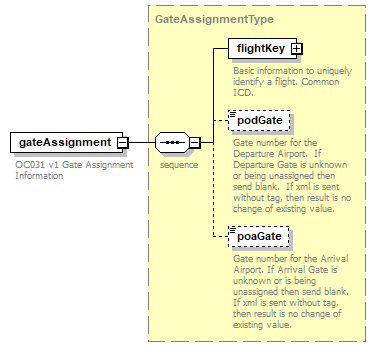

OC031	GateAssignmentType
OC032	AdHocCreateFlightLegType
OC033	DispatcherLockRequestType  DispatcherLockResponseType
OC034	AircraftLockType

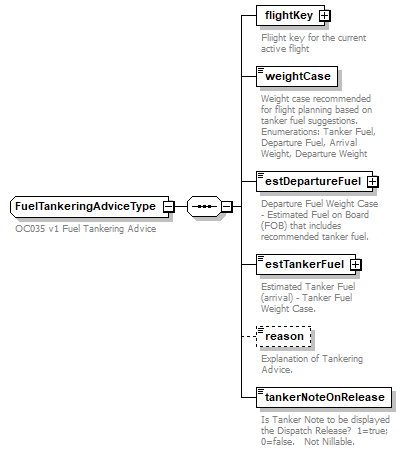

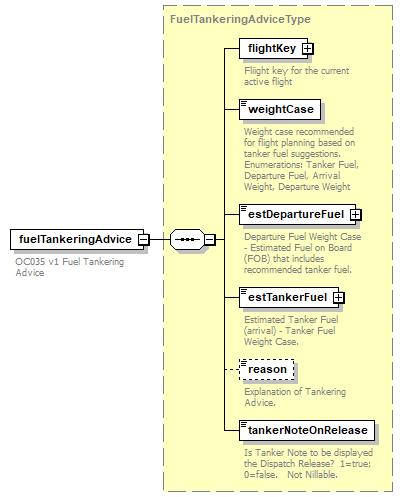

OC035	FuelTankeringAdviceType

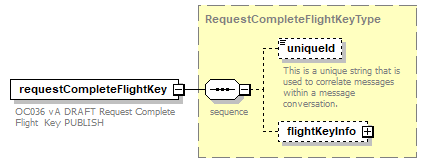

OC036	RequestCompleteFlightKeyType

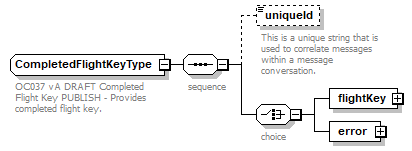

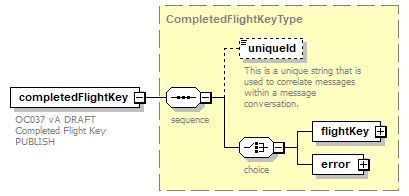

OC037	CompletedFlightKeyType

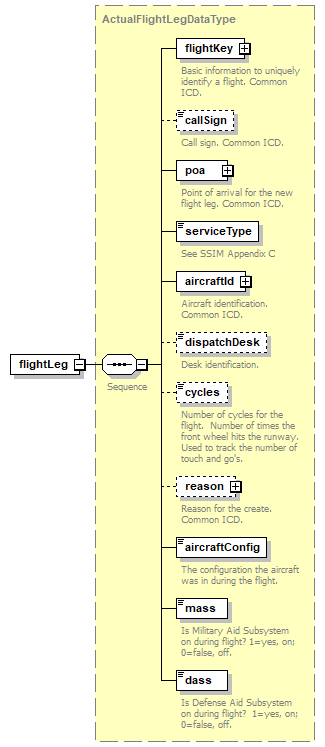

complexType ActualFlightLegDataType

diagram
namespace	http://www.jeppesen.com/aoc
children	flightKey callSign poa serviceType aircraftId dispatchDesk cycles reason aircraftConfig mass dass

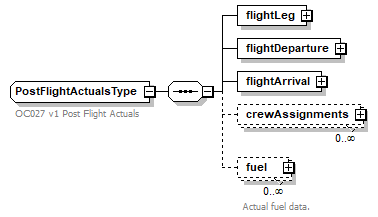

used by	element  PostFlightActualsType/flightLeg

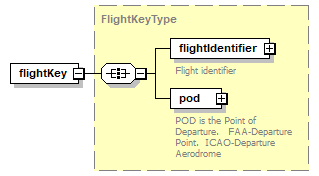

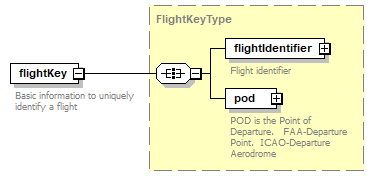

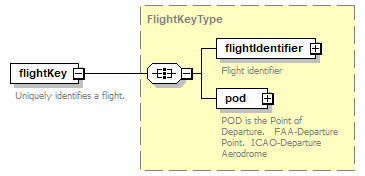

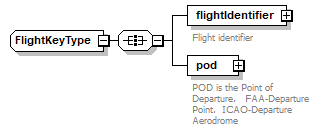

element ActualFlightLegDataType/flightKey

diagram
namespace	http://www.jeppesen.com/aoc
type	FlightKeyType
properties	isRef  0 content  complex

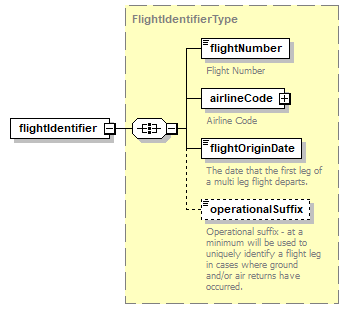

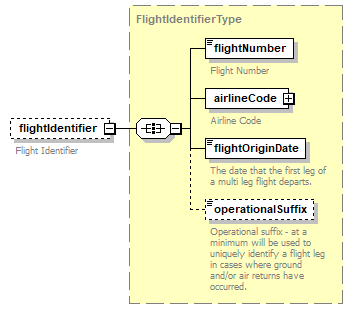

children	flightIdentifier pod
annotation	documentation Basic information to uniquely identify a flight. Common ICD.

element ActualFlightLegDataType/callSign

diagram
namespace	http://www.jeppesen.com/aoc
type	CallSignType
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  annotation  minLength  4  maxLength  8
annotation	documentation Call sign. Common ICD.

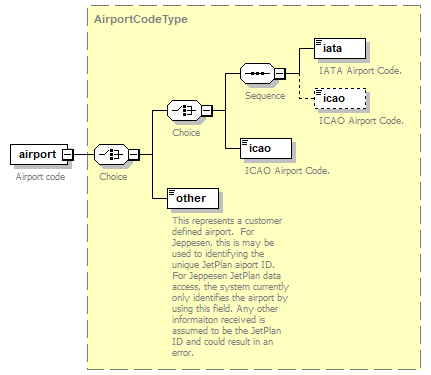

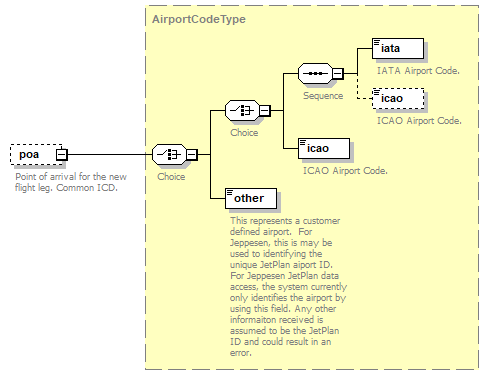

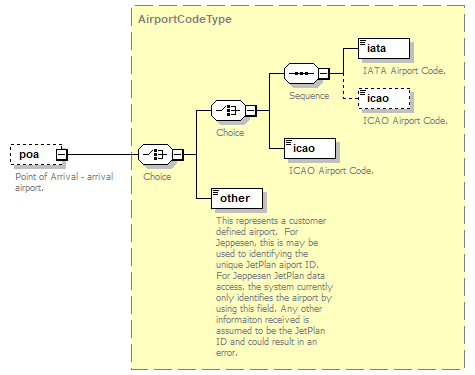

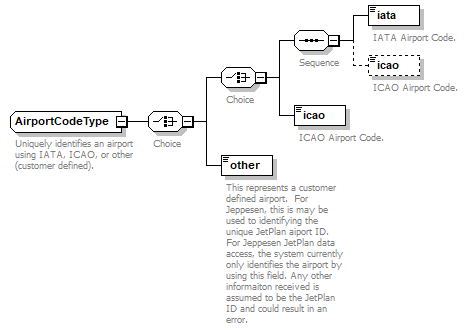

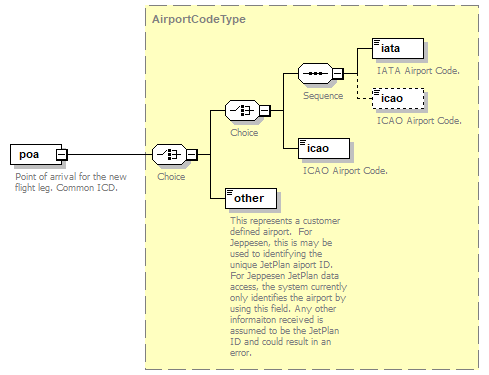

element ActualFlightLegDataType/poa

diagram
namespace	http://www.jeppesen.com/aoc
type	AirportCodeType
properties	isRef  0 content  complex
children	iata icao icao other
annotation	documentation Point of arrival for the new flight leg. Common ICD.

element ActualFlightLegDataType/serviceType

diagram
namespace	http://www.jeppesen.com/aoc
type	ServiceCodeEnumType
properties	isRef  0 content  simple
facets	Kind  Value  annotation  pattern  [J,S,U,F,V,M,Q,G,B,A,R,C,O,H,L,P,T,K,D,E,W,X,I,N,Y,Z]{1}
annotation	documentation See SSIM Appendix C

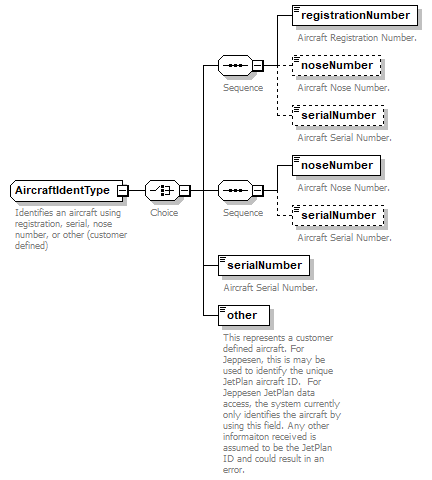

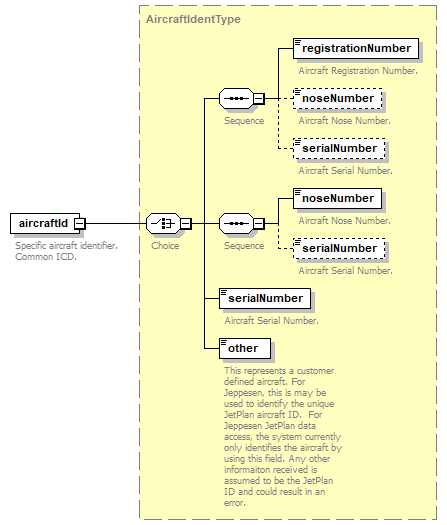

element ActualFlightLegDataType/aircraftId

diagram
namespace	http://www.jeppesen.com/aoc
type	AircraftIdentType
properties	isRef  0 content  complex
children	registrationNumber noseNumber serialNumber noseNumber serialNumber serialNumber other
annotation	documentation Aircraft identification. Common ICD.

element ActualFlightLegDataType/dispatchDesk

diagram
namespace	http://www.jeppesen.com/aoc
type	String4
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  annotation  maxLength  4
annotation	documentation Desk identification.

element ActualFlightLegDataType/cycles

diagram
namespace	http://www.jeppesen.com/aoc
type	xs:integer
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	documentation Number of cycles for the flight.  Number of times the front wheel hits the runway. Used to track the number of touch and go's.

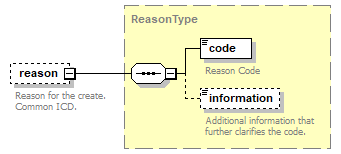

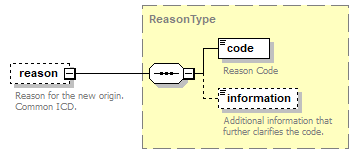

element ActualFlightLegDataType/reason

diagram
namespace	http://www.jeppesen.com/aoc
type	ReasonType
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	code information
annotation	documentation Reason for the create. Common ICD.

element ActualFlightLegDataType/aircraftConfig

diagram
namespace	http://www.jeppesen.com/aoc
type	xs:string
properties	isRef  0 content  simple
annotation	documentation The configuration the aircraft was in during the flight.

element ActualFlightLegDataType/mass

diagram
namespace	http://www.jeppesen.com/aoc
type	xs:boolean
properties	isRef  0 content  simple
annotation	documentation Is Military Aid Subsystem on during flight? 1=yes, on;  0=false, off.

element ActualFlightLegDataType/dass

diagram
namespace	http://www.jeppesen.com/aoc
type	xs:boolean
properties	isRef  0 content  simple
annotation	documentation Is Defense Aid Subsystem on during flight?  1=yes, on;  0=false, off.

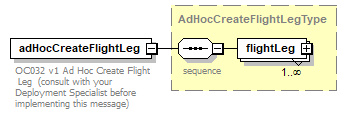

complexType AdHocCreateFlightLegType

diagram
namespace	http://www.jeppesen.com/aoc
children	flightLeg
used by	element  OperationsControlType/adHocCreateFlightLeg
annotation	documentation OC032 v1 Ad Hoc Create Flight Leg.  NOTE:  please consult with your deployment specialist before implementation of this message.

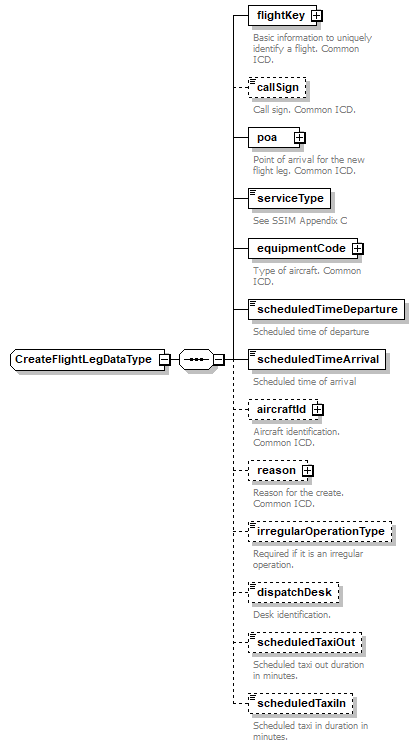

element AdHocCreateFlightLegType/flightLeg

diagram
namespace	http://www.jeppesen.com/aoc
type	CreateFlightLegDataType
properties	isRef  0 minOcc  1 maxOcc  unbounded content  complex
children	flightKey callSign poa serviceType equipmentCode scheduledTimeDeparture scheduledTimeArrival aircraftId reason irregularOperationType dispatchDesk scheduledTaxiOut scheduledTaxiIn

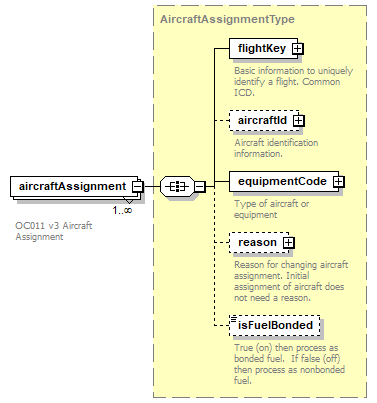

complexType AircraftAssignmentType

diagram
namespace	http://www.jeppesen.com/aoc
children	flightKey aircraftId equipmentCode reason isFuelBonded
used by	element  OperationsControlType/aircraftAssignment
annotation	documentation OC011 v3 Aircraft Assignment

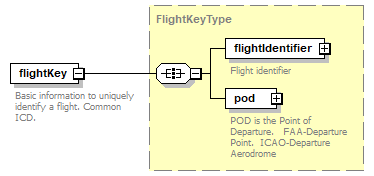

element AircraftAssignmentType/flightKey

diagram
namespace	http://www.jeppesen.com/aoc
type	FlightKeyType
properties	isRef  0 content  complex
children	flightIdentifier pod
annotation	documentation Basic information to uniquely identify a flight. Common ICD.

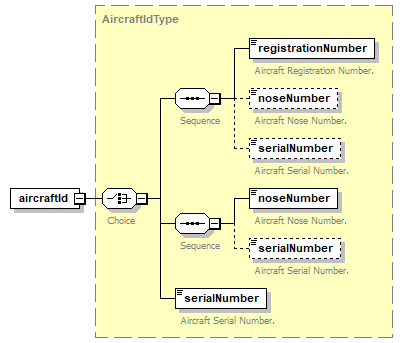

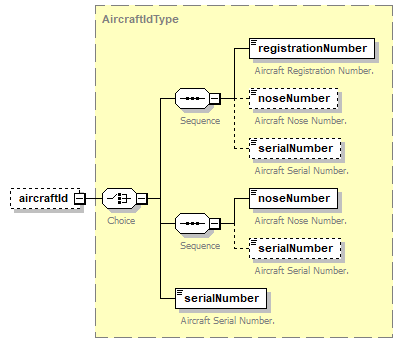

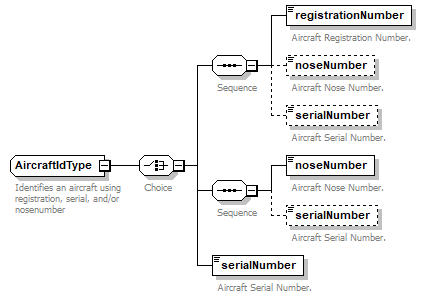

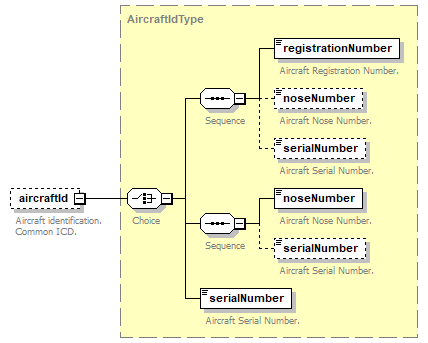

element AircraftAssignmentType/aircraftId

diagram
namespace	http://www.jeppesen.com/aoc
type	AircraftIdType
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	registrationNumber noseNumber serialNumber noseNumber serialNumber serialNumber
annotation	documentation Aircraft identification information.

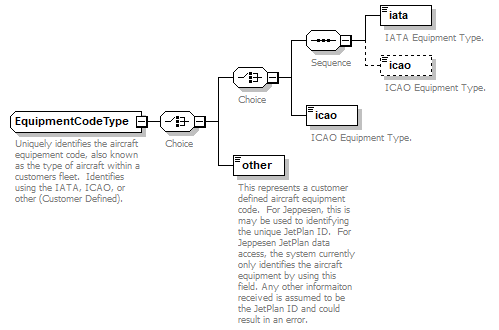

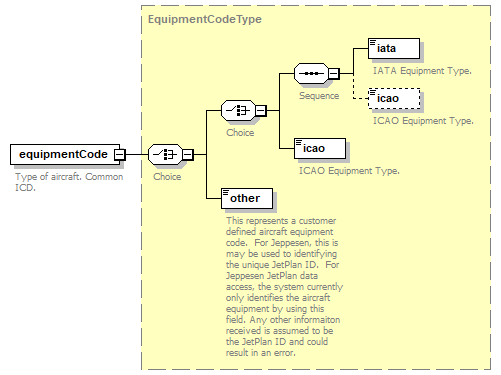

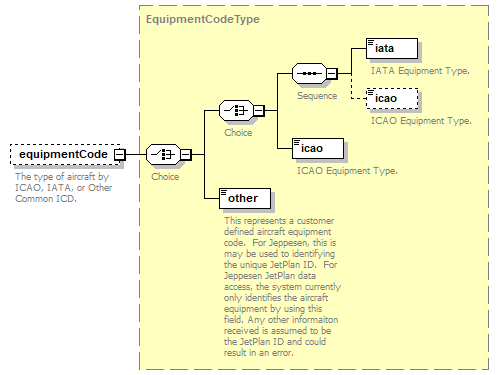

element AircraftAssignmentType/equipmentCode

diagram
namespace	http://www.jeppesen.com/aoc
type	EquipmentCodeType
properties	isRef  0 content  complex
children	iata icao icao other
annotation	documentation Type of aircraft or equipment

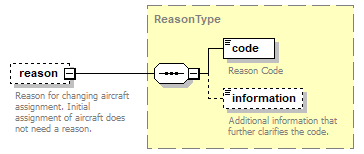

element AircraftAssignmentType/reason

diagram
namespace	http://www.jeppesen.com/aoc
type	ReasonType
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	code information
annotation	documentation Reason for changing aircraft assignment. Initial assignment of aircraft does not need a reason.

element AircraftAssignmentType/isFuelBonded

diagram
namespace	http://www.jeppesen.com/aoc
type	xs:boolean
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	documentation True (on) then process as bonded fuel.  If false (off) then process as nonbonded fuel.

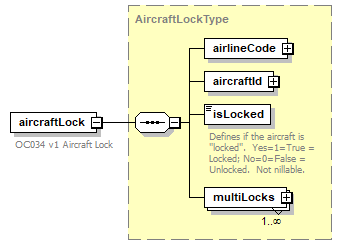

complexType AircraftLockType

diagram
namespace	http://www.jeppesen.com/aoc
children	airlineCode aircraftId isLocked multiLocks
used by	element  OperationsControlType/aircraftLock
annotation	documentation OC034 v1 Aircraft Lock

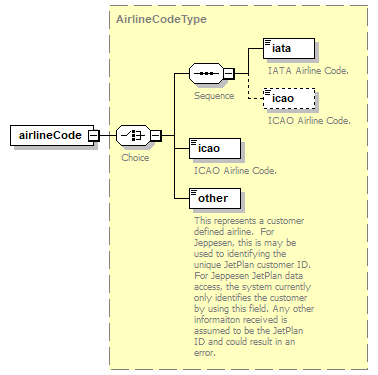

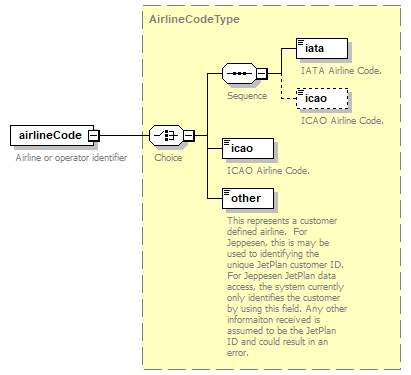

element AircraftLockType/airlineCode

diagram
namespace	http://www.jeppesen.com/aoc
type	AirlineCodeType
properties	isRef  0 content  complex
children	iata icao icao other

element AircraftLockType/aircraftId

diagram
namespace	http://www.jeppesen.com/aoc
type	AircraftIdType
properties	isRef  0 content  complex
children	registrationNumber noseNumber serialNumber noseNumber serialNumber serialNumber

element AircraftLockType/isLocked

diagram
namespace	http://www.jeppesen.com/aoc
type	xs:boolean
properties	isRef  0 content  simple nillable  false
annotation	documentation Defines if the aircraft is "locked".  Yes=1=True = Locked; No=0=False = Unlocked.  Not nillable.

element AircraftLockType/multiLocks

diagram
namespace	http://www.jeppesen.com/aoc
properties	isRef  0 minOcc  1 maxOcc  unbounded content  complex
children	lockedDateTime lockReasonDescription

element AircraftLockType/multiLocks/lockedDateTime

diagram
namespace	http://www.jeppesen.com/aoc
type	xs:dateTime
properties	isRef  0 content  simple nillable  false

element AircraftLockType/multiLocks/lockReasonDescription

diagram
namespace	http://www.jeppesen.com/aoc
type	restriction of xs:string
properties	isRef  0 content  simple
facets	Kind  Value  annotation  minLength  0  maxLength  150
annotation	documentation Simple string

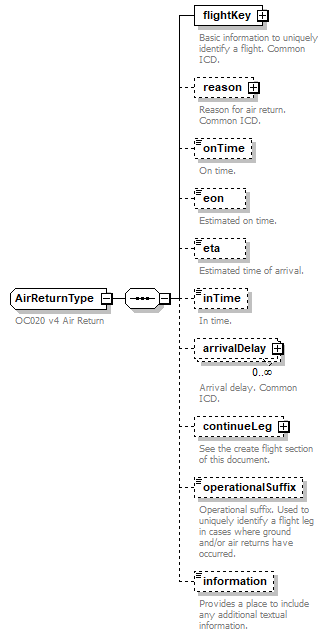

complexType AirReturnType

diagram
namespace	http://www.jeppesen.com/aoc
children	flightKey reason onTime eon eta inTime arrivalDelay continueLeg operationalSuffix information
used by	element  OperationsControlType/airReturn
annotation	documentation OC020 v4 Air Return

element AirReturnType/flightKey

diagram
namespace	http://www.jeppesen.com/aoc
type	FlightKeyType
properties	isRef  0 content  complex
children	flightIdentifier pod
annotation	documentation Basic information to uniquely identify a flight. Common ICD.

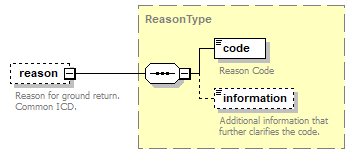

element AirReturnType/reason

diagram
namespace	http://www.jeppesen.com/aoc
type	ReasonType
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	code information
annotation	documentation Reason for air return. Common ICD.

element AirReturnType/onTime

diagram
namespace	http://www.jeppesen.com/aoc
type	xs:dateTime
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	documentation On time.

element AirReturnType/eon

diagram
namespace	http://www.jeppesen.com/aoc
type	xs:dateTime
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	documentation Estimated on time.

element AirReturnType/eta

diagram
namespace	http://www.jeppesen.com/aoc
type	xs:dateTime
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	documentation Estimated time of arrival.

element AirReturnType/inTime

diagram
namespace	http://www.jeppesen.com/aoc
type	xs:dateTime
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	documentation In time.

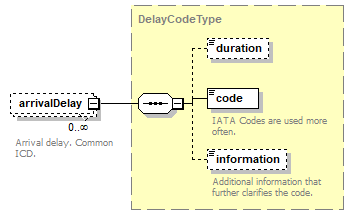

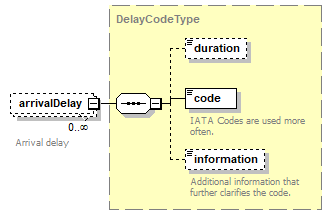

element AirReturnType/arrivalDelay

diagram
namespace	http://www.jeppesen.com/aoc
type	DelayCodeType
properties	isRef  0 minOcc  0 maxOcc  unbounded content  complex
children	duration code information
annotation	documentation Arrival delay. Common ICD.

element AirReturnType/continueLeg

diagram
namespace	http://www.jeppesen.com/aoc
type	ContinueLegType
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	callSign scheduledTimeDeparture scheduledTimeArrival scheduledTaxiOut scheduledTaxiIn etd eta
annotation	documentation See the create flight section of this document.

element AirReturnType/operationalSuffix

diagram
namespace	http://www.jeppesen.com/aoc
type	String1
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  annotation  maxLength  1
annotation	documentation Operational suffix. Used to uniquely identify a flight leg in cases where ground and/or air returns have occurred.

element AirReturnType/information

diagram
namespace	http://www.jeppesen.com/aoc
type	String1000
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  annotation  maxLength  1000
annotation	documentation Provides a place to include any additional textual information.

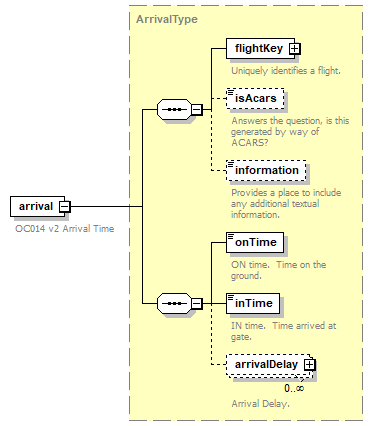

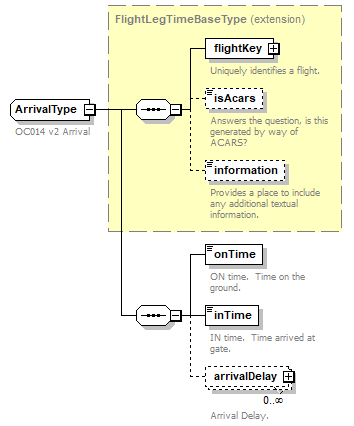

complexType ArrivalType

diagram
namespace	http://www.jeppesen.com/aoc
type	extension of FlightLegTimeBaseType
properties	base  FlightLegTimeBaseType
children	flightKey isAcars information onTime inTime arrivalDelay
used by	element  OperationsControlType/arrival
annotation	documentation OC014 v2 Arrival

element ArrivalType/onTime

diagram
namespace	http://www.jeppesen.com/aoc
type	xs:dateTime
properties	isRef  0 content  simple nillable  true
annotation	documentation ON time.  Time on the ground.

element ArrivalType/inTime

diagram
namespace	http://www.jeppesen.com/aoc
type	xs:dateTime
properties	isRef  0 content  simple nillable  true
annotation	documentation IN time.  Time arrived at gate.

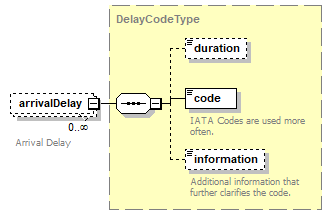

element ArrivalType/arrivalDelay

diagram
namespace	http://www.jeppesen.com/aoc
type	DelayCodeType
properties	isRef  0 minOcc  0 maxOcc  unbounded content  complex
children	duration code information
annotation	documentation Arrival Delay.

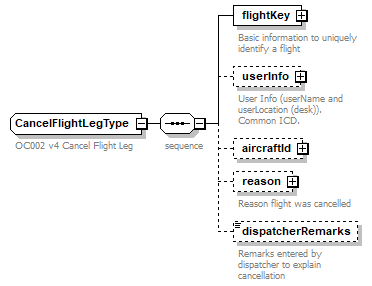

complexType CancelFlightLegType

diagram
namespace	http://www.jeppesen.com/aoc
children	flightKey userInfo aircraftId reason dispatcherRemarks
used by	element  OperationsControlType/cancelFlightLeg
annotation	documentation OC002 v4 Cancel Flight Leg

element CancelFlightLegType/flightKey

diagram
namespace	http://www.jeppesen.com/aoc
type	FlightKeyType
properties	isRef  0 content  complex
children	flightIdentifier pod
annotation	documentation Basic information to uniquely identify a flight

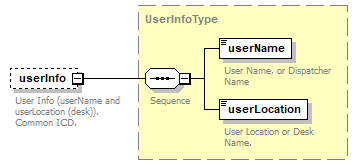

element CancelFlightLegType/userInfo

diagram
namespace	http://www.jeppesen.com/aoc
type	UserInfoType
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	userName userLocation
annotation	documentation User Info (userName and userLocation (desk)). Common ICD.

element CancelFlightLegType/aircraftId

diagram
namespace	http://www.jeppesen.com/aoc
type	AircraftIdType
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	registrationNumber noseNumber serialNumber noseNumber serialNumber serialNumber

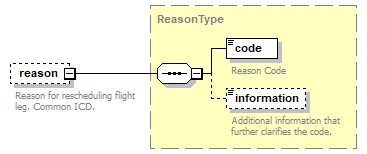

element CancelFlightLegType/reason

diagram
namespace	http://www.jeppesen.com/aoc
type	ReasonType
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	code information
annotation	documentation Reason flight was cancelled

element CancelFlightLegType/dispatcherRemarks

diagram
namespace	http://www.jeppesen.com/aoc
type	String1000
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  annotation  maxLength  1000
annotation	documentation Remarks entered by dispatcher to explain cancellation

complexType ChangeFlightLegIdentifierType

diagram
namespace	http://www.jeppesen.com/aoc
children	flightKey newFlightIdentifier callSign reason
used by	element  OperationsControlType/changeFlightLegIdentifier
annotation	documentation OC018 v3 Change Flight Identifier

element ChangeFlightLegIdentifierType/flightKey

diagram
namespace	http://www.jeppesen.com/aoc
type	FlightKeyType
properties	isRef  0 content  complex
children	flightIdentifier pod
annotation	documentation Basic information to uniquely identify a flight. Common ICD.

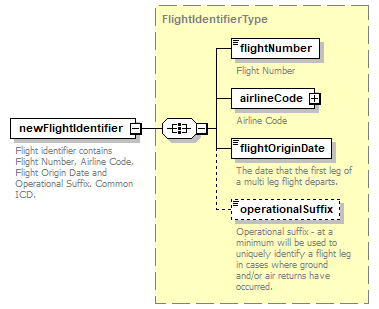

element ChangeFlightLegIdentifierType/newFlightIdentifier

diagram
namespace	http://www.jeppesen.com/aoc
type	FlightIdentifierType
properties	isRef  0 content  complex
children	flightNumber airlineCode flightOriginDate operationalSuffix
annotation	documentation Flight identifier contains Flight Number, Airline Code, Flight Origin Date and Operational Suffix. Common ICD.

element ChangeFlightLegIdentifierType/callSign

diagram
namespace	http://www.jeppesen.com/aoc
type	CallSignType
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  annotation  minLength  4  maxLength  8
annotation	documentation Call sign.  Common ICD.

element ChangeFlightLegIdentifierType/reason

diagram
namespace	http://www.jeppesen.com/aoc
type	ReasonType
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	code information
annotation	documentation Reason for changing the flight identifier. Common ICD.

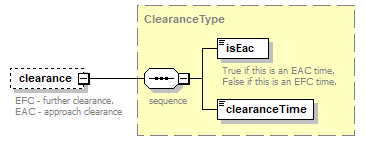

complexType ClearanceType

diagram
namespace	http://www.jeppesen.com/aoc
children	isEac clearanceTime
used by	element  EstimateTimesType/estimateTimesGroup/clearance

element ClearanceType/isEac

diagram
namespace	http://www.jeppesen.com/aoc
type	xs:boolean
properties	isRef  0 content  simple
annotation	documentation True if this is an EAC time.  False if this is an EFC time.

element ClearanceType/clearanceTime

diagram
namespace	http://www.jeppesen.com/aoc
type	xs:dateTime
properties	isRef  0 content  simple

complexType CompletedFlightKeyType

diagram
namespace	http://www.jeppesen.com/aoc
children	uniqueId flightKey error
used by	element  OperationsControlType/completedFlightKey
annotation	documentation OC037 vA DRAFT Completed Flight Key PUBLISH - Provides completed flight key.

element CompletedFlightKeyType/uniqueId

diagram
namespace	http://www.jeppesen.com/aoc
type	xs:string
properties	isRef  0 minOcc  0 maxOcc  1 content  simple nillable  true
annotation	documentation This is a unique string that is used to correlate messages within a message conversation.

element CompletedFlightKeyType/flightKey

diagram
namespace	http://www.jeppesen.com/aoc
type	FlightKeyType
properties	isRef  0 content  complex
children	flightIdentifier pod

element CompletedFlightKeyType/error

diagram
namespace	http://www.jeppesen.com/aoc
type	ErrorType
properties	isRef  0 content  complex
children	code information

complexType ContinueLegType

diagram
namespace	http://www.jeppesen.com/aoc
children	callSign scheduledTimeDeparture scheduledTimeArrival scheduledTaxiOut scheduledTaxiIn etd eta
used by	elements  DivertFlightLegType/continueLeg AirReturnType/continueLeg GroundReturnType/continueLeg

element ContinueLegType/callSign

diagram
namespace	http://www.jeppesen.com/aoc
type	CallSignType
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  annotation  minLength  4  maxLength  8
annotation	documentation Call sign. Common ICD.

element ContinueLegType/scheduledTimeDeparture

diagram
namespace	http://www.jeppesen.com/aoc
type	xs:dateTime
properties	isRef  0 content  simple
annotation	documentation Scheduled time of departure

element ContinueLegType/scheduledTimeArrival

diagram
namespace	http://www.jeppesen.com/aoc
type	xs:dateTime
properties	isRef  0 content  simple
annotation	documentation Scheduled time of arrival

element ContinueLegType/scheduledTaxiOut

diagram
namespace	http://www.jeppesen.com/aoc
type	Duration0to180Minutes
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  annotation  minInclusive  PT0M  maxInclusive  PT180M
annotation	documentation Scheduled taxi out duration in minutes

element ContinueLegType/scheduledTaxiIn

diagram
namespace	http://www.jeppesen.com/aoc
type	Duration0to180Minutes
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  annotation  minInclusive  PT0M  maxInclusive  PT180M
annotation	documentation Scheduled taxi in duration in minutes

element ContinueLegType/etd

diagram
namespace	http://www.jeppesen.com/aoc
type	xs:dateTime
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	documentation Estimated time of departure.  Common ICD.

element ContinueLegType/eta

diagram
namespace	http://www.jeppesen.com/aoc
type	xs:dateTime
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	documentation Estimated time of arrival.  Common ICD.

complexType CreateFlightLegDataType

diagram
namespace	http://www.jeppesen.com/aoc
children	flightKey callSign poa serviceType equipmentCode scheduledTimeDeparture scheduledTimeArrival aircraftId reason irregularOperationType dispatchDesk scheduledTaxiOut scheduledTaxiIn
used by	elements  CreateFlightLegType/flightLeg AdHocCreateFlightLegType/flightLeg

element CreateFlightLegDataType/flightKey

diagram
namespace	http://www.jeppesen.com/aoc
type	FlightKeyType
properties	isRef  0 content  complex
children	flightIdentifier pod
annotation	documentation Basic information to uniquely identify a flight. Common ICD.

element CreateFlightLegDataType/callSign

diagram
namespace	http://www.jeppesen.com/aoc
type	CallSignType
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  annotation  minLength  4  maxLength  8
annotation	documentation Call sign. Common ICD.

element CreateFlightLegDataType/poa

diagram
namespace	http://www.jeppesen.com/aoc
type	AirportCodeType
properties	isRef  0 content  complex
children	iata icao icao other
annotation	documentation Point of arrival for the new flight leg. Common ICD.

element CreateFlightLegDataType/serviceType

diagram
namespace	http://www.jeppesen.com/aoc
type	ServiceCodeEnumType
properties	isRef  0 content  simple
facets	Kind  Value  annotation  pattern  [J,S,U,F,V,M,Q,G,B,A,R,C,O,H,L,P,T,K,D,E,W,X,I,N,Y,Z]{1}
annotation	documentation See SSIM Appendix C

element CreateFlightLegDataType/equipmentCode

diagram
namespace	http://www.jeppesen.com/aoc
type	EquipmentCodeType
properties	isRef  0 content  complex
children	iata icao icao other
annotation	documentation Type of aircraft. Common ICD.

element CreateFlightLegDataType/scheduledTimeDeparture

diagram
namespace	http://www.jeppesen.com/aoc
type	xs:dateTime
properties	isRef  0 content  simple
annotation	documentation Scheduled time of departure

element CreateFlightLegDataType/scheduledTimeArrival

diagram
namespace	http://www.jeppesen.com/aoc
type	xs:dateTime
properties	isRef  0 content  simple
annotation	documentation Scheduled time of arrival

element CreateFlightLegDataType/aircraftId

diagram
namespace	http://www.jeppesen.com/aoc
type	AircraftIdType
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	registrationNumber noseNumber serialNumber noseNumber serialNumber serialNumber
annotation	documentation Aircraft identification. Common ICD.

element CreateFlightLegDataType/reason

diagram
namespace	http://www.jeppesen.com/aoc
type	ReasonType
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	code information
annotation	documentation Reason for the create. Common ICD.

element CreateFlightLegDataType/irregularOperationType

diagram
namespace	http://www.jeppesen.com/aoc
type	IrregularOperationEnumType
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  annotation  enumeration  Ferry  enumeration  Continue  enumeration  Position  enumeration  Gate Return
annotation	documentation Required if it is an irregular operation.

element CreateFlightLegDataType/dispatchDesk

diagram
namespace	http://www.jeppesen.com/aoc
type	xs:string
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	documentation Desk identification.

element CreateFlightLegDataType/scheduledTaxiOut

diagram
namespace	http://www.jeppesen.com/aoc
type	Duration0to180Minutes
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  annotation  minInclusive  PT0M  maxInclusive  PT180M
annotation	documentation Scheduled taxi out duration in minutes.

element CreateFlightLegDataType/scheduledTaxiIn

diagram
namespace	http://www.jeppesen.com/aoc
type	Duration0to180Minutes
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  annotation  minInclusive  PT0M  maxInclusive  PT180M
annotation	documentation Scheduled taxi in duration in minutes.

complexType CreateFlightLegType

diagram
namespace	http://www.jeppesen.com/aoc
children	flightLeg
used by	element  OperationsControlType/createFlightLeg
annotation	documentation OC001 v3 Create Flight Leg

element CreateFlightLegType/flightLeg

diagram
namespace	http://www.jeppesen.com/aoc
type	CreateFlightLegDataType
properties	isRef  0 minOcc  1 maxOcc  unbounded content  complex
children	flightKey callSign poa serviceType equipmentCode scheduledTimeDeparture scheduledTimeArrival aircraftId reason irregularOperationType dispatchDesk scheduledTaxiOut scheduledTaxiIn

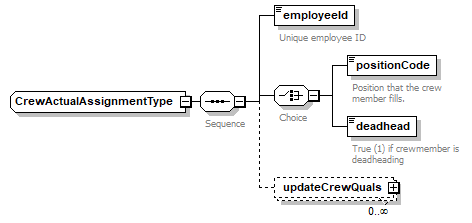

complexType CrewActualAssignmentType

diagram
namespace	http://www.jeppesen.com/aoc
children	employeeId positionCode deadhead updateCrewQuals
used by	element  PostFlightActualsType/crewAssignments

element CrewActualAssignmentType/employeeId

diagram
namespace	http://www.jeppesen.com/aoc
type	restriction of xs:string
properties	isRef  0 content  simple
facets	Kind  Value  annotation  maxLength  10
annotation	documentation Unique employee ID

element CrewActualAssignmentType/positionCode

diagram
namespace	http://www.jeppesen.com/aoc
type	xs:string
properties	isRef  0 content  simple
annotation	documentation Position that the crew member fills.

element CrewActualAssignmentType/deadhead

diagram
namespace	http://www.jeppesen.com/aoc
type	xs:boolean
properties	isRef  0 content  simple
annotation	documentation True (1) if crewmember is deadheading

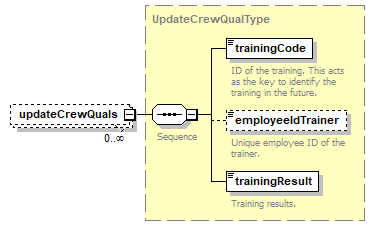

element CrewActualAssignmentType/updateCrewQuals

diagram
namespace	http://www.jeppesen.com/aoc
type	UpdateCrewQualType
properties	isRef  0 minOcc  0 maxOcc  unbounded content  complex
children	trainingCode employeeIdTrainer trainingResult

complexType CrewMemberAssignmentType

diagram
namespace	http://www.jeppesen.com/aoc
children	employeeId firstName middleName lastName name crewQualifications
used by	element  FlightAssignmentDataType/crewAssignment

element CrewMemberAssignmentType/employeeId

diagram
namespace	http://www.jeppesen.com/aoc
type	String10
properties	isRef  0 content  simple
facets	Kind  Value  annotation  maxLength  10
annotation	documentation Unique employee ID

element CrewMemberAssignmentType/firstName

diagram
namespace	http://www.jeppesen.com/aoc
type	String20
properties	isRef  0 content  simple
facets	Kind  Value  annotation  maxLength  20
annotation	documentation Mandatory if name is blank

element CrewMemberAssignmentType/middleName

diagram
namespace	http://www.jeppesen.com/aoc
type	String20
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  annotation  maxLength  20
annotation	documentation Can be middle initial

element CrewMemberAssignmentType/lastName

diagram
namespace	http://www.jeppesen.com/aoc
type	String20
properties	isRef  0 content  simple
facets	Kind  Value  annotation  maxLength  20
annotation	documentation Mandatory if name is blank

element CrewMemberAssignmentType/name

diagram
namespace	http://www.jeppesen.com/aoc
type	String60
properties	isRef  0 content  simple
facets	Kind  Value  annotation  maxLength  60
annotation	documentation Mandatory if split fields blank

element CrewMemberAssignmentType/crewQualifications

diagram
namespace	http://www.jeppesen.com/aoc
type	CrewQualificationsType
properties	isRef  0 minOcc  0 maxOcc  unbounded content  complex
children	trainingCode description primary validUntilDate
annotation	documentation Qualifications for the crew as of the time the tasking was assigned.

complexType CrewQualificationsType

diagram
namespace	http://www.jeppesen.com/aoc
children	trainingCode description primary validUntilDate
used by	element  CrewMemberAssignmentType/crewQualifications

element CrewQualificationsType/trainingCode

diagram
namespace	http://www.jeppesen.com/aoc
type	xs:string
properties	isRef  0 content  simple
annotation	documentation Training code of the qualification.

element CrewQualificationsType/description

diagram
namespace	http://www.jeppesen.com/aoc
type	xs:string
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	documentation Description of training.

element CrewQualificationsType/primary

diagram
namespace	http://www.jeppesen.com/aoc
type	xs:boolean
properties	isRef  0 content  simple
annotation	documentation Indicates mandatory for any flight leg.  When not true, the qualification does not apply to every type of flight.

element CrewQualificationsType/validUntilDate

diagram
namespace	http://www.jeppesen.com/aoc
type	xs:date
properties	isRef  0 content  simple
annotation	documentation Qualification is valid until this date.  UTC.

complexType DelayType

diagram
namespace	http://www.jeppesen.com/aoc
children	flightKey departureDelay arrivalDelay information
used by	element  OperationsControlType/delay
annotation	documentation OC022 v2 Delay

element DelayType/flightKey

diagram
namespace	http://www.jeppesen.com/aoc
type	FlightKeyType
properties	isRef  0 content  complex
children	flightIdentifier pod
annotation	documentation Uniquely identifies a flight.

element DelayType/departureDelay

diagram
namespace	http://www.jeppesen.com/aoc
type	DelayCodeType
properties	isRef  0 minOcc  0 maxOcc  unbounded content  complex
children	duration code information
annotation	documentation Departure Delay

element DelayType/arrivalDelay

diagram
namespace	http://www.jeppesen.com/aoc
type	DelayCodeType
properties	isRef  0 minOcc  0 maxOcc  unbounded content  complex
children	duration code information
annotation	documentation Arrival Delay

element DelayType/information

diagram
namespace	http://www.jeppesen.com/aoc
type	String1000
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  annotation  maxLength  1000
annotation	documentation Provides a place to include any additional textual information.

complexType DeleteFlightLegType

diagram
namespace	http://www.jeppesen.com/aoc
children	flightKey userInfo aircraftId reason
used by	element  OperationsControlType/deleteFlightLeg
annotation	documentation OC003 v4  Delete Flight Leg

element DeleteFlightLegType/flightKey

diagram
namespace	http://www.jeppesen.com/aoc
type	FlightKeyType
properties	isRef  0 content  complex
children	flightIdentifier pod
annotation	documentation Basic information to uniquely identify a flight

element DeleteFlightLegType/userInfo

diagram
namespace	http://www.jeppesen.com/aoc
type	UserInfoType
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	userName userLocation
annotation	documentation User Info (userName and userLocation (desk)). Common ICD.

element DeleteFlightLegType/aircraftId

diagram
namespace	http://www.jeppesen.com/aoc
type	AircraftIdType
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	registrationNumber noseNumber serialNumber noseNumber serialNumber serialNumber

element DeleteFlightLegType/reason

diagram
namespace	http://www.jeppesen.com/aoc

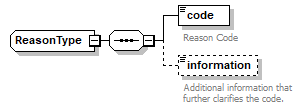

type	ReasonType
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	code information
annotation	documentation Reason for deleting the flight leg. Common ICD.

complexType DepartureType

diagram
namespace	http://www.jeppesen.com/aoc
type	extension of FlightLegTimeBaseType
properties	base  FlightLegTimeBaseType
children	flightKey isAcars information outTime offTime eon eta map departureDelay
used by	element  OperationsControlType/departure
annotation	documentation OC017 v2 Departure

element DepartureType/outTime

diagram
namespace	http://www.jeppesen.com/aoc
type	xs:dateTime
properties	isRef  0 content  simple nillable  true
annotation	documentation Out time.

element DepartureType/offTime

diagram
namespace	http://www.jeppesen.com/aoc
type	xs:dateTime
properties	isRef  0 content  simple nillable  true
annotation	documentation Off time.

element DepartureType/eon

diagram
namespace	http://www.jeppesen.com/aoc
type	xs:dateTime
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	documentation Estimated on time.

element DepartureType/eta

diagram
namespace	http://www.jeppesen.com/aoc
type	xs:dateTime
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	documentation Estimated time of arrival.

element DepartureType/map

diagram
namespace	http://www.jeppesen.com/aoc
type	xs:dateTime
properties	isRef  0 minOcc  0 maxOcc  1 content  simple nillable  true
annotation	documentation Movement after push time.

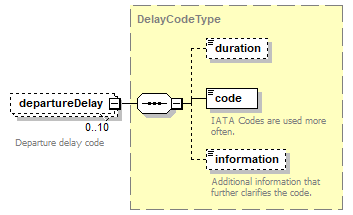

element DepartureType/departureDelay

diagram
namespace	http://www.jeppesen.com/aoc
type	DelayCodeType
properties	isRef  0 minOcc  0 maxOcc  10 content  complex
children	duration code information
annotation	documentation Departure delay code

complexType DispatcherLockRequestType

diagram
namespace	http://www.jeppesen.com/aoc
children	dispatcherFlightLock
used by	element  OperationsControlType/dispatcherLockRequest
annotation	documentation OC033 v1 Dispatcher Lock Request - lock or unlock specific flights requested by the dispatcher

element DispatcherLockRequestType/dispatcherFlightLock

diagram
namespace	http://www.jeppesen.com/aoc
properties	isRef  0 minOcc  1 maxOcc  unbounded content  complex
children	flightKey poa aircraftId lockTypeRequested contactInfo lockUnlockDateTime lockUnlockReason

element DispatcherLockRequestType/dispatcherFlightLock/flightKey

diagram
namespace	http://www.jeppesen.com/aoc
type	FlightKeyType
properties	isRef  0 content  complex
children	flightIdentifier pod

element DispatcherLockRequestType/dispatcherFlightLock/poa

diagram
namespace	http://www.jeppesen.com/aoc
type	AirportCodeType
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	iata icao icao other
annotation	documentation Point of arrival for the new flight leg. Common ICD.

element DispatcherLockRequestType/dispatcherFlightLock/aircraftId

diagram
namespace	http://www.jeppesen.com/aoc
type	AircraftIdType
properties	isRef  0 content  complex
children	registrationNumber noseNumber serialNumber noseNumber serialNumber serialNumber

element DispatcherLockRequestType/dispatcherFlightLock/lockTypeRequested

diagram
namespace	http://www.jeppesen.com/aoc
type	restriction of xs:string
properties	isRef  0 content  simple nillable  false
facets	Kind  Value  annotation  enumeration  Lock  enumeration  Unlock
annotation	documentation Enumerations:  Lock, Unlock

element DispatcherLockRequestType/dispatcherFlightLock/contactInfo

diagram
namespace	http://www.jeppesen.com/aoc
properties	isRef  0 content  complex
children	deskName userName phoneNumber loginId

element DispatcherLockRequestType/dispatcherFlightLock/contactInfo/deskName

diagram
namespace	http://www.jeppesen.com/aoc
type	xs:string
properties	isRef  0 content  simple

element DispatcherLockRequestType/dispatcherFlightLock/contactInfo/userName

diagram
namespace	http://www.jeppesen.com/aoc
type	xs:string
properties	isRef  0 content  simple

element DispatcherLockRequestType/dispatcherFlightLock/contactInfo/phoneNumber

diagram
namespace	http://www.jeppesen.com/aoc
type	xs:string
properties	isRef  0 content  simple

element DispatcherLockRequestType/dispatcherFlightLock/contactInfo/loginId

diagram
namespace	http://www.jeppesen.com/aoc
type	xs:string
properties	isRef  0 minOcc  0 maxOcc  1 content  simple

element DispatcherLockRequestType/dispatcherFlightLock/lockUnlockDateTime

diagram
namespace	http://www.jeppesen.com/aoc
type	xs:dateTime
properties	isRef  0 content  simple nillable  false

element DispatcherLockRequestType/dispatcherFlightLock/lockUnlockReason

diagram
namespace	http://www.jeppesen.com/aoc
type	restriction of xs:string
properties	isRef  0 content  simple
facets	Kind  Value  annotation  minLength  0  maxLength  150
annotation	documentation Dispatcher's reason for locked flight. Limited to: 150 chars

complexType DispatcherLockResponseType

diagram
namespace	http://www.jeppesen.com/aoc
children	lockUnlockResponse error
used by	element  OperationsControlType/dispatcherLockResponse
annotation	documentation OC033 v1 Dispatcher Lock Response.  External system approves or disapproves the requested  lock or unlock  flight.

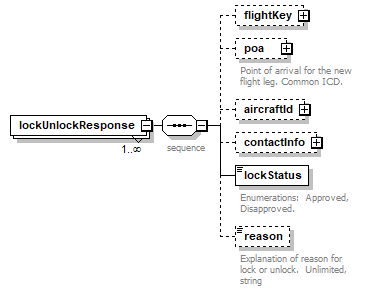

element DispatcherLockResponseType/lockUnlockResponse

diagram
namespace	http://www.jeppesen.com/aoc
properties	isRef  0 minOcc  1 maxOcc  unbounded content  complex
children	flightKey poa aircraftId contactInfo lockStatus reason

element DispatcherLockResponseType/lockUnlockResponse/flightKey

diagram
namespace	http://www.jeppesen.com/aoc
type	FlightKeyType
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	flightIdentifier pod

element DispatcherLockResponseType/lockUnlockResponse/poa

diagram
namespace	http://www.jeppesen.com/aoc
type	AirportCodeType
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	iata icao icao other
annotation	documentation Point of arrival for the new flight leg. Common ICD.

element DispatcherLockResponseType/lockUnlockResponse/aircraftId

diagram
namespace	http://www.jeppesen.com/aoc
type	AircraftIdType
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	registrationNumber noseNumber serialNumber noseNumber serialNumber serialNumber

element DispatcherLockResponseType/lockUnlockResponse/contactInfo

diagram
namespace	http://www.jeppesen.com/aoc
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	deskName userName phoneNumber loginId

element DispatcherLockResponseType/lockUnlockResponse/contactInfo/deskName

diagram
namespace	http://www.jeppesen.com/aoc
type	xs:string
properties	isRef  0 content  simple

element DispatcherLockResponseType/lockUnlockResponse/contactInfo/userName

diagram
namespace	http://www.jeppesen.com/aoc
type	xs:string
properties	isRef  0 content  simple

element DispatcherLockResponseType/lockUnlockResponse/contactInfo/phoneNumber

diagram
namespace	http://www.jeppesen.com/aoc
type	xs:string
properties	isRef  0 content  simple

element DispatcherLockResponseType/lockUnlockResponse/contactInfo/loginId

diagram
namespace	http://www.jeppesen.com/aoc
type	xs:string
properties	isRef  0 minOcc  0 maxOcc  1 content  simple

element DispatcherLockResponseType/lockUnlockResponse/lockStatus

diagram
namespace	http://www.jeppesen.com/aoc
type	restriction of xs:string
properties	isRef  0 content  simple nillable  false
facets	Kind  Value  annotation  enumeration  Approved  enumeration  Disapproved
annotation	documentation Enumerations:  Approved, Disapproved.

element DispatcherLockResponseType/lockUnlockResponse/reason

diagram
namespace	http://www.jeppesen.com/aoc
type	xs:string
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	documentation Explanation of reason for lock or unlock.  Unlimited, string

element DispatcherLockResponseType/error

diagram
namespace	http://www.jeppesen.com/aoc
type	ErrorType
properties	isRef  0 content  complex
children	code information

complexType DivertFlightLegType

diagram
namespace	http://www.jeppesen.com/aoc
children	flightKey actualPoa reason eta eon continueLeg
used by	element  OperationsControlType/divertFlightLeg
annotation	documentation OC005 v3 Divert Flight Leg

element DivertFlightLegType/flightKey

diagram
namespace	http://www.jeppesen.com/aoc
type	FlightKeyType
properties	isRef  0 content  complex

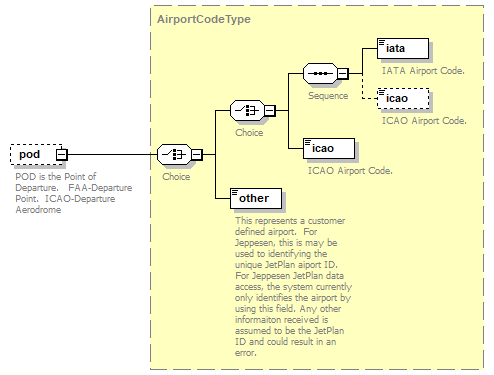

children	flightIdentifier pod
annotation	documentation Basic information to uniquely identify a flight

element DivertFlightLegType/actualPoa

diagram
namespace	http://www.jeppesen.com/aoc
type	AirportCodeType
properties	isRef  0 content  complex
children	iata icao icao other
annotation	documentation Airport to divert to

element DivertFlightLegType/reason

diagram
namespace	http://www.jeppesen.com/aoc
type	ReasonType
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	code information
annotation	documentation Reason for diversion

element DivertFlightLegType/eta

diagram
namespace	http://www.jeppesen.com/aoc
type	xs:dateTime
properties	isRef  0 content  simple
annotation	documentation Estimated arrival time at diversion airport

element DivertFlightLegType/eon

diagram
namespace	http://www.jeppesen.com/aoc
type	xs:dateTime
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	documentation Estimated on time

element DivertFlightLegType/continueLeg

diagram
namespace	http://www.jeppesen.com/aoc
type	ContinueLegType
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	callSign scheduledTimeDeparture scheduledTimeArrival scheduledTaxiOut scheduledTaxiIn etd eta
annotation	documentation This field is used to create a continuation leg

complexType EstimateTimesType

diagram
namespace	http://www.jeppesen.com/aoc
children	estimateTimesGroup
used by	element  OperationsControlType/estimateTimes
annotation	documentation OC012 v3 Estimated Times

element EstimateTimesType/estimateTimesGroup

diagram
namespace	http://www.jeppesen.com/aoc
properties	isRef  0 minOcc  1 maxOcc  unbounded content  complex
children	flightKey etd eto eon eta ein departureDelay arrivalDelay information clearance changeoverReceived

element EstimateTimesType/estimateTimesGroup/flightKey

diagram
namespace	http://www.jeppesen.com/aoc
type	FlightKeyType
properties	isRef  0 content  complex
children	flightIdentifier pod
annotation	documentation Uniquely identifies a flight.

element EstimateTimesType/estimateTimesGroup/etd

diagram
namespace	http://www.jeppesen.com/aoc
type	xs:dateTime
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	documentation Estimated Time of Departure (push back from gate - OUT)

element EstimateTimesType/estimateTimesGroup/eto

diagram
namespace	http://www.jeppesen.com/aoc
type	xs:dateTime
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	documentation Estimated Take OFF time (wheels up - OFF)

element EstimateTimesType/estimateTimesGroup/eon

diagram
namespace	http://www.jeppesen.com/aoc
type	xs:dateTime
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	documentation Estimated ON time (touch down - ON)

element EstimateTimesType/estimateTimesGroup/eta

diagram
namespace	http://www.jeppesen.com/aoc
type	xs:dateTime
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	documentation Estimated Tiime of Arrival (touch down - ON)

element EstimateTimesType/estimateTimesGroup/ein

diagram
namespace	http://www.jeppesen.com/aoc
type	xs:dateTime
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	documentation Estimated IN time (pull into gate - IN)

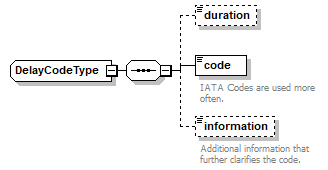

element EstimateTimesType/estimateTimesGroup/departureDelay

diagram
namespace	http://www.jeppesen.com/aoc
type	DelayCodeType
properties	isRef  0 minOcc  0 maxOcc  unbounded content  complex
children	duration code information
annotation	documentation Departure delay codes. Common ICD.

element EstimateTimesType/estimateTimesGroup/arrivalDelay

diagram
namespace	http://www.jeppesen.com/aoc
type	DelayCodeType
properties	isRef  0 minOcc  0 maxOcc  unbounded content  complex
children	duration code information
annotation	documentation Arrival delay codes. Common ICD.

element EstimateTimesType/estimateTimesGroup/information

diagram
namespace	http://www.jeppesen.com/aoc
type	String1000
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  annotation  maxLength  1000
annotation	documentation Provides a place to include any additional textual information.

element EstimateTimesType/estimateTimesGroup/clearance

diagram
namespace	http://www.jeppesen.com/aoc
type	ClearanceType
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	isEac clearanceTime
annotation	documentation EFC - further clearance.  EAC - approach clearance

element EstimateTimesType/estimateTimesGroup/changeoverReceived

diagram
namespace	http://www.jeppesen.com/aoc
type	xs:boolean
properties	isRef  0 minOcc  0 maxOcc  1 content  simple

complexType FlightAssignmentDataType

diagram
namespace	http://www.jeppesen.com/aoc
children	taskId aircraftId startDate endDate crewAssignment
used by	element  OperationsControlType/flightAssignmentData
annotation	documentation OC026 v1 Send Flight Assignment Data

element FlightAssignmentDataType/taskId

diagram
namespace	http://www.jeppesen.com/aoc
type	restriction of xs:string
properties	isRef  0 content  simple
facets	Kind  Value  annotation  maxLength  20

element FlightAssignmentDataType/aircraftId

diagram
namespace	http://www.jeppesen.com/aoc
type	AircraftIdentType
properties	isRef  0 minOcc  1 maxOcc  unbounded content  complex
children	registrationNumber noseNumber serialNumber noseNumber serialNumber serialNumber other

element FlightAssignmentDataType/startDate

diagram
namespace	http://www.jeppesen.com/aoc
type	xs:dateTime
properties	isRef  0 content  simple
annotation	documentation Start of the tasking.  scheduled date and time.

element FlightAssignmentDataType/endDate

diagram
namespace	http://www.jeppesen.com/aoc
type	xs:dateTime
properties	isRef  0 content  simple
annotation	documentation End of the tasking.  scheduled date and time.

element FlightAssignmentDataType/crewAssignment

diagram
namespace	http://www.jeppesen.com/aoc
type	CrewMemberAssignmentType
properties	isRef  0 minOcc  0 maxOcc  unbounded content  complex
children	employeeId firstName middleName lastName name crewQualifications
annotation	documentation Repeatable to number of crew member positions on the flight.

complexType FlightLegTimeBaseType

diagram
namespace	http://www.jeppesen.com/aoc
children	flightKey isAcars information

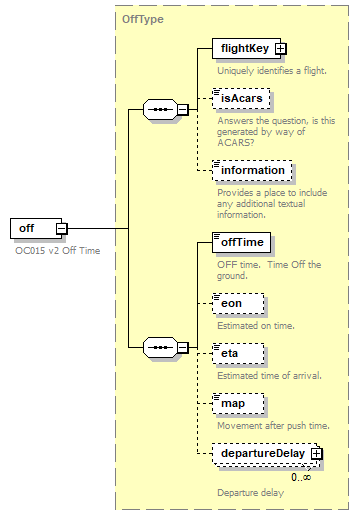

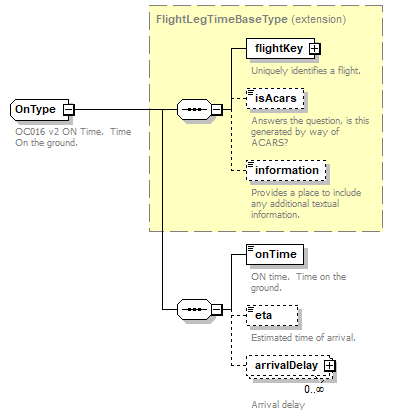

used by	complexTypes  ArrivalType DepartureType InType OffType OnType OutType

element FlightLegTimeBaseType/flightKey

diagram
namespace	http://www.jeppesen.com/aoc
type	FlightKeyType
properties	isRef  0 content  complex
children	flightIdentifier pod
annotation	documentation Uniquely identifies a flight.

element FlightLegTimeBaseType/isAcars

diagram
namespace	http://www.jeppesen.com/aoc
type	xs:boolean
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	documentation Answers the question, is this generated by way of ACARS?

element FlightLegTimeBaseType/information

diagram
namespace	http://www.jeppesen.com/aoc
type	String1000
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  annotation  maxLength  1000
annotation	documentation Provides a place to include any additional textual information.

complexType FlightLockType

diagram
namespace	http://www.jeppesen.com/aoc
children	flightKey lockoutIndicator
used by	element  OperationsControlType/flightLock
annotation	documentation OC025 v1 Flight Lock

element FlightLockType/flightKey

diagram
namespace	http://www.jeppesen.com/aoc
type	FlightKeyType
properties	isRef  0 content  complex
children	flightIdentifier pod
annotation	documentation Basic information to uniquely identify a flight. Common ICD.

element FlightLockType/lockoutIndicator

diagram
namespace	http://www.jeppesen.com/aoc
type	xs:boolean
properties	isRef  0 content  simple
annotation	documentation Status of the flight lock request. When a flight is "locked", then the flight plan data is locked  so that it cannot be edited or deleted. When a flight is "Unlocked" then  the flight plan data is unlocked to allow that data to be edited or deleted.

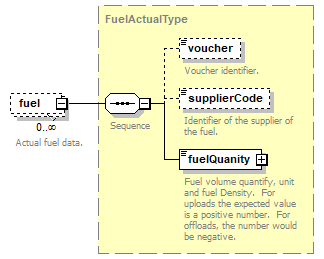

complexType FuelActualType

diagram
namespace	http://www.jeppesen.com/aoc
children	voucher supplierCode fuelQuanity
used by	element  PostFlightActualsType/fuel

element FuelActualType/voucher

diagram
namespace	http://www.jeppesen.com/aoc
type	restriction of xs:string
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  annotation  maxLength  20
annotation	documentation Voucher identifier.

element FuelActualType/supplierCode

diagram
namespace	http://www.jeppesen.com/aoc
type	restriction of xs:string
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  annotation  maxLength  20
annotation	documentation Identifier of the supplier of the fuel.

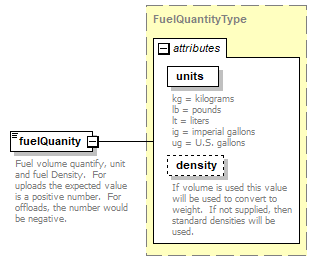

element FuelActualType/fuelQuanity

diagram
namespace	http://www.jeppesen.com/aoc
type	FuelQuantityType
properties	isRef  0 content  complex
facets	Kind  Value  annotation  minInclusive  0  maxInclusive  25000000
attributes	Name   Type   Use   Default   Fixed   annotation units FuelQuantityUnitsEnum required         documentation kg = kilograms lb = pounds lt = liters ig = imperial gallons ug = U.S. gallons density xs:double          documentation If volume is used this value will be used to convert to weight.  If not supplied, then standard densities will be used.
annotation	documentation Fuel volume quantify, unit and fuel Density.  For uploads the expected value is a positive number.  For offloads, the number would be negative.

complexType FuelOnBoardAtEnroutePositionsType

diagram
namespace	http://www.jeppesen.com/aoc
children	flightKey positions actualTime actualFlightLevel actualFuelOnBoard
used by	element  OperationsControlType/fuelOnBoardAtEnroutePositions
annotation	documentation OC030 v2 Fuel On Board at Enroute Positions (aka Over Report)

element FuelOnBoardAtEnroutePositionsType/flightKey

diagram
namespace	http://www.jeppesen.com/aoc
type	FlightKeyType
properties	isRef  0 content  complex
children	flightIdentifier pod
annotation	documentation Basic information to uniquely identify a flight. Common ICD.

element FuelOnBoardAtEnroutePositionsType/positions

diagram
namespace	http://www.jeppesen.com/aoc
type	PositionsType
properties	isRef  0 content  complex
children	positionLocation checkpointId

element FuelOnBoardAtEnroutePositionsType/actualTime

diagram
namespace	http://www.jeppesen.com/aoc
type	xs:dateTime
properties	isRef  0 content  simple

element FuelOnBoardAtEnroutePositionsType/actualFlightLevel

diagram
namespace	http://www.jeppesen.com/aoc
type	restriction of xs:integer
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  annotation  totalDigits  3

element FuelOnBoardAtEnroutePositionsType/actualFuelOnBoard

diagram
namespace	http://www.jeppesen.com/aoc
type	extension of xs:integer
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
attributes	Name   Type   Use   Default   Fixed   annotation basicWeightUom BasicWeightEnumType required         documentation Basic Weight Unit of Measure.  Enumerations: lb, kg
annotation	documentation Actual fuel on board to the pound.

attribute FuelOnBoardAtEnroutePositionsType/actualFuelOnBoard/@basicWeightUom

type	BasicWeightEnumType
properties	isRef  0 use  required
facets	Kind  Value  annotation  enumeration  lb  enumeration  kg
annotation	documentation Basic Weight Unit of Measure.  Enumerations: lb, kg

complexType FuelTankeringAdviceType

diagram
namespace	http://www.jeppesen.com/aoc
children	flightKey weightCase estDepartureFuel estTankerFuel reason tankerNoteOnRelease
used by	element  OperationsControlType/fuelTankeringAdvice
annotation	documentation OC035 v1 Fuel Tankering Advice

element FuelTankeringAdviceType/flightKey

diagram
namespace	http://www.jeppesen.com/aoc
type	FlightKeyType
properties	isRef  0 content  complex
children	flightIdentifier pod
annotation	documentation Fliight key for the current active flight

element FuelTankeringAdviceType/weightCase

diagram
namespace	http://www.jeppesen.com/aoc
type	restriction of xs:string
properties	isRef  0 content  simple
facets	Kind  Value  annotation  enumeration  Tanker Fuel  enumeration  Departure Fuel  enumeration  Arrival Weight  enumeration  Departure Weight
annotation	documentation Weight case recommended for flight planning based on tanker fuel suggestions.  Enumerations: Tanker Fuel, Departure Fuel, Arrival Weight, Departure Weight

element FuelTankeringAdviceType/estDepartureFuel

diagram
namespace	http://www.jeppesen.com/aoc
type	extension of xs:positiveInteger
properties	isRef  0 content  complex
attributes	Name   Type   Use   Default   Fixed   annotation units FuelQuantityUnitsEnum required         documentation kg = kilograms lb = pounds lt = liters ig = imperial gallons ug = U.S. gallons
annotation	documentation Departure Fuel Weight Case - Estimated Fuel on Board (FOB) that includes recommended tanker fuel.

attribute FuelTankeringAdviceType/estDepartureFuel/@units

type	FuelQuantityUnitsEnum
properties	isRef  0 use  required
annotation	documentation kg = kilograms lb = pounds lt = liters ig = imperial gallons ug = U.S. gallons

element FuelTankeringAdviceType/estTankerFuel

diagram
namespace	http://www.jeppesen.com/aoc
type	extension of xs:positiveInteger
properties	isRef  0 content  complex
attributes	Name   Type   Use   Default   Fixed   annotation units FuelQuantityUnitsEnum required         documentation kg = kilograms lb = pounds lt = liters ig = imperial gallons ug = U.S. gallons
annotation	documentation Estimated Tanker Fuel (arrival) - Tanker Fuel Weight Case.

attribute FuelTankeringAdviceType/estTankerFuel/@units

type	FuelQuantityUnitsEnum
properties	isRef  0 use  required
annotation	documentation kg = kilograms lb = pounds lt = liters ig = imperial gallons ug = U.S. gallons

element FuelTankeringAdviceType/reason

diagram
namespace	http://www.jeppesen.com/aoc
type	xs:string
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	documentation Explanation of Tankering Advice.

element FuelTankeringAdviceType/tankerNoteOnRelease

diagram
namespace	http://www.jeppesen.com/aoc
type	xs:boolean
properties	isRef  0 content  simple nillable  false
annotation	documentation Is Tanker Note to be displayed the Dispatch Release?  1=true; 0=false.   Not Nillable.

complexType GateAssignmentType

diagram
namespace	http://www.jeppesen.com/aoc
children	flightKey podGate poaGate
used by	element  OperationsControlType/gateAssignment
annotation	documentation OC031 v1 Gate Assignment (POD, POA gate info)

element GateAssignmentType/flightKey

diagram
namespace	http://www.jeppesen.com/aoc
type	FlightKeyType
properties	isRef  0 content  complex
children	flightIdentifier pod
annotation	documentation Basic information to uniquely identify a flight. Common ICD.

element GateAssignmentType/podGate

diagram
namespace	http://www.jeppesen.com/aoc
type	xs:string
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	documentation Gate number for the Departure Airport.  If Departure Gate is unknown or being unassigned then send blank.  If xml is sent without tag, then result is no change of existing value.

element GateAssignmentType/poaGate

diagram
namespace	http://www.jeppesen.com/aoc
type	xs:string
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	documentation Gate number for the Arrival Airport. If Arrival Gate is unknown or is being unassigned then send blank.  If xml is sent without tag, then result is no change of existing value.

complexType GroundReturnType

diagram
namespace	http://www.jeppesen.com/aoc
children	flightKey reason outTime inTime eta map arrivalDelay arrivalFuelAtGate continueLeg operationalSuffix information
used by	element  OperationsControlType/groundReturn
annotation	documentation OC021 v5 Ground Return

element GroundReturnType/flightKey

diagram
namespace	http://www.jeppesen.com/aoc
type	FlightKeyType
properties	isRef  0 content  complex
children	flightIdentifier pod
annotation	documentation Basic information to uniquely identify a flight. Common ICD.

element GroundReturnType/reason

diagram
namespace	http://www.jeppesen.com/aoc
type	ReasonType
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	code information
annotation	documentation Reason for ground return. Common ICD.

element GroundReturnType/outTime

diagram
namespace	http://www.jeppesen.com/aoc
type	xs:dateTime
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	documentation Out time may have already been received previously.

element GroundReturnType/inTime

diagram
namespace	http://www.jeppesen.com/aoc
type	xs:dateTime
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	documentation IN time.

element GroundReturnType/eta

diagram
namespace	http://www.jeppesen.com/aoc
type	xs:dateTime
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	documentation Estimated time of arrival.

element GroundReturnType/map

diagram
namespace	http://www.jeppesen.com/aoc
type	xs:dateTime
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	documentation Movement after push time.

element GroundReturnType/arrivalDelay

diagram
namespace	http://www.jeppesen.com/aoc
type	DelayCodeType
properties	isRef  0 minOcc  0 maxOcc  unbounded content  complex
children	duration code information
annotation	documentation Arrival delay. Common ICD.

element GroundReturnType/arrivalFuelAtGate

diagram
namespace	http://www.jeppesen.com/aoc
type	xs:integer
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	documentation Arrival Fuel At Gate.

element GroundReturnType/continueLeg

diagram
namespace	http://www.jeppesen.com/aoc
type	ContinueLegType
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	callSign scheduledTimeDeparture scheduledTimeArrival scheduledTaxiOut scheduledTaxiIn etd eta
annotation	documentation See the create flight section of this document.

element GroundReturnType/operationalSuffix

diagram
namespace	http://www.jeppesen.com/aoc
type	String1
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  annotation  maxLength  1
annotation	documentation Operational suffix. Used to uniquely identify a flight leg in cases where ground and/or air returns have occurred.

element GroundReturnType/information

diagram
namespace	http://www.jeppesen.com/aoc
type	String1000
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  annotation  maxLength  1000
annotation	documentation Provides a place to include any additional textual information.

complexType InType

diagram
namespace	http://www.jeppesen.com/aoc
type	extension of FlightLegTimeBaseType
properties	base  FlightLegTimeBaseType
children	flightKey isAcars information inTime arrivalDelay
used by	element  OperationsControlType/in
annotation	documentation OC024 v2 IN Time.  Time arrived at gate.

element InType/inTime

diagram
namespace	http://www.jeppesen.com/aoc
type	xs:dateTime
properties	isRef  0 content  simple nillable  true
annotation	documentation IN time. Time arrived at the gate.

element InType/arrivalDelay

diagram
namespace	http://www.jeppesen.com/aoc
type	DelayCodeType
properties	isRef  0 minOcc  0 maxOcc  unbounded content  complex
children	duration code information
annotation	documentation Arrival delay.

complexType NewOriginFlightLegType

diagram
namespace	http://www.jeppesen.com/aoc
children	flightKey actualPod actualPodOperationalSuffix reason
used by	element  OperationsControlType/newOriginFlightLeg
annotation	documentation OC008 v3 New Origin Flight Leg

element NewOriginFlightLegType/flightKey

diagram
namespace	http://www.jeppesen.com/aoc
type	FlightKeyType
properties	isRef  0 content  complex
children	flightIdentifier pod
annotation	documentation Basic information to uniquely identify a flight

element NewOriginFlightLegType/actualPod

diagram
namespace	http://www.jeppesen.com/aoc
type	AirportCodeType
properties	isRef  0 content  complex
children	iata icao icao other
annotation	documentation Actual point of departure

element NewOriginFlightLegType/actualPodOperationalSuffix

diagram
namespace	http://www.jeppesen.com/aoc
type	String1
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  annotation  maxLength  1
annotation	documentation Operational suffix.  At a minimum will be used to uniquely identify a flight leg in cases where ground and/or air returns have occurred.

element NewOriginFlightLegType/reason

diagram
namespace	http://www.jeppesen.com/aoc
type	ReasonType
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	code information
annotation	documentation Reason for the new origin. Common ICD.

complexType NextInformationType

diagram
namespace	http://www.jeppesen.com/aoc
children	flightKey nextInfoTime delayCode information
used by	element  OperationsControlType/nextInformation
annotation	documentation OC013 v4 Next Information

element NextInformationType/flightKey

diagram
namespace	http://www.jeppesen.com/aoc
type	FlightKeyType
properties	isRef  0 content  complex
children	flightIdentifier pod
annotation	documentation Uniquely identifies a flight.

element NextInformationType/nextInfoTime

diagram
namespace	http://www.jeppesen.com/aoc
type	xs:dateTime
properties	isRef  0 content  simple
annotation	documentation A time that the next estimate or flight status update is expected to be issued.

element NextInformationType/delayCode

diagram
namespace	http://www.jeppesen.com/aoc
type	String4
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  annotation  maxLength  4
annotation	documentation Delay code. See IATA AHM 730 as recommended standard

element NextInformationType/information

diagram
namespace	http://www.jeppesen.com/aoc
type	String1000
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  annotation  maxLength  1000
annotation	documentation Provides a place to include any additional textual information.

complexType OffType

diagram
namespace	http://www.jeppesen.com/aoc
type	extension of FlightLegTimeBaseType
properties	base  FlightLegTimeBaseType
children	flightKey isAcars information offTime eon eta map departureDelay
used by	element  OperationsControlType/off
annotation	documentation OC015 v2 OFF Time.  Time off the ground.

element OffType/offTime

diagram
namespace	http://www.jeppesen.com/aoc
type	xs:dateTime
properties	isRef  0 content  simple nillable  true
annotation	documentation OFF time.  Time Off the ground.

element OffType/eon

diagram
namespace	http://www.jeppesen.com/aoc
type	xs:dateTime
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	documentation Estimated on time.

element OffType/eta

diagram
namespace	http://www.jeppesen.com/aoc
type	xs:dateTime
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	documentation Estimated time of arrival.

element OffType/map

diagram
namespace	http://www.jeppesen.com/aoc
type	xs:dateTime
properties	isRef  0 minOcc  0 maxOcc  1 content  simple nillable  true
annotation	documentation Movement after push time.

element OffType/departureDelay

diagram
namespace	http://www.jeppesen.com/aoc
type	DelayCodeType
properties	isRef  0 minOcc  0 maxOcc  unbounded content  complex
children	duration code information
annotation	documentation Departure delay

complexType OnType

diagram
namespace	http://www.jeppesen.com/aoc
type	extension of FlightLegTimeBaseType
properties	base  FlightLegTimeBaseType
children	flightKey isAcars information onTime eta arrivalDelay
used by	element  OperationsControlType/on
annotation	documentation OC016 v2 ON Time.  Time On the ground.

element OnType/onTime

diagram
namespace	http://www.jeppesen.com/aoc
type	xs:dateTime
properties	isRef  0 content  simple nillable  true
annotation	documentation ON time.  Time on the ground.

element OnType/eta

diagram
namespace	http://www.jeppesen.com/aoc
type	xs:dateTime
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	documentation Estimated time of arrival.

element OnType/arrivalDelay

diagram
namespace	http://www.jeppesen.com/aoc
type	DelayCodeType
properties	isRef  0 minOcc  0 maxOcc  unbounded content  complex
children	duration code information
annotation	documentation Arrival delay

complexType OperationsControlType

diagram
namespace	http://www.jeppesen.com/aoc
children	createFlightLeg cancelFlightLeg deleteFlightLeg reinstateFlightLeg divertFlightLeg newOriginFlightLeg updateFlightLeg rescheduleFlightLeg aircraftAssignment estimateTimes nextInformation arrival off on departure changeFlightLegIdentifier airReturn groundReturn delay out in flightLock flightAssignmentData postFlightActual postFlightSummaryReport requestDiversion fuelOnBoardAtEnroutePositions gateAssignment adHocCreateFlightLeg dispatcherLockRequest dispatcherLockResponse aircraftLock fuelTankeringAdvice requestCompleteFlightKey completedFlightKey
annotation	documentation Top level type that acts as a container for all Operations Control messages documentation Copyright © 2009-2020 Jeppesen.   All rights reserved. Your use of the AOC Bookshelf and all supporting documentation is subject to a separate license agreement between you and Jeppesen, a copy of which is included in the zip file or can be obtained from Jeppesen. The AOC Bookshelf is delivered AS IS without warranty of any kind and is not guaranteed to be free from errors or defects.   You rely on the AOC Bookshelf at your own risk.  No support for the AOC Bookshelf is implied through its publication. The AOC Bookshelf is intended solely for use as a reference and examples of interfaces to Jeppesen systems.  Jeppesen may revise, update or cease publication at any time, without notice.  Building to the specifications set forth in the AOC Bookshelf does not mean that your intended integration needs will be met or that an interface will function as documented.  We recommend contacting Jeppesen directly to discuss professional services options with respect to production application integration and validation efforts.

element OperationsControlType/createFlightLeg

diagram
namespace	http://www.jeppesen.com/aoc
type	CreateFlightLegType
properties	isRef  0 content  complex
children	flightLeg
annotation	documentation OC001 v3 Create Flight Leg

element OperationsControlType/cancelFlightLeg

diagram
namespace	http://www.jeppesen.com/aoc
type	CancelFlightLegType
properties	isRef  0 content  complex
children	flightKey userInfo aircraftId reason dispatcherRemarks
annotation	documentation OC002 v4 Cancel Flight Leg

element OperationsControlType/deleteFlightLeg

diagram
namespace	http://www.jeppesen.com/aoc
type	DeleteFlightLegType
properties	isRef  0 content  complex
children	flightKey userInfo aircraftId reason
annotation	documentation OC003 v4  Delete Flight Leg

element OperationsControlType/reinstateFlightLeg

diagram
namespace	http://www.jeppesen.com/aoc
type	ReinstateFlightLegType
properties	isRef  0 content  complex
children	flightKey userInfo reason
annotation	documentation OC004 v3 Reinstate Flight Leg

element OperationsControlType/divertFlightLeg

diagram
namespace	http://www.jeppesen.com/aoc
type	DivertFlightLegType
properties	isRef  0 content  complex
children	flightKey actualPoa reason eta eon continueLeg
annotation	documentation OC005 v3 Divert Flight Leg

element OperationsControlType/newOriginFlightLeg

diagram
namespace	http://www.jeppesen.com/aoc
type	NewOriginFlightLegType
properties	isRef  0 content  complex
children	flightKey actualPod actualPodOperationalSuffix reason
annotation	documentation OC008 v3 New Origin Flight Leg

element OperationsControlType/updateFlightLeg

diagram
namespace	http://www.jeppesen.com/aoc
type	UpdateFlightLegType
properties	isRef  0 content  complex
children	flightKey poa eon eta estimatedFuelOnArrival reason serviceType route callSign isFuelBonded
annotation	documentation OC009 v5 Update Flight Leg

element OperationsControlType/rescheduleFlightLeg

diagram
namespace	http://www.jeppesen.com/aoc
type	RescheduleFlightLegType
properties	isRef  0 content  complex
children	flightKey reason std sta
annotation	documentation OC010 v2 Reschedule Flight Leg

element OperationsControlType/aircraftAssignment

diagram
namespace	http://www.jeppesen.com/aoc
type	AircraftAssignmentType
properties	isRef  0 minOcc  1 maxOcc  unbounded content  complex
children	flightKey aircraftId equipmentCode reason isFuelBonded
annotation	documentation OC011 v3 Aircraft Assignment

element OperationsControlType/estimateTimes

diagram
namespace	http://www.jeppesen.com/aoc
type	EstimateTimesType
properties	isRef  0 content  complex
children	estimateTimesGroup
annotation	documentation OC012 v3 Estimated Times

element OperationsControlType/nextInformation

diagram
namespace	http://www.jeppesen.com/aoc
type	NextInformationType
properties	isRef  0 content  complex
children	flightKey nextInfoTime delayCode information
annotation	documentation OC013 v4  Next Information

element OperationsControlType/arrival

diagram
namespace	http://www.jeppesen.com/aoc
type	ArrivalType
properties	isRef  0 content  complex
children	flightKey isAcars information onTime inTime arrivalDelay
annotation	documentation OC014 v2 Arrival Time

element OperationsControlType/off

diagram
namespace	http://www.jeppesen.com/aoc
type	OffType
properties	isRef  0 content  complex
children	flightKey isAcars information offTime eon eta map departureDelay
annotation	documentation OC015 v2 Off Time

element OperationsControlType/on

diagram
namespace	http://www.jeppesen.com/aoc
type	OnType
properties	isRef  0 content  complex
children	flightKey isAcars information onTime eta arrivalDelay
annotation	documentation OC016 v2 On Time

element OperationsControlType/departure

diagram
namespace	http://www.jeppesen.com/aoc
type	DepartureType
properties	isRef  0 content  complex
children	flightKey isAcars information outTime offTime eon eta map departureDelay
annotation	documentation OC017 v2 Departure

element OperationsControlType/changeFlightLegIdentifier

diagram
namespace	http://www.jeppesen.com/aoc
type	ChangeFlightLegIdentifierType
properties	isRef  0 content  complex
children	flightKey newFlightIdentifier callSign reason
annotation	documentation OC18 v3 Change Flight Leg Identifier

element OperationsControlType/airReturn

diagram
namespace	http://www.jeppesen.com/aoc
type	AirReturnType
properties	isRef  0 content  complex
children	flightKey reason onTime eon eta inTime arrivalDelay continueLeg operationalSuffix information
annotation	documentation OC020 v4 Air Return

element OperationsControlType/groundReturn

diagram
namespace	http://www.jeppesen.com/aoc
type	GroundReturnType
properties	isRef  0 content  complex
children	flightKey reason outTime inTime eta map arrivalDelay arrivalFuelAtGate continueLeg operationalSuffix information
annotation	documentation OC021 v5 Ground Return

element OperationsControlType/delay

diagram
namespace	http://www.jeppesen.com/aoc
type	DelayType
properties	isRef  0 content  complex
children	flightKey departureDelay arrivalDelay information
annotation	documentation OC022 v2 Delay

element OperationsControlType/out

diagram
namespace	http://www.jeppesen.com/aoc
type	OutType
properties	isRef  0 content  complex
children	flightKey isAcars information outTime eto eon eta map departureDelay
annotation	documentation OC023 v2 Out Time

element OperationsControlType/in

diagram
namespace	http://www.jeppesen.com/aoc
type	InType
properties	isRef  0 content  complex
children	flightKey isAcars information inTime arrivalDelay
annotation	documentation OC024 v2 In Time

element OperationsControlType/flightLock

diagram
namespace	http://www.jeppesen.com/aoc
type	FlightLockType
properties	isRef  0 content  complex
children	flightKey lockoutIndicator
annotation	documentation OC025 v1 Flight Lock

element OperationsControlType/flightAssignmentData

diagram
namespace	http://www.jeppesen.com/aoc
type	FlightAssignmentDataType
properties	isRef  0 content  complex
children	taskId aircraftId startDate endDate crewAssignment
annotation	documentation OC026 v1 Send Flight Assignment Data

element OperationsControlType/postFlightActual

diagram
namespace	http://www.jeppesen.com/aoc
type	PostFlightActualsType
properties	isRef  0 content  complex
children	flightLeg flightDeparture flightArrival crewAssignments fuel
annotation	documentation OC027 v1 Post Flight Actuals

element OperationsControlType/postFlightSummaryReport

diagram
namespace	http://www.jeppesen.com/aoc
type	PostFlightSummaryReportType
properties	isRef  0 content  complex
children	reportRange bookedAircraftTime flightData
annotation	documentation OC028 v1 Post Flight Summary Report

element OperationsControlType/requestDiversion

diagram
namespace	http://www.jeppesen.com/aoc
type	RequestDiversionType
properties	isRef  0 content  complex
children	flightKey userInfo diversionScenario diversionPoa diversionPoaEta estimatedFuelOnArrivalAtDiversionPoa diversionReason plannedDiversion estimatedOnTime etdFromDiversionPoa cancelReasonCode remarks
annotation	documentation OC029 v1 Request Diversion

element OperationsControlType/fuelOnBoardAtEnroutePositions

diagram
namespace	http://www.jeppesen.com/aoc
type	FuelOnBoardAtEnroutePositionsType
properties	isRef  0 content  complex
children	flightKey positions actualTime actualFlightLevel actualFuelOnBoard
annotation	documentation OC030 v2 Fuel On Board at Enroute Positions (aka Over Report)

element OperationsControlType/gateAssignment

diagram
namespace	http://www.jeppesen.com/aoc
type	GateAssignmentType
properties	isRef  0 content  complex
children	flightKey podGate poaGate
annotation	documentation OC031 v1 Gate Assignment Information

element OperationsControlType/adHocCreateFlightLeg

diagram
namespace	http://www.jeppesen.com/aoc
type	AdHocCreateFlightLegType
properties	isRef  0 content  complex
children	flightLeg
annotation	documentation OC032 v1 Ad Hoc Create Flight  Leg  (consult with your Deployment Specialist before implementing this message)

element OperationsControlType/dispatcherLockRequest

diagram
namespace	http://www.jeppesen.com/aoc
type	DispatcherLockRequestType
properties	isRef  0 content  complex
children	dispatcherFlightLock
annotation	documentation OC033 v1 Dispatcher Lock message allows user to flag individual flights as locked  or unlocked    REQUEST

element OperationsControlType/dispatcherLockResponse

diagram
namespace	http://www.jeppesen.com/aoc
type	DispatcherLockResponseType
properties	isRef  0 content  complex
children	lockUnlockResponse error
annotation	documentation OC033 v1 Dispatcher Lock message allows user to flag individual flights as locked  or unlocked    RESPONSE

element OperationsControlType/aircraftLock

diagram
namespace	http://www.jeppesen.com/aoc
type	AircraftLockType
properties	isRef  0 content  complex
children	airlineCode aircraftId isLocked multiLocks
annotation	documentation OC034 v1 Aircraft Lock

element OperationsControlType/fuelTankeringAdvice

diagram
namespace	http://www.jeppesen.com/aoc
type	FuelTankeringAdviceType
properties	isRef  0 content  complex
children	flightKey weightCase estDepartureFuel estTankerFuel reason tankerNoteOnRelease
annotation	documentation OC035 v1 Fuel Tankering Advice

element OperationsControlType/requestCompleteFlightKey

diagram
namespace	http://www.jeppesen.com/aoc
type	RequestCompleteFlightKeyType
properties	isRef  0 content  complex
children	uniqueId flightKeyInfo
annotation	documentation OC036 vA DRAFT Request Complete Flight  Key PUBLISH

element OperationsControlType/completedFlightKey

diagram
namespace	http://www.jeppesen.com/aoc
type	CompletedFlightKeyType
properties	isRef  0 content  complex
children	uniqueId flightKey error
annotation	documentation OC037 vA DRAFT Completed Flight Key PUBLISH

complexType OutType

diagram
namespace	http://www.jeppesen.com/aoc
type	extension of FlightLegTimeBaseType
properties	base  FlightLegTimeBaseType
children	flightKey isAcars information outTime eto eon eta map departureDelay
used by	element  OperationsControlType/out
annotation	documentation OC023 v2 OUT time.  Depature time from gate.

element OutType/outTime

diagram
namespace	http://www.jeppesen.com/aoc
type	xs:dateTime
properties	isRef  0 content  simple nillable  true
annotation	documentation OUT time.  Departure time ffrom the gate.

element OutType/eto

diagram
namespace	http://www.jeppesen.com/aoc
type	xs:dateTime
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	documentation Estimated take off time.  Not required, but highly encouraged.

element OutType/eon

diagram
namespace	http://www.jeppesen.com/aoc
type	xs:dateTime
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	documentation Estimated on time.

element OutType/eta

diagram
namespace	http://www.jeppesen.com/aoc
type	xs:dateTime
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	documentation Estimated time of arrival.

element OutType/map

diagram
namespace	http://www.jeppesen.com/aoc
type	xs:dateTime
properties	isRef  0 minOcc  0 maxOcc  1 content  simple nillable  true
annotation	documentation Movement after push time.

element OutType/departureDelay

diagram
namespace	http://www.jeppesen.com/aoc
type	DelayCodeType
properties	isRef  0 minOcc  0 maxOcc  unbounded content  complex
children	duration code information
annotation	documentation Departure delay

complexType PositionsLocationType

diagram
namespace	http://www.jeppesen.com/aoc
children	latitude longitude
used by	element  PositionsType/positionLocation

element PositionsLocationType/latitude

diagram
namespace	http://www.jeppesen.com/aoc
type	LatitudeType
properties	isRef  0 content  complex
children	hemisphere degrees minutes seconds

element PositionsLocationType/longitude

diagram
namespace	http://www.jeppesen.com/aoc
type	LongitudeType
properties	isRef  0 content  complex
children	hemisphere degrees minutes seconds

complexType PositionsType

diagram
namespace	http://www.jeppesen.com/aoc
children	positionLocation checkpointId
used by	element  FuelOnBoardAtEnroutePositionsType/positions

element PositionsType/positionLocation

diagram
namespace	http://www.jeppesen.com/aoc
type	PositionsLocationType
properties	isRef  0 content  complex
children	latitude longitude

element PositionsType/checkpointId

diagram
namespace	http://www.jeppesen.com/aoc
type	restriction of xs:string
properties	isRef  0 content  simple
facets	Kind  Value  annotation  minLength  1  maxLength  6

complexType PostFlightActualsType

diagram
namespace	http://www.jeppesen.com/aoc
children	flightLeg flightDeparture flightArrival crewAssignments fuel
used by	element  OperationsControlType/postFlightActual
annotation	documentation OC027 v1 Post Flight Actuals

element PostFlightActualsType/flightLeg

diagram
namespace	http://www.jeppesen.com/aoc
type	ActualFlightLegDataType
properties	isRef  0 content  complex
children	flightKey callSign poa serviceType aircraftId dispatchDesk cycles reason aircraftConfig mass dass

element PostFlightActualsType/flightDeparture

diagram
namespace	http://www.jeppesen.com/aoc
properties	isRef  0 content  complex
children	outTime offTime

element PostFlightActualsType/flightDeparture/outTime

diagram
namespace	http://www.jeppesen.com/aoc
type	xs:dateTime
properties	isRef  0 content  simple nillable  true
annotation	documentation Out time.

element PostFlightActualsType/flightDeparture/offTime

diagram
namespace	http://www.jeppesen.com/aoc
type	xs:dateTime
properties	isRef  0 content  simple nillable  true
annotation	documentation Off time.

element PostFlightActualsType/flightArrival

diagram
namespace	http://www.jeppesen.com/aoc
properties	isRef  0 content  complex
children	onTime inTime

element PostFlightActualsType/flightArrival/onTime

diagram
namespace	http://www.jeppesen.com/aoc
type	xs:dateTime
properties	isRef  0 content  simple nillable  true
annotation	documentation On time.

element PostFlightActualsType/flightArrival/inTime

diagram
namespace	http://www.jeppesen.com/aoc
type	xs:dateTime
properties	isRef  0 content  simple nillable  true
annotation	documentation In time.

element PostFlightActualsType/crewAssignments

diagram
namespace	http://www.jeppesen.com/aoc
type	CrewActualAssignmentType
properties	isRef  0 minOcc  0 maxOcc  unbounded content  complex
children	employeeId positionCode deadhead updateCrewQuals

element PostFlightActualsType/fuel

diagram
namespace	http://www.jeppesen.com/aoc
type	FuelActualType
properties	isRef  0 minOcc  0 maxOcc  unbounded content  complex
children	voucher supplierCode fuelQuanity
annotation	documentation Actual fuel data.

complexType PostFlightSummaryReportType

diagram
namespace	http://www.jeppesen.com/aoc
children	reportRange bookedAircraftTime flightData
used by	element  OperationsControlType/postFlightSummaryReport
annotation	documentation OC028 v1 Post Flight Summary Report

element PostFlightSummaryReportType/reportRange

diagram
namespace	http://www.jeppesen.com/aoc
properties	isRef  0 content  complex
children	reportStart reportEnd
annotation	documentation The date and time this report includes.  Alll information is included from the report start until the report end date and time.

element PostFlightSummaryReportType/reportRange/reportStart

diagram
namespace	http://www.jeppesen.com/aoc
type	xs:dateTime
properties	isRef  0 content  simple
annotation	documentation The date and time the report begins. Times in UTC.

element PostFlightSummaryReportType/reportRange/reportEnd

diagram
namespace	http://www.jeppesen.com/aoc
type	xs:dateTime
properties	isRef  0 content  simple
annotation	documentation The date and time the report ends. Times in UTC.

element PostFlightSummaryReportType/bookedAircraftTime

diagram
namespace	http://www.jeppesen.com/aoc
properties	isRef  0 minOcc  0 maxOcc  unbounded content  complex
children	bookedAircraft bookingStartDate bookingEndDate bookingId
annotation	documentation Number of booked aircraft days within the report range.

element PostFlightSummaryReportType/bookedAircraftTime/bookedAircraft

diagram
namespace	http://www.jeppesen.com/aoc
type	xs:string
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	documentation Type of Aircraft booked.

element PostFlightSummaryReportType/bookedAircraftTime/bookingStartDate

diagram
namespace	http://www.jeppesen.com/aoc
type	xs:dateTime
properties	isRef  0 content  simple
annotation	documentation The time the booking started.  Times in UTC.

element PostFlightSummaryReportType/bookedAircraftTime/bookingEndDate

diagram
namespace	http://www.jeppesen.com/aoc
type	xs:dateTime
properties	isRef  0 content  simple
annotation	documentation The time the booking is booked until. Times in UTC.

element PostFlightSummaryReportType/bookedAircraftTime/bookingId

diagram
namespace	http://www.jeppesen.com/aoc
type	xs:string
properties	isRef  0 minOcc  0 maxOcc  1 content  simple

element PostFlightSummaryReportType/flightData

diagram
namespace	http://www.jeppesen.com/aoc
properties	isRef  0 minOcc  0 maxOcc  unbounded content  complex
children	task flightKey aircraftConfig duration flyingHours mass dass
annotation	documentation Actual flight data for each flight within the report range.

element PostFlightSummaryReportType/flightData/task

diagram
namespace	http://www.jeppesen.com/aoc
type	xs:string
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	documentation Task associated with the fllight leg.  A task may have more than one flight leg.

element PostFlightSummaryReportType/flightData/flightKey

diagram
namespace	http://www.jeppesen.com/aoc
type	FlightKeyType
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	flightIdentifier pod
annotation	documentation Information to identify the specific flight.  Is Flight Key appropriate?

element PostFlightSummaryReportType/flightData/aircraftConfig

diagram
namespace	http://www.jeppesen.com/aoc
type	xs:string
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	documentation The configuration the aircraft was in during the flight.

element PostFlightSummaryReportType/flightData/duration

diagram
namespace	http://www.jeppesen.com/aoc
type	xs:duration
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	documentation Duration of the flight from out to in.

element PostFlightSummaryReportType/flightData/flyingHours

diagram
namespace	http://www.jeppesen.com/aoc
type	xs:duration
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	documentation Actual time from off to on.

element PostFlightSummaryReportType/flightData/mass

diagram
namespace	http://www.jeppesen.com/aoc
type	xs:boolean
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	documentation Is Military Aid Subsystem on during flight? 1=yes, on;  0=false, off.

element PostFlightSummaryReportType/flightData/dass

diagram
namespace	http://www.jeppesen.com/aoc
type	xs:boolean
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	documentation Is Defense Aid Subsystem on during flight?  1=yes, on;  0=false, off.

complexType ReinstateFlightLegType

diagram
namespace	http://www.jeppesen.com/aoc
children	flightKey userInfo reason
used by	element  OperationsControlType/reinstateFlightLeg
annotation	documentation OC004 v3  Reinstate Flight Leg

element ReinstateFlightLegType/flightKey

diagram
namespace	http://www.jeppesen.com/aoc
type	FlightKeyType
properties	isRef  0 content  complex
children	flightIdentifier pod
annotation	documentation Basic information to uniquely identify a flight

element ReinstateFlightLegType/userInfo

diagram
namespace	http://www.jeppesen.com/aoc
type	UserInfoType
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	userName userLocation
annotation	documentation User Info (userName and userLocation (desk)). Common ICD.

element ReinstateFlightLegType/reason

diagram
namespace	http://www.jeppesen.com/aoc
type	ReasonType
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	code information
annotation	documentation Reason for reinstating a flight leg. Common ICD.

complexType RequestCompleteFlightKeyType

diagram
namespace	http://www.jeppesen.com/aoc
children	uniqueId flightKeyInfo
used by	element  OperationsControlType/requestCompleteFlightKey
annotation	documentation OC036 vA DRAFT Request Complete Flight Key Type -  PUBLISH is used when an external system has partial flight key information, and the system returns the completed flight key data.

element RequestCompleteFlightKeyType/uniqueId

diagram
namespace	http://www.jeppesen.com/aoc
type	xs:string
properties	isRef  0 minOcc  0 maxOcc  1 content  simple nillable  true
annotation	documentation This is a unique string that is used to correlate messages within a message conversation.

element RequestCompleteFlightKeyType/flightKeyInfo

diagram
namespace	http://www.jeppesen.com/aoc
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	flightNumber airlineCode flightOriginDate operationalSuffix pod

element RequestCompleteFlightKeyType/flightKeyInfo/flightNumber

diagram
namespace	http://www.jeppesen.com/aoc
type	restriction of xs:string
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  annotation  maxLength  12
annotation	documentation Flight Number

element RequestCompleteFlightKeyType/flightKeyInfo/airlineCode

diagram
namespace	http://www.jeppesen.com/aoc
type	AirlineCodeType
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	iata icao icao other
annotation	documentation Airline Code

element RequestCompleteFlightKeyType/flightKeyInfo/flightOriginDate

diagram
namespace	http://www.jeppesen.com/aoc
type	xs:date
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	documentation The date that the first leg of a multi leg flight departs.

element RequestCompleteFlightKeyType/flightKeyInfo/operationalSuffix

diagram
namespace	http://www.jeppesen.com/aoc
type	String1
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  annotation  maxLength  1
annotation	documentation Operational suffix - at a minimum will be used to uniquely identify a flight leg in cases where ground and/or air returns have occurred.

element RequestCompleteFlightKeyType/flightKeyInfo/pod

diagram
namespace	http://www.jeppesen.com/aoc
type	AirportCodeType
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	iata icao icao other
annotation	documentation POD is the Point of Departure.   FAA-Departure Point.  ICAO-Departure Aerodrome

complexType RequestDiversionType

diagram
namespace	http://www.jeppesen.com/aoc
children	flightKey userInfo diversionScenario diversionPoa diversionPoaEta estimatedFuelOnArrivalAtDiversionPoa diversionReason plannedDiversion estimatedOnTime etdFromDiversionPoa cancelReasonCode remarks
used by	element  OperationsControlType/requestDiversion
annotation	documentation OC029 v1 Request Diversion

element RequestDiversionType/flightKey

diagram
namespace	http://www.jeppesen.com/aoc
type	FlightKeyType
properties	isRef  0 content  complex
children	flightIdentifier pod
annotation	documentation Basic information to uniquely identify a flight

element RequestDiversionType/userInfo

diagram
namespace	http://www.jeppesen.com/aoc
type	UserInfoType
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	userName userLocation
annotation	documentation User Info (userName and userLocation (desk)). Common ICD.

element RequestDiversionType/diversionScenario

diagram
namespace	http://www.jeppesen.com/aoc
type	restriction of xs:string
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  annotation  enumeration  EnrouteLanding  enumeration  ReturnDecision  enumeration  DivertAndNoStop  enumeration  ReturnETD  enumeration  NoStop
annotation	documentation Enumerations for Diversion scenarios are shown within parenthesis: (Enroute Landing);  Over Destination-Decision Later (ReturnDecision); Over Destination to Non-Scheduled Station- Landing Cancelled and Continue (DivertAndNoStop); Over Destination-Return with ETD (ReturnETD); Over Destination-Landing Cancelled (NoStop).

element RequestDiversionType/diversionPoa

diagram
namespace	http://www.jeppesen.com/aoc
type	AirportCodeType
properties	isRef  0 content  complex
children	iata icao icao other
annotation	documentation The diverted-to airport.

element RequestDiversionType/diversionPoaEta

diagram
namespace	http://www.jeppesen.com/aoc
type	xs:dateTime
properties	isRef  0 content  simple
annotation	documentation The Estimated Time of Arrival at the diverted-to airport (diversion POA).

element RequestDiversionType/estimatedFuelOnArrivalAtDiversionPoa

diagram
namespace	http://www.jeppesen.com/aoc
type	xs:integer
properties	isRef  0 content  simple
annotation	documentation Estimated fuel on arrival at the diverted-to airport (diversion Poa).

element RequestDiversionType/diversionReason

diagram
namespace	http://www.jeppesen.com/aoc
type	xs:string
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	documentation Reason for Diversion Example: WEA, FDCND, WINDS, FUELRSTN, OPNL, REV, MECH, PSVC, ATC, CURFEW, OPENLMKTG.  (from Create In-Flight Diversion UC)

element RequestDiversionType/plannedDiversion

diagram
namespace	http://www.jeppesen.com/aoc
type	restriction of xs:string
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  annotation  enumeration    enumeration  -U  enumeration  -P
annotation	documentation -P=Planned; -U=Unplanned, or blank only associated with diverison reason code  (appends to diversion Reason)

element RequestDiversionType/estimatedOnTime

diagram
namespace	http://www.jeppesen.com/aoc
type	xs:dateTime
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	documentation Estimated ON time.

element RequestDiversionType/etdFromDiversionPoa

diagram
namespace	http://www.jeppesen.com/aoc
type	xs:dateTime
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	documentation Estimated Time of Departure from Diversion Station (UTC)

element RequestDiversionType/cancelReasonCode

diagram
namespace	http://www.jeppesen.com/aoc
type	xs:string
properties	isRef  0 minOcc  0 maxOcc  1 content  simple

element RequestDiversionType/remarks

diagram
namespace	http://www.jeppesen.com/aoc
type	xs:string
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	documentation Further explanation for this in-flight diversion.

complexType RescheduleFlightLegType

diagram
namespace	http://www.jeppesen.com/aoc
children	flightKey reason std sta
used by	element  OperationsControlType/rescheduleFlightLeg
annotation	documentation OC010 v2 Reschedule Flight Leg

element RescheduleFlightLegType/flightKey

diagram
namespace	http://www.jeppesen.com/aoc
type	FlightKeyType
properties	isRef  0 content  complex
children	flightIdentifier pod
annotation	documentation Basic information to uniquely identify a flight. Common ICD.

element RescheduleFlightLegType/reason

diagram
namespace	http://www.jeppesen.com/aoc
type	ReasonType
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	code information
annotation	documentation Reason for rescheduling flight leg. Common ICD.

element RescheduleFlightLegType/std

diagram
namespace	http://www.jeppesen.com/aoc
type	xs:dateTime
properties	isRef  0 content  simple
annotation	documentation Scheduled Time of Departure of the leg of the POD.

element RescheduleFlightLegType/sta

diagram
namespace	http://www.jeppesen.com/aoc
type	xs:dateTime
properties	isRef  0 content  simple
annotation	documentation Scheduled Time of Arrival of the leg of the POA.

complexType UpdateCrewQualType

diagram
namespace	http://www.jeppesen.com/aoc
children	trainingCode employeeIdTrainer trainingResult
used by	element  CrewActualAssignmentType/updateCrewQuals

element UpdateCrewQualType/trainingCode

diagram
namespace	http://www.jeppesen.com/aoc
type	xs:string
properties	isRef  0 content  simple
annotation	documentation ID of the training. This acts as the key to identify the training in the future.

element UpdateCrewQualType/employeeIdTrainer

diagram
namespace	http://www.jeppesen.com/aoc
properties	isRef  0 minOcc  0 maxOcc  1
annotation	documentation Unique employee ID of the trainer.

element UpdateCrewQualType/trainingResult

diagram
namespace	http://www.jeppesen.com/aoc
type	restriction of xs:string
properties	isRef  0 content  simple
facets	Kind  Value  annotation  enumeration  success  enumeration  failure
annotation	documentation Training results.

complexType UpdateFlightLegType

diagram
namespace	http://www.jeppesen.com/aoc
children	flightKey poa eon eta estimatedFuelOnArrival reason serviceType route callSign isFuelBonded
used by	element  OperationsControlType/updateFlightLeg
annotation	documentation OC009 v5 Update Flight Leg

element UpdateFlightLegType/flightKey

diagram
namespace	http://www.jeppesen.com/aoc
type	FlightKeyType
properties	isRef  0 content  complex
children	flightIdentifier pod
annotation	documentation Basic information to uniquely identify a flight. Common ICD.

element UpdateFlightLegType/poa

diagram
namespace	http://www.jeppesen.com/aoc
type	AirportCodeType
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	iata icao icao other
annotation	documentation Point of Arrival - arrival airport.

element UpdateFlightLegType/eon

diagram
namespace	http://www.jeppesen.com/aoc
type	xs:dateTime
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	documentation Estimated ON time.

element UpdateFlightLegType/eta

diagram
namespace	http://www.jeppesen.com/aoc
type	xs:dateTime
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	documentation Estimated time of arrival

element UpdateFlightLegType/estimatedFuelOnArrival

diagram
namespace	http://www.jeppesen.com/aoc
type	xs:integer
properties	isRef  0 minOcc  0 maxOcc  1 content  simple

element UpdateFlightLegType/reason

diagram
namespace	http://www.jeppesen.com/aoc
type	ReasonType
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	code information
annotation	documentation Code and Narrative reason for changing the flight identifier. Common ICD.

element UpdateFlightLegType/serviceType

diagram
namespace	http://www.jeppesen.com/aoc
type	ServiceCodeEnumType
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  annotation  pattern  [J,S,U,F,V,M,Q,G,B,A,R,C,O,H,L,P,T,K,D,E,W,X,I,N,Y,Z]{1}
annotation	documentation See SSIM Appendix C

element UpdateFlightLegType/route

diagram
namespace	http://www.jeppesen.com/aoc
type	xs:string
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	documentation Route name used in flight planning. This name refers to the route name stored in the customer route database.

element UpdateFlightLegType/callSign

diagram
namespace	http://www.jeppesen.com/aoc
type	CallSignType
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  annotation  minLength  4  maxLength  8
annotation	documentation Call sign.  Common ICD.

element UpdateFlightLegType/isFuelBonded

diagram
namespace	http://www.jeppesen.com/aoc
type	xs:boolean
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	documentation True (on) then process as bonded fuel.  If false (off) then process as nonbonded fuel.

simpleType IrregularOperationEnumType

namespace	http://www.jeppesen.com/aoc
type	restriction of xs:string
properties	base  xs:string
used by	element  CreateFlightLegDataType/irregularOperationType
facets	Kind  Value  annotation  enumeration  Ferry  enumeration  Continue  enumeration  Position  enumeration  Gate Return

simpleType ServiceCodeEnumType

namespace	http://www.jeppesen.com/aoc
type	restriction of xs:string
properties	base  xs:string
used by	elements  UpdateFlightLegType/serviceType ActualFlightLegDataType/serviceType CreateFlightLegDataType/serviceType
facets	Kind  Value  annotation  pattern  [J,S,U,F,V,M,Q,G,B,A,R,C,O,H,L,P,T,K,D,E,W,X,I,N,Y,Z]{1}

complexType AccessType

diagram
namespace	http://www.jeppesen.com/aoc
children	name key
annotation	documentation Element group may be set to required or optional, and/or  be set to repeatable within a message.

element AccessType/name

diagram
namespace	http://www.jeppesen.com/aoc
type	String250
properties	isRef  0 content  simple
facets	Kind  Value  annotation  maxLength  250
annotation	documentation Example name of the Value:  OperatorId.   String250, limited to 250 chars.

element AccessType/key

diagram
namespace	http://www.jeppesen.com/aoc
type	String250
properties	isRef  0 content  simple
facets	Kind  Value  annotation  maxLength  250
annotation	documentation Example key or value of the named value for OperatorId value:  SWA1234.   String250, limited to 250 chars.

complexType AircraftIdentType

diagram
namespace	http://www.jeppesen.com/aoc
children	registrationNumber noseNumber serialNumber noseNumber serialNumber serialNumber other
used by	elements  FlightAssignmentDataType/aircraftId ActualFlightLegDataType/aircraftId DmiIdentifierType/aircraftId
annotation	documentation Identifies an aircraft using registration, serial, nose number, or other (customer defined)

element AircraftIdentType/registrationNumber

diagram
namespace	http://www.jeppesen.com/aoc
type	restriction of xs:string
properties	isRef  0 content  simple
facets	Kind  Value  annotation  minLength  2  maxLength  8
annotation	documentation Aircraft Registration Number.

element AircraftIdentType/noseNumber

diagram
namespace	http://www.jeppesen.com/aoc
type	NoseNumberType
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  annotation  pattern  [A-Z\d]{1,12}
annotation	documentation Aircraft Nose Number.

element AircraftIdentType/serialNumber

diagram
namespace	http://www.jeppesen.com/aoc
type	SerialNumberType
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  annotation  minLength  1  maxLength  25
annotation	documentation Aircraft Serial Number.

element AircraftIdentType/noseNumber

diagram
namespace	http://www.jeppesen.com/aoc
type	NoseNumberType
properties	isRef  0 content  simple
facets	Kind  Value  annotation  pattern  [A-Z\d]{1,12}
annotation	documentation Aircraft Nose Number.

element AircraftIdentType/serialNumber

diagram
namespace	http://www.jeppesen.com/aoc
type	SerialNumberType
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  annotation  minLength  1  maxLength  25
annotation	documentation Aircraft Serial Number.

element AircraftIdentType/serialNumber

diagram
namespace	http://www.jeppesen.com/aoc
type	SerialNumberType
properties	isRef  0 content  simple
facets	Kind  Value  annotation  minLength  1  maxLength  25
annotation	documentation Aircraft Serial Number.

element AircraftIdentType/other

diagram
namespace	http://www.jeppesen.com/aoc
type	restriction of xs:string
properties	isRef  0 content  simple
facets	Kind  Value  annotation  minLength  1  maxLength  25
annotation	documentation This represents a customer defined aircraft. For Jeppesen, this is may be used to identify the unique JetPlan aircraft ID.  For Jeppesen JetPlan data access, the system currently only identifies the aircraft by using this field. Any other informaiton received is assumed to be the JetPlan ID and could result in an error.

complexType AircraftIdType

diagram
namespace	http://www.jeppesen.com/aoc
children	registrationNumber noseNumber serialNumber noseNumber serialNumber serialNumber
used by	elements  CancelFlightLegType/aircraftId DeleteFlightLegType/aircraftId AircraftAssignmentType/aircraftId DispatcherLockRequestType/dispatcherFlightLock/aircraftId DispatcherLockResponseType/lockUnlockResponse/aircraftId AircraftLockType/aircraftId CreateFlightLegDataType/aircraftId BagaFlightKeyType/aircraftId FpResponseAircraftType/aircraftId
annotation	documentation Identifies an aircraft using registration, serial, and/or nosenumber

element AircraftIdType/registrationNumber

diagram
namespace	http://www.jeppesen.com/aoc
type	restriction of xs:string
properties	isRef  0 content  simple
facets	Kind  Value  annotation  minLength  2  maxLength  8
annotation	documentation Aircraft Registration Number.

element AircraftIdType/noseNumber

diagram
namespace	http://www.jeppesen.com/aoc
type	NoseNumberType
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  annotation  pattern  [A-Z\d]{1,12}
annotation	documentation Aircraft Nose Number.

element AircraftIdType/serialNumber

diagram
namespace	http://www.jeppesen.com/aoc
type	SerialNumberType
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  annotation  minLength  1  maxLength  25
annotation	documentation Aircraft Serial Number.

element AircraftIdType/noseNumber

diagram
namespace	http://www.jeppesen.com/aoc
type	NoseNumberType
properties	isRef  0 content  simple
facets	Kind  Value  annotation  pattern  [A-Z\d]{1,12}
annotation	documentation Aircraft Nose Number.

element AircraftIdType/serialNumber

diagram
namespace	http://www.jeppesen.com/aoc
type	SerialNumberType
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  annotation  minLength  1  maxLength  25
annotation	documentation Aircraft Serial Number.

element AircraftIdType/serialNumber

diagram
namespace	http://www.jeppesen.com/aoc
type	SerialNumberType
properties	isRef  0 content  simple
facets	Kind  Value  annotation  minLength  1  maxLength  25
annotation	documentation Aircraft Serial Number.

complexType AirlineCodeType

diagram
namespace	http://www.jeppesen.com/aoc
children	iata icao icao other
used by	elements  AircraftLockType/airlineCode RequestCompleteFlightKeyType/flightKeyInfo/airlineCode FlightIdentifierType/airlineCode RouteKeyType/airlineCode
annotation	documentation Uniquely identifies an airline using an IATA, ICAO, or other (customer defined).

element AirlineCodeType/iata

diagram
namespace	http://www.jeppesen.com/aoc
type	IataAirlineType
properties	isRef  0 content  simple
facets	Kind  Value  annotation  pattern  [0-9A-Z]{2}
annotation	documentation IATA Airline Code.

element AirlineCodeType/icao

diagram
namespace	http://www.jeppesen.com/aoc
type	IcaoAirlineType
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  annotation  pattern  [0-9A-Z]{3}
annotation	documentation ICAO Airline Code.

element AirlineCodeType/icao

diagram
namespace	http://www.jeppesen.com/aoc
type	IcaoAirlineType
properties	isRef  0 content  simple
facets	Kind  Value  annotation  pattern  [0-9A-Z]{3}
annotation	documentation ICAO Airline Code.

element AirlineCodeType/other

diagram
namespace	http://www.jeppesen.com/aoc
type	restriction of xs:string
properties	isRef  0 content  simple
facets	Kind  Value  annotation  pattern  [0-9A-Z]{1,4}
annotation	documentation This represents a customer defined airline.  For Jeppesen, this is may be used to identifying the unique JetPlan customer ID.  For Jeppesen JetPlan data access, the system currently only identifies the customer by using this field. Any other informaiton received is assumed to be the JetPlan ID and could result in an error.

complexType AirportCodeType

diagram
namespace	http://www.jeppesen.com/aoc
children	iata icao icao other
used by	elements  DivertFlightLegType/actualPoa NewOriginFlightLegType/actualPod FpResponseAirportType/airport FpResponseAlternateAirportType/alternateLandingAirportGroup/airport FpResponseEtpAirportType/airport RequestDiversionType/diversionPoa UpdateFlightLegType/poa DispatcherLockRequestType/dispatcherFlightLock/poa DispatcherLockResponseType/lockUnlockResponse/poa ActualFlightLegDataType/poa CreateFlightLegDataType/poa ArrivalAirportType/poa RouteKeyType/poa RequestCompleteFlightKeyType/flightKeyInfo/pod BagaFlightKeyType/pod DepartureAirportType/pod FlightKeyType/pod RouteKeyType/pod
annotation	documentation Uniquely identifies an airport using IATA, ICAO, or other (customer defined).

element AirportCodeType/iata

diagram
namespace	http://www.jeppesen.com/aoc
type	IataAirportType
properties	isRef  0 content  simple
facets	Kind  Value  annotation  pattern  [0-9A-Z]{3}
annotation	documentation IATA Airport Code.

element AirportCodeType/icao

diagram
namespace	http://www.jeppesen.com/aoc
type	IcaoAirportType
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  annotation  pattern  [0-9A-Z]{4}
annotation	documentation ICAO Airport Code.

element AirportCodeType/icao

diagram
namespace	http://www.jeppesen.com/aoc
type	IcaoAirportType
properties	isRef  0 content  simple
facets	Kind  Value  annotation  pattern  [0-9A-Z]{4}
annotation	documentation ICAO Airport Code.

element AirportCodeType/other

diagram
namespace	http://www.jeppesen.com/aoc
type	restriction of xs:string
properties	isRef  0 content  simple
facets	Kind  Value  annotation  pattern  [0-9A-Z]{1,4}
annotation	documentation This represents a customer defined airport.  For Jeppesen, this is may be used to identifying the unique JetPlan aiport ID.  For Jeppesen JetPlan data access, the system currently only identifies the airport by using this field. Any other informaiton received is assumed to be the JetPlan ID and could result in an error.

complexType AirspeedType

diagram
namespace	http://www.jeppesen.com/aoc
type	extension of AirspeedRestriction
properties	base  AirspeedRestriction
used by	elements  FpResponseCheckpointType/groundSpeed FpResponseSegmentType/groundSpeed FpResponseTocTodType/groundSpeed FpResponseSegmentType/mach FpResponseCheckpointType/trueAirspeed FpResponseSegmentType/trueAirspeed FpResponseTocTodType/trueAirspeed WindGradientType/windVelocity
facets	Kind  Value  annotation  minInclusive  0  maxInclusive  10000
attributes	Name   Type   Use   Default   Fixed   annotation units AirspeedUnitsEnumType required         documentation kts - nautical miles per hour kph - kilometers per hour mph - statute miles per hour mach - number times 100

attribute AirspeedType/@units

type	AirspeedUnitsEnumType
properties	isRef  0 use  required
facets	Kind  Value  annotation  enumeration  kts  enumeration  kph  enumeration  mph  enumeration  mach
annotation	documentation kts - nautical miles per hour kph - kilometers per hour mph - statute miles per hour mach - number times 100

complexType AltitudeCruiseModeGroupType

diagram
namespace	http://www.jeppesen.com/aoc
children	speed altitude
used by	element  AltitudeCruiseModeType/altitudeCruiseModeGroup

element AltitudeCruiseModeGroupType/speed

diagram
namespace	http://www.jeppesen.com/aoc
type	CruiseModeType
properties	isRef  0 content  complex
children	machAirspeed cruiseMode indicatedAirspeed
annotation	documentation Speed of the aircraft.

element AltitudeCruiseModeGroupType/altitude

diagram
namespace	http://www.jeppesen.com/aoc
type	AltitudeType
properties	isRef  0 content  complex
facets	Kind  Value  annotation  minInclusive  -2000  maxInclusive  250000
attributes	Name   Type   Use   Default   Fixed   annotation units AltitudeHeightEnumType required         documentation ft = feet m = meters fl = flight level mb = millibars
annotation	documentation Altitude of the aircraft.

complexType AltitudeCruiseModeType

diagram
namespace	http://www.jeppesen.com/aoc
children	altitudeCruiseModeGroup

element AltitudeCruiseModeType/altitudeCruiseModeGroup

diagram
namespace	http://www.jeppesen.com/aoc
type	AltitudeCruiseModeGroupType
properties	isRef  0 minOcc  1 maxOcc  unbounded content  complex
children	speed altitude

complexType AltitudeMinMaxType

diagram
namespace	http://www.jeppesen.com/aoc
children	min max

element AltitudeMinMaxType/min

diagram
namespace	http://www.jeppesen.com/aoc
type	AltitudeType
properties	isRef  0 content  complex
facets	Kind  Value  annotation  minInclusive  -2000  maxInclusive  250000
attributes	Name   Type   Use   Default   Fixed   annotation units AltitudeHeightEnumType required         documentation ft = feet m = meters fl = flight level mb = millibars

element AltitudeMinMaxType/max

diagram
namespace	http://www.jeppesen.com/aoc
type	AltitudeType
properties	isRef  0 content  complex
facets	Kind  Value  annotation  minInclusive  -2000  maxInclusive  250000
attributes	Name   Type   Use   Default   Fixed   annotation units AltitudeHeightEnumType required         documentation ft = feet m = meters fl = flight level mb = millibars

complexType AltitudeType

diagram
namespace	http://www.jeppesen.com/aoc
type	extension of AltitudeRangeRestriction
properties	base  AltitudeRangeRestriction
used by	elements  AltitudeCruiseModeGroupType/altitude FpRequestAltitudeType/altitudeGroup/altitude FpResponseCheckpointType/altitude FpResponseTocTodType/altitude FuelDurationType/altitude HorizontalCoordinateType/altitude FpResponseFlightType/flightLevel FpResponseFlightLevelType/fpResponseFlightLevelGroup/flightLevel AltitudeMinMaxType/max AltitudeMinMaxType/min
facets	Kind  Value  annotation  minInclusive  -2000  maxInclusive  250000
attributes	Name   Type   Use   Default   Fixed   annotation units AltitudeHeightEnumType required         documentation ft = feet m = meters fl = flight level mb = millibars

attribute AltitudeType/@units

type	AltitudeHeightEnumType
properties	isRef  0 use  required
facets	Kind  Value  annotation  enumeration  ft  enumeration  m  enumeration  fl  enumeration  mb
annotation	documentation ft = feet m = meters fl = flight level mb = millibars

complexType ArrivalAirportType

diagram
namespace	http://www.jeppesen.com/aoc
children	poa customAirport

element ArrivalAirportType/poa

diagram
namespace	http://www.jeppesen.com/aoc
type	AirportCodeType
properties	isRef  0 content  complex
children	iata icao icao other

element ArrivalAirportType/customAirport

diagram
namespace	http://www.jeppesen.com/aoc
type	CustomAirportType
properties	isRef  0 content  complex
children	customAirportId coordinates

complexType AtmosphericPressureType

diagram
namespace	http://www.jeppesen.com/aoc
type	extension of xs:double
properties	base  xs:double
attributes	Name   Type   Use   Default   Fixed   annotation units AtmosphericUnitType required         documentation at = Technical atmosphere Atmosphere atm = Atmosphere measured in bars bar = Atmosphere measured in millibars Pa = Atmosphere measured in pascals hPa = Atmosphere measured in hectopascals kPA = Atmosphere measured in kilopascals inchHg = Atmosphere measured in inches of Mercury psi = Pounds per square inch mmHg / Torr = Atmosphere measured in Mercury millimeters

attribute AtmosphericPressureType/@units

type	AtmosphericUnitType
properties	isRef  0 use  required
facets	Kind  Value  annotation  enumeration  at  enumeration  atm  enumeration  bar  enumeration  mbar  enumeration  Pa  enumeration  hPa  enumeration  kPa  enumeration  inchHg  enumeration  psi  enumeration  mmHg  enumeration  Torr
annotation	documentation at = Technical atmosphere Atmosphere atm = Atmosphere measured in bars bar = Atmosphere measured in millibars Pa = Atmosphere measured in pascals hPa = Atmosphere measured in hectopascals kPA = Atmosphere measured in kilopascals inchHg = Atmosphere measured in inches of Mercury psi = Pounds per square inch mmHg / Torr = Atmosphere measured in Mercury millimeters

complexType BagaFlightKeyType

diagram
namespace	http://www.jeppesen.com/aoc
children	aircraftId flightOriginDate operationalSuffix departureTime pod
used by	element  FlightKeyChoiceType/bagaFlightKey
annotation	documentation Business, General Aviation  and Military Flight Key

element BagaFlightKeyType/aircraftId

diagram
namespace	http://www.jeppesen.com/aoc
type	AircraftIdType
properties	isRef  0 content  complex
children	registrationNumber noseNumber serialNumber noseNumber serialNumber serialNumber

element BagaFlightKeyType/flightOriginDate

diagram
namespace	http://www.jeppesen.com/aoc
type	xs:date
properties	isRef  0 content  simple
annotation	documentation The date that the first leg of a multi leg flight departs.

element BagaFlightKeyType/operationalSuffix

diagram
namespace	http://www.jeppesen.com/aoc
type	String1
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  annotation  maxLength  1
annotation	documentation Operational suffix - at a minimum will be used to uniquely identify a flight leg in cases where ground and/or air returns have occurred.

element BagaFlightKeyType/departureTime

diagram
namespace	http://www.jeppesen.com/aoc
type	xs:time
properties	isRef  0 content  simple
annotation	documentation hhmmssZ. Zulu Time of departure.

element BagaFlightKeyType/pod

diagram
namespace	http://www.jeppesen.com/aoc
type	AirportCodeType
properties	isRef  0 content  complex
children	iata icao icao other
annotation	documentation POD is the Point of Departure.   FAA-Departure Point.  ICAO-Departure Aerodrome

complexType BiasType

diagram
namespace	http://www.jeppesen.com/aoc
children	doubleValue integerValue
attributes	Name   Type   Use   Default   Fixed   annotation units BiasEnumType required         documentation percent = percentage of value absolute = adjustment to the value

attribute BiasType/@units

type	BiasEnumType
properties	isRef  0 use  required
facets	Kind  Value  annotation  enumeration  percent  enumeration  absolute
annotation	documentation percent = percentage of value absolute = adjustment to the value

element BiasType/doubleValue

diagram
namespace	http://www.jeppesen.com/aoc
type	xs:double
properties	isRef  0 content  simple
annotation	documentation Bias value expressed as a double.

element BiasType/integerValue

diagram
namespace	http://www.jeppesen.com/aoc
type	xs:integer
properties	isRef  0 content  simple
annotation	documentation Bias value expressed as an integer.

complexType BoundingAreaCircleType

diagram
namespace	http://www.jeppesen.com/aoc
children	point radius
used by	element  BoundingAreaType/circle

element BoundingAreaCircleType/point

diagram
namespace	http://www.jeppesen.com/aoc
type	GeographicPointType
properties	isRef  0 content  complex
children	latitude longitude
annotation	documentation Latitude and longitude.

element BoundingAreaCircleType/radius

diagram
namespace	http://www.jeppesen.com/aoc
type	DistanceType
properties	isRef  0 content  complex
facets	Kind  Value  annotation  minInclusive  0.0  maxInclusive  50000.0
attributes	Name   Type   Use   Default   Fixed   annotation units BasicDistanceEnumType required         documentation nm = nautical miles km = kilometers ft = feet m = meters
annotation	documentation Distance of the radius.

complexType BoundingAreaPolygonType

diagram
namespace	http://www.jeppesen.com/aoc
children	point
used by	element  BoundingAreaType/polygon

element BoundingAreaPolygonType/point

diagram
namespace	http://www.jeppesen.com/aoc
type	GeographicPointType
properties	isRef  0 minOcc  2 maxOcc  unbounded content  complex
children	latitude longitude
annotation	documentation Latitude and longitude.

complexType BoundingAreaType

diagram
namespace	http://www.jeppesen.com/aoc
children	polygon circle

element BoundingAreaType/polygon

diagram
namespace	http://www.jeppesen.com/aoc
type	BoundingAreaPolygonType
properties	isRef  0 content  complex
children	point
annotation	documentation Points defined by latitude and longitude that are joined together to form a polygon.

element BoundingAreaType/circle

diagram
namespace	http://www.jeppesen.com/aoc
type	BoundingAreaCircleType
properties	isRef  0 content  complex
children	point radius
annotation	documentation An area enclosed by a circle as defined latitude and longitude point and a radius.

complexType CheckpointType

diagram
namespace	http://www.jeppesen.com/aoc
children	coordinates waypoint userDefinedName dmeFix
used by	elements  FpResponseFlightLevelType/fpResponseFlightLevelGroup/checkpoint FpResponseCheckpointType/name FpResponseEtpType/etp/name

element CheckpointType/coordinates

diagram
namespace	http://www.jeppesen.com/aoc
type	GeographicPointType
properties	isRef  0 content  complex
children	latitude longitude
annotation	documentation Latitude and Longitude

element CheckpointType/waypoint

diagram
namespace	http://www.jeppesen.com/aoc
type	WaypointType
properties	isRef  0 content  complex
children	identifier icaoCode type
annotation	documentation ARINC 424-defined waypoint.

element CheckpointType/userDefinedName

diagram
namespace	http://www.jeppesen.com/aoc
type	String12
properties	isRef  0 content  simple
facets	Kind  Value  annotation  maxLength  12
annotation	documentation Name of a user-defined waypoint

element CheckpointType/dmeFix

diagram
namespace	http://www.jeppesen.com/aoc
type	String9
properties	isRef  0 content  simple
facets	Kind  Value  annotation  maxLength  9
annotation	documentation Waypoint and radial combination; for example, name of a VOR (3 chars) plus a radial (3 chars) plus a distance (3 chars); for example, PLL265065

complexType ClassNameType

diagram
namespace	http://www.jeppesen.com/aoc
children	propertyClass propertyName

element ClassNameType/propertyClass

diagram
namespace	http://www.jeppesen.com/aoc
type	String255
properties	isRef  0 content  simple
facets	Kind  Value  annotation  maxLength  255

element ClassNameType/propertyName

diagram
namespace	http://www.jeppesen.com/aoc
type	String255
properties	isRef  0 content  simple
facets	Kind  Value  annotation  maxLength  255

complexType CruiseModeType

diagram
namespace	http://www.jeppesen.com/aoc
children	machAirspeed cruiseMode indicatedAirspeed
used by	elements  FpRequestSpeedScheduleType/primaryCruiseMode AltitudeCruiseModeGroupType/speed

element CruiseModeType/machAirspeed

diagram
namespace	http://www.jeppesen.com/aoc
type	MachAirspeedRestriction
properties	isRef  0 content  simple
facets	Kind  Value  annotation  pattern  M[6-9][0-9]
annotation	documentation Cruise at Mach airspeed number. M indicates Mach xx indicates airspeed value.  Example:  M80, M84, M76

element CruiseModeType/cruiseMode

diagram
namespace	http://www.jeppesen.com/aoc
type	CruiseModeEnumType
properties	isRef  0 content  simple
facets	Kind  Value  annotation  length  3  whiteSpace  collapse  enumeration  CMC  enumeration  ECO  enumeration  HSC  enumeration  LRC  enumeration  MSR  enumeration  MRC  enumeration  MCT  enumeration  MSC  enumeration  NCT  enumeration  925  enumeration  945  enumeration  1LE  enumeration  2LE  enumeration  ECP  enumeration  MCP  enumeration  RCP
annotation	documentation CMC - Constant Mach cruise ECO - Economy cruise HSC - High speed cruise LRC - Long range cruise MSR - Maximum specific range MRC - Maximum range cruise MCT - Maximum cruise thrust MSC - Maximum speed cruise NCT - Normal cruise thrust 925 - 925 Turbine Inlet Temperature cruise 945 - 945 Turbine Inlet Temperature cruise 1LE - One less engine 2LE - Two less engines ECP - Economy cruise power MCP - Maximum cruise power RCP - Recommended cruise power

element CruiseModeType/indicatedAirspeed

diagram
namespace	http://www.jeppesen.com/aoc
type	IndicatedAirspeedRestriction
properties	isRef  0 content  simple
facets	Kind  Value  annotation  minInclusive  100  maxInclusive  400
annotation	documentation Indicated airspeed for flight plans

complexType CustomAirportType

diagram
namespace	http://www.jeppesen.com/aoc
children	customAirportId coordinates
used by	elements  ArrivalAirportType/customAirport DepartureAirportType/customAirport

element CustomAirportType/customAirportId

diagram
namespace	http://www.jeppesen.com/aoc
type	xs:string
properties	isRef  0 minOcc  0 maxOcc  1 content  simple

element CustomAirportType/coordinates

diagram
namespace	http://www.jeppesen.com/aoc
type	GeographicPointType
properties	isRef  0 content  complex
children	latitude longitude

complexType CustomBagaFlightKeyType

diagram
namespace	http://www.jeppesen.com/aoc
children	gufiId aircraftIdentifier flightOriginDate operationalSuffix departureTime departureAirport
used by	element  CustomFlightKeyChoiceType/customBagaFlightKey

element CustomBagaFlightKeyType/gufiId

diagram
namespace	http://www.jeppesen.com/aoc
type	GufiId
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  annotation  minLength  0  maxLength  36

element CustomBagaFlightKeyType/aircraftIdentifier

diagram
namespace	http://www.jeppesen.com/aoc
properties	isRef  0 content  complex
children	regNoseSerial noseSerial serialNumber

element CustomBagaFlightKeyType/aircraftIdentifier/regNoseSerial

diagram
namespace	http://www.jeppesen.com/aoc
properties	isRef  0 content  complex
children	registrationNumber noseNumber serialNumber

element CustomBagaFlightKeyType/aircraftIdentifier/regNoseSerial/registrationNumber

diagram
namespace	http://www.jeppesen.com/aoc
type	restriction of xs:string
properties	isRef  0 content  simple
facets	Kind  Value  annotation  minLength  2  maxLength  8
annotation	documentation Aircraft Registration Number.

element CustomBagaFlightKeyType/aircraftIdentifier/regNoseSerial/noseNumber

diagram
namespace	http://www.jeppesen.com/aoc
type	NoseNumberType
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  annotation  pattern  [A-Z\d]{1,12}

element CustomBagaFlightKeyType/aircraftIdentifier/regNoseSerial/serialNumber

diagram
namespace	http://www.jeppesen.com/aoc
type	SerialNumberType
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  annotation  minLength  1  maxLength  25

element CustomBagaFlightKeyType/aircraftIdentifier/noseSerial

diagram
namespace	http://www.jeppesen.com/aoc
properties	isRef  0 content  complex
children	noseNumber serialNumber

element CustomBagaFlightKeyType/aircraftIdentifier/noseSerial/noseNumber

diagram
namespace	http://www.jeppesen.com/aoc
type	NoseNumberType
properties	isRef  0 content  simple
facets	Kind  Value  annotation  pattern  [A-Z\d]{1,12}

element CustomBagaFlightKeyType/aircraftIdentifier/noseSerial/serialNumber

diagram
namespace	http://www.jeppesen.com/aoc
type	SerialNumberType
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  annotation  minLength  1  maxLength  25
annotation	documentation Aircraft Serial Number.

element CustomBagaFlightKeyType/aircraftIdentifier/serialNumber

diagram
namespace	http://www.jeppesen.com/aoc
type	SerialNumberType
properties	isRef  0 content  simple
facets	Kind  Value  annotation  minLength  1  maxLength  25
annotation	documentation Aircraft Serial Number.

element CustomBagaFlightKeyType/flightOriginDate

diagram
namespace	http://www.jeppesen.com/aoc
type	xs:date
properties	isRef  0 content  simple
annotation	documentation The date that the first leg of a multi leg flight departs.

element CustomBagaFlightKeyType/operationalSuffix

diagram
namespace	http://www.jeppesen.com/aoc
type	String1
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  annotation  maxLength  1
annotation	documentation Operational suffix - at a minimum will be used to uniquely identify a flight leg in cases where ground and/or air returns have occurred.

element CustomBagaFlightKeyType/departureTime

diagram
namespace	http://www.jeppesen.com/aoc
type	xs:time
properties	isRef  0 content  simple
annotation	documentation hhmmssZ. Zulu Time of departure.

element CustomBagaFlightKeyType/departureAirport

diagram
namespace	http://www.jeppesen.com/aoc
type	DepartureAirportType
properties	isRef  0 content  complex
children	pod customAirport

complexType CustomCommercialFlightKeyType

diagram
namespace	http://www.jeppesen.com/aoc
children	gufiId flightIdentifier departureAirport
used by	element  CustomFlightKeyChoiceType/customCommercialFlightKey
annotation	documentation Commerical Flight Key:  gufiId, flightIdentifier (flightNumber, airlineCode, flightOriginDate, operationalSuffix), departureAirport (pod, customAirport/customAirportId, coordiantes)

element CustomCommercialFlightKeyType/gufiId

diagram
namespace	http://www.jeppesen.com/aoc
type	GufiId
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  annotation  minLength  0  maxLength  36

element CustomCommercialFlightKeyType/flightIdentifier

diagram
namespace	http://www.jeppesen.com/aoc
type	FlightIdentifierType
properties	isRef  0 content  complex
children	flightNumber airlineCode flightOriginDate operationalSuffix

element CustomCommercialFlightKeyType/departureAirport

diagram
namespace	http://www.jeppesen.com/aoc
type	DepartureAirportType
properties	isRef  0 content  complex
children	pod customAirport

complexType CustomFlightKeyChoiceType

diagram
namespace	http://www.jeppesen.com/aoc
children	gufiFlightKey customCommercialFlightKey customBagaFlightKey
annotation	documentation A unique Flight Key Choice of one of three flight key types:   GUFI, Commercial, and BAGA flight keys.    Each of the flight key type allows for either an icao, iata, other departure airport, or a custom airport that includes name, and coordinates.

element CustomFlightKeyChoiceType/gufiFlightKey

diagram
namespace	http://www.jeppesen.com/aoc
type	GufiFlightKeyType
properties	isRef  0 content  complex
children	gufiId departureAirport

element CustomFlightKeyChoiceType/customCommercialFlightKey

diagram
namespace	http://www.jeppesen.com/aoc
type	CustomCommercialFlightKeyType
properties	isRef  0 content  complex
children	gufiId flightIdentifier departureAirport

element CustomFlightKeyChoiceType/customBagaFlightKey

diagram
namespace	http://www.jeppesen.com/aoc
type	CustomBagaFlightKeyType
properties	isRef  0 content  complex
children	gufiId aircraftIdentifier flightOriginDate operationalSuffix departureTime departureAirport

complexType DelayCodeType

diagram
namespace	http://www.jeppesen.com/aoc
children	duration code information
used by	elements  EstimateTimesType/estimateTimesGroup/arrivalDelay ArrivalType/arrivalDelay OnType/arrivalDelay AirReturnType/arrivalDelay GroundReturnType/arrivalDelay DelayType/arrivalDelay InType/arrivalDelay EstimateTimesType/estimateTimesGroup/departureDelay OffType/departureDelay DepartureType/departureDelay DelayType/departureDelay OutType/departureDelay

element DelayCodeType/duration

diagram
namespace	http://www.jeppesen.com/aoc
type	restriction of xs:duration
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	documentation

element DelayCodeType/code

diagram
namespace	http://www.jeppesen.com/aoc
type	String4
properties	isRef  0 content  simple
facets	Kind  Value  annotation  maxLength  4
annotation	documentation IATA Codes are used more often.

element DelayCodeType/information

diagram
namespace	http://www.jeppesen.com/aoc
type	String1000
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  annotation  maxLength  1000
annotation	documentation Additional information that further clarifies the code.

complexType DepartureAirportType

diagram
namespace	http://www.jeppesen.com/aoc
children	pod customAirport
used by	elements  CustomBagaFlightKeyType/departureAirport CustomCommercialFlightKeyType/departureAirport GufiFlightKeyType/departureAirport

element DepartureAirportType/pod

diagram
namespace	http://www.jeppesen.com/aoc
type	AirportCodeType
properties	isRef  0 content  complex
children	iata icao icao other
annotation	documentation POD is the Point of Departure.   FAA-Departure Point.  ICAO-Departure Aerodrome

element DepartureAirportType/customAirport

diagram
namespace	http://www.jeppesen.com/aoc
type	CustomAirportType
properties	isRef  0 content  complex
children	customAirportId coordinates

complexType DepthType

diagram
namespace	http://www.jeppesen.com/aoc
type	extension of DepthRestriction
properties	base  DepthRestriction
facets	Kind  Value  annotation  minInclusive  0  maxInclusive  10000
attributes	Name   Type   Use   Default   Fixed   annotation units DepthUnitsEnumType required
annotation	documentation Precipitation depth on runway. Common ICD. Runway conditions. See SCAP Interface Specification-Takeoff, Annex for descriptions of POPT(15). Valid only if runway condition is 2, 3, 5, or 6 as described in the SCAP POPT(15).

attribute DepthType/@units

type	DepthUnitsEnumType
properties	isRef  0 use  required
facets	Kind  Value  annotation  enumeration  in  enumeration  ft  enumeration  mm  enumeration  cm  enumeration  m

complexType DistanceBiasType

diagram
namespace	http://www.jeppesen.com/aoc
type	extension of DistanceBiasRestriction
properties	base  DistanceBiasRestriction
facets	Kind  Value  annotation  minInclusive  0.0  maxInclusive  2500.0
attributes	Name   Type   Use   Default   Fixed   annotation units BasicDistanceEnumType required         documentation nm = nautical miles km = kilometers ft = feet m = meters

attribute DistanceBiasType/@units

type	BasicDistanceEnumType
properties	isRef  0 use  required
annotation	documentation nm = nautical miles km = kilometers ft = feet m = meters

complexType DistanceType

diagram
namespace	http://www.jeppesen.com/aoc
type	extension of DistanceRestriction
properties	base  DistanceRestriction
used by	elements  FpResponseSegmentType/distance BoundingAreaCircleType/radius
facets	Kind  Value  annotation  minInclusive  0.0  maxInclusive  50000.0
attributes	Name   Type   Use   Default   Fixed   annotation units BasicDistanceEnumType required         documentation nm = nautical miles km = kilometers ft = feet m = meters

attribute DistanceType/@units

type	BasicDistanceEnumType
properties	isRef  0 use  required
annotation	documentation nm = nautical miles km = kilometers ft = feet m = meters

complexType DmiIdentifierType

diagram
namespace	http://www.jeppesen.com/aoc
children	dmiClass ataCode controlNumber aircraftId equipmentCode

element DmiIdentifierType/dmiClass

diagram
namespace	http://www.jeppesen.com/aoc
type	restriction of xs:string
properties	isRef  0 content  simple
annotation	documentation MEL - Minimum Equipment List CDL - Configuration Deviation List NEF - Nonessential Equipment and Furnishings (previously known as  - Priority Deferral List) DMI - Deferred Maintenance Item SEL - Special Equipment List

element DmiIdentifierType/ataCode

diagram
namespace	http://www.jeppesen.com/aoc
type	xs:string
properties	isRef  0 content  simple
annotation	documentation ATA or unique identifier for the DMI.  If the ATA code is not used as the unique identifier (e.g. JetPlan), then this field is used to input the unique customer defined identifier.

element DmiIdentifierType/controlNumber

diagram
namespace	http://www.jeppesen.com/aoc
type	xs:string
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	documentation Control number issued for the DMI

element DmiIdentifierType/aircraftId

diagram
namespace	http://www.jeppesen.com/aoc
type	AircraftIdentType
properties	isRef  0 content  complex
children	registrationNumber noseNumber serialNumber noseNumber serialNumber serialNumber other
annotation	documentation Specific aircraft identifier.  Common ICD.

element DmiIdentifierType/equipmentCode

diagram
namespace	http://www.jeppesen.com/aoc
type	EquipmentCodeType
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	iata icao icao other
annotation	documentation The type of aircraft by ICAO, IATA, or Other Common ICD.

complexType ElevationType

diagram
namespace	http://www.jeppesen.com/aoc
type	extension of ElevationRangeRestriction
properties	base  ElevationRangeRestriction
used by	element  FpResponseAirportType/elevation
facets	Kind  Value  annotation  minInclusive  -2000  maxInclusive  30000
attributes	Name   Type   Use   Default   Fixed   annotation units BasicHeightEnumType required         documentation ft = feet m = meters

attribute ElevationType/@units

type	BasicHeightEnumType
properties	isRef  0 use  required
facets	Kind  Value  annotation  enumeration  ft  enumeration  m
annotation	documentation ft = feet m = meters

complexType EquipmentCodeType

diagram
namespace	http://www.jeppesen.com/aoc
children	iata icao icao other
used by	elements  AircraftAssignmentType/equipmentCode CreateFlightLegDataType/equipmentCode DmiIdentifierType/equipmentCode FpResponseAircraftType/equipmentCode
annotation	documentation Uniquely identifies the aircraft equipement code, also known as the type of aircraft within a customers fleet.  Identifies using the IATA, ICAO, or other (Customer Defined).

element EquipmentCodeType/iata

diagram
namespace	http://www.jeppesen.com/aoc
type	IataEquipmentCodeType
properties	isRef  0 content  simple
facets	Kind  Value  annotation  pattern  [0-9A-Z]{3}
annotation	documentation IATA Equipment Type.

element EquipmentCodeType/icao

diagram
namespace	http://www.jeppesen.com/aoc
type	IcaoEquipmentCodeType
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  annotation  pattern  [0-9A-Z]{4}
annotation	documentation ICAO Equipment Type.

element EquipmentCodeType/icao

diagram
namespace	http://www.jeppesen.com/aoc
type	IcaoEquipmentCodeType
properties	isRef  0 content  simple
facets	Kind  Value  annotation  pattern  [0-9A-Z]{4}
annotation	documentation ICAO Equipment Type.

element EquipmentCodeType/other

diagram
namespace	http://www.jeppesen.com/aoc
type	String8
properties	isRef  0 content  simple
facets	Kind  Value  annotation  maxLength  8
annotation	documentation This represents a customer defined aircraft equipment code.  For Jeppesen, this is may be used to identifying the unique JetPlan ID.  For Jeppesen JetPlan data access, the system currently only identifies the aircraft equipment by using this field. Any other informaiton received is assumed to be the JetPlan ID and could result in an error.

complexType ErrorType

diagram
namespace	http://www.jeppesen.com/aoc
children	code information
used by	elements  DispatcherLockResponseType/error CompletedFlightKeyType/error

element ErrorType/code

diagram
namespace	http://www.jeppesen.com/aoc
type	String10
properties	isRef  0 content  simple
facets	Kind  Value  annotation  maxLength  10
annotation	documentation Error code

element ErrorType/information

diagram
namespace	http://www.jeppesen.com/aoc
type	String1000
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  annotation  maxLength  1000
annotation	documentation Additional information that further clarifies the code

complexType FlightIdentifierType

diagram
namespace	http://www.jeppesen.com/aoc
children	flightNumber airlineCode flightOriginDate operationalSuffix
used by	elements  CustomCommercialFlightKeyType/flightIdentifier FlightKeyType/flightIdentifier FpResponseFlightType/flightIdentifier ChangeFlightLegIdentifierType/newFlightIdentifier

element FlightIdentifierType/flightNumber

diagram
namespace	http://www.jeppesen.com/aoc
type	restriction of xs:string
properties	isRef  0 content  simple
facets	Kind  Value  annotation  maxLength  12
annotation	documentation Flight Number

element FlightIdentifierType/airlineCode

diagram
namespace	http://www.jeppesen.com/aoc
type	AirlineCodeType
properties	isRef  0 content  complex
children	iata icao icao other
annotation	documentation Airline Code

element FlightIdentifierType/flightOriginDate

diagram
namespace	http://www.jeppesen.com/aoc
type	xs:date
properties	isRef  0 content  simple
annotation	documentation The date that the first leg of a multi leg flight departs.

element FlightIdentifierType/operationalSuffix

diagram
namespace	http://www.jeppesen.com/aoc
type	String1
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  annotation  maxLength  1
annotation	documentation Operational suffix - at a minimum will be used to uniquely identify a flight leg in cases where ground and/or air returns have occurred.

complexType FlightKeyChoiceType

diagram
namespace	http://www.jeppesen.com/aoc
children	commericalFlightKey bagaFlightKey
annotation	documentation Allows for a choice of appropriate flight key based on the business need.   FlightKey for Commerical.  BAGAFlightKey for Business, General Aviation.

element FlightKeyChoiceType/commericalFlightKey

diagram
namespace	http://www.jeppesen.com/aoc
properties	isRef  0 content  complex
children	flightKey

element FlightKeyChoiceType/commericalFlightKey/flightKey

diagram
namespace	http://www.jeppesen.com/aoc
type	FlightKeyType
properties	isRef  0 content  complex
children	flightIdentifier pod

element FlightKeyChoiceType/bagaFlightKey

diagram
namespace	http://www.jeppesen.com/aoc
type	BagaFlightKeyType
properties	isRef  0 content  complex
children	aircraftId flightOriginDate operationalSuffix departureTime pod

complexType FlightKeyType

diagram
namespace	http://www.jeppesen.com/aoc
children	flightIdentifier pod
used by	elements  CancelFlightLegType/flightKey DeleteFlightLegType/flightKey ReinstateFlightLegType/flightKey DivertFlightLegType/flightKey NewOriginFlightLegType/flightKey UpdateFlightLegType/flightKey RescheduleFlightLegType/flightKey AircraftAssignmentType/flightKey EstimateTimesType/estimateTimesGroup/flightKey NextInformationType/flightKey ChangeFlightLegIdentifierType/flightKey AirReturnType/flightKey GroundReturnType/flightKey DelayType/flightKey FlightLockType/flightKey PostFlightSummaryReportType/flightData/flightKey RequestDiversionType/flightKey FuelOnBoardAtEnroutePositionsType/flightKey GateAssignmentType/flightKey DispatcherLockRequestType/dispatcherFlightLock/flightKey DispatcherLockResponseType/lockUnlockResponse/flightKey FuelTankeringAdviceType/flightKey CompletedFlightKeyType/flightKey ActualFlightLegDataType/flightKey CreateFlightLegDataType/flightKey FlightLegTimeBaseType/flightKey FlightKeyChoiceType/commericalFlightKey/flightKey

element FlightKeyType/flightIdentifier

diagram
namespace	http://www.jeppesen.com/aoc
type	FlightIdentifierType
properties	isRef  0 content  complex
children	flightNumber airlineCode flightOriginDate operationalSuffix
annotation	documentation Flight identifier

element FlightKeyType/pod

diagram
namespace	http://www.jeppesen.com/aoc
type	AirportCodeType
properties	isRef  0 content  complex
children	iata icao icao other
annotation	documentation POD is the Point of Departure.   FAA-Departure Point.  ICAO-Departure Aerodrome

complexType FpRequestAltitudeType

diagram
namespace	http://www.jeppesen.com/aoc
children	altitudeGroup
used by	element  FpRequestScenarioType/altitude

element FpRequestAltitudeType/altitudeGroup

diagram
namespace	http://www.jeppesen.com/aoc
properties	isRef  0 minOcc  1 maxOcc  unbounded content  complex
children	altitude

element FpRequestAltitudeType/altitudeGroup/altitude

diagram
namespace	http://www.jeppesen.com/aoc
type	AltitudeType
properties	isRef  0 content  complex
facets	Kind  Value  annotation  minInclusive  -2000  maxInclusive  250000
attributes	Name   Type   Use   Default   Fixed   annotation units AltitudeHeightEnumType required         documentation ft = feet m = meters fl = flight level mb = millibars
annotation	documentation Flight altitude levels.  A minimum of one altitude must be specified.

complexType FpRequestScenarioType

diagram
namespace	http://www.jeppesen.com/aoc
children	altitude ranking

element FpRequestScenarioType/altitude

diagram
namespace	http://www.jeppesen.com/aoc
type	FpRequestAltitudeType
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	altitudeGroup
annotation	documentation Altitude flight levels.

element FpRequestScenarioType/ranking

diagram
namespace	http://www.jeppesen.com/aoc
type	restriction of xs:string
properties	isRef  0 content  simple
facets	Kind  Value  annotation  enumeration  Cost  enumeration  Fuel  enumeration  Time
annotation	documentation Ranking value.

complexType FpRequestSpeedScheduleType

diagram
namespace	http://www.jeppesen.com/aoc
children	primaryCruiseMode primaryCostIndex

element FpRequestSpeedScheduleType/primaryCruiseMode

diagram
namespace	http://www.jeppesen.com/aoc
type	CruiseModeType
properties	isRef  0 content  complex
children	machAirspeed cruiseMode indicatedAirspeed
annotation	documentation Cruise mode.  Conditional on Cruise or Cost Index preference.  One of either primaryCruiseMode or primaryCostIndex must be selected.

element FpRequestSpeedScheduleType/primaryCostIndex

diagram
namespace	http://www.jeppesen.com/aoc
type	restriction of xs:integer
properties	isRef  0 content  simple
facets	Kind  Value  annotation  minInclusive  0  maxInclusive  9999
annotation	documentation Cost index factor.  Conditional on Cruise or Cost Index preference.  One of either primaryCruiseMode or primaryCostIndex must be selected.

complexType FpResponseAircraftType

diagram
namespace	http://www.jeppesen.com/aoc
children	equipmentCode aircraftId

element FpResponseAircraftType/equipmentCode

diagram
namespace	http://www.jeppesen.com/aoc
type	EquipmentCodeType
properties	isRef  0 content  complex
children	iata icao icao other
annotation	documentation Aircraft type

element FpResponseAircraftType/aircraftId

diagram
namespace	http://www.jeppesen.com/aoc
type	AircraftIdType
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	registrationNumber noseNumber serialNumber noseNumber serialNumber serialNumber
annotation	documentation Aircraft identification

complexType FpResponseAirportType

diagram
namespace	http://www.jeppesen.com/aoc
children	airport coordinates elevation

element FpResponseAirportType/airport

diagram
namespace	http://www.jeppesen.com/aoc
type	AirportCodeType
properties	isRef  0 content  complex
children	iata icao icao other
annotation	documentation Airport code

element FpResponseAirportType/coordinates

diagram
namespace	http://www.jeppesen.com/aoc
type	GeographicPointType
properties	isRef  0 content  complex
children	latitude longitude
annotation	documentation Airport geographic location

element FpResponseAirportType/elevation

diagram
namespace	http://www.jeppesen.com/aoc
type	ElevationType
properties	isRef  0 content  complex
facets	Kind  Value  annotation  minInclusive  -2000  maxInclusive  30000
attributes	Name   Type   Use   Default   Fixed   annotation units BasicHeightEnumType required         documentation ft = feet m = meters
annotation	documentation Airport elevation

complexType FpResponseAlternateAirportType

diagram
namespace	http://www.jeppesen.com/aoc
children	alternateLandingAirportGroup

element FpResponseAlternateAirportType/alternateLandingAirportGroup

diagram
namespace	http://www.jeppesen.com/aoc
properties	isRef  0 minOcc  1 maxOcc  unbounded content  complex
children	airport fuel ete

element FpResponseAlternateAirportType/alternateLandingAirportGroup/airport

diagram
namespace	http://www.jeppesen.com/aoc
type	AirportCodeType
properties	isRef  0 content  complex
children	iata icao icao other
annotation	documentation Identification of alternate airport. Common ICD.

element FpResponseAlternateAirportType/alternateLandingAirportGroup/fuel

diagram
namespace	http://www.jeppesen.com/aoc
type	FuelQuantityType
properties	isRef  0 content  complex
facets	Kind  Value  annotation  minInclusive  0  maxInclusive  25000000
attributes	Name   Type   Use   Default   Fixed   annotation units FuelQuantityUnitsEnum required         documentation kg = kilograms lb = pounds lt = liters ig = imperial gallons ug = U.S. gallons density xs:double          documentation If volume is used this value will be used to convert to weight.  If not supplied, then standard densities will be used.
annotation	documentation Fuel required to alternate airport. Common ICD.

element FpResponseAlternateAirportType/alternateLandingAirportGroup/ete

diagram
namespace	http://www.jeppesen.com/aoc
type	xs:duration
properties	isRef  0 content  simple
annotation	documentation Estimated flying time to alternate airport.

complexType FpResponseCheckpointType

diagram
namespace	http://www.jeppesen.com/aoc
children	name coordinates altitude groundSpeed trueAirspeed firId fuelRemaining
used by	element  FpResponseRouteType/checkpoint
attributes	Name   Type   Use   Default   Fixed   annotation order Integer1to1000 required         documentation Record number - Ordered record number for recurring data

attribute FpResponseCheckpointType/@order

type	Integer1to1000
properties	isRef  0 use  required
facets	Kind  Value  annotation  minInclusive  1  maxInclusive  1000
annotation	documentation Record number - Ordered record number for recurring data

element FpResponseCheckpointType/name

diagram
namespace	http://www.jeppesen.com/aoc
type	CheckpointType
properties	isRef  0 content  complex
children	coordinates waypoint userDefinedName dmeFix
annotation	documentation Checkpoint name.  Includes the named checkpoints - "toc" and "tod".

element FpResponseCheckpointType/coordinates

diagram
namespace	http://www.jeppesen.com/aoc
type	GeographicPointType
properties	isRef  0 content  complex
children	latitude longitude
annotation	documentation Checkpoint Latitude/Longitude; read only

element FpResponseCheckpointType/altitude

diagram
namespace	http://www.jeppesen.com/aoc
type	AltitudeType
properties	isRef  0 content  complex
facets	Kind  Value  annotation  minInclusive  -2000  maxInclusive  250000
attributes	Name   Type   Use   Default   Fixed   annotation units AltitudeHeightEnumType required         documentation ft = feet m = meters fl = flight level mb = millibars
annotation	documentation Altitude

element FpResponseCheckpointType/groundSpeed

diagram
namespace	http://www.jeppesen.com/aoc
type	AirspeedType
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
facets	Kind  Value  annotation  minInclusive  0  maxInclusive  10000
attributes	Name   Type   Use   Default   Fixed   annotation units AirspeedUnitsEnumType required         documentation kts - nautical miles per hour kph - kilometers per hour mph - statute miles per hour mach - number times 100
annotation	documentation Ground speed

element FpResponseCheckpointType/trueAirspeed

diagram
namespace	http://www.jeppesen.com/aoc
type	AirspeedType
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
facets	Kind  Value  annotation  minInclusive  0  maxInclusive  10000
attributes	Name   Type   Use   Default   Fixed   annotation units AirspeedUnitsEnumType required         documentation kts - nautical miles per hour kph - kilometers per hour mph - statute miles per hour mach - number times 100
annotation	documentation True air speed

element FpResponseCheckpointType/firId

diagram
namespace	http://www.jeppesen.com/aoc
type	String4to4
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  annotation  minLength  4  maxLength  4
annotation	documentation FIR

element FpResponseCheckpointType/fuelRemaining

diagram
namespace	http://www.jeppesen.com/aoc
type	FuelQuantityType
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
facets	Kind  Value  annotation  minInclusive  0  maxInclusive  25000000
attributes	Name   Type   Use   Default   Fixed   annotation units FuelQuantityUnitsEnum required         documentation kg = kilograms lb = pounds lt = liters ig = imperial gallons ug = U.S. gallons density xs:double          documentation If volume is used this value will be used to convert to weight.  If not supplied, then standard densities will be used.
annotation	documentation Used if the Flight Planning system performs fuel remaining calculations at checkpoints.

complexType FpResponseEtpAirportType

diagram
namespace	http://www.jeppesen.com/aoc
children	airport
used by	elements  FpResponseEtpType/etp/backwardAirport FpResponseEtpType/etp/forwardAirport

element FpResponseEtpAirportType/airport

diagram
namespace	http://www.jeppesen.com/aoc
type	AirportCodeType
properties	isRef  0 content  complex
children	iata icao icao other
annotation	documentation Airport code

complexType FpResponseEtpType

diagram
namespace	http://www.jeppesen.com/aoc
children	etp

element FpResponseEtpType/etp

diagram
namespace	http://www.jeppesen.com/aoc
properties	isRef  0 minOcc  1 maxOcc  unbounded content  complex
children	name coordinates forwardAirport backwardAirport
attributes	Name   Type   Use   Default   Fixed   annotation order Integer1to1000 required         documentation Preserve ETP order

attribute FpResponseEtpType/etp/@order

type	Integer1to1000
properties	isRef  0 use  required
facets	Kind  Value  annotation  minInclusive  1  maxInclusive  1000
annotation	documentation Preserve ETP order

element FpResponseEtpType/etp/name

diagram
namespace	http://www.jeppesen.com/aoc
type	CheckpointType
properties	isRef  0 content  complex
children	coordinates waypoint userDefinedName dmeFix
annotation	documentation Equal time point

element FpResponseEtpType/etp/coordinates

diagram
namespace	http://www.jeppesen.com/aoc
type	GeographicPointType
properties	isRef  0 content  complex
children	latitude longitude
annotation	documentation Checkpoint Latitude/Longitude; read only

element FpResponseEtpType/etp/forwardAirport

diagram
namespace	http://www.jeppesen.com/aoc
type	FpResponseEtpAirportType
properties	isRef  0 content  complex
children	airport
annotation	documentation Forward equal time point

element FpResponseEtpType/etp/backwardAirport

diagram
namespace	http://www.jeppesen.com/aoc
type	FpResponseEtpAirportType
properties	isRef  0 content  complex
children	airport
annotation	documentation Backward equal time point

complexType FpResponseFlightLevelType

diagram
namespace	http://www.jeppesen.com/aoc
children	fpResponseFlightLevelGroup
used by	element  FpResponseFlightType/flightLevelStep

element FpResponseFlightLevelType/fpResponseFlightLevelGroup

diagram
namespace	http://www.jeppesen.com/aoc
properties	isRef  0 minOcc  1 maxOcc  unbounded content  complex
children	checkpoint flightLevel

element FpResponseFlightLevelType/fpResponseFlightLevelGroup/checkpoint

diagram
namespace	http://www.jeppesen.com/aoc
type	CheckpointType
properties	isRef  0 content  complex
children	coordinates waypoint userDefinedName dmeFix
annotation	documentation Flight level checkpoint.  If multiple flight levels are provided, all flight levels after the first is expected to have a checkpoint associated.

element FpResponseFlightLevelType/fpResponseFlightLevelGroup/flightLevel

diagram
namespace	http://www.jeppesen.com/aoc
type	AltitudeType
properties	isRef  0 content  complex
facets	Kind  Value  annotation  minInclusive  -2000  maxInclusive  250000
attributes	Name   Type   Use   Default   Fixed   annotation units AltitudeHeightEnumType required         documentation ft = feet m = meters fl = flight level mb = millibars
annotation	documentation Flight level altitude

complexType FpResponseFlightType

diagram
namespace	http://www.jeppesen.com/aoc
children	flightIdentifier callSign etd taxiOutTime taxiInTime eta ete payload departureWeight arrivalWeight flightLevel flightLevelStep averageWind averageTemp

element FpResponseFlightType/flightIdentifier

diagram
namespace	http://www.jeppesen.com/aoc
type	FlightIdentifierType
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	flightNumber airlineCode flightOriginDate operationalSuffix
annotation	documentation Flight Identifier

element FpResponseFlightType/callSign

diagram
namespace	http://www.jeppesen.com/aoc
type	CallSignType
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  annotation  minLength  4  maxLength  8
annotation	documentation Call sign

element FpResponseFlightType/etd

diagram
namespace	http://www.jeppesen.com/aoc
type	xs:dateTime
properties	isRef  0 content  simple
annotation	documentation Estimated time of departure

element FpResponseFlightType/taxiOutTime

diagram
namespace	http://www.jeppesen.com/aoc
type	Duration0to180Minutes
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  annotation  minInclusive  PT0M  maxInclusive  PT180M
annotation	documentation Airport taxi out time in minutes

element FpResponseFlightType/taxiInTime

diagram
namespace	http://www.jeppesen.com/aoc
type	Duration0to180Minutes
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  annotation  minInclusive  PT0M  maxInclusive  PT180M
annotation	documentation Airport taxi in time in minutes

element FpResponseFlightType/eta

diagram
namespace	http://www.jeppesen.com/aoc
type	xs:dateTime
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	documentation Estimated time of arrival

element FpResponseFlightType/ete

diagram
namespace	http://www.jeppesen.com/aoc
type	restriction of xs:duration
properties	isRef  0 content  simple
facets	Kind  Value  annotation  minInclusive  PT0H  maxInclusive  PT48H
annotation	documentation Time enroute in hours

element FpResponseFlightType/payload

diagram
namespace	http://www.jeppesen.com/aoc
type	PayloadWeightType
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
facets	Kind  Value  annotation  minInclusive  0  maxInclusive  1000000
attributes	Name   Type   Use   Default   Fixed   annotation units BasicWeightEnumType required         documentation lb = pounds kg = kilograms
annotation	documentation Payload.  Always include unless asking for payload calculation

element FpResponseFlightType/departureWeight

diagram
namespace	http://www.jeppesen.com/aoc
type	TotalWeightType
properties	isRef  0 content  complex
facets	Kind  Value  annotation  maxInclusive  4000000
attributes	Name   Type   Use   Default   Fixed   annotation units BasicWeightEnumType required         documentation lb = pounds kg = kilograms
annotation	documentation Departure weight

element FpResponseFlightType/arrivalWeight

diagram
namespace	http://www.jeppesen.com/aoc
type	TotalWeightType
properties	isRef  0 content  complex
facets	Kind  Value  annotation  maxInclusive  4000000
attributes	Name   Type   Use   Default   Fixed   annotation units BasicWeightEnumType required         documentation lb = pounds kg = kilograms
annotation	documentation Arrival weight

element FpResponseFlightType/flightLevel

diagram
namespace	http://www.jeppesen.com/aoc
type	AltitudeType
properties	isRef  0 content  complex
facets	Kind  Value  annotation  minInclusive  -2000  maxInclusive  250000
attributes	Name   Type   Use   Default   Fixed   annotation units AltitudeHeightEnumType required         documentation ft = feet m = meters fl = flight level mb = millibars
annotation	documentation Flight level altitude.  This is the first flight level achieved.  If multiple flight levels are used, they are added using flightLevelStep.

element FpResponseFlightType/flightLevelStep

diagram
namespace	http://www.jeppesen.com/aoc
type	FpResponseFlightLevelType
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	fpResponseFlightLevelGroup
annotation	documentation Checkpoints and flight levels for a step flight.

element FpResponseFlightType/averageWind

diagram
namespace	http://www.jeppesen.com/aoc
type	SpeedType
properties	isRef  0 content  complex
facets	Kind  Value  annotation  minInclusive  -400  maxInclusive  400
attributes	Name   Type   Use   Default   Fixed   annotation units SpeedUnitsEnumType required         documentation kts - nautical miles per hour kph - kilometers per hour mph - statute miles per hour
annotation	documentation Average route wind speed

element FpResponseFlightType/averageTemp

diagram
namespace	http://www.jeppesen.com/aoc
type	TemperatureType
properties	isRef  0 content  complex
facets	Kind  Value  annotation  minInclusive  -459  maxInclusive  373
attributes	Name   Type   Use   Default   Fixed   annotation units TemperatureUnitsEnumType required         documentation C = Celcius F = Fahrenheit K = Kelvin
annotation	documentation Average route temperature

complexType FpResponseFuelType

diagram
namespace	http://www.jeppesen.com/aoc
children	departure taxiOut taxiIn arrival

element FpResponseFuelType/departure

diagram
namespace	http://www.jeppesen.com/aoc
type	FuelQuantityType
properties	isRef  0 content  complex
facets	Kind  Value  annotation  minInclusive  0  maxInclusive  25000000
attributes	Name   Type   Use   Default   Fixed   annotation units FuelQuantityUnitsEnum required         documentation kg = kilograms lb = pounds lt = liters ig = imperial gallons ug = U.S. gallons density xs:double          documentation If volume is used this value will be used to convert to weight.  If not supplied, then standard densities will be used.
annotation	documentation Departure fuel

element FpResponseFuelType/taxiOut

diagram
namespace	http://www.jeppesen.com/aoc
type	FuelQuantityType
properties	isRef  0 content  complex
facets	Kind  Value  annotation  minInclusive  0  maxInclusive  25000000
attributes	Name   Type   Use   Default   Fixed   annotation units FuelQuantityUnitsEnum required         documentation kg = kilograms lb = pounds lt = liters ig = imperial gallons ug = U.S. gallons density xs:double          documentation If volume is used this value will be used to convert to weight.  If not supplied, then standard densities will be used.
annotation	documentation Airport taxi out fuel

element FpResponseFuelType/taxiIn

diagram
namespace	http://www.jeppesen.com/aoc
type	FuelQuantityType
properties	isRef  0 content  complex
facets	Kind  Value  annotation  minInclusive  0  maxInclusive  25000000
attributes	Name   Type   Use   Default   Fixed   annotation units FuelQuantityUnitsEnum required         documentation kg = kilograms lb = pounds lt = liters ig = imperial gallons ug = U.S. gallons density xs:double          documentation If volume is used this value will be used to convert to weight.  If not supplied, then standard densities will be used.
annotation	documentation Airport taxi in fuel

element FpResponseFuelType/arrival

diagram
namespace	http://www.jeppesen.com/aoc
type	FuelQuantityType
properties	isRef  0 content  complex
facets	Kind  Value  annotation  minInclusive  0  maxInclusive  25000000
attributes	Name   Type   Use   Default   Fixed   annotation units FuelQuantityUnitsEnum required         documentation kg = kilograms lb = pounds lt = liters ig = imperial gallons ug = U.S. gallons density xs:double          documentation If volume is used this value will be used to convert to weight.  If not supplied, then standard densities will be used.
annotation	documentation Arrival fuel

complexType FpResponsePlanStatisticsType

diagram
namespace	http://www.jeppesen.com/aoc
children	flightPlanKey runDate

element FpResponsePlanStatisticsType/flightPlanKey

diagram
namespace	http://www.jeppesen.com/aoc
type	String30
properties	isRef  0 content  simple
facets	Kind  Value  annotation  maxLength  30
annotation	documentation Specific plan ID.

element FpResponsePlanStatisticsType/runDate

diagram
namespace	http://www.jeppesen.com/aoc
type	xs:dateTime
properties	isRef  0 content  simple
annotation	documentation Date and time plan was run.

complexType FpResponseRouteType

diagram
namespace	http://www.jeppesen.com/aoc
children	checkpoint segment

element FpResponseRouteType/checkpoint

diagram
namespace	http://www.jeppesen.com/aoc
type	FpResponseCheckpointType
properties	isRef  0 minOcc  1 maxOcc  unbounded content  complex
children	name coordinates altitude groundSpeed trueAirspeed firId fuelRemaining
attributes	Name   Type   Use   Default   Fixed   annotation order Integer1to1000 required         documentation Record number - Ordered record number for recurring data
annotation	documentation First checkpoint will always be the POD and the last checkpoint will always be the last POA; minimum of two checkpoints

element FpResponseRouteType/segment

diagram
namespace	http://www.jeppesen.com/aoc
type	FpResponseSegmentType
properties	isRef  0 minOcc  1 maxOcc  unbounded content  complex
children	airway distance fuel mach groundSpeed trueAirspeed
attributes	Name   Type   Use   Default   Fixed   annotation order Integer1to1000 required         documentation Record number - Ordered record number for recurring data
annotation	documentation Minimum of one segment

complexType FpResponseSegmentType

diagram
namespace	http://www.jeppesen.com/aoc
children	airway distance fuel mach groundSpeed trueAirspeed
used by	element  FpResponseRouteType/segment
attributes	Name   Type   Use   Default   Fixed   annotation order Integer1to1000 required         documentation Record number - Ordered record number for recurring data

attribute FpResponseSegmentType/@order

type	Integer1to1000
properties	isRef  0 use  required
facets	Kind  Value  annotation  minInclusive  1  maxInclusive  1000
annotation	documentation Record number - Ordered record number for recurring data

element FpResponseSegmentType/airway

diagram
namespace	http://www.jeppesen.com/aoc
type	String10
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  annotation  maxLength  10
annotation	documentation Airway. Provide if on an airway

element FpResponseSegmentType/distance

diagram
namespace	http://www.jeppesen.com/aoc
type	DistanceType
properties	isRef  0 content  complex
facets	Kind  Value  annotation  minInclusive  0.0  maxInclusive  50000.0
attributes	Name   Type   Use   Default   Fixed   annotation units BasicDistanceEnumType required         documentation nm = nautical miles km = kilometers ft = feet m = meters
annotation	documentation Segment distance

element FpResponseSegmentType/fuel

diagram
namespace	http://www.jeppesen.com/aoc
type	FuelQuantityType
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
facets	Kind  Value  annotation  minInclusive  0  maxInclusive  25000000
attributes	Name   Type   Use   Default   Fixed   annotation units FuelQuantityUnitsEnum required         documentation kg = kilograms lb = pounds lt = liters ig = imperial gallons ug = U.S. gallons density xs:double          documentation If volume is used this value will be used to convert to weight.  If not supplied, then standard densities will be used.
annotation	documentation Segment fuel. If calculated, segment fuel represents the fuel used since the most recent previous checkpoint where a segment fuel calculation was performed.

element FpResponseSegmentType/mach

diagram
namespace	http://www.jeppesen.com/aoc
type	AirspeedType
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
facets	Kind  Value  annotation  minInclusive  0  maxInclusive  10000
attributes	Name   Type   Use   Default   Fixed   annotation units AirspeedUnitsEnumType required         documentation kts - nautical miles per hour kph - kilometers per hour mph - statute miles per hour mach - number times 100
annotation	documentation Segment mach.  Only if in mach range.

element FpResponseSegmentType/groundSpeed

diagram
namespace	http://www.jeppesen.com/aoc
type	AirspeedType
properties	isRef  0 content  complex
facets	Kind  Value  annotation  minInclusive  0  maxInclusive  10000
attributes	Name   Type   Use   Default   Fixed   annotation units AirspeedUnitsEnumType required         documentation kts - nautical miles per hour kph - kilometers per hour mph - statute miles per hour mach - number times 100
annotation	documentation Ground speed

element FpResponseSegmentType/trueAirspeed

diagram
namespace	http://www.jeppesen.com/aoc
type	AirspeedType
properties	isRef  0 content  complex
facets	Kind  Value  annotation  minInclusive  0  maxInclusive  10000
attributes	Name   Type   Use   Default   Fixed   annotation units AirspeedUnitsEnumType required         documentation kts - nautical miles per hour kph - kilometers per hour mph - statute miles per hour mach - number times 100
annotation	documentation True air speed

complexType FpResponseTocTodType

diagram
namespace	http://www.jeppesen.com/aoc
children	altitude groundSpeed trueAirspeed

element FpResponseTocTodType/altitude

diagram
namespace	http://www.jeppesen.com/aoc
type	AltitudeType
properties	isRef  0 content  complex
facets	Kind  Value  annotation  minInclusive  -2000  maxInclusive  250000
attributes	Name   Type   Use   Default   Fixed   annotation units AltitudeHeightEnumType required         documentation ft = feet m = meters fl = flight level mb = millibars

element FpResponseTocTodType/groundSpeed

diagram
namespace	http://www.jeppesen.com/aoc
type	AirspeedType
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
facets	Kind  Value  annotation  minInclusive  0  maxInclusive  10000
attributes	Name   Type   Use   Default   Fixed   annotation units AirspeedUnitsEnumType required         documentation kts - nautical miles per hour kph - kilometers per hour mph - statute miles per hour mach - number times 100

element FpResponseTocTodType/trueAirspeed

diagram
namespace	http://www.jeppesen.com/aoc
type	AirspeedType
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
facets	Kind  Value  annotation  minInclusive  0  maxInclusive  10000
attributes	Name   Type   Use   Default   Fixed   annotation units AirspeedUnitsEnumType required         documentation kts - nautical miles per hour kph - kilometers per hour mph - statute miles per hour mach - number times 100

complexType FrequencyType

diagram
namespace	http://www.jeppesen.com/aoc
type	extension of FrequencyRangeRestriction
properties	base  FrequencyRangeRestriction
facets	Kind  Value  annotation  minInclusive  0.0  maxInclusive  30000.0
attributes	Name   Type   Use   Default   Fixed   annotation units FrequencyUnitsEnumType required         documentation khz = kilohertz mhz = megahertz

attribute FrequencyType/@units

type	FrequencyUnitsEnumType
properties	isRef  0 use  required
facets	Kind  Value  annotation  enumeration  khz  enumeration  mhz
annotation	documentation khz = kilohertz mhz = megahertz

complexType FuelAdjustmentType

diagram
namespace	http://www.jeppesen.com/aoc
children	fuelWeight fuelPercentage

element FuelAdjustmentType/fuelWeight

diagram
namespace	http://www.jeppesen.com/aoc
type	FuelQuantityType
properties	isRef  0 content  complex
facets	Kind  Value  annotation  minInclusive  0  maxInclusive  25000000
attributes	Name   Type   Use   Default   Fixed   annotation units FuelQuantityUnitsEnum required         documentation kg = kilograms lb = pounds lt = liters ig = imperial gallons ug = U.S. gallons density xs:double          documentation If volume is used this value will be used to convert to weight.  If not supplied, then standard densities will be used.

element FuelAdjustmentType/fuelPercentage

diagram
namespace	http://www.jeppesen.com/aoc
type	FloatingPercentageRestriction
properties	isRef  0 content  simple
facets	Kind  Value  annotation  minInclusive  0.0  maxInclusive  100.0

complexType FuelBurnRateType

diagram
namespace	http://www.jeppesen.com/aoc
children	fuelDuration fuelQuantity

element FuelBurnRateType/fuelDuration

diagram
namespace	http://www.jeppesen.com/aoc
type	FuelDurationType
properties	isRef  0 content  complex
children	duration altitude
annotation	documentation Duration of fuel in time.

element FuelBurnRateType/fuelQuantity

diagram
namespace	http://www.jeppesen.com/aoc
type	FuelQuantityType
properties	isRef  0 content  complex
facets	Kind  Value  annotation  minInclusive  0  maxInclusive  25000000
attributes	Name   Type   Use   Default   Fixed   annotation units FuelQuantityUnitsEnum required         documentation kg = kilograms lb = pounds lt = liters ig = imperial gallons ug = U.S. gallons density xs:double          documentation If volume is used this value will be used to convert to weight.  If not supplied, then standard densities will be used.
annotation	documentation Fuel quantity.

complexType FuelDurationType

diagram
namespace	http://www.jeppesen.com/aoc
children	duration altitude
used by	elements  FuelBurnRateType/fuelDuration FuelQuantityDurationType/fuelDuration

element FuelDurationType/duration

diagram
namespace	http://www.jeppesen.com/aoc
type	xs:duration
properties	isRef  0 content  simple
annotation	documentation Duration of fuel in time.

element FuelDurationType/altitude

diagram
namespace	http://www.jeppesen.com/aoc
type	AltitudeType
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
facets	Kind  Value  annotation  minInclusive  -2000  maxInclusive  250000
attributes	Name   Type   Use   Default   Fixed   annotation units AltitudeHeightEnumType required         documentation ft = feet m = meters fl = flight level mb = millibars
annotation	documentation Altitude

complexType FuelPlanAmountType

diagram
namespace	http://www.jeppesen.com/aoc
children	fuelWeight fuelMinutes

element FuelPlanAmountType/fuelWeight

diagram
namespace	http://www.jeppesen.com/aoc
type	FuelQuantityType
properties	isRef  0 content  complex
facets	Kind  Value  annotation  minInclusive  0  maxInclusive  25000000
attributes	Name   Type   Use   Default   Fixed   annotation units FuelQuantityUnitsEnum required         documentation kg = kilograms lb = pounds lt = liters ig = imperial gallons ug = U.S. gallons density xs:double          documentation If volume is used this value will be used to convert to weight.  If not supplied, then standard densities will be used.

element FuelPlanAmountType/fuelMinutes

diagram
namespace	http://www.jeppesen.com/aoc
type	FuelTimeRestriction
properties	isRef  0 content  simple
facets	Kind  Value  annotation  maxInclusive  14400

complexType FuelQuantityDurationType

diagram
namespace	http://www.jeppesen.com/aoc
children	fuelDuration fuelQuantity

element FuelQuantityDurationType/fuelDuration

diagram
namespace	http://www.jeppesen.com/aoc
type	FuelDurationType
properties	isRef  0 content  complex
children	duration altitude
annotation	documentation Duration of fuel in time.

element FuelQuantityDurationType/fuelQuantity

diagram
namespace	http://www.jeppesen.com/aoc
type	FuelQuantityType
properties	isRef  0 content  complex
facets	Kind  Value  annotation  minInclusive  0  maxInclusive  25000000
attributes	Name   Type   Use   Default   Fixed   annotation units FuelQuantityUnitsEnum required         documentation kg = kilograms lb = pounds lt = liters ig = imperial gallons ug = U.S. gallons density xs:double          documentation If volume is used this value will be used to convert to weight.  If not supplied, then standard densities will be used.
annotation	documentation Fuel quantity.

complexType FuelQuantityType

diagram
namespace	http://www.jeppesen.com/aoc
type	extension of FuelQuantityRestriction
properties	base  FuelQuantityRestriction
used by	elements  FpResponseFuelType/arrival FpResponseFuelType/departure FpResponseAlternateAirportType/alternateLandingAirportGroup/fuel FpResponseSegmentType/fuel FuelActualType/fuelQuanity FuelBurnRateType/fuelQuantity FuelQuantityDurationType/fuelQuantity FpResponseCheckpointType/fuelRemaining FuelPlanAmountType/fuelWeight FuelAdjustmentType/fuelWeight FpResponseFuelType/taxiIn FpResponseFuelType/taxiOut
facets	Kind  Value  annotation  minInclusive  0  maxInclusive  25000000
attributes	Name   Type   Use   Default   Fixed   annotation units FuelQuantityUnitsEnum required         documentation kg = kilograms lb = pounds lt = liters ig = imperial gallons ug = U.S. gallons density xs:double          documentation If volume is used this value will be used to convert to weight.  If not supplied, then standard densities will be used.

attribute FuelQuantityType/@units

type	FuelQuantityUnitsEnum
properties	isRef  0 use  required
annotation	documentation kg = kilograms lb = pounds lt = liters ig = imperial gallons ug = U.S. gallons

attribute FuelQuantityType/@density

type	xs:double
properties	isRef  0
annotation	documentation If volume is used this value will be used to convert to weight.  If not supplied, then standard densities will be used.

complexType GeographicPointType

diagram
namespace	http://www.jeppesen.com/aoc
children	latitude longitude
used by	elements  CheckpointType/coordinates CustomAirportType/coordinates FpResponseAirportType/coordinates FpResponseCheckpointType/coordinates FpResponseEtpType/etp/coordinates BoundingAreaPolygonType/point BoundingAreaCircleType/point

element GeographicPointType/latitude

diagram
namespace	http://www.jeppesen.com/aoc
type	LatitudeType
properties	isRef  0 content  complex
children	hemisphere degrees minutes seconds
annotation	documentation Latitude

element GeographicPointType/longitude

diagram
namespace	http://www.jeppesen.com/aoc
type	LongitudeType
properties	isRef  0 content  complex
children	hemisphere degrees minutes seconds
annotation	documentation Longitude

complexType GufiFlightKeyType

diagram
namespace	http://www.jeppesen.com/aoc
children	gufiId departureAirport
used by	element  CustomFlightKeyChoiceType/gufiFlightKey

element GufiFlightKeyType/gufiId

diagram
namespace	http://www.jeppesen.com/aoc
type	restriction of GufiId
properties	isRef  0 content  simple
facets	Kind  Value  annotation  minLength  0  maxLength  36

element GufiFlightKeyType/departureAirport

diagram
namespace	http://www.jeppesen.com/aoc
type	DepartureAirportType
properties	isRef  0 content  complex
children	pod customAirport

complexType HorizontalCoordinateType

diagram
namespace	http://www.jeppesen.com/aoc
children	altitude azimuth

element HorizontalCoordinateType/altitude

diagram
namespace	http://www.jeppesen.com/aoc
type	AltitudeType
properties	isRef  0 content  complex
facets	Kind  Value  annotation  minInclusive  -2000  maxInclusive  250000
attributes	Name   Type   Use   Default   Fixed   annotation units AltitudeHeightEnumType required         documentation ft = feet m = meters fl = flight level mb = millibars

element HorizontalCoordinateType/azimuth

diagram
namespace	http://www.jeppesen.com/aoc
type	AzimuthType
properties	isRef  0 content  simple
facets	Kind  Value  annotation  minInclusive  0  maxInclusive  360

complexType IntegrityLevelType

diagram
namespace	http://www.jeppesen.com/aoc
children	level rnpArValue

element IntegrityLevelType/level

diagram
namespace	http://www.jeppesen.com/aoc
type	restriction of xs:string
properties	isRef  0 content  simple
annotation	documentation Example: Basic RNP 1, RNAV1, RNAV2, RNAV5, RNAV10, RNP4, MNPS, Terminal, Enroute, Approach, RNP Approach.   NOTE:  IntegrityLevelType is a repeatable set.   Define only one level per set.

element IntegrityLevelType/rnpArValue

diagram
namespace	http://www.jeppesen.com/aoc
type	restriction of xs:decimal
properties	isRef  0 content  simple
facets	Kind  Value  annotation  minExclusive  0
annotation	documentation FAA approval is required to uilize this value.

complexType IntMinMaxType

diagram
namespace	http://www.jeppesen.com/aoc
children	min max

element IntMinMaxType/min

diagram
namespace	http://www.jeppesen.com/aoc
type	xs:int
properties	isRef  0 content  simple

element IntMinMaxType/max

diagram
namespace	http://www.jeppesen.com/aoc
type	xs:int
properties	isRef  0 content  simple

complexType LatitudeType

diagram
namespace	http://www.jeppesen.com/aoc
children	hemisphere degrees minutes seconds
used by	elements  PositionsLocationType/latitude GeographicPointType/latitude

element LatitudeType/hemisphere

diagram
namespace	http://www.jeppesen.com/aoc
type	restriction of xs:string
properties	isRef  0 content  simple
facets	Kind  Value  annotation  enumeration  N  enumeration  S
annotation	documentation N = north S = south

element LatitudeType/degrees

diagram
namespace	http://www.jeppesen.com/aoc
type	restriction of xs:integer
properties	isRef  0 content  simple
facets	Kind  Value  annotation  minInclusive  0  maxInclusive  90
annotation	documentation Degrees

element LatitudeType/minutes

diagram
namespace	http://www.jeppesen.com/aoc
type	MinuteSecondRangeRestriction
properties	isRef  0 content  simple
facets	Kind  Value  annotation  minInclusive  0  maxInclusive  59
annotation	documentation Minutes

element LatitudeType/seconds

diagram
namespace	http://www.jeppesen.com/aoc
type	MinuteSecondRangeRestriction
properties	isRef  0 content  simple
facets	Kind  Value  annotation  minInclusive  0  maxInclusive  59
annotation	documentation Seconds

complexType LimitingConditionType

diagram
namespace	http://www.jeppesen.com/aoc
children	code description

element LimitingConditionType/code

diagram
namespace	http://www.jeppesen.com/aoc
type	String3
properties	isRef  0 content  simple
facets	Kind  Value  annotation  maxLength  3

element LimitingConditionType/description

diagram
namespace	http://www.jeppesen.com/aoc
type	String250
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  annotation  maxLength  250

complexType LoginType

diagram
namespace	http://www.jeppesen.com/aoc
children	userName password

element LoginType/userName

diagram
namespace	http://www.jeppesen.com/aoc
type	String80
properties	isRef  0 content  simple
facets	Kind  Value  annotation  maxLength  80
annotation	documentation User name to log into the database application

element LoginType/password

diagram
namespace	http://www.jeppesen.com/aoc
type	String80
properties	isRef  0 content  simple
facets	Kind  Value  annotation  maxLength  80
annotation	documentation Password to log into the database application

complexType LongitudeType

diagram
namespace	http://www.jeppesen.com/aoc
children	hemisphere degrees minutes seconds
used by	elements  PositionsLocationType/longitude GeographicPointType/longitude

element LongitudeType/hemisphere

diagram
namespace	http://www.jeppesen.com/aoc
type	restriction of xs:string
properties	isRef  0 content  simple
facets	Kind  Value  annotation  enumeration  E  enumeration  W
annotation	documentation E = East W = West

element LongitudeType/degrees

diagram
namespace	http://www.jeppesen.com/aoc
type	restriction of xs:integer
properties	isRef  0 content  simple
facets	Kind  Value  annotation  minInclusive  0  maxInclusive  180
annotation	documentation Degrees

element LongitudeType/minutes

diagram
namespace	http://www.jeppesen.com/aoc
type	MinuteSecondRangeRestriction
properties	isRef  0 content  simple
facets	Kind  Value  annotation  minInclusive  0  maxInclusive  59
annotation	documentation Minutes

element LongitudeType/seconds

diagram
namespace	http://www.jeppesen.com/aoc
type	MinuteSecondRangeRestriction
properties	isRef  0 content  simple
facets	Kind  Value  annotation  minInclusive  0  maxInclusive  59
annotation	documentation Seconds

complexType NoiseLevelType

diagram
namespace	http://www.jeppesen.com/aoc
type	extension of NoiseLevelRestriction
properties	base  NoiseLevelRestriction
facets	Kind  Value  annotation  minInclusive  0  maxInclusive  194
attributes	Name   Type   Use   Default   Fixed   annotation units SoundUnitsEnumType required         documentation dBA=Acoustic decibels

attribute NoiseLevelType/@units

type	SoundUnitsEnumType
properties	isRef  0 use  required
facets	Kind  Value  annotation  enumeration  dBA
annotation	documentation dBA=Acoustic decibels

complexType OperatingPeriodType

diagram
namespace	http://www.jeppesen.com/aoc
children	start end period

element OperatingPeriodType/start

diagram
namespace	http://www.jeppesen.com/aoc
type	xs:time
properties	isRef  0 content  simple
annotation	documentation Start time

element OperatingPeriodType/end

diagram
namespace	http://www.jeppesen.com/aoc
type	xs:time
properties	isRef  0 content  simple
annotation	documentation End time

element OperatingPeriodType/period

diagram
namespace	http://www.jeppesen.com/aoc
type	PeriodType
properties	isRef  0 content  complex
children	effectiveDate discontinueDate weekDays
annotation	documentation Period

complexType PayloadWeightType

diagram
namespace	http://www.jeppesen.com/aoc
type	extension of PayloadWeightRestriction
properties	base  PayloadWeightRestriction
used by	element  FpResponseFlightType/payload
facets	Kind  Value  annotation  minInclusive  0  maxInclusive  1000000
attributes	Name   Type   Use   Default   Fixed   annotation units BasicWeightEnumType required         documentation lb = pounds kg = kilograms

attribute PayloadWeightType/@units

type	BasicWeightEnumType
properties	isRef  0 use  required
facets	Kind  Value  annotation  enumeration  lb  enumeration  kg
annotation	documentation lb = pounds kg = kilograms

complexType PeriodType

diagram
namespace	http://www.jeppesen.com/aoc
children	effectiveDate discontinueDate weekDays
used by	element  OperatingPeriodType/period

element PeriodType/effectiveDate

diagram
namespace	http://www.jeppesen.com/aoc
type	xs:dateTime
properties	isRef  0 content  simple
annotation	documentation Effective Date

element PeriodType/discontinueDate

diagram
namespace	http://www.jeppesen.com/aoc
type	xs:dateTime
properties	isRef  0 content  simple
annotation	documentation Discontinue Date

element PeriodType/weekDays

diagram
namespace	http://www.jeppesen.com/aoc
type	WeekDayEnumType
properties	isRef  0 minOcc  1 maxOcc  unbounded content  simple
facets	Kind  Value  annotation  enumeration  Sunday  enumeration  Monday  enumeration  Tuesday  enumeration  Wednesday  enumeration  Thursday  enumeration  Friday  enumeration  Saturday
annotation	documentation Week Days

complexType PriceType

diagram
namespace	http://www.jeppesen.com/aoc
type	extension of PriceRestriction
properties	base  PriceRestriction
facets	Kind  Value  annotation  minInclusive  0.0  maxInclusive  1000000000.0
attributes	Name   Type   Use   Default   Fixed   annotation units String3to3 required         documentation See ISO4217 for valid currency codes

attribute PriceType/@units

type	String3to3
properties	isRef  0 use  required
facets	Kind  Value  annotation  minLength  3  maxLength  3
annotation	documentation See ISO4217 for valid currency codes

complexType PropertyType

diagram
namespace	http://www.jeppesen.com/aoc
children	propertyClass propertyName propertyValue

element PropertyType/propertyClass

diagram
namespace	http://www.jeppesen.com/aoc
type	String255
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  annotation  maxLength  255

element PropertyType/propertyName

diagram
namespace	http://www.jeppesen.com/aoc
type	String255
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  annotation  maxLength  255

element PropertyType/propertyValue

diagram
namespace	http://www.jeppesen.com/aoc
type	PropertyValueType
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	base64BinaryValue booleanValue dateTimeValue doubleValue integerValue stringValue

complexType PropertyValueType

diagram
namespace	http://www.jeppesen.com/aoc
children	base64BinaryValue booleanValue dateTimeValue doubleValue integerValue stringValue
used by	element  PropertyType/propertyValue

element PropertyValueType/base64BinaryValue

diagram
namespace	http://www.jeppesen.com/aoc
type	xs:base64Binary
properties	isRef  0 content  simple nillable  true

element PropertyValueType/booleanValue

diagram
namespace	http://www.jeppesen.com/aoc
type	xs:boolean
properties	isRef  0 content  simple nillable  true

element PropertyValueType/dateTimeValue

diagram
namespace	http://www.jeppesen.com/aoc
type	xs:dateTime
properties	isRef  0 content  simple nillable  true

element PropertyValueType/doubleValue

diagram
namespace	http://www.jeppesen.com/aoc
type	xs:double
properties	isRef  0 content  simple nillable  true

element PropertyValueType/integerValue

diagram
namespace	http://www.jeppesen.com/aoc
type	xs:integer
properties	isRef  0 content  simple nillable  true

element PropertyValueType/stringValue

diagram
namespace	http://www.jeppesen.com/aoc
type	xs:string
properties	isRef  0 content  simple nillable  true

complexType ReasonType

diagram
namespace	http://www.jeppesen.com/aoc
children	code information
used by	elements  CancelFlightLegType/reason DeleteFlightLegType/reason ReinstateFlightLegType/reason DivertFlightLegType/reason NewOriginFlightLegType/reason UpdateFlightLegType/reason RescheduleFlightLegType/reason AircraftAssignmentType/reason ChangeFlightLegIdentifierType/reason AirReturnType/reason GroundReturnType/reason ActualFlightLegDataType/reason CreateFlightLegDataType/reason

element ReasonType/code

diagram
namespace	http://www.jeppesen.com/aoc
type	restriction of xs:string
properties	isRef  0 content  simple
facets	Kind  Value  annotation  minLength  0  maxLength  8
annotation	documentation Reason Code

element ReasonType/information

diagram
namespace	http://www.jeppesen.com/aoc
type	restriction of xs:string
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  annotation  minLength  0  maxLength  1000
annotation	documentation Additional information that further clarifies the code.

complexType RouteKeyType

diagram
namespace	http://www.jeppesen.com/aoc
children	routeName airlineCode pod poa

element RouteKeyType/routeName

diagram
namespace	http://www.jeppesen.com/aoc
type	String11
properties	isRef  0 content  simple
facets	Kind  Value  annotation  maxLength  11
annotation	documentation Name of the route; route identifier

element RouteKeyType/airlineCode

diagram
namespace	http://www.jeppesen.com/aoc
type	AirlineCodeType
properties	isRef  0 content  complex
children	iata icao icao other
annotation	documentation Airline or operator identifier

element RouteKeyType/pod

diagram
namespace	http://www.jeppesen.com/aoc
type	AirportCodeType
properties	isRef  0 content  complex
children	iata icao icao other
annotation	documentation Route POD

element RouteKeyType/poa

diagram
namespace	http://www.jeppesen.com/aoc
type	AirportCodeType
properties	isRef  0 content  complex
children	iata icao icao other
annotation	documentation Route POA

complexType RunwayIdType

diagram
namespace	http://www.jeppesen.com/aoc
children	runwayNumber runwayDesignator

element RunwayIdType/runwayNumber

diagram
namespace	http://www.jeppesen.com/aoc
type	restriction of xs:integer
properties	isRef  0 content  simple
facets	Kind  Value  annotation  minInclusive  0  maxInclusive  36
annotation	documentation Runway identifier number.

element RunwayIdType/runwayDesignator

diagram
namespace	http://www.jeppesen.com/aoc
type	restriction of xs:string
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  annotation  enumeration  L  enumeration  C  enumeration  R
annotation	documentation Runway identifier number suffix to indicate Left, Center, and Right.

complexType SpeedType

diagram
namespace	http://www.jeppesen.com/aoc
type	extension of SpeedRangeRestriction
properties	base  SpeedRangeRestriction
used by	element  FpResponseFlightType/averageWind
facets	Kind  Value  annotation  minInclusive  -400  maxInclusive  400
attributes	Name   Type   Use   Default   Fixed   annotation units SpeedUnitsEnumType required         documentation kts - nautical miles per hour kph - kilometers per hour mph - statute miles per hour

attribute SpeedType/@units

type	SpeedUnitsEnumType
properties	isRef  0 use  required
facets	Kind  Value  annotation  enumeration  kts  enumeration  kph  enumeration  mph
annotation	documentation kts - nautical miles per hour kph - kilometers per hour mph - statute miles per hour

complexType StatusType

diagram
namespace	http://www.jeppesen.com/aoc
children	code information

element StatusType/code

diagram
namespace	http://www.jeppesen.com/aoc
type	String4
properties	isRef  0 content  simple
facets	Kind  Value  annotation  maxLength  4
annotation	documentation Code

element StatusType/information

diagram
namespace	http://www.jeppesen.com/aoc
type	String1000
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  annotation  maxLength  1000
annotation	documentation Additional information that further clarifies the code.

complexType TemperatureType

diagram
namespace	http://www.jeppesen.com/aoc
type	extension of TemperatureRangeRestriction
properties	base  TemperatureRangeRestriction
used by	element  FpResponseFlightType/averageTemp
facets	Kind  Value  annotation  minInclusive  -459  maxInclusive  373
attributes	Name   Type   Use   Default   Fixed   annotation units TemperatureUnitsEnumType required         documentation C = Celcius F = Fahrenheit K = Kelvin

attribute TemperatureType/@units

type	TemperatureUnitsEnumType
properties	isRef  0 use  required
facets	Kind  Value  annotation  enumeration  C  enumeration  F  enumeration  K
annotation	documentation C = Celcius F = Fahrenheit K = Kelvin

complexType TotalWeightType

diagram
namespace	http://www.jeppesen.com/aoc
type	extension of TotalWeightRestriction
properties	base  TotalWeightRestriction
used by	elements  FpResponseFlightType/arrivalWeight FpResponseFlightType/departureWeight
facets	Kind  Value  annotation  maxInclusive  4000000
attributes	Name   Type   Use   Default   Fixed   annotation units BasicWeightEnumType required         documentation lb = pounds kg = kilograms

attribute TotalWeightType/@units

type	BasicWeightEnumType
properties	isRef  0 use  required
facets	Kind  Value  annotation  enumeration  lb  enumeration  kg
annotation	documentation lb = pounds kg = kilograms

complexType UserInfoType

diagram
namespace	http://www.jeppesen.com/aoc
children	userName userLocation
used by	elements  CancelFlightLegType/userInfo DeleteFlightLegType/userInfo ReinstateFlightLegType/userInfo RequestDiversionType/userInfo
annotation	documentation UserName and Location (desk)

element UserInfoType/userName

diagram
namespace	http://www.jeppesen.com/aoc
type	xs:string
properties	isRef  0 content  simple
annotation	documentation User Name, or Dispatcher Name

element UserInfoType/userLocation

diagram
namespace	http://www.jeppesen.com/aoc
type	xs:string
properties	isRef  0 content  simple
annotation	documentation User Location or Desk Name.

complexType WaypointType

diagram
namespace	http://www.jeppesen.com/aoc
children	identifier icaoCode type
used by	element  CheckpointType/waypoint

element WaypointType/identifier

diagram
namespace	http://www.jeppesen.com/aoc
type	String5
properties	isRef  0 content  simple
facets	Kind  Value  annotation  maxLength  5
annotation	documentation Name of the waypoint

element WaypointType/icaoCode

diagram
namespace	http://www.jeppesen.com/aoc
type	String2
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  annotation  maxLength  2
annotation	documentation ICAO country code that represents the country that the waypoint is located

element WaypointType/type

diagram
namespace	http://www.jeppesen.com/aoc
type	String1
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  annotation  maxLength  1
annotation	documentation Distinguishes between two waypoints with the same name in the same area, such as a VOR and NDB

complexType WindGradientType

diagram
namespace	http://www.jeppesen.com/aoc
children	windDirection windVelocity

element WindGradientType/windDirection

diagram
namespace	http://www.jeppesen.com/aoc
type	AzimuthType
properties	isRef  0 content  simple
facets	Kind  Value  annotation  minInclusive  0  maxInclusive  360

element WindGradientType/windVelocity

diagram
namespace	http://www.jeppesen.com/aoc
type	AirspeedType
properties	isRef  0 content  complex
facets	Kind  Value  annotation  minInclusive  0  maxInclusive  10000
attributes	Name   Type   Use   Default   Fixed   annotation units AirspeedUnitsEnumType required         documentation kts - nautical miles per hour kph - kilometers per hour mph - statute miles per hour mach - number times 100

simpleType AirspeedRestriction

namespace	http://www.jeppesen.com/aoc
type	restriction of xs:integer
properties	base  xs:integer
used by	complexType  AirspeedType
facets	Kind  Value  annotation  minInclusive  0  maxInclusive  10000

simpleType AirspeedUnitsEnumType

namespace	http://www.jeppesen.com/aoc
type	restriction of xs:string
properties	base  xs:string
used by	attribute  AirspeedType/@units
facets	Kind  Value  annotation  enumeration  kts  enumeration  kph  enumeration  mph  enumeration  mach

simpleType AltitudeHeightEnumType

namespace	http://www.jeppesen.com/aoc
type	restriction of xs:string
properties	base  xs:string
used by	attribute  AltitudeType/@units
facets	Kind  Value  annotation  enumeration  ft  enumeration  m  enumeration  fl  enumeration  mb

simpleType AltitudeRangeRestriction

namespace	http://www.jeppesen.com/aoc
type	restriction of xs:integer
properties	base  xs:integer
used by	complexType  AltitudeType
facets	Kind  Value  annotation  minInclusive  -2000  maxInclusive  250000

simpleType AOCMessageClassType

namespace	http://www.jeppesen.com/aoc
type	restriction of xs:string
properties	base  xs:string
facets	Kind  Value  annotation  enumeration  RESPONSE  enumeration  REQUEST  enumeration  PUBLISH
annotation	documentation Message Class

simpleType AOCMessageNameType

namespace	http://www.jeppesen.com/aoc
type	restriction of xs:string
properties	base  xs:string
facets	Kind  Value  annotation  enumeration  AA001  enumeration  AA002  enumeration  AA003  enumeration  AA004  enumeration  AA005  enumeration  AA006  enumeration  AA007  enumeration  AA008  enumeration  AA009  enumeration  AA010  enumeration  AA011  enumeration  AA012  enumeration  AA013  enumeration  AA014  enumeration  AA015  enumeration  AA016  enumeration  AA017  enumeration  AA018  enumeration  AA019  enumeration  AA020  enumeration  AN001  enumeration  AN002  enumeration  AN003  enumeration  AS001  enumeration  AT001  enumeration  AT002  enumeration  AT003  enumeration  AT011  enumeration  AT012  enumeration  AT013  enumeration  AT014  enumeration  AT015  enumeration  AT016  enumeration  AT018  enumeration  BT001  enumeration  CM001  enumeration  CM002  enumeration  CM003  enumeration  CM004  enumeration  CM005  enumeration  CS001  enumeration  CS002  enumeration  CS004  enumeration  CS005  enumeration  CS007  enumeration  CS008  enumeration  CS009  enumeration  CS010  enumeration  CS012  enumeration  CS013  enumeration  CS014  enumeration  CS015  enumeration  CS016  enumeration  CS017  enumeration  CS018  enumeration  CS019  enumeration  CT001  enumeration  DB001  enumeration  DM001  enumeration  DM002  enumeration  DM003  enumeration  DM004  enumeration  DP001  enumeration  DP002  enumeration  DP003  enumeration  DP004  enumeration  DP005  enumeration  DP006  enumeration  DP007  enumeration  DP008  enumeration  DP009  enumeration  DP010  enumeration  DP011  enumeration  DP012  enumeration  EF003  enumeration  EF004  enumeration  EP001  enumeration  EP002  enumeration  FF001  enumeration  FF002  enumeration  FF003  enumeration  FF004  enumeration  FP001  enumeration  GP001  enumeration  GP002  enumeration  GP003  enumeration  GP004  enumeration  GP005  enumeration  HB001  enumeration  HB002  enumeration  HB003  enumeration  HB004  enumeration  HB005  enumeration  HB006  enumeration  HB007  enumeration  HB008  enumeration  HB009  enumeration  MX001  enumeration  MX002  enumeration  MX003  enumeration  MX004  enumeration  MX005  enumeration  MX006  enumeration  MX007  enumeration  MX008  enumeration  MX009  enumeration  MX010  enumeration  MX011  enumeration  MX012  enumeration  MX013  enumeration  MX014  enumeration  MX015  enumeration  ND001  enumeration  ND002  enumeration  ND003  enumeration  ND004  enumeration  ND005  enumeration  ND006  enumeration  ND007  enumeration  ND008  enumeration  NM001  enumeration  NM002  enumeration  NM003  enumeration  NM004  enumeration  OC001  enumeration  OC002  enumeration  OC003  enumeration  OC004  enumeration  OC005  enumeration  OC008  enumeration  OC009  enumeration  OC010  enumeration  OC011  enumeration  OC012  enumeration  OC013  enumeration  OC014  enumeration  OC015  enumeration  OC016  enumeration  OC017  enumeration  OC018  enumeration  OC020  enumeration  OC021  enumeration  OC022  enumeration  OC023  enumeration  OC024  enumeration  OC025  enumeration  OC026  enumeration  OC027  enumeration  OC028  enumeration  OC029  enumeration  OC030  enumeration  OC031  enumeration  OC032  enumeration  OC033  enumeration  OC034  enumeration  OC035  enumeration  OC036  enumeration  OC037  enumeration  RS001  enumeration  SD001  enumeration  SP001  enumeration  SP002  enumeration  TN001  enumeration  TN002  enumeration  TN003  enumeration  TN004  enumeration  TN005  enumeration  UM001  enumeration  UM002  enumeration  WB001  enumeration  WB002  enumeration  WB003  enumeration  WB004  enumeration  WB005  enumeration  WB006  enumeration  WB007  enumeration  WX001  enumeration  WX002  enumeration  WX003  enumeration  WX004  enumeration  WX005  enumeration  WX006  enumeration  WX007  enumeration  WX008  enumeration  WX009  enumeration  WX010  enumeration  WX011  enumeration  WX012  enumeration  WX013  enumeration  WX014  enumeration  WX015  enumeration  ZZ001  enumeration  ZZ002  enumeration  ZZ003  enumeration  ZZ004  enumeration  ZZ005  enumeration  ZZ006  enumeration  ZZ007  enumeration  ZZ008  enumeration  ZZ009
annotation	documentation Message identifier from all ICDs.  List is available in CommonICD.PDF in section 2.0 Message Summary (i.e. AA001, OC001, etc)

simpleType AOCVersionType

namespace	http://www.jeppesen.com/aoc
type	xs:string
properties	base  xs:string
annotation	documentation Each message is assigned a version number using number identified by each message in the applicable ICD.  For all version 1 messages, this field must contain a "v" followed by  a "1".  For all versions greater than 1, just a number is accepted.

simpleType AtmosphericUnitType

namespace	http://www.jeppesen.com/aoc
type	restriction of xs:string
properties	base  xs:string
used by	attribute  AtmosphericPressureType/@units
facets	Kind  Value  annotation  enumeration  at  enumeration  atm  enumeration  bar  enumeration  mbar  enumeration  Pa  enumeration  hPa  enumeration  kPa  enumeration  inchHg  enumeration  psi  enumeration  mmHg  enumeration  Torr

simpleType AzimuthType

namespace	http://www.jeppesen.com/aoc
type	restriction of xs:integer
properties	base  xs:integer
used by	elements  HorizontalCoordinateType/azimuth WindGradientType/windDirection
facets	Kind  Value  annotation  minInclusive  0  maxInclusive  360
annotation	documentation Compass direction in whole degrees

simpleType BasicDistanceEnumType

namespace	http://www.jeppesen.com/aoc
type	union of (LongDistanceEnumType, ShortDistanceEnumType)
used by	attributes  DistanceType/@units DistanceBiasType/@units

simpleType BasicHeightEnumType

namespace	http://www.jeppesen.com/aoc
type	restriction of xs:string
properties	base  xs:string
used by	attribute  ElevationType/@units
facets	Kind  Value  annotation  enumeration  ft  enumeration  m

simpleType BasicVolumeEnumType

namespace	http://www.jeppesen.com/aoc
type	restriction of xs:string
properties	base  xs:string
used by	simpleType  FuelQuantityUnitsEnum
facets	Kind  Value  annotation  enumeration  ig  enumeration  lt  enumeration  ug

simpleType BasicWeightEnumType

namespace	http://www.jeppesen.com/aoc
type	restriction of xs:string
properties	base  xs:string
used by	simpleType  FuelQuantityUnitsEnum attributes  FuelOnBoardAtEnroutePositionsType/actualFuelOnBoard/@basicWeightUom PayloadWeightType/@units TotalWeightType/@units
facets	Kind  Value  annotation  enumeration  lb  enumeration  kg

simpleType BiasEnumType

namespace	http://www.jeppesen.com/aoc
type	restriction of xs:string
properties	base  xs:string
used by	attribute  BiasType/@units
facets	Kind  Value  annotation  enumeration  percent  enumeration  absolute

simpleType CallSignType

namespace	http://www.jeppesen.com/aoc
type	restriction of xs:string
properties	base  xs:string
used by	elements  UpdateFlightLegType/callSign ChangeFlightLegIdentifierType/callSign ActualFlightLegDataType/callSign ContinueLegType/callSign CreateFlightLegDataType/callSign FpResponseFlightType/callSign
facets	Kind  Value  annotation  minLength  4  maxLength  8
annotation	documentation For general aviation flights, registration number is used. For airlines, ICAO call sign plus flight number is used. For air taxi operators without a registered company call sign, a prefix of T plus the registration number is used.

simpleType CruiseModeEnumType

namespace	http://www.jeppesen.com/aoc
type	restriction of xs:string
properties	base  xs:string
used by	element  CruiseModeType/cruiseMode
facets	Kind  Value  annotation  length  3  whiteSpace  collapse  enumeration  CMC  enumeration  ECO  enumeration  HSC  enumeration  LRC  enumeration  MSR  enumeration  MRC  enumeration  MCT  enumeration  MSC  enumeration  NCT  enumeration  925  enumeration  945  enumeration  1LE  enumeration  2LE  enumeration  ECP  enumeration  MCP  enumeration  RCP

simpleType DepthRestriction

namespace	http://www.jeppesen.com/aoc
type	restriction of xs:integer
properties	base  xs:integer
used by	complexType  DepthType
facets	Kind  Value  annotation  minInclusive  0  maxInclusive  10000

simpleType DepthUnitsEnumType

namespace	http://www.jeppesen.com/aoc
type	restriction of xs:string
properties	base  xs:string
used by	attribute  DepthType/@units
facets	Kind  Value  annotation  enumeration  in  enumeration  ft  enumeration  mm  enumeration  cm  enumeration  m

simpleType DistanceBiasRestriction

namespace	http://www.jeppesen.com/aoc
type	restriction of xs:double
properties	base  xs:double
used by	complexType  DistanceBiasType
facets	Kind  Value  annotation  minInclusive  0.0  maxInclusive  2500.0

simpleType DistanceRestriction

namespace	http://www.jeppesen.com/aoc
type	restriction of xs:double
properties	base  xs:double
used by	complexType  DistanceType
facets	Kind  Value  annotation  minInclusive  0.0  maxInclusive  50000.0

simpleType Duration0to180Minutes

namespace	http://www.jeppesen.com/aoc
type	restriction of xs:duration
properties	base  xs:duration
used by	elements  ContinueLegType/scheduledTaxiIn CreateFlightLegDataType/scheduledTaxiIn ContinueLegType/scheduledTaxiOut CreateFlightLegDataType/scheduledTaxiOut FpResponseFlightType/taxiInTime FpResponseFlightType/taxiOutTime
facets	Kind  Value  annotation  minInclusive  PT0M  maxInclusive  PT180M
annotation	documentation Used in both Customer Database and Operations Control (taxi time limits)

simpleType ElevationRangeRestriction

namespace	http://www.jeppesen.com/aoc
type	restriction of xs:integer
properties	base  xs:integer
used by	complexType  ElevationType
facets	Kind  Value  annotation  minInclusive  -2000  maxInclusive  30000

simpleType FloatingPercentageRestriction

namespace	http://www.jeppesen.com/aoc
type	restriction of xs:float
properties	base  xs:float
used by	element  FuelAdjustmentType/fuelPercentage
facets	Kind  Value  annotation  minInclusive  0.0  maxInclusive  100.0

simpleType FrequencyRangeRestriction

namespace	http://www.jeppesen.com/aoc
type	restriction of xs:double
properties	base  xs:double
used by	complexType  FrequencyType
facets	Kind  Value  annotation  minInclusive  0.0  maxInclusive  30000.0

simpleType FrequencyUnitsEnumType

namespace	http://www.jeppesen.com/aoc
type	restriction of xs:string
properties	base  xs:string
used by	attribute  FrequencyType/@units
facets	Kind  Value  annotation  enumeration  khz  enumeration  mhz

simpleType FuelQuantityRestriction

namespace	http://www.jeppesen.com/aoc
type	restriction of xs:integer
properties	base  xs:integer
used by	complexType  FuelQuantityType
facets	Kind  Value  annotation  minInclusive  0  maxInclusive  25000000

simpleType FuelQuantityUnitsEnum

namespace	http://www.jeppesen.com/aoc
type	union of (BasicWeightEnumType, BasicVolumeEnumType)
used by	attributes  FuelTankeringAdviceType/estDepartureFuel/@units FuelTankeringAdviceType/estTankerFuel/@units FuelQuantityType/@units

simpleType FuelTimeRestriction

namespace	http://www.jeppesen.com/aoc
type	restriction of xs:nonNegativeInteger
properties	base  xs:nonNegativeInteger
used by	element  FuelPlanAmountType/fuelMinutes
facets	Kind  Value  annotation  maxInclusive  14400

simpleType GufiId

namespace	http://www.jeppesen.com/aoc
type	restriction of xs:string
properties	base  xs:string
used by	elements  CustomBagaFlightKeyType/gufiId CustomCommercialFlightKeyType/gufiId GufiFlightKeyType/gufiId
facets	Kind  Value  annotation  minLength  0  maxLength  36
annotation	documentation Globally Unique Flight Identifier - 32 character string

simpleType IataAirlineType

namespace	http://www.jeppesen.com/aoc
type	restriction of xs:string
properties	base  xs:string
used by	element  AirlineCodeType/iata
facets	Kind  Value  annotation  pattern  [0-9A-Z]{2}

simpleType IataAirportType

namespace	http://www.jeppesen.com/aoc
type	restriction of xs:string
properties	base  xs:string
used by	element  AirportCodeType/iata
facets	Kind  Value  annotation  pattern  [0-9A-Z]{3}

simpleType IataEquipmentCodeType

namespace	http://www.jeppesen.com/aoc
type	restriction of xs:string
properties	base  xs:string
used by	element  EquipmentCodeType/iata
facets	Kind  Value  annotation  pattern  [0-9A-Z]{3}

simpleType IcaoAirlineType

namespace	http://www.jeppesen.com/aoc
type	restriction of xs:string
properties	base  xs:string
used by	elements  AirlineCodeType/icao AirlineCodeType/icao
facets	Kind  Value  annotation  pattern  [0-9A-Z]{3}

simpleType IcaoAirportType

namespace	http://www.jeppesen.com/aoc
type	restriction of xs:string
properties	base  xs:string
used by	elements  AirportCodeType/icao AirportCodeType/icao
facets	Kind  Value  annotation  pattern  [0-9A-Z]{4}

simpleType IcaoEquipmentCodeType

namespace	http://www.jeppesen.com/aoc
type	restriction of xs:string
properties	base  xs:string
used by	elements  EquipmentCodeType/icao EquipmentCodeType/icao
facets	Kind  Value  annotation  pattern  [0-9A-Z]{4}

simpleType IndicatedAirspeedRestriction

namespace	http://www.jeppesen.com/aoc
type	restriction of xs:integer
properties	base  xs:integer
used by	element  CruiseModeType/indicatedAirspeed
facets	Kind  Value  annotation  minInclusive  100  maxInclusive  400

simpleType Integer0to999

namespace	http://www.jeppesen.com/aoc
type	restriction of xs:integer
properties	base  xs:integer
facets	Kind  Value  annotation  minInclusive  0  maxInclusive  999

simpleType Integer0to9999

namespace	http://www.jeppesen.com/aoc
type	restriction of xs:integer
properties	base  xs:integer
facets	Kind  Value  annotation  minInclusive  0  maxInclusive  9999

simpleType Integer1to10

namespace	http://www.jeppesen.com/aoc
type	restriction of xs:integer
properties	base  xs:integer
facets	Kind  Value  annotation  minInclusive  1  maxInclusive  10

simpleType Integer1to1000

namespace	http://www.jeppesen.com/aoc
type	restriction of xs:integer
properties	base  xs:integer
used by	attributes  FpResponseCheckpointType/@order FpResponseEtpType/etp/@order FpResponseSegmentType/@order
facets	Kind  Value  annotation  minInclusive  1  maxInclusive  1000

simpleType LongDistanceEnumType

namespace	http://www.jeppesen.com/aoc
type	restriction of xs:string
properties	base  xs:string
used by	simpleType  BasicDistanceEnumType
facets	Kind  Value  annotation  enumeration  nm  enumeration  km

simpleType MachAirspeedRestriction

namespace	http://www.jeppesen.com/aoc
type	restriction of xs:string
properties	base  xs:string
used by	element  CruiseModeType/machAirspeed
facets	Kind  Value  annotation  pattern  M[6-9][0-9]

simpleType MinuteSecondRangeRestriction

namespace	http://www.jeppesen.com/aoc
type	restriction of xs:integer
properties	base  xs:integer
used by	elements  LatitudeType/minutes LongitudeType/minutes LatitudeType/seconds LongitudeType/seconds
facets	Kind  Value  annotation  minInclusive  0  maxInclusive  59

simpleType MonthType

namespace	http://www.jeppesen.com/aoc
type	restriction of xs:string
properties	base  xs:string
facets	Kind  Value  annotation  enumeration  Jan  enumeration  Feb  enumeration  Mar  enumeration  Apr  enumeration  May  enumeration  Jun  enumeration  Jul  enumeration  Aug  enumeration  Sep  enumeration  Oct  enumeration  Nov  enumeration  Dec
annotation	documentation 3 letter Abbreviation for each month

simpleType NoiseLevelRestriction

namespace	http://www.jeppesen.com/aoc
type	restriction of xs:integer
properties	base  xs:integer
used by	complexType  NoiseLevelType
facets	Kind  Value  annotation  minInclusive  0  maxInclusive  194

simpleType NoseNumberType

namespace	http://www.jeppesen.com/aoc
type	restriction of xs:string
properties	base  xs:string
used by	elements  AircraftIdType/noseNumber AircraftIdType/noseNumber AircraftIdentType/noseNumber AircraftIdentType/noseNumber CustomBagaFlightKeyType/aircraftIdentifier/regNoseSerial/noseNumber CustomBagaFlightKeyType/aircraftIdentifier/noseSerial/noseNumber
facets	Kind  Value  annotation  pattern  [A-Z\d]{1,12}

simpleType PayloadWeightRestriction

namespace	http://www.jeppesen.com/aoc
type	restriction of xs:integer
properties	base  xs:integer
used by	complexType  PayloadWeightType
facets	Kind  Value  annotation  minInclusive  0  maxInclusive  1000000

simpleType PriceRestriction

namespace	http://www.jeppesen.com/aoc
type	restriction of xs:double
properties	base  xs:double
used by	complexType  PriceType
facets	Kind  Value  annotation  minInclusive  0.0  maxInclusive  1000000000.0

simpleType SerialNumberType

namespace	http://www.jeppesen.com/aoc
type	restriction of xs:string
properties	base  xs:string
used by	elements  AircraftIdType/serialNumber AircraftIdType/serialNumber AircraftIdType/serialNumber AircraftIdentType/serialNumber AircraftIdentType/serialNumber AircraftIdentType/serialNumber CustomBagaFlightKeyType/aircraftIdentifier/regNoseSerial/serialNumber CustomBagaFlightKeyType/aircraftIdentifier/noseSerial/serialNumber CustomBagaFlightKeyType/aircraftIdentifier/serialNumber
facets	Kind  Value  annotation  minLength  1  maxLength  25

simpleType ShortDistanceEnumType

namespace	http://www.jeppesen.com/aoc
type	restriction of xs:string
properties	base  xs:string
used by	simpleType  BasicDistanceEnumType
facets	Kind  Value  annotation  enumeration  ft  enumeration  m

simpleType SoundUnitsEnumType

namespace	http://www.jeppesen.com/aoc
type	restriction of xs:string
properties	base  xs:string
used by	attribute  NoiseLevelType/@units
facets	Kind  Value  annotation  enumeration  dBA

simpleType SpeedRangeRestriction

namespace	http://www.jeppesen.com/aoc
type	restriction of xs:integer
properties	base  xs:integer
used by	complexType  SpeedType
facets	Kind  Value  annotation  minInclusive  -400  maxInclusive  400

simpleType SpeedUnitsEnumType

namespace	http://www.jeppesen.com/aoc
type	restriction of xs:string
properties	base  xs:string
used by	attribute  SpeedType/@units
facets	Kind  Value  annotation  enumeration  kts  enumeration  kph  enumeration  mph

simpleType StateType

namespace	http://www.jeppesen.com/aoc
type	restriction of xs:string
properties	base  xs:string
facets	Kind  Value  annotation  enumeration  AL  enumeration  AK  enumeration  AR  enumeration  AS  enumeration  AZ  enumeration  CA  enumeration  CO  enumeration  CT  enumeration  DC  enumeration  DE  enumeration  FL  enumeration  FM  enumeration  GA  enumeration  GU  enumeration  HI  enumeration  IA  enumeration  ID  enumeration  IL  enumeration  IN  enumeration  KS  enumeration  KY  enumeration  LA  enumeration  MA  enumeration  MD  enumeration  ME  enumeration  MH  enumeration  MI  enumeration  MN  enumeration  MO  enumeration  MP  enumeration  MS  enumeration  MT  enumeration  NC  enumeration  ND  enumeration  NE  enumeration  NH  enumeration  NJ  enumeration  NM  enumeration  NV  enumeration  NY  enumeration  OH  enumeration  OK  enumeration  OR  enumeration  PA  enumeration  PR  enumeration  PW  enumeration  RI  enumeration  SC  enumeration  SD  enumeration  TN  enumeration  TX  enumeration  UT  enumeration  VA  enumeration  VI  enumeration  VT  enumeration  WA  enumeration  WI  enumeration  WV  enumeration  WY

simpleType String1

namespace	http://www.jeppesen.com/aoc
type	restriction of xs:string
properties	base  xs:string
used by	elements  NewOriginFlightLegType/actualPodOperationalSuffix AirReturnType/operationalSuffix GroundReturnType/operationalSuffix RequestCompleteFlightKeyType/flightKeyInfo/operationalSuffix BagaFlightKeyType/operationalSuffix CustomBagaFlightKeyType/operationalSuffix FlightIdentifierType/operationalSuffix WaypointType/type
facets	Kind  Value  annotation  maxLength  1

simpleType String10

namespace	http://www.jeppesen.com/aoc
type	restriction of xs:string
properties	base  xs:string
used by	elements  FpResponseSegmentType/airway ErrorType/code CrewMemberAssignmentType/employeeId
facets	Kind  Value  annotation  maxLength  10

simpleType String1000

namespace	http://www.jeppesen.com/aoc
type	restriction of xs:string
properties	base  xs:string
used by	elements  CancelFlightLegType/dispatcherRemarks EstimateTimesType/estimateTimesGroup/information NextInformationType/information AirReturnType/information GroundReturnType/information DelayType/information FlightLegTimeBaseType/information DelayCodeType/information ErrorType/information StatusType/information
facets	Kind  Value  annotation  maxLength  1000

simpleType String11

namespace	http://www.jeppesen.com/aoc
type	restriction of xs:string
properties	base  xs:string
used by	element  RouteKeyType/routeName
facets	Kind  Value  annotation  maxLength  11

simpleType String12

namespace	http://www.jeppesen.com/aoc
type	restriction of xs:string
properties	base  xs:string
used by	element  CheckpointType/userDefinedName
facets	Kind  Value  annotation  maxLength  12

simpleType String15

namespace	http://www.jeppesen.com/aoc
type	restriction of xs:string
properties	base  xs:string
facets	Kind  Value  annotation  maxLength  15

simpleType String16

namespace	http://www.jeppesen.com/aoc
type	restriction of xs:string
properties	base  xs:string
facets	Kind  Value  annotation  maxLength  16

simpleType String1to5

namespace	http://www.jeppesen.com/aoc
type	restriction of xs:string
properties	base  xs:string
facets	Kind  Value  annotation  minLength  1  maxLength  5

simpleType String2

namespace	http://www.jeppesen.com/aoc
type	restriction of xs:string
properties	base  xs:string
used by	element  WaypointType/icaoCode
facets	Kind  Value  annotation  maxLength  2

simpleType String20

namespace	http://www.jeppesen.com/aoc
type	restriction of xs:string
properties	base  xs:string
used by	elements  CrewMemberAssignmentType/firstName CrewMemberAssignmentType/lastName CrewMemberAssignmentType/middleName
facets	Kind  Value  annotation  maxLength  20

simpleType String200

namespace	http://www.jeppesen.com/aoc
type	restriction of xs:string
properties	base  xs:string
facets	Kind  Value  annotation  maxLength  200

simpleType String2048

namespace	http://www.jeppesen.com/aoc
type	restriction of xs:string
properties	base  xs:string
facets	Kind  Value  annotation  maxLength  2048

simpleType String24

namespace	http://www.jeppesen.com/aoc
type	restriction of xs:string
properties	base  xs:string
facets	Kind  Value  annotation  maxLength  24

simpleType String25

namespace	http://www.jeppesen.com/aoc
type	restriction of xs:string
properties	base  xs:string
facets	Kind  Value  annotation  maxLength  25

simpleType String250

namespace	http://www.jeppesen.com/aoc
type	restriction of xs:string
properties	base  xs:string
used by	elements  LimitingConditionType/description AccessType/key AccessType/name
facets	Kind  Value  annotation  maxLength  250

simpleType String255

namespace	http://www.jeppesen.com/aoc
type	restriction of xs:string
properties	base  xs:string
used by	elements  ClassNameType/propertyClass PropertyType/propertyClass ClassNameType/propertyName PropertyType/propertyName
facets	Kind  Value  annotation  maxLength  255

simpleType String2to10

namespace	http://www.jeppesen.com/aoc
type	restriction of xs:string
properties	base  xs:string
facets	Kind  Value  annotation  minLength  2  maxLength  10

simpleType String3

namespace	http://www.jeppesen.com/aoc
type	restriction of xs:string
properties	base  xs:string
used by	element  LimitingConditionType/code
facets	Kind  Value  annotation  maxLength  3

simpleType String30

namespace	http://www.jeppesen.com/aoc
type	restriction of xs:string
properties	base  xs:string
used by	element  FpResponsePlanStatisticsType/flightPlanKey
facets	Kind  Value  annotation  maxLength  30

simpleType String30MB

namespace	http://www.jeppesen.com/aoc
type	restriction of xs:string
properties	base  xs:string
facets	Kind  Value  annotation  maxLength  31457280

simpleType String32

namespace	http://www.jeppesen.com/aoc
type	restriction of xs:string
properties	base  xs:string
facets	Kind  Value  annotation  maxLength  32

simpleType String36

namespace	http://www.jeppesen.com/aoc
type	restriction of xs:string
properties	base  xs:string
facets	Kind  Value  annotation  maxLength  36

simpleType String3to3

namespace	http://www.jeppesen.com/aoc
type	restriction of xs:string
properties	base  xs:string
used by	attribute  PriceType/@units
facets	Kind  Value  annotation  minLength  3  maxLength  3

simpleType String3to4

namespace	http://www.jeppesen.com/aoc
type	restriction of xs:string
properties	base  xs:string
facets	Kind  Value  annotation  minLength  3  maxLength  4

simpleType String4

namespace	http://www.jeppesen.com/aoc
type	restriction of xs:string
properties	base  xs:string
used by	elements  DelayCodeType/code StatusType/code NextInformationType/delayCode ActualFlightLegDataType/dispatchDesk
facets	Kind  Value  annotation  maxLength  4

simpleType String4to4

namespace	http://www.jeppesen.com/aoc
type	restriction of xs:string
properties	base  xs:string
used by	element  FpResponseCheckpointType/firId
facets	Kind  Value  annotation  minLength  4  maxLength  4

simpleType String5

namespace	http://www.jeppesen.com/aoc
type	restriction of xs:string
properties	base  xs:string
used by	element  WaypointType/identifier
facets	Kind  Value  annotation  maxLength  5

simpleType String50

namespace	http://www.jeppesen.com/aoc
type	restriction of xs:string
properties	base  xs:string
facets	Kind  Value  annotation  maxLength  50

simpleType String512

namespace	http://www.jeppesen.com/aoc
type	restriction of xs:string
properties	base  xs:string
facets	Kind  Value  annotation  maxLength  512

simpleType String6

namespace	http://www.jeppesen.com/aoc
type	restriction of xs:string
properties	base  xs:string
facets	Kind  Value  annotation  maxLength  6

simpleType String60

namespace	http://www.jeppesen.com/aoc
type	restriction of xs:string
properties	base  xs:string
used by	element  CrewMemberAssignmentType/name
facets	Kind  Value  annotation  maxLength  60

simpleType String7

namespace	http://www.jeppesen.com/aoc
type	restriction of xs:string
properties	base  xs:string
facets	Kind  Value  annotation  maxLength  7

simpleType String8

namespace	http://www.jeppesen.com/aoc
type	restriction of xs:string
properties	base  xs:string
used by	element  EquipmentCodeType/other
facets	Kind  Value  annotation  maxLength  8

simpleType String80

namespace	http://www.jeppesen.com/aoc
type	restriction of xs:string
properties	base  xs:string
used by	elements  LoginType/password LoginType/userName
facets	Kind  Value  annotation  maxLength  80

simpleType String9

namespace	http://www.jeppesen.com/aoc
type	restriction of xs:string
properties	base  xs:string
used by	element  CheckpointType/dmeFix
facets	Kind  Value  annotation  maxLength  9

simpleType TemperatureRangeRestriction

namespace	http://www.jeppesen.com/aoc
type	restriction of xs:integer
properties	base  xs:integer
used by	complexType  TemperatureType
facets	Kind  Value  annotation  minInclusive  -459  maxInclusive  373

simpleType TemperatureUnitsEnumType

namespace	http://www.jeppesen.com/aoc
type	restriction of xs:string
properties	base  xs:string
used by	attribute  TemperatureType/@units
facets	Kind  Value  annotation  enumeration  C  enumeration  F  enumeration  K

simpleType TotalWeightRestriction

namespace	http://www.jeppesen.com/aoc
type	restriction of xs:nonNegativeInteger
properties	base  xs:nonNegativeInteger
used by	complexType  TotalWeightType
facets	Kind  Value  annotation  maxInclusive  4000000

simpleType WeekDayEnumType

namespace	http://www.jeppesen.com/aoc
type	restriction of xs:string
properties	base  xs:string
used by	element  PeriodType/weekDays
facets	Kind  Value  annotation  enumeration  Sunday  enumeration  Monday  enumeration  Tuesday  enumeration  Wednesday  enumeration  Thursday  enumeration  Friday  enumeration  Saturday

simpleType WholePercentageRestriction

namespace	http://www.jeppesen.com/aoc
type	restriction of xs:int
properties	base  xs:int
facets	Kind  Value  annotation  minInclusive  0  maxInclusive  100

XML Schema documentation generated by XMLSpy Schema Editor http://www.altova.com/xmlspy
