Schema ElectronicFlightFolder.xsd

AIM Bookshelf Click for EF message overviews.
Message ID   Associated Complex types
EF003 TransformFlightPlanRequestType
OperationalFlightPlanResponseType
EF004 AckReceiptOfFlightPlanMessageType


complexType A633OutputFormatType

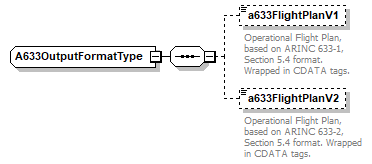

diagram EFSpec_p1.png
namespace http://www.jeppesen.com/aoc
children a633FlightPlanV1 a633FlightPlanV2
used by
element OperationalFlightPlanBasicResponseType/a633OutputFormat

element A633OutputFormatType/a633FlightPlanV1
diagram EFSpec_p2.png
namespace http://www.jeppesen.com/aoc
properties
isRef 0
minOcc 0
maxOcc 1
annotation
documentation
Operational Flight Plan, based on ARINC 633-1, Section 5.4 format.  Wrapped in CDATA tags.

element A633OutputFormatType/a633FlightPlanV2
diagram EFSpec_p3.png
namespace http://www.jeppesen.com/aoc
properties
isRef 0
minOcc 0
maxOcc 1
annotation
documentation
Operational Flight Plan, based on ARINC 633-2, Section 5.4 format. Wrapped in CDATA tags.

complexType AckReceiptOfFlightPlanMessageType
diagram EFSpec_p4.png
namespace http://www.jeppesen.com/aoc
children receiveOpFlightPlan failedMessage
used by
element ElectronicFlightFolderType/ackReceiptOfFlightPlanMessage
annotation
documentation
EF004 vA Acknowledge Receipt of Operational Flight Plan message via EFB. PUBLISH

element AckReceiptOfFlightPlanMessageType/receiveOpFlightPlan
diagram EFSpec_p5.png
namespace http://www.jeppesen.com/aoc
type xs:boolean
properties
isRef 0
content simple
nillable false
annotation
documentation
Aircraft has received Operational Flight Plan message (EF001)?  If so, then "true".  If not message was not received, then "false".   Not nillable.

element AckReceiptOfFlightPlanMessageType/failedMessage
diagram EFSpec_p6.png
namespace http://www.jeppesen.com/aoc
type xs:string
properties
isRef 0
minOcc 0
maxOcc 1
content simple
annotation
documentation
If a message failed,  to be delivered to the aircraft, then the entirety of the message is contained here wrapped in CDATA tags.

complexType AttachmentsType

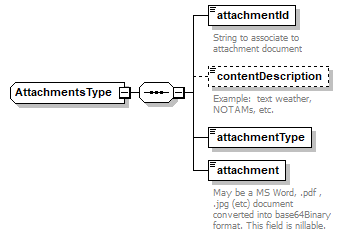

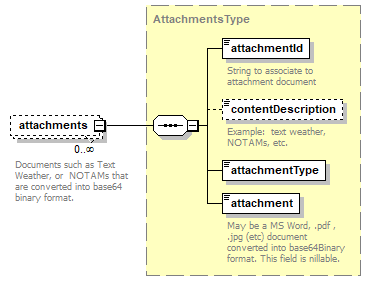

diagram EFSpec_p7.png
namespace http://www.jeppesen.com/aoc
children attachmentId contentDescription attachmentType attachment
used by
elements FlightPlanGroupType/attachments OperationalFlightPlanBasicResponseType/attachments

element AttachmentsType/attachmentId
diagram EFSpec_p8.png
namespace http://www.jeppesen.com/aoc
type xs:string
properties
isRef 0
content simple
annotation
documentation
String to associate to attachment document

element AttachmentsType/contentDescription
diagram EFSpec_p9.png
namespace http://www.jeppesen.com/aoc
type xs:string
properties
isRef 0
minOcc 0
maxOcc 1
content simple
annotation
documentation
Example:  text weather, NOTAMs, etc.

element AttachmentsType/attachmentType
diagram EFSpec_p10.png
namespace http://www.jeppesen.com/aoc
type xs:string
properties
isRef 0
content simple

element AttachmentsType/attachment
diagram EFSpec_p11.png
namespace http://www.jeppesen.com/aoc
type xs:base64Binary
properties
isRef 0
content simple
annotation
documentation
May be a MS Word, .pdf , .jpg (etc) document converted into base64Binary format. This field is nillable.

complexType ElectronicFlightFolderType
diagram EFSpec_p12.png
namespace http://www.jeppesen.com/aoc
children transformOperationalFlightPlanRequest operationalFlightPlanResponse ackReceiptOfFlightPlanMessage
annotation
documentation
Top level for Electronic Flight Folder messages
documentation
Copyright © 2009-2020 Jeppesen.   All rights reserved.
Your use of the AOC Bookshelf and all supporting documentation is subject to a separate license agreement between you and Jeppesen, a copy of which is included in the zip file or can be obtained from Jeppesen.
The AOC Bookshelf is delivered AS IS without warranty of any kind and is not guaranteed to be free from errors or defects.   You rely on the AOC Bookshelf at your own risk.  No support for the AOC Bookshelf is implied through its publication.
The AOC Bookshelf is intended solely for use as a reference and examples of interfaces to Jeppesen systems.  Jeppesen may revise, update or cease publication at any time, without notice.  Building to the specifications set forth in the AOC Bookshelf does not mean that your intended integration needs will be met or that an interface will function as documented.  We recommend contacting Jeppesen directly to discuss professional services options with respect to production application integration and validation efforts.

element ElectronicFlightFolderType/transformOperationalFlightPlanRequest

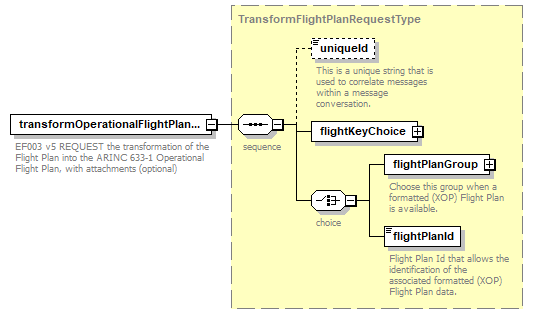

diagram EFSpec_p13.png
namespace http://www.jeppesen.com/aoc
type TransformFlightPlanRequestType
properties
isRef 0
content complex
children uniqueId flightKeyChoice flightPlanGroup flightPlanId
annotation
documentation
EF003 v5 REQUEST the transformation of the Flight Plan into the ARINC 633-1 Operational Flight Plan, with attachments (optional)

element ElectronicFlightFolderType/operationalFlightPlanResponse
diagram EFSpec_p14.png
namespace http://www.jeppesen.com/aoc
type extension of OperationalFlightPlanResponseType
properties
isRef 0
content complex
children ofpResponse error
annotation
documentation
EF003 v5 RESPONSE Returns the Flight Plan in the ARINC 633-1, 2 Operational Flight Plan Format, with attachments (optional)

element ElectronicFlightFolderType/ackReceiptOfFlightPlanMessage

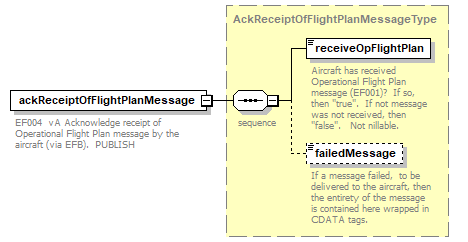

diagram EFSpec_p15.png
namespace http://www.jeppesen.com/aoc
type AckReceiptOfFlightPlanMessageType
properties
isRef 0
content complex
children receiveOpFlightPlan failedMessage
annotation
documentation
EF004  vA Acknowledge receipt of Operational Flight Plan message by the aircraft (via EFB).  PUBLISH

complexType ErrorWarningType
diagram EFSpec_p16.png
namespace http://www.jeppesen.com/aoc
children errorCode errorLog warning
used by
element OperationalFlightPlanResponseType/error

element ErrorWarningType/errorCode
diagram EFSpec_p17.png
namespace http://www.jeppesen.com/aoc
type xs:string
properties
isRef 0
minOcc 0
maxOcc 1
content simple

element ErrorWarningType/errorLog
diagram EFSpec_p18.png
namespace http://www.jeppesen.com/aoc
type xs:string
properties
isRef 0
minOcc 0
maxOcc 1
content simple

element ErrorWarningType/warning
diagram EFSpec_p19.png
namespace http://www.jeppesen.com/aoc
type xs:string
properties
isRef 0
minOcc 0
maxOcc 1
content simple

complexType FlightPlanGroupType

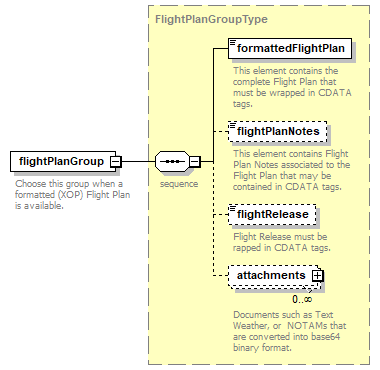

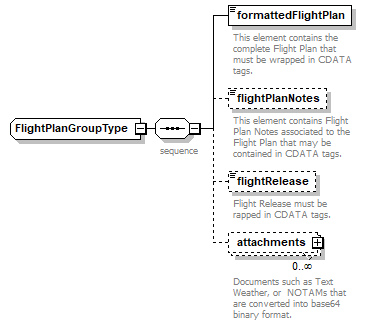

diagram EFSpec_p20.png
namespace http://www.jeppesen.com/aoc
children formattedFlightPlan flightPlanNotes flightRelease attachments
used by
element TransformFlightPlanRequestType/flightPlanGroup

element FlightPlanGroupType/formattedFlightPlan
diagram EFSpec_p21.png
namespace http://www.jeppesen.com/aoc
type xs:string
properties
isRef 0
content simple
annotation
documentation
This element contains the complete Flight Plan that must be wrapped in CDATA tags.

element FlightPlanGroupType/flightPlanNotes
diagram EFSpec_p22.png
namespace http://www.jeppesen.com/aoc
type xs:string
properties
isRef 0
minOcc 0
maxOcc 1
content simple
annotation
documentation
This element contains Flight Plan Notes associated to the Flight Plan that may be contained in CDATA tags.

element FlightPlanGroupType/flightRelease
diagram EFSpec_p23.png
namespace http://www.jeppesen.com/aoc
type xs:string
properties
isRef 0
minOcc 0
maxOcc 1
content simple
annotation
documentation
Flight Release must be rapped in CDATA tags.

element FlightPlanGroupType/attachments

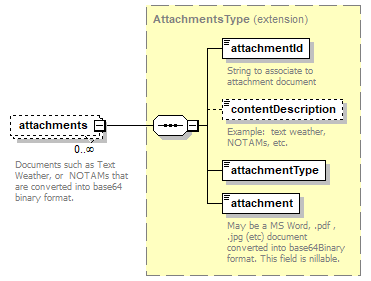

diagram EFSpec_p24.png
namespace http://www.jeppesen.com/aoc
type extension of AttachmentsType
properties
isRef 0
minOcc 0
maxOcc unbounded
content complex
children attachmentId contentDescription attachmentType attachment
annotation
documentation
Documents such as Text Weather, or  NOTAMs that are converted into base64 binary format.

complexType OperationalFlightPlanBasicResponseType

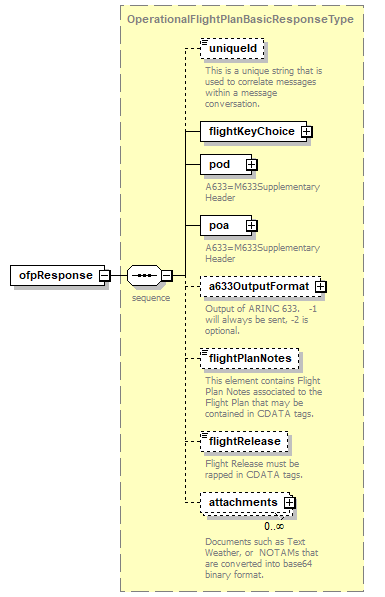

diagram EFSpec_p25.png
namespace http://www.jeppesen.com/aoc
children uniqueId flightKeyChoice pod poa a633OutputFormat flightPlanNotes flightRelease attachments
used by
element OperationalFlightPlanResponseType/ofpResponse

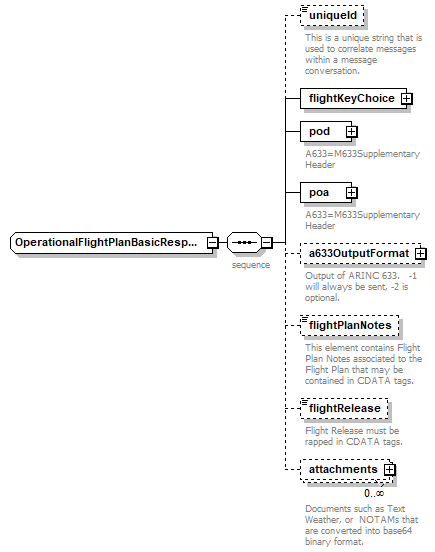

element OperationalFlightPlanBasicResponseType/uniqueId
diagram EFSpec_p26.png
namespace http://www.jeppesen.com/aoc
type xs:string
properties
isRef 0
minOcc 0
maxOcc 1
content simple
nillable true
annotation
documentation
This is a unique string that is used to correlate messages within a message conversation.

element OperationalFlightPlanBasicResponseType/flightKeyChoice

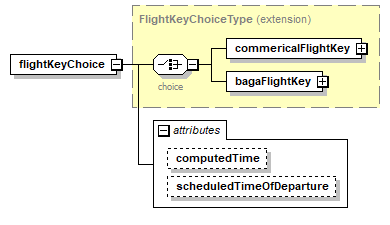

diagram EFSpec_p27.png
namespace http://www.jeppesen.com/aoc
type extension of FlightKeyChoiceType
properties
isRef 0
content complex
children commericalFlightKey bagaFlightKey
attributes
Name  Type  Use  Default  Fixed  annotation
computedTimexs:dateTime
scheduledTimeOfDeparturexs:dateTime

attribute OperationalFlightPlanBasicResponseType/flightKeyChoice/@computedTime
type xs:dateTime
properties
isRef 0

attribute OperationalFlightPlanBasicResponseType/flightKeyChoice/@scheduledTimeOfDeparture
type xs:dateTime
properties
isRef 0

element OperationalFlightPlanBasicResponseType/pod
diagram EFSpec_p28.png
namespace http://www.jeppesen.com/aoc
type extension of AirportCodeType
properties
isRef 0
content complex
children iata icao icao other
attributes
Name  Type  Use  Default  Fixed  annotation
airportNamexs:string
documentation
airport name e.g. WASHINGTON DULLES INTL
airportFunctionxs:string
documentation
e.g. DepartureAirport, DestinationAlternate, ContingencySavingsAirport
annotation
documentation
A633=M633SupplementaryHeader

attribute OperationalFlightPlanBasicResponseType/pod/@airportName
type xs:string
properties
isRef 0
annotation
documentation
airport name e.g. WASHINGTON DULLES INTL

attribute OperationalFlightPlanBasicResponseType/pod/@airportFunction
type xs:string
properties
isRef 0
annotation
documentation
e.g. DepartureAirport, DestinationAlternate, ContingencySavingsAirport

element OperationalFlightPlanBasicResponseType/poa
diagram EFSpec_p29.png
namespace http://www.jeppesen.com/aoc
type extension of AirportCodeType
properties
isRef 0
content complex
children iata icao icao other
attributes
Name  Type  Use  Default  Fixed  annotation
airportNamexs:string
documentation
airport name e.g. WASHINGTON DULLES INTL
airportFunctionxs:string
documentation
e.g. DepartureAirport, DestinationAlternate, ContingencySavingsAirport
annotation
documentation
A633=M633SupplementaryHeader

attribute OperationalFlightPlanBasicResponseType/poa/@airportName
type xs:string
properties
isRef 0
annotation
documentation
airport name e.g. WASHINGTON DULLES INTL

attribute OperationalFlightPlanBasicResponseType/poa/@airportFunction
type xs:string
properties
isRef 0
annotation
documentation
e.g. DepartureAirport, DestinationAlternate, ContingencySavingsAirport

element OperationalFlightPlanBasicResponseType/a633OutputFormat

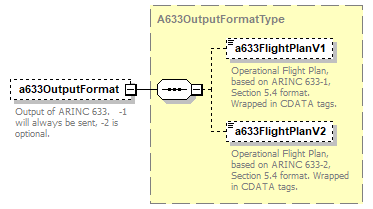

diagram EFSpec_p30.png
namespace http://www.jeppesen.com/aoc
type A633OutputFormatType
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children a633FlightPlanV1 a633FlightPlanV2
annotation
documentation
Output of ARINC 633.   -1  will always be sent, -2 is optional.

element OperationalFlightPlanBasicResponseType/flightPlanNotes
diagram EFSpec_p31.png
namespace http://www.jeppesen.com/aoc
type xs:string
properties
isRef 0
minOcc 0
maxOcc 1
content simple
annotation
documentation
This element contains Flight Plan Notes associated to the Flight Plan that may be contained in CDATA tags.

element OperationalFlightPlanBasicResponseType/flightRelease
diagram EFSpec_p32.png
namespace http://www.jeppesen.com/aoc
properties
isRef 0
minOcc 0
maxOcc 1
annotation
documentation
Flight Release must be rapped in CDATA tags.

element OperationalFlightPlanBasicResponseType/attachments
diagram EFSpec_p33.png
namespace http://www.jeppesen.com/aoc
type AttachmentsType
properties
isRef 0
minOcc 0
maxOcc unbounded
content complex
children attachmentId contentDescription attachmentType attachment
annotation
documentation
Documents such as Text Weather, or  NOTAMs that are converted into base64 binary format.

complexType OperationalFlightPlanResponseType
diagram EFSpec_p34.png
namespace http://www.jeppesen.com/aoc
children ofpResponse error
used by
element ElectronicFlightFolderType/operationalFlightPlanResponse
annotation
documentation
EF003 v5 ARINC 633-1 RESPONSE Operational Flight plan and attachments

element OperationalFlightPlanResponseType/ofpResponse
diagram EFSpec_p35.png
namespace http://www.jeppesen.com/aoc
type OperationalFlightPlanBasicResponseType
properties
isRef 0
content complex
children uniqueId flightKeyChoice pod poa a633OutputFormat flightPlanNotes flightRelease attachments

element OperationalFlightPlanResponseType/error
diagram EFSpec_p36.png
namespace http://www.jeppesen.com/aoc
type ErrorWarningType
properties
isRef 0
content complex
children errorCode errorLog warning

complexType TransformFlightPlanRequestType
diagram EFSpec_p37.png
namespace http://www.jeppesen.com/aoc
children uniqueId flightKeyChoice flightPlanGroup flightPlanId
used by
element ElectronicFlightFolderType/transformOperationalFlightPlanRequest
annotation
documentation
EF003 v5 REQUEST to transform the provided Flight Plan into the ARINC 633-1 Operational Flight Plan format.  REQUEST

element TransformFlightPlanRequestType/uniqueId
diagram EFSpec_p38.png
namespace http://www.jeppesen.com/aoc
type xs:string
properties
isRef 0
minOcc 0
maxOcc 1
content simple
nillable true
annotation
documentation
This is a unique string that is used to correlate messages within a message conversation.

element TransformFlightPlanRequestType/flightKeyChoice
diagram EFSpec_p39.png
namespace http://www.jeppesen.com/aoc
type extension of FlightKeyChoiceType
properties
isRef 0
content complex
children commericalFlightKey bagaFlightKey
attributes
Name  Type  Use  Default  Fixed  annotation
computedTimexs:dateTime
scheduledTimeOfDeparturexs:dateTime

attribute TransformFlightPlanRequestType/flightKeyChoice/@computedTime
type xs:dateTime
properties
isRef 0

attribute TransformFlightPlanRequestType/flightKeyChoice/@scheduledTimeOfDeparture
type xs:dateTime
properties
isRef 0

element TransformFlightPlanRequestType/flightPlanGroup
diagram EFSpec_p40.png
namespace http://www.jeppesen.com/aoc
type FlightPlanGroupType
properties
isRef 0
content complex
children formattedFlightPlan flightPlanNotes flightRelease attachments
annotation
documentation
Choose this group when a formatted (XOP) Flight Plan is available.

element TransformFlightPlanRequestType/flightPlanId
diagram EFSpec_p41.png
namespace http://www.jeppesen.com/aoc
type xs:string
properties
isRef 0
content simple
annotation
documentation
Flight Plan Id that allows the identification of the associated formatted (XOP)  Flight Plan data.

complexType AccessType
diagram EFSpec_p42.png
namespace http://www.jeppesen.com/aoc
children name key
annotation
documentation
Element group may be set to required or optional, and/or  be set to repeatable within a message.

element AccessType/name
diagram EFSpec_p43.png
namespace http://www.jeppesen.com/aoc
type String250
properties
isRef 0
content simple
facets
Kind Value annotation
maxLength 250
annotation
documentation
Example name of the Value:  OperatorId.   String250, limited to 250 chars.

element AccessType/key
diagram EFSpec_p44.png
namespace http://www.jeppesen.com/aoc
type String250
properties
isRef 0
content simple
facets
Kind Value annotation
maxLength 250
annotation
documentation
Example key or value of the named value for OperatorId value:  SWA1234.   String250, limited to 250 chars.

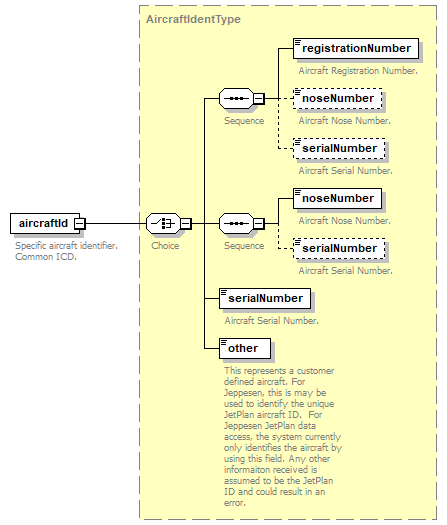

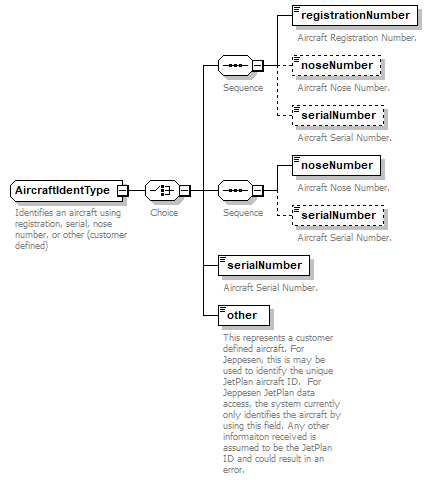

complexType AircraftIdentType
diagram EFSpec_p45.png
namespace http://www.jeppesen.com/aoc
children registrationNumber noseNumber serialNumber noseNumber serialNumber serialNumber other
used by
element DmiIdentifierType/aircraftId
annotation
documentation
Identifies an aircraft using registration, serial, nose number, or other (customer defined)

element AircraftIdentType/registrationNumber
diagram EFSpec_p46.png
namespace http://www.jeppesen.com/aoc
type restriction of xs:string
properties
isRef 0
content simple
facets
Kind Value annotation
minLength
maxLength
annotation
documentation
Aircraft Registration Number.

element AircraftIdentType/noseNumber
diagram EFSpec_p47.png
namespace http://www.jeppesen.com/aoc
type NoseNumberType
properties
isRef 0
minOcc 0
maxOcc 1
content simple
facets
Kind Value annotation
pattern [A-Z\d]{1,12}
annotation
documentation
Aircraft Nose Number.

element AircraftIdentType/serialNumber
diagram EFSpec_p48.png
namespace http://www.jeppesen.com/aoc
type SerialNumberType
properties
isRef 0
minOcc 0
maxOcc 1
content simple
facets
Kind Value annotation
minLength
maxLength 25
annotation
documentation
Aircraft Serial Number.

element AircraftIdentType/noseNumber
diagram EFSpec_p49.png
namespace http://www.jeppesen.com/aoc
type NoseNumberType
properties
isRef 0
content simple
facets
Kind Value annotation
pattern [A-Z\d]{1,12}
annotation
documentation
Aircraft Nose Number.

element AircraftIdentType/serialNumber
diagram EFSpec_p50.png
namespace http://www.jeppesen.com/aoc
type SerialNumberType
properties
isRef 0
minOcc 0
maxOcc 1
content simple
facets
Kind Value annotation
minLength
maxLength 25
annotation
documentation
Aircraft Serial Number.

element AircraftIdentType/serialNumber
diagram EFSpec_p51.png
namespace http://www.jeppesen.com/aoc
type SerialNumberType
properties
isRef 0
content simple
facets
Kind Value annotation
minLength
maxLength 25
annotation
documentation
Aircraft Serial Number.

element AircraftIdentType/other
diagram EFSpec_p52.png
namespace http://www.jeppesen.com/aoc
type restriction of xs:string
properties
isRef 0
content simple
facets
Kind Value annotation
minLength
maxLength 25
annotation
documentation
This represents a customer defined aircraft. For Jeppesen, this is may be used to identify the unique JetPlan aircraft ID.  For Jeppesen JetPlan data access, the system currently only identifies the aircraft by using this field. Any other informaiton received is assumed to be the JetPlan ID and could result in an error.

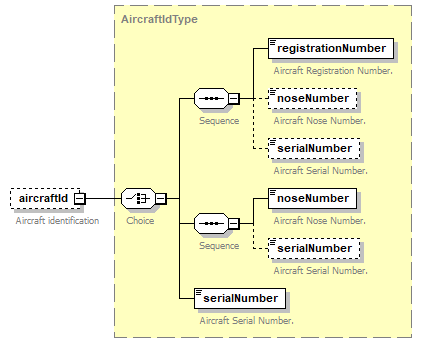

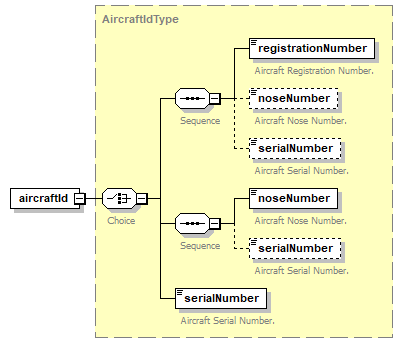

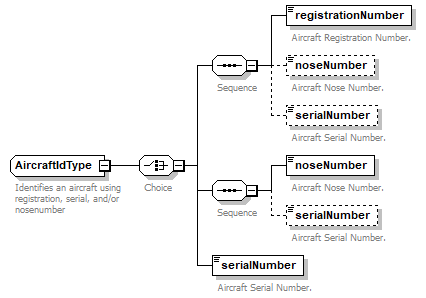

complexType AircraftIdType
diagram EFSpec_p53.png
namespace http://www.jeppesen.com/aoc
children registrationNumber noseNumber serialNumber noseNumber serialNumber serialNumber
used by
elements BagaFlightKeyType/aircraftId FpResponseAircraftType/aircraftId
annotation
documentation
Identifies an aircraft using registration, serial, and/or nosenumber

element AircraftIdType/registrationNumber
diagram EFSpec_p54.png
namespace http://www.jeppesen.com/aoc
type restriction of xs:string
properties
isRef 0
content simple
facets
Kind Value annotation
minLength
maxLength
annotation
documentation
Aircraft Registration Number.

element AircraftIdType/noseNumber
diagram EFSpec_p55.png
namespace http://www.jeppesen.com/aoc
type NoseNumberType
properties
isRef 0
minOcc 0
maxOcc 1
content simple
facets
Kind Value annotation
pattern [A-Z\d]{1,12}
annotation
documentation
Aircraft Nose Number.

element AircraftIdType/serialNumber
diagram EFSpec_p56.png
namespace http://www.jeppesen.com/aoc
type SerialNumberType
properties
isRef 0
minOcc 0
maxOcc 1
content simple
facets
Kind Value annotation
minLength
maxLength 25
annotation
documentation
Aircraft Serial Number.

element AircraftIdType/noseNumber
diagram EFSpec_p57.png
namespace http://www.jeppesen.com/aoc
type NoseNumberType
properties
isRef 0
content simple
facets
Kind Value annotation
pattern [A-Z\d]{1,12}
annotation
documentation
Aircraft Nose Number.

element AircraftIdType/serialNumber
diagram EFSpec_p58.png
namespace http://www.jeppesen.com/aoc
type SerialNumberType
properties
isRef 0
minOcc 0
maxOcc 1
content simple
facets
Kind Value annotation
minLength
maxLength 25
annotation
documentation
Aircraft Serial Number.

element AircraftIdType/serialNumber
diagram EFSpec_p59.png
namespace http://www.jeppesen.com/aoc
type SerialNumberType
properties
isRef 0
content simple
facets
Kind Value annotation
minLength
maxLength 25
annotation
documentation
Aircraft Serial Number.

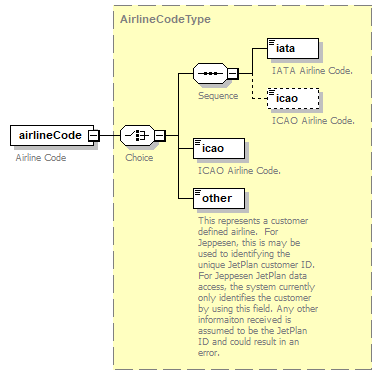

complexType AirlineCodeType
diagram EFSpec_p60.png
namespace http://www.jeppesen.com/aoc
children iata icao icao other
used by
elements FlightIdentifierType/airlineCode RouteKeyType/airlineCode
annotation
documentation
Uniquely identifies an airline using an IATA, ICAO, or other (customer defined).

element AirlineCodeType/iata
diagram EFSpec_p61.png
namespace http://www.jeppesen.com/aoc
type IataAirlineType
properties
isRef 0
content simple
facets
Kind Value annotation
pattern [0-9A-Z]{2}
annotation
documentation
IATA Airline Code.

element AirlineCodeType/icao
diagram EFSpec_p62.png
namespace http://www.jeppesen.com/aoc
type IcaoAirlineType
properties
isRef 0
minOcc 0
maxOcc 1
content simple
facets
Kind Value annotation
pattern [0-9A-Z]{3}
annotation
documentation
ICAO Airline Code.

element AirlineCodeType/icao
diagram EFSpec_p63.png
namespace http://www.jeppesen.com/aoc
type IcaoAirlineType
properties
isRef 0
content simple
facets
Kind Value annotation
pattern [0-9A-Z]{3}
annotation
documentation
ICAO Airline Code.

element AirlineCodeType/other
diagram EFSpec_p64.png
namespace http://www.jeppesen.com/aoc
type restriction of xs:string
properties
isRef 0
content simple
facets
Kind Value annotation
pattern [0-9A-Z]{1,4}
annotation
documentation
This represents a customer defined airline.  For Jeppesen, this is may be used to identifying the unique JetPlan customer ID.  For Jeppesen JetPlan data access, the system currently only identifies the customer by using this field. Any other informaiton received is assumed to be the JetPlan ID and could result in an error.

complexType AirportCodeType
diagram EFSpec_p65.png
namespace http://www.jeppesen.com/aoc
children iata icao icao other
used by
elements FpResponseAirportType/airport FpResponseAlternateAirportType/alternateLandingAirportGroup/airport FpResponseEtpAirportType/airport OperationalFlightPlanBasicResponseType/poa ArrivalAirportType/poa RouteKeyType/poa OperationalFlightPlanBasicResponseType/pod BagaFlightKeyType/pod DepartureAirportType/pod FlightKeyType/pod RouteKeyType/pod
annotation
documentation
Uniquely identifies an airport using IATA, ICAO, or other (customer defined).

element AirportCodeType/iata
diagram EFSpec_p66.png
namespace http://www.jeppesen.com/aoc
type IataAirportType
properties
isRef 0
content simple
facets
Kind Value annotation
pattern [0-9A-Z]{3}
annotation
documentation
IATA Airport Code.

element AirportCodeType/icao
diagram EFSpec_p67.png
namespace http://www.jeppesen.com/aoc
type IcaoAirportType
properties
isRef 0
minOcc 0
maxOcc 1
content simple
facets
Kind Value annotation
pattern [0-9A-Z]{4}
annotation
documentation
ICAO Airport Code.

element AirportCodeType/icao
diagram EFSpec_p68.png
namespace http://www.jeppesen.com/aoc
type IcaoAirportType
properties
isRef 0
content simple
facets
Kind Value annotation
pattern [0-9A-Z]{4}
annotation
documentation
ICAO Airport Code.

element AirportCodeType/other
diagram EFSpec_p69.png
namespace http://www.jeppesen.com/aoc
type restriction of xs:string
properties
isRef 0
content simple
facets
Kind Value annotation
pattern [0-9A-Z]{1,4}
annotation
documentation
This represents a customer defined airport.  For Jeppesen, this is may be used to identifying the unique JetPlan aiport ID.  For Jeppesen JetPlan data access, the system currently only identifies the airport by using this field. Any other informaiton received is assumed to be the JetPlan ID and could result in an error.

complexType AirspeedType
diagram EFSpec_p70.png
namespace http://www.jeppesen.com/aoc
type extension of AirspeedRestriction
properties
base AirspeedRestriction
used by
elements FpResponseCheckpointType/groundSpeed FpResponseSegmentType/groundSpeed FpResponseTocTodType/groundSpeed FpResponseSegmentType/mach FpResponseCheckpointType/trueAirspeed FpResponseSegmentType/trueAirspeed FpResponseTocTodType/trueAirspeed WindGradientType/windVelocity
facets
Kind Value annotation
minInclusive
maxInclusive 10000
attributes
Name  Type  Use  Default  Fixed  annotation
unitsAirspeedUnitsEnumTyperequired
documentation
kts - nautical miles per hour
kph - kilometers per hour
mph - statute miles per hour
mach - number times 100

attribute AirspeedType/@units
type AirspeedUnitsEnumType
properties
isRef 0
use required
facets
Kind Value annotation
enumeration kts
enumeration kph
enumeration mph
enumeration mach
annotation
documentation
kts - nautical miles per hour
kph - kilometers per hour
mph - statute miles per hour
mach - number times 100

complexType AltitudeCruiseModeGroupType
diagram EFSpec_p71.png
namespace http://www.jeppesen.com/aoc
children speed altitude
used by
element AltitudeCruiseModeType/altitudeCruiseModeGroup

element AltitudeCruiseModeGroupType/speed

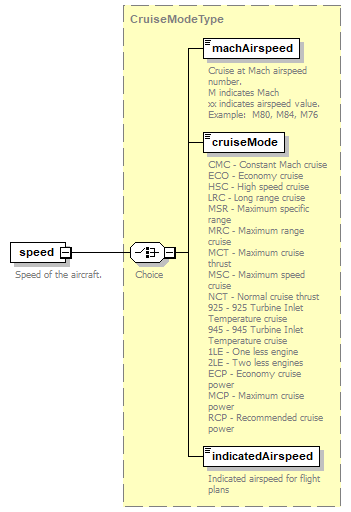

diagram EFSpec_p72.png
namespace http://www.jeppesen.com/aoc
type CruiseModeType
properties
isRef 0
content complex
children machAirspeed cruiseMode indicatedAirspeed
annotation
documentation
Speed of the aircraft.

element AltitudeCruiseModeGroupType/altitude
diagram EFSpec_p73.png
namespace http://www.jeppesen.com/aoc
type AltitudeType
properties
isRef 0
content complex
facets
Kind Value annotation
minInclusive -2000
maxInclusive 250000
attributes
Name  Type  Use  Default  Fixed  annotation
unitsAltitudeHeightEnumTyperequired
documentation
ft = feet
m = meters
fl = flight level
mb = millibars
annotation
documentation
Altitude of the aircraft.

complexType AltitudeCruiseModeType
diagram EFSpec_p74.png
namespace http://www.jeppesen.com/aoc
children altitudeCruiseModeGroup

element AltitudeCruiseModeType/altitudeCruiseModeGroup

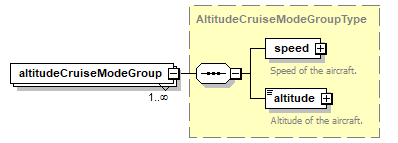

diagram EFSpec_p75.png
namespace http://www.jeppesen.com/aoc
type AltitudeCruiseModeGroupType
properties
isRef 0
minOcc 1
maxOcc unbounded
content complex
children speed altitude

complexType AltitudeMinMaxType
diagram EFSpec_p76.png
namespace http://www.jeppesen.com/aoc
children min max

element AltitudeMinMaxType/min
diagram EFSpec_p77.png
namespace http://www.jeppesen.com/aoc
type AltitudeType
properties
isRef 0
content complex
facets
Kind Value annotation
minInclusive -2000
maxInclusive 250000
attributes
Name  Type  Use  Default  Fixed  annotation
unitsAltitudeHeightEnumTyperequired
documentation
ft = feet
m = meters
fl = flight level
mb = millibars

element AltitudeMinMaxType/max
diagram EFSpec_p78.png
namespace http://www.jeppesen.com/aoc
type AltitudeType
properties
isRef 0
content complex
facets
Kind Value annotation
minInclusive -2000
maxInclusive 250000
attributes
Name  Type  Use  Default  Fixed  annotation
unitsAltitudeHeightEnumTyperequired
documentation
ft = feet
m = meters
fl = flight level
mb = millibars

complexType AltitudeType
diagram EFSpec_p79.png
namespace http://www.jeppesen.com/aoc
type extension of AltitudeRangeRestriction
properties
base AltitudeRangeRestriction
used by
elements AltitudeCruiseModeGroupType/altitude FpRequestAltitudeType/altitudeGroup/altitude FpResponseCheckpointType/altitude FpResponseTocTodType/altitude FuelDurationType/altitude HorizontalCoordinateType/altitude FpResponseFlightType/flightLevel FpResponseFlightLevelType/fpResponseFlightLevelGroup/flightLevel AltitudeMinMaxType/max AltitudeMinMaxType/min
facets
Kind Value annotation
minInclusive -2000
maxInclusive 250000
attributes
Name  Type  Use  Default  Fixed  annotation
unitsAltitudeHeightEnumTyperequired
documentation
ft = feet
m = meters
fl = flight level
mb = millibars

attribute AltitudeType/@units
type AltitudeHeightEnumType
properties
isRef 0
use required
facets
Kind Value annotation
enumeration ft
enumeration
enumeration fl
enumeration mb
annotation
documentation
ft = feet
m = meters
fl = flight level
mb = millibars

complexType ArrivalAirportType
diagram EFSpec_p80.png
namespace http://www.jeppesen.com/aoc
children poa customAirport

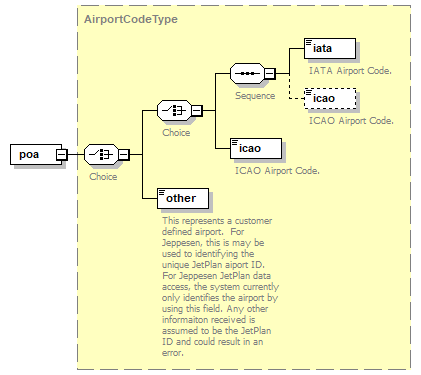

element ArrivalAirportType/poa
diagram EFSpec_p81.png
namespace http://www.jeppesen.com/aoc
type AirportCodeType
properties
isRef 0
content complex
children iata icao icao other

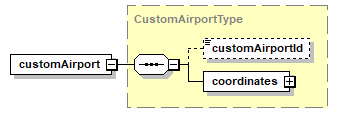

element ArrivalAirportType/customAirport
diagram EFSpec_p82.png
namespace http://www.jeppesen.com/aoc
type CustomAirportType
properties
isRef 0
content complex
children customAirportId coordinates

complexType AtmosphericPressureType
diagram EFSpec_p83.png
namespace http://www.jeppesen.com/aoc
type extension of xs:double
properties
base xs:double
attributes
Name  Type  Use  Default  Fixed  annotation
unitsAtmosphericUnitTyperequired
documentation
at = Technical atmosphere
Atmosphere
atm = Atmosphere measured in bars
bar = Atmosphere measured in millibars
Pa = Atmosphere measured in pascals
hPa = Atmosphere measured in hectopascals
kPA = Atmosphere measured in kilopascals
inchHg = Atmosphere measured in inches of Mercury
psi = Pounds per square inch
mmHg / Torr = Atmosphere measured in Mercury millimeters

attribute AtmosphericPressureType/@units
type AtmosphericUnitType
properties
isRef 0
use required
facets
Kind Value annotation
enumeration at
enumeration atm
enumeration bar
enumeration mbar
enumeration Pa
enumeration hPa
enumeration kPa
enumeration inchHg
enumeration psi
enumeration mmHg
enumeration Torr
annotation
documentation
at = Technical atmosphere
Atmosphere
atm = Atmosphere measured in bars
bar = Atmosphere measured in millibars
Pa = Atmosphere measured in pascals
hPa = Atmosphere measured in hectopascals
kPA = Atmosphere measured in kilopascals
inchHg = Atmosphere measured in inches of Mercury
psi = Pounds per square inch
mmHg / Torr = Atmosphere measured in Mercury millimeters

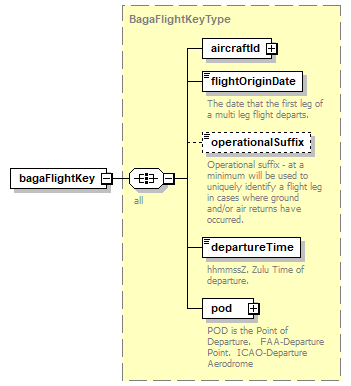

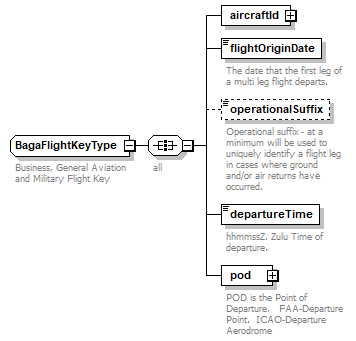

complexType BagaFlightKeyType
diagram EFSpec_p84.png
namespace http://www.jeppesen.com/aoc
children aircraftId flightOriginDate operationalSuffix departureTime pod
used by
element FlightKeyChoiceType/bagaFlightKey
annotation
documentation
Business, General Aviation  and Military Flight Key

element BagaFlightKeyType/aircraftId
diagram EFSpec_p85.png
namespace http://www.jeppesen.com/aoc
type AircraftIdType
properties
isRef 0
content complex
children registrationNumber noseNumber serialNumber noseNumber serialNumber serialNumber

element BagaFlightKeyType/flightOriginDate
diagram EFSpec_p86.png
namespace http://www.jeppesen.com/aoc
type xs:date
properties
isRef 0
content simple
annotation
documentation
The date that the first leg of a multi leg flight departs.

element BagaFlightKeyType/operationalSuffix
diagram EFSpec_p87.png
namespace http://www.jeppesen.com/aoc
type String1
properties
isRef 0
minOcc 0
maxOcc 1
content simple
facets
Kind Value annotation
maxLength
annotation
documentation
Operational suffix - at a minimum will be used to uniquely identify a flight leg in cases where ground and/or air returns have occurred.

element BagaFlightKeyType/departureTime
diagram EFSpec_p88.png
namespace http://www.jeppesen.com/aoc
type xs:time
properties
isRef 0
content simple
annotation
documentation
hhmmssZ. Zulu Time of departure.

element BagaFlightKeyType/pod
diagram EFSpec_p89.png
namespace http://www.jeppesen.com/aoc
type AirportCodeType
properties
isRef 0
content complex
children iata icao icao other
annotation
documentation
POD is the Point of Departure.   FAA-Departure Point.  ICAO-Departure Aerodrome

complexType BiasType
diagram EFSpec_p90.png
namespace http://www.jeppesen.com/aoc
children doubleValue integerValue
attributes
Name  Type  Use  Default  Fixed  annotation
unitsBiasEnumTyperequired
documentation
percent = percentage of value
absolute = adjustment to the value

attribute BiasType/@units
type BiasEnumType
properties
isRef 0
use required
facets
Kind Value annotation
enumeration percent
enumeration absolute
annotation
documentation
percent = percentage of value
absolute = adjustment to the value

element BiasType/doubleValue
diagram EFSpec_p91.png
namespace http://www.jeppesen.com/aoc
type xs:double
properties
isRef 0
content simple
annotation
documentation
Bias value expressed as a double.

element BiasType/integerValue
diagram EFSpec_p92.png
namespace http://www.jeppesen.com/aoc
type xs:integer
properties
isRef 0
content simple
annotation
documentation
Bias value expressed as an integer.

complexType BoundingAreaCircleType
diagram EFSpec_p93.png
namespace http://www.jeppesen.com/aoc
children point radius
used by
element BoundingAreaType/circle

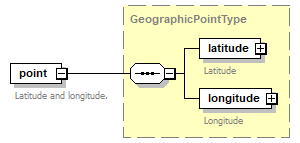

element BoundingAreaCircleType/point
diagram EFSpec_p94.png
namespace http://www.jeppesen.com/aoc
type GeographicPointType
properties
isRef 0
content complex
children latitude longitude
annotation
documentation
Latitude and longitude.

element BoundingAreaCircleType/radius
diagram EFSpec_p95.png
namespace http://www.jeppesen.com/aoc
type DistanceType
properties
isRef 0
content complex
facets
Kind Value annotation
minInclusive 0.0
maxInclusive 50000.0
attributes
Name  Type  Use  Default  Fixed  annotation
unitsBasicDistanceEnumTyperequired
documentation
nm = nautical miles
km = kilometers
ft = feet
m = meters
annotation
documentation
Distance of the radius.

complexType BoundingAreaPolygonType
diagram EFSpec_p96.png
namespace http://www.jeppesen.com/aoc
children point
used by
element BoundingAreaType/polygon

element BoundingAreaPolygonType/point
diagram EFSpec_p97.png
namespace http://www.jeppesen.com/aoc
type GeographicPointType
properties
isRef 0
minOcc 2
maxOcc unbounded
content complex
children latitude longitude
annotation
documentation
Latitude and longitude.

complexType BoundingAreaType
diagram EFSpec_p98.png
namespace http://www.jeppesen.com/aoc
children polygon circle

element BoundingAreaType/polygon
diagram EFSpec_p99.png
namespace http://www.jeppesen.com/aoc
type BoundingAreaPolygonType
properties
isRef 0
content complex
children point
annotation
documentation
Points defined by latitude and longitude that are joined together to form a polygon.

element BoundingAreaType/circle
diagram EFSpec_p100.png
namespace http://www.jeppesen.com/aoc
type BoundingAreaCircleType
properties
isRef 0
content complex
children point radius
annotation
documentation
An area enclosed by a circle as defined latitude and longitude point and a radius.

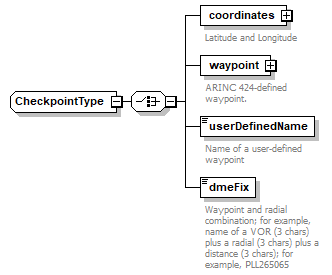

complexType CheckpointType
diagram EFSpec_p101.png
namespace http://www.jeppesen.com/aoc
children coordinates waypoint userDefinedName dmeFix
used by
elements FpResponseFlightLevelType/fpResponseFlightLevelGroup/checkpoint FpResponseCheckpointType/name FpResponseEtpType/etp/name

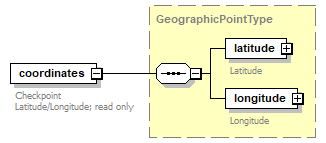

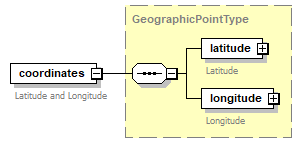

element CheckpointType/coordinates
diagram EFSpec_p102.png
namespace http://www.jeppesen.com/aoc
type GeographicPointType
properties
isRef 0
content complex
children latitude longitude
annotation
documentation
Latitude and Longitude

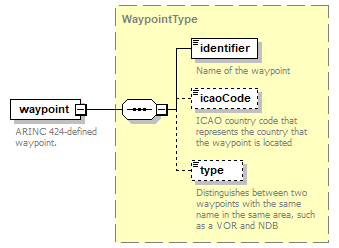

element CheckpointType/waypoint
diagram EFSpec_p103.png
namespace http://www.jeppesen.com/aoc
type WaypointType
properties
isRef 0
content complex
children identifier icaoCode type
annotation
documentation
ARINC 424-defined waypoint.

element CheckpointType/userDefinedName
diagram EFSpec_p104.png
namespace http://www.jeppesen.com/aoc
type String12
properties
isRef 0
content simple
facets
Kind Value annotation
maxLength 12
annotation
documentation
Name of a user-defined waypoint

element CheckpointType/dmeFix
diagram EFSpec_p105.png
namespace http://www.jeppesen.com/aoc
type String9
properties
isRef 0
content simple
facets
Kind Value annotation
maxLength
annotation
documentation
Waypoint and radial combination; for example, name of a VOR (3 chars) plus a radial (3 chars) plus a distance (3 chars); for example, PLL265065

complexType ClassNameType
diagram EFSpec_p106.png
namespace http://www.jeppesen.com/aoc
children propertyClass propertyName

element ClassNameType/propertyClass
diagram EFSpec_p107.png
namespace http://www.jeppesen.com/aoc
type String255
properties
isRef 0
content simple
facets
Kind Value annotation
maxLength 255

element ClassNameType/propertyName
diagram EFSpec_p108.png
namespace http://www.jeppesen.com/aoc
type String255
properties
isRef 0
content simple
facets
Kind Value annotation
maxLength 255

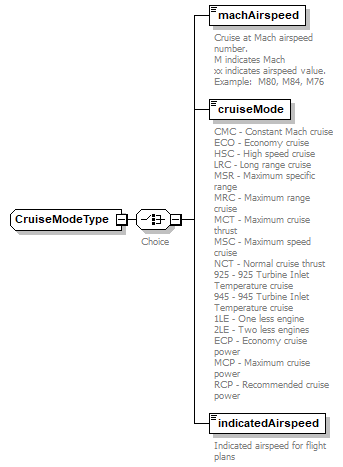

complexType CruiseModeType
diagram EFSpec_p109.png
namespace http://www.jeppesen.com/aoc
children machAirspeed cruiseMode indicatedAirspeed
used by
elements FpRequestSpeedScheduleType/primaryCruiseMode AltitudeCruiseModeGroupType/speed

element CruiseModeType/machAirspeed
diagram EFSpec_p110.png
namespace http://www.jeppesen.com/aoc
type MachAirspeedRestriction
properties
isRef 0
content simple
facets
Kind Value annotation
pattern M[6-9][0-9]
annotation
documentation
Cruise at Mach airspeed number.
M indicates Mach
xx indicates airspeed value.  Example:  M80, M84, M76

element CruiseModeType/cruiseMode
diagram EFSpec_p111.png
namespace http://www.jeppesen.com/aoc
type CruiseModeEnumType
properties
isRef 0
content simple
facets
Kind Value annotation
length
whiteSpace collapse
enumeration CMC
enumeration ECO
enumeration HSC
enumeration LRC
enumeration MSR
enumeration MRC
enumeration MCT
enumeration MSC
enumeration NCT
enumeration 925
enumeration 945
enumeration 1LE
enumeration 2LE
enumeration ECP
enumeration MCP
enumeration RCP
annotation
documentation
CMC - Constant Mach cruise
ECO - Economy cruise
HSC - High speed cruise
LRC - Long range cruise
MSR - Maximum specific range
MRC - Maximum range cruise
MCT - Maximum cruise thrust
MSC - Maximum speed cruise
NCT - Normal cruise thrust
925 - 925 Turbine Inlet Temperature cruise
945 - 945 Turbine Inlet Temperature cruise
1LE - One less engine
2LE - Two less engines
ECP - Economy cruise power
MCP - Maximum cruise power
RCP - Recommended cruise power

element CruiseModeType/indicatedAirspeed
diagram EFSpec_p112.png
namespace http://www.jeppesen.com/aoc
type IndicatedAirspeedRestriction
properties
isRef 0
content simple
facets
Kind Value annotation
minInclusive 100
maxInclusive 400
annotation
documentation
Indicated airspeed for flight plans

complexType CustomAirportType
diagram EFSpec_p113.png
namespace http://www.jeppesen.com/aoc
children customAirportId coordinates
used by
elements ArrivalAirportType/customAirport DepartureAirportType/customAirport

element CustomAirportType/customAirportId
diagram EFSpec_p114.png
namespace http://www.jeppesen.com/aoc
type xs:string
properties
isRef 0
minOcc 0
maxOcc 1
content simple

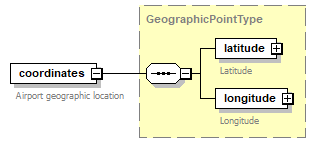

element CustomAirportType/coordinates
diagram EFSpec_p115.png
namespace http://www.jeppesen.com/aoc
type GeographicPointType
properties
isRef 0
content complex
children latitude longitude

complexType CustomBagaFlightKeyType
diagram EFSpec_p116.png
namespace http://www.jeppesen.com/aoc
children gufiId aircraftIdentifier flightOriginDate operationalSuffix departureTime departureAirport
used by
element CustomFlightKeyChoiceType/customBagaFlightKey

element CustomBagaFlightKeyType/gufiId
diagram EFSpec_p117.png
namespace http://www.jeppesen.com/aoc
type GufiId
properties
isRef 0
minOcc 0
maxOcc 1
content simple
facets
Kind Value annotation
minLength
maxLength 36

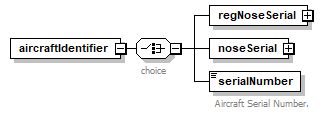

element CustomBagaFlightKeyType/aircraftIdentifier
diagram EFSpec_p118.png
namespace http://www.jeppesen.com/aoc
properties
isRef 0
content complex
children regNoseSerial noseSerial serialNumber

element CustomBagaFlightKeyType/aircraftIdentifier/regNoseSerial
diagram EFSpec_p119.png
namespace http://www.jeppesen.com/aoc
properties
isRef 0
content complex
children registrationNumber noseNumber serialNumber

element CustomBagaFlightKeyType/aircraftIdentifier/regNoseSerial/registrationNumber
diagram EFSpec_p120.png
namespace http://www.jeppesen.com/aoc
type restriction of xs:string
properties
isRef 0
content simple
facets
Kind Value annotation
minLength
maxLength
annotation
documentation
Aircraft Registration Number.

element CustomBagaFlightKeyType/aircraftIdentifier/regNoseSerial/noseNumber
diagram EFSpec_p121.png
namespace http://www.jeppesen.com/aoc
type NoseNumberType
properties
isRef 0
minOcc 0
maxOcc 1
content simple
facets
Kind Value annotation
pattern [A-Z\d]{1,12}

element CustomBagaFlightKeyType/aircraftIdentifier/regNoseSerial/serialNumber
diagram EFSpec_p122.png
namespace http://www.jeppesen.com/aoc
type SerialNumberType
properties
isRef 0
minOcc 0
maxOcc 1
content simple
facets
Kind Value annotation
minLength
maxLength 25

element CustomBagaFlightKeyType/aircraftIdentifier/noseSerial
diagram EFSpec_p123.png
namespace http://www.jeppesen.com/aoc
properties
isRef 0
content complex
children noseNumber serialNumber

element CustomBagaFlightKeyType/aircraftIdentifier/noseSerial/noseNumber
diagram EFSpec_p124.png
namespace http://www.jeppesen.com/aoc
type NoseNumberType
properties
isRef 0
content simple
facets
Kind Value annotation
pattern [A-Z\d]{1,12}

element CustomBagaFlightKeyType/aircraftIdentifier/noseSerial/serialNumber
diagram EFSpec_p125.png
namespace http://www.jeppesen.com/aoc
type SerialNumberType
properties
isRef 0
minOcc 0
maxOcc 1
content simple
facets
Kind Value annotation
minLength
maxLength 25
annotation
documentation
Aircraft Serial Number.

element CustomBagaFlightKeyType/aircraftIdentifier/serialNumber
diagram EFSpec_p126.png
namespace http://www.jeppesen.com/aoc
type SerialNumberType
properties
isRef 0
content simple
facets
Kind Value annotation
minLength
maxLength 25
annotation
documentation
Aircraft Serial Number.

element CustomBagaFlightKeyType/flightOriginDate
diagram EFSpec_p127.png
namespace http://www.jeppesen.com/aoc
type xs:date
properties
isRef 0
content simple
annotation
documentation
The date that the first leg of a multi leg flight departs.

element CustomBagaFlightKeyType/operationalSuffix
diagram EFSpec_p128.png
namespace http://www.jeppesen.com/aoc
type String1
properties
isRef 0
minOcc 0
maxOcc 1
content simple
facets
Kind Value annotation
maxLength
annotation
documentation
Operational suffix - at a minimum will be used to uniquely identify a flight leg in cases where ground and/or air returns have occurred.

element CustomBagaFlightKeyType/departureTime
diagram EFSpec_p129.png
namespace http://www.jeppesen.com/aoc
type xs:time
properties
isRef 0
content simple
annotation
documentation
hhmmssZ. Zulu Time of departure.

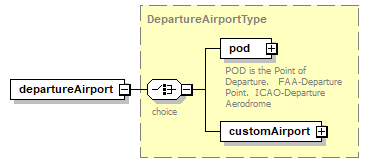

element CustomBagaFlightKeyType/departureAirport
diagram EFSpec_p130.png
namespace http://www.jeppesen.com/aoc
type DepartureAirportType
properties
isRef 0
content complex
children pod customAirport

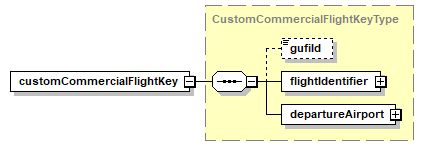

complexType CustomCommercialFlightKeyType
diagram EFSpec_p131.png
namespace http://www.jeppesen.com/aoc
children gufiId flightIdentifier departureAirport
used by
element CustomFlightKeyChoiceType/customCommercialFlightKey
annotation
documentation
Commerical Flight Key:  gufiId, flightIdentifier (flightNumber, airlineCode, flightOriginDate, operationalSuffix), departureAirport (pod, customAirport/customAirportId, coordiantes)

element CustomCommercialFlightKeyType/gufiId
diagram EFSpec_p132.png
namespace http://www.jeppesen.com/aoc
type GufiId
properties
isRef 0
minOcc 0
maxOcc 1
content simple
facets
Kind Value annotation
minLength
maxLength 36

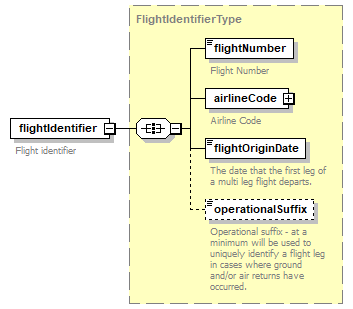

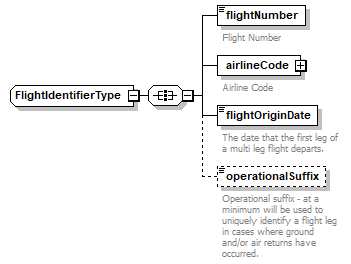

element CustomCommercialFlightKeyType/flightIdentifier

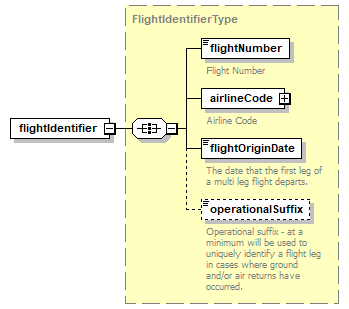

diagram EFSpec_p133.png
namespace http://www.jeppesen.com/aoc
type FlightIdentifierType
properties
isRef 0
content complex
children flightNumber airlineCode flightOriginDate operationalSuffix

element CustomCommercialFlightKeyType/departureAirport
diagram EFSpec_p134.png
namespace http://www.jeppesen.com/aoc
type DepartureAirportType
properties
isRef 0
content complex
children pod customAirport

complexType CustomFlightKeyChoiceType
diagram EFSpec_p135.png
namespace http://www.jeppesen.com/aoc
children gufiFlightKey customCommercialFlightKey customBagaFlightKey
annotation
documentation
A unique Flight Key Choice of one of three flight key types:   GUFI, Commercial, and BAGA flight keys.    Each of the flight key type allows for either an icao, iata, other departure airport, or a custom airport that includes name, and coordinates.

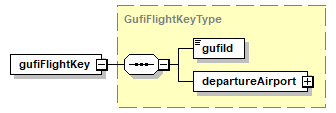

element CustomFlightKeyChoiceType/gufiFlightKey
diagram EFSpec_p136.png
namespace http://www.jeppesen.com/aoc
type GufiFlightKeyType
properties
isRef 0
content complex
children gufiId departureAirport

element CustomFlightKeyChoiceType/customCommercialFlightKey
diagram EFSpec_p137.png
namespace http://www.jeppesen.com/aoc
type CustomCommercialFlightKeyType
properties
isRef 0
content complex
children gufiId flightIdentifier departureAirport

element CustomFlightKeyChoiceType/customBagaFlightKey

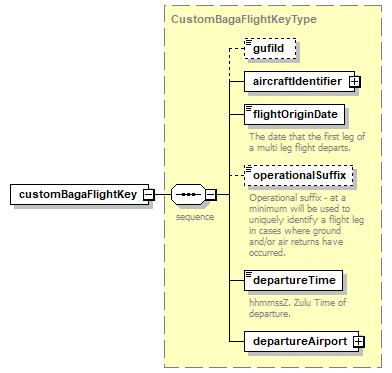

diagram EFSpec_p138.png
namespace http://www.jeppesen.com/aoc
type CustomBagaFlightKeyType
properties
isRef 0
content complex
children gufiId aircraftIdentifier flightOriginDate operationalSuffix departureTime departureAirport

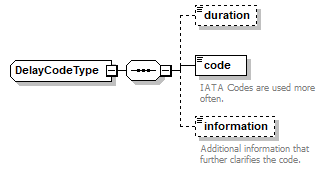

complexType DelayCodeType
diagram EFSpec_p139.png
namespace http://www.jeppesen.com/aoc
children duration code information

element DelayCodeType/duration
diagram EFSpec_p140.png
namespace http://www.jeppesen.com/aoc
type restriction of xs:duration
properties
isRef 0
minOcc 0
maxOcc 1
content simple
annotation
documentation

element DelayCodeType/code
diagram EFSpec_p141.png
namespace http://www.jeppesen.com/aoc
type String4
properties
isRef 0
content simple
facets
Kind Value annotation
maxLength
annotation
documentation
IATA Codes are used more often.

element DelayCodeType/information
diagram EFSpec_p142.png
namespace http://www.jeppesen.com/aoc
type String1000
properties
isRef 0
minOcc 0
maxOcc 1
content simple
facets
Kind Value annotation
maxLength 1000
annotation
documentation
Additional information that further clarifies the code.

complexType DepartureAirportType
diagram EFSpec_p143.png
namespace http://www.jeppesen.com/aoc
children pod customAirport
used by
elements CustomBagaFlightKeyType/departureAirport CustomCommercialFlightKeyType/departureAirport GufiFlightKeyType/departureAirport

element DepartureAirportType/pod
diagram EFSpec_p144.png
namespace http://www.jeppesen.com/aoc
type AirportCodeType
properties
isRef 0
content complex
children iata icao icao other
annotation
documentation
POD is the Point of Departure.   FAA-Departure Point.  ICAO-Departure Aerodrome

element DepartureAirportType/customAirport
diagram EFSpec_p145.png
namespace http://www.jeppesen.com/aoc
type CustomAirportType
properties
isRef 0
content complex
children customAirportId coordinates

complexType DepthType
diagram EFSpec_p146.png
namespace http://www.jeppesen.com/aoc
type extension of DepthRestriction
properties
base DepthRestriction
facets
Kind Value annotation
minInclusive
maxInclusive 10000
attributes
Name  Type  Use  Default  Fixed  annotation
unitsDepthUnitsEnumTyperequired
annotation
documentation
Precipitation depth on runway. Common ICD. Runway conditions. See SCAP Interface Specification-Takeoff, Annex for descriptions of POPT(15). Valid only if runway condition is 2, 3, 5, or 6 as described in the SCAP POPT(15).

attribute DepthType/@units
type DepthUnitsEnumType
properties
isRef 0
use required
facets
Kind Value annotation
enumeration in
enumeration ft
enumeration mm
enumeration cm
enumeration

complexType DistanceBiasType
diagram EFSpec_p147.png
namespace http://www.jeppesen.com/aoc
type extension of DistanceBiasRestriction
properties
base DistanceBiasRestriction
facets
Kind Value annotation
minInclusive 0.0
maxInclusive 2500.0
attributes
Name  Type  Use  Default  Fixed  annotation
unitsBasicDistanceEnumTyperequired
documentation
nm = nautical miles
km = kilometers
ft = feet
m = meters

attribute DistanceBiasType/@units
type BasicDistanceEnumType
properties
isRef 0
use required
annotation
documentation
nm = nautical miles
km = kilometers
ft = feet
m = meters

complexType DistanceType
diagram EFSpec_p148.png
namespace http://www.jeppesen.com/aoc
type extension of DistanceRestriction
properties
base DistanceRestriction
used by
elements FpResponseSegmentType/distance BoundingAreaCircleType/radius
facets
Kind Value annotation
minInclusive 0.0
maxInclusive 50000.0
attributes
Name  Type  Use  Default  Fixed  annotation
unitsBasicDistanceEnumTyperequired
documentation
nm = nautical miles
km = kilometers
ft = feet
m = meters

attribute DistanceType/@units
type BasicDistanceEnumType
properties
isRef 0
use required
annotation
documentation
nm = nautical miles
km = kilometers
ft = feet
m = meters

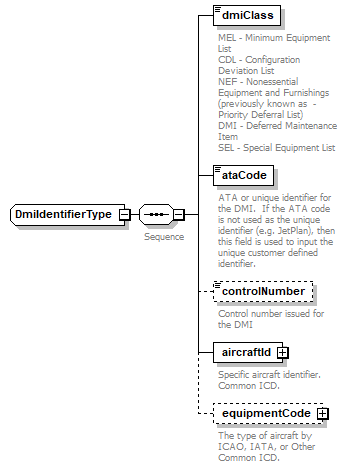

complexType DmiIdentifierType
diagram EFSpec_p149.png
namespace http://www.jeppesen.com/aoc
children dmiClass ataCode controlNumber aircraftId equipmentCode

element DmiIdentifierType/dmiClass
diagram EFSpec_p150.png
namespace http://www.jeppesen.com/aoc
type restriction of xs:string
properties
isRef 0
content simple
annotation
documentation
MEL - Minimum Equipment List
CDL - Configuration Deviation List
NEF - Nonessential Equipment and Furnishings (previously known as  - Priority Deferral List)
DMI - Deferred Maintenance Item
SEL - Special Equipment List

element DmiIdentifierType/ataCode
diagram EFSpec_p151.png
namespace http://www.jeppesen.com/aoc
type xs:string
properties
isRef 0
content simple
annotation
documentation
ATA or unique identifier for the DMI.  If the ATA code is not used as the unique identifier (e.g. JetPlan), then this field is used to input the unique customer defined identifier.

element DmiIdentifierType/controlNumber
diagram EFSpec_p152.png
namespace http://www.jeppesen.com/aoc
type xs:string
properties
isRef 0
minOcc 0
maxOcc 1
content simple
annotation
documentation
Control number issued for the DMI

element DmiIdentifierType/aircraftId
diagram EFSpec_p153.png
namespace http://www.jeppesen.com/aoc
type AircraftIdentType
properties
isRef 0
content complex
children registrationNumber noseNumber serialNumber noseNumber serialNumber serialNumber other
annotation
documentation
Specific aircraft identifier.  Common ICD.

element DmiIdentifierType/equipmentCode
diagram EFSpec_p154.png
namespace http://www.jeppesen.com/aoc
type EquipmentCodeType
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children iata icao icao other
annotation
documentation
The type of aircraft by ICAO, IATA, or Other Common ICD.

complexType ElevationType
diagram EFSpec_p155.png
namespace http://www.jeppesen.com/aoc
type extension of ElevationRangeRestriction
properties
base ElevationRangeRestriction
used by
element FpResponseAirportType/elevation
facets
Kind Value annotation
minInclusive -2000
maxInclusive 30000
attributes
Name  Type  Use  Default  Fixed  annotation
unitsBasicHeightEnumTyperequired
documentation
ft = feet
m = meters

attribute ElevationType/@units
type BasicHeightEnumType
properties
isRef 0
use required
facets
Kind Value annotation
enumeration ft
enumeration
annotation
documentation
ft = feet
m = meters

complexType EquipmentCodeType
diagram EFSpec_p156.png
namespace http://www.jeppesen.com/aoc
children iata icao icao other
used by
elements DmiIdentifierType/equipmentCode FpResponseAircraftType/equipmentCode
annotation
documentation
Uniquely identifies the aircraft equipement code, also known as the type of aircraft within a customers fleet.  Identifies using the IATA, ICAO, or other (Customer Defined).

element EquipmentCodeType/iata
diagram EFSpec_p157.png
namespace http://www.jeppesen.com/aoc
type IataEquipmentCodeType
properties
isRef 0
content simple
facets
Kind Value annotation
pattern [0-9A-Z]{3}
annotation
documentation
IATA Equipment Type.

element EquipmentCodeType/icao
diagram EFSpec_p158.png
namespace http://www.jeppesen.com/aoc
type IcaoEquipmentCodeType
properties
isRef 0
minOcc 0
maxOcc 1
content simple
facets
Kind Value annotation
pattern [0-9A-Z]{4}
annotation
documentation
ICAO Equipment Type.

element EquipmentCodeType/icao
diagram EFSpec_p159.png
namespace http://www.jeppesen.com/aoc
type IcaoEquipmentCodeType
properties
isRef 0
content simple
facets
Kind Value annotation
pattern [0-9A-Z]{4}
annotation
documentation
ICAO Equipment Type.

element EquipmentCodeType/other
diagram EFSpec_p160.png
namespace http://www.jeppesen.com/aoc
type String8
properties
isRef 0
content simple
facets
Kind Value annotation
maxLength
annotation
documentation
This represents a customer defined aircraft equipment code.  For Jeppesen, this is may be used to identifying the unique JetPlan ID.  For Jeppesen JetPlan data access, the system currently only identifies the aircraft equipment by using this field. Any other informaiton received is assumed to be the JetPlan ID and could result in an error.

complexType ErrorType
diagram EFSpec_p161.png
namespace http://www.jeppesen.com/aoc
children code information

element ErrorType/code
diagram EFSpec_p162.png
namespace http://www.jeppesen.com/aoc
type String10
properties
isRef 0
content simple
facets
Kind Value annotation
maxLength 10
annotation
documentation
Error code

element ErrorType/information
diagram EFSpec_p163.png
namespace http://www.jeppesen.com/aoc
type String1000
properties
isRef 0
minOcc 0
maxOcc 1
content simple
facets
Kind Value annotation
maxLength 1000
annotation
documentation
Additional information that further clarifies the code

complexType FlightIdentifierType
diagram EFSpec_p164.png
namespace http://www.jeppesen.com/aoc
children flightNumber airlineCode flightOriginDate operationalSuffix
used by
elements CustomCommercialFlightKeyType/flightIdentifier FlightKeyType/flightIdentifier FpResponseFlightType/flightIdentifier

element FlightIdentifierType/flightNumber
diagram EFSpec_p165.png
namespace http://www.jeppesen.com/aoc
type restriction of xs:string
properties
isRef 0
content simple
facets
Kind Value annotation
maxLength 12
annotation
documentation
Flight Number

element FlightIdentifierType/airlineCode
diagram EFSpec_p166.png
namespace http://www.jeppesen.com/aoc
type AirlineCodeType
properties
isRef 0
content complex
children iata icao icao other
annotation
documentation
Airline Code

element FlightIdentifierType/flightOriginDate
diagram EFSpec_p167.png
namespace http://www.jeppesen.com/aoc
type xs:date
properties
isRef 0
content simple
annotation
documentation
The date that the first leg of a multi leg flight departs.

element FlightIdentifierType/operationalSuffix
diagram EFSpec_p168.png
namespace http://www.jeppesen.com/aoc
type String1
properties
isRef 0
minOcc 0
maxOcc 1
content simple
facets
Kind Value annotation
maxLength
annotation
documentation
Operational suffix - at a minimum will be used to uniquely identify a flight leg in cases where ground and/or air returns have occurred.

complexType FlightKeyChoiceType
diagram EFSpec_p169.png
namespace http://www.jeppesen.com/aoc
children commericalFlightKey bagaFlightKey
used by
elements TransformFlightPlanRequestType/flightKeyChoice OperationalFlightPlanBasicResponseType/flightKeyChoice
annotation
documentation
Allows for a choice of appropriate flight key based on the business need.   FlightKey for Commerical.  BAGAFlightKey for Business, General Aviation.

element FlightKeyChoiceType/commericalFlightKey
diagram EFSpec_p170.png
namespace http://www.jeppesen.com/aoc
properties
isRef 0
content complex
children flightKey

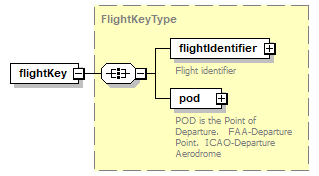

element FlightKeyChoiceType/commericalFlightKey/flightKey
diagram EFSpec_p171.png
namespace http://www.jeppesen.com/aoc
type FlightKeyType
properties
isRef 0
content complex
children flightIdentifier pod

element FlightKeyChoiceType/bagaFlightKey
diagram EFSpec_p172.png
namespace http://www.jeppesen.com/aoc
type BagaFlightKeyType
properties
isRef 0
content complex
children aircraftId flightOriginDate operationalSuffix departureTime pod

complexType FlightKeyType
diagram EFSpec_p173.png
namespace http://www.jeppesen.com/aoc
children flightIdentifier pod
used by
element FlightKeyChoiceType/commericalFlightKey/flightKey

element FlightKeyType/flightIdentifier
diagram EFSpec_p174.png
namespace http://www.jeppesen.com/aoc
type FlightIdentifierType
properties
isRef 0
content complex
children flightNumber airlineCode flightOriginDate operationalSuffix
annotation
documentation
Flight identifier

element FlightKeyType/pod
diagram EFSpec_p175.png
namespace http://www.jeppesen.com/aoc
type AirportCodeType
properties
isRef 0
content complex
children iata icao icao other
annotation
documentation
POD is the Point of Departure.   FAA-Departure Point.  ICAO-Departure Aerodrome

complexType FpRequestAltitudeType
diagram EFSpec_p176.png
namespace http://www.jeppesen.com/aoc
children altitudeGroup
used by
element FpRequestScenarioType/altitude

element FpRequestAltitudeType/altitudeGroup
diagram EFSpec_p177.png
namespace http://www.jeppesen.com/aoc
properties
isRef 0
minOcc 1
maxOcc unbounded
content complex
children altitude

element FpRequestAltitudeType/altitudeGroup/altitude
diagram EFSpec_p178.png
namespace http://www.jeppesen.com/aoc
type AltitudeType
properties
isRef 0
content complex
facets
Kind Value annotation
minInclusive -2000
maxInclusive 250000
attributes
Name  Type  Use  Default  Fixed  annotation
unitsAltitudeHeightEnumTyperequired
documentation
ft = feet
m = meters
fl = flight level
mb = millibars
annotation
documentation
Flight altitude levels.  A minimum of one altitude must be specified.

complexType FpRequestScenarioType
diagram EFSpec_p179.png
namespace http://www.jeppesen.com/aoc
children altitude ranking

element FpRequestScenarioType/altitude
diagram EFSpec_p180.png
namespace http://www.jeppesen.com/aoc
type FpRequestAltitudeType
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children altitudeGroup
annotation
documentation
Altitude flight levels.

element FpRequestScenarioType/ranking
diagram EFSpec_p181.png
namespace http://www.jeppesen.com/aoc
type restriction of xs:string
properties
isRef 0
content simple
facets
Kind Value annotation
enumeration Cost
enumeration Fuel
enumeration Time
annotation
documentation
Ranking value.

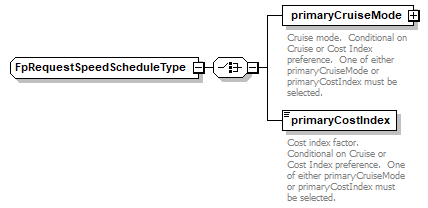

complexType FpRequestSpeedScheduleType
diagram EFSpec_p182.png
namespace http://www.jeppesen.com/aoc
children primaryCruiseMode primaryCostIndex

element FpRequestSpeedScheduleType/primaryCruiseMode
diagram EFSpec_p183.png
namespace http://www.jeppesen.com/aoc
type CruiseModeType
properties
isRef 0
content complex
children machAirspeed cruiseMode indicatedAirspeed
annotation
documentation
Cruise mode.  Conditional on Cruise or Cost Index preference.  One of either primaryCruiseMode or primaryCostIndex must be selected.

element FpRequestSpeedScheduleType/primaryCostIndex
diagram EFSpec_p184.png
namespace http://www.jeppesen.com/aoc
type restriction of xs:integer
properties
isRef 0
content simple
facets
Kind Value annotation
minInclusive
maxInclusive 9999
annotation
documentation
Cost index factor.  Conditional on Cruise or Cost Index preference.  One of either primaryCruiseMode or primaryCostIndex must be selected.

complexType FpResponseAircraftType
diagram EFSpec_p185.png
namespace http://www.jeppesen.com/aoc
children equipmentCode aircraftId

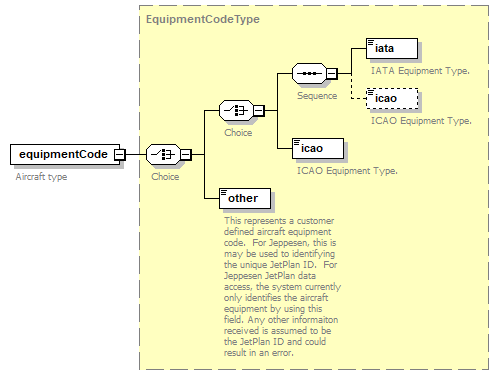

element FpResponseAircraftType/equipmentCode
diagram EFSpec_p186.png
namespace http://www.jeppesen.com/aoc
type EquipmentCodeType
properties
isRef 0
content complex
children iata icao icao other
annotation
documentation
Aircraft type

element FpResponseAircraftType/aircraftId
diagram EFSpec_p187.png
namespace http://www.jeppesen.com/aoc
type AircraftIdType
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children registrationNumber noseNumber serialNumber noseNumber serialNumber serialNumber
annotation
documentation
Aircraft identification

complexType FpResponseAirportType
diagram EFSpec_p188.png
namespace http://www.jeppesen.com/aoc
children airport coordinates elevation

element FpResponseAirportType/airport
diagram EFSpec_p189.png
namespace http://www.jeppesen.com/aoc
type AirportCodeType
properties
isRef 0
content complex
children iata icao icao other
annotation
documentation
Airport code

element FpResponseAirportType/coordinates
diagram EFSpec_p190.png
namespace http://www.jeppesen.com/aoc
type GeographicPointType
properties
isRef 0
content complex
children latitude longitude
annotation
documentation
Airport geographic location

element FpResponseAirportType/elevation
diagram EFSpec_p191.png
namespace http://www.jeppesen.com/aoc
type ElevationType
properties
isRef 0
content complex
facets
Kind Value annotation
minInclusive -2000
maxInclusive 30000
attributes
Name  Type  Use  Default  Fixed  annotation
unitsBasicHeightEnumTyperequired
documentation
ft = feet
m = meters
annotation
documentation
Airport elevation

complexType FpResponseAlternateAirportType
diagram EFSpec_p192.png
namespace http://www.jeppesen.com/aoc
children alternateLandingAirportGroup

element FpResponseAlternateAirportType/alternateLandingAirportGroup
diagram EFSpec_p193.png
namespace http://www.jeppesen.com/aoc
properties
isRef 0
minOcc 1
maxOcc unbounded
content complex
children airport fuel ete

element FpResponseAlternateAirportType/alternateLandingAirportGroup/airport
diagram EFSpec_p194.png
namespace http://www.jeppesen.com/aoc
type AirportCodeType
properties
isRef 0
content complex
children iata icao icao other
annotation
documentation
Identification of alternate airport.
Common ICD.

element FpResponseAlternateAirportType/alternateLandingAirportGroup/fuel
diagram EFSpec_p195.png
namespace http://www.jeppesen.com/aoc
type FuelQuantityType
properties
isRef 0
content complex
facets
Kind Value annotation
minInclusive
maxInclusive 25000000
attributes
Name  Type  Use  Default  Fixed  annotation
unitsFuelQuantityUnitsEnumrequired
documentation
kg = kilograms
lb = pounds
lt = liters
ig = imperial gallons
ug = U.S. gallons
densityxs:double
documentation
If volume is used this value will be used to convert to weight.  If not supplied, then standard densities will be used.
annotation
documentation
Fuel required to alternate airport.
Common ICD.

element FpResponseAlternateAirportType/alternateLandingAirportGroup/ete
diagram EFSpec_p196.png
namespace http://www.jeppesen.com/aoc
type xs:duration
properties
isRef 0
content simple
annotation
documentation
Estimated flying time to alternate airport.

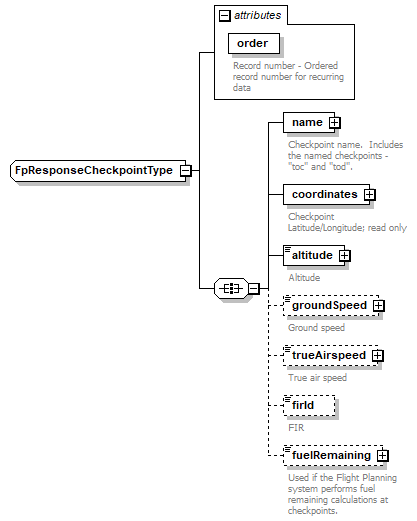

complexType FpResponseCheckpointType
diagram EFSpec_p197.png
namespace http://www.jeppesen.com/aoc
children name coordinates altitude groundSpeed trueAirspeed firId fuelRemaining
used by
element FpResponseRouteType/checkpoint
attributes
Name  Type  Use  Default  Fixed  annotation
orderInteger1to1000required
documentation
Record number - Ordered record number for recurring data

attribute FpResponseCheckpointType/@order
type Integer1to1000
properties
isRef 0
use required
facets
Kind Value annotation
minInclusive
maxInclusive 1000
annotation
documentation
Record number - Ordered record number for recurring data

element FpResponseCheckpointType/name
diagram EFSpec_p198.png
namespace http://www.jeppesen.com/aoc
type CheckpointType
properties
isRef 0
content complex
children coordinates waypoint userDefinedName dmeFix
annotation
documentation
Checkpoint name.  Includes the named checkpoints - "toc" and "tod".

element FpResponseCheckpointType/coordinates
diagram EFSpec_p199.png
namespace http://www.jeppesen.com/aoc
type GeographicPointType
properties
isRef 0
content complex
children latitude longitude
annotation
documentation
Checkpoint Latitude/Longitude; read only

element FpResponseCheckpointType/altitude
diagram EFSpec_p200.png
namespace http://www.jeppesen.com/aoc
type AltitudeType
properties
isRef 0
content complex
facets
Kind Value annotation
minInclusive -2000
maxInclusive 250000
attributes
Name  Type  Use  Default  Fixed  annotation
unitsAltitudeHeightEnumTyperequired
documentation
ft = feet
m = meters
fl = flight level
mb = millibars
annotation
documentation
Altitude

element FpResponseCheckpointType/groundSpeed
diagram EFSpec_p201.png
namespace http://www.jeppesen.com/aoc
type AirspeedType
properties
isRef 0
minOcc 0
maxOcc 1
content complex
facets
Kind Value annotation
minInclusive
maxInclusive 10000
attributes
Name  Type  Use  Default  Fixed  annotation
unitsAirspeedUnitsEnumTyperequired
documentation
kts - nautical miles per hour
kph - kilometers per hour
mph - statute miles per hour
mach - number times 100
annotation
documentation
Ground speed

element FpResponseCheckpointType/trueAirspeed
diagram EFSpec_p202.png
namespace http://www.jeppesen.com/aoc
type AirspeedType
properties
isRef 0
minOcc 0
maxOcc 1
content complex
facets
Kind Value annotation
minInclusive
maxInclusive 10000
attributes
Name  Type  Use  Default  Fixed  annotation
unitsAirspeedUnitsEnumTyperequired
documentation
kts - nautical miles per hour
kph - kilometers per hour
mph - statute miles per hour
mach - number times 100
annotation
documentation
True air speed

element FpResponseCheckpointType/firId
diagram EFSpec_p203.png
namespace http://www.jeppesen.com/aoc
type String4to4
properties
isRef 0
minOcc 0
maxOcc 1
content simple
facets
Kind Value annotation
minLength
maxLength
annotation
documentation
FIR

element FpResponseCheckpointType/fuelRemaining
diagram EFSpec_p204.png
namespace http://www.jeppesen.com/aoc
type FuelQuantityType
properties
isRef 0
minOcc 0
maxOcc 1
content complex
facets
Kind Value annotation
minInclusive
maxInclusive 25000000
attributes
Name  Type  Use  Default  Fixed  annotation
unitsFuelQuantityUnitsEnumrequired
documentation
kg = kilograms
lb = pounds
lt = liters
ig = imperial gallons
ug = U.S. gallons
densityxs:double
documentation
If volume is used this value will be used to convert to weight.  If not supplied, then standard densities will be used.
annotation
documentation
Used if the Flight Planning system performs fuel remaining calculations at checkpoints.

complexType FpResponseEtpAirportType
diagram EFSpec_p205.png
namespace http://www.jeppesen.com/aoc
children airport
used by
elements FpResponseEtpType/etp/backwardAirport FpResponseEtpType/etp/forwardAirport

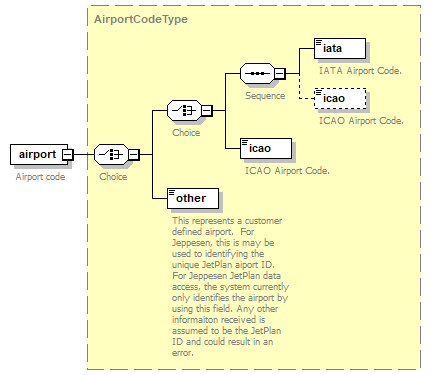

element FpResponseEtpAirportType/airport
diagram EFSpec_p206.png
namespace http://www.jeppesen.com/aoc
type AirportCodeType
properties
isRef 0
content complex
children iata icao icao other
annotation
documentation
Airport code

complexType FpResponseEtpType
diagram EFSpec_p207.png
namespace http://www.jeppesen.com/aoc
children etp

element FpResponseEtpType/etp
diagram EFSpec_p208.png
namespace http://www.jeppesen.com/aoc
properties
isRef 0
minOcc 1
maxOcc unbounded
content complex
children name coordinates forwardAirport backwardAirport
attributes
Name  Type  Use  Default  Fixed  annotation
orderInteger1to1000required
documentation
Preserve ETP order

attribute FpResponseEtpType/etp/@order
type Integer1to1000
properties
isRef 0
use required
facets
Kind Value annotation
minInclusive
maxInclusive 1000
annotation
documentation
Preserve ETP order

element FpResponseEtpType/etp/name

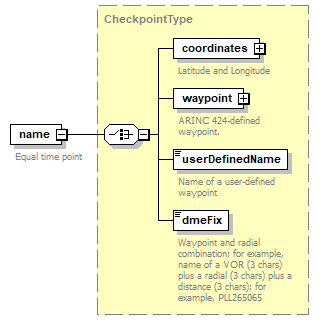

diagram EFSpec_p209.png
namespace http://www.jeppesen.com/aoc
type CheckpointType
properties
isRef 0
content complex
children coordinates waypoint userDefinedName dmeFix
annotation
documentation
Equal time point

element FpResponseEtpType/etp/coordinates
diagram EFSpec_p210.png
namespace http://www.jeppesen.com/aoc
type GeographicPointType
properties
isRef 0
content complex
children latitude longitude
annotation
documentation
Checkpoint Latitude/Longitude; read only

element FpResponseEtpType/etp/forwardAirport
diagram EFSpec_p211.png
namespace http://www.jeppesen.com/aoc
type FpResponseEtpAirportType
properties
isRef 0
content complex
children airport
annotation
documentation
Forward equal time point

element FpResponseEtpType/etp/backwardAirport
diagram EFSpec_p212.png
namespace http://www.jeppesen.com/aoc
type FpResponseEtpAirportType
properties
isRef 0
content complex
children airport
annotation
documentation
Backward equal time point

complexType FpResponseFlightLevelType
diagram EFSpec_p213.png
namespace http://www.jeppesen.com/aoc
children fpResponseFlightLevelGroup
used by
element FpResponseFlightType/flightLevelStep

element FpResponseFlightLevelType/fpResponseFlightLevelGroup
diagram EFSpec_p214.png
namespace http://www.jeppesen.com/aoc
properties
isRef 0
minOcc 1
maxOcc unbounded
content complex
children checkpoint flightLevel

element FpResponseFlightLevelType/fpResponseFlightLevelGroup/checkpoint
diagram EFSpec_p215.png
namespace http://www.jeppesen.com/aoc
type CheckpointType
properties
isRef 0
content complex
children coordinates waypoint userDefinedName dmeFix
annotation
documentation
Flight level checkpoint.  If multiple flight levels are provided, all flight levels after the first is expected to have a checkpoint associated.

element FpResponseFlightLevelType/fpResponseFlightLevelGroup/flightLevel
diagram EFSpec_p216.png
namespace http://www.jeppesen.com/aoc
type AltitudeType
properties
isRef 0
content complex
facets
Kind Value annotation
minInclusive -2000
maxInclusive 250000
attributes
Name  Type  Use  Default  Fixed  annotation
unitsAltitudeHeightEnumTyperequired
documentation
ft = feet
m = meters
fl = flight level
mb = millibars
annotation
documentation
Flight level altitude

complexType FpResponseFlightType

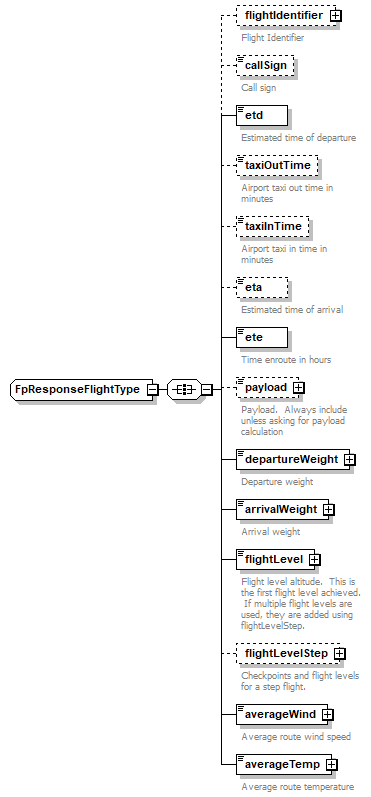

diagram EFSpec_p217.png
namespace http://www.jeppesen.com/aoc
children flightIdentifier callSign etd taxiOutTime taxiInTime eta ete payload departureWeight arrivalWeight flightLevel flightLevelStep averageWind averageTemp

element FpResponseFlightType/flightIdentifier

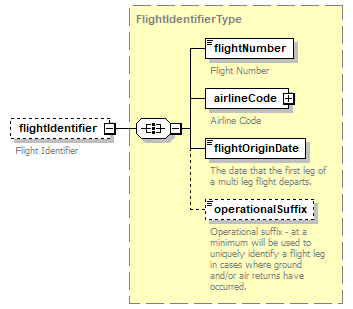

diagram EFSpec_p218.png
namespace http://www.jeppesen.com/aoc
type FlightIdentifierType
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children flightNumber airlineCode flightOriginDate operationalSuffix
annotation
documentation
Flight Identifier

element FpResponseFlightType/callSign
diagram EFSpec_p219.png
namespace http://www.jeppesen.com/aoc
type CallSignType
properties
isRef 0
minOcc 0
maxOcc 1
content simple
facets
Kind Value annotation
minLength
maxLength
annotation
documentation
Call sign

element FpResponseFlightType/etd
diagram EFSpec_p220.png
namespace http://www.jeppesen.com/aoc
type xs:dateTime
properties
isRef 0
content simple
annotation
documentation
Estimated time of departure

element FpResponseFlightType/taxiOutTime
diagram EFSpec_p221.png
namespace http://www.jeppesen.com/aoc
type Duration0to180Minutes
properties
isRef 0
minOcc 0
maxOcc 1
content simple
facets
Kind Value annotation
minInclusive PT0M
maxInclusive PT180M
annotation
documentation
Airport taxi out time in minutes

element FpResponseFlightType/taxiInTime
diagram EFSpec_p222.png
namespace http://www.jeppesen.com/aoc
type Duration0to180Minutes
properties
isRef 0
minOcc 0
maxOcc 1
content simple
facets
Kind Value annotation
minInclusive PT0M
maxInclusive PT180M
annotation
documentation
Airport taxi in time in minutes

element FpResponseFlightType/eta
diagram EFSpec_p223.png
namespace http://www.jeppesen.com/aoc
type xs:dateTime
properties
isRef 0
minOcc 0
maxOcc 1
content simple
annotation
documentation
Estimated time of arrival

element FpResponseFlightType/ete
diagram EFSpec_p224.png
namespace http://www.jeppesen.com/aoc
type restriction of xs:duration
properties
isRef 0
content simple
facets
Kind Value annotation
minInclusive PT0H
maxInclusive PT48H
annotation
documentation
Time enroute in hours

element FpResponseFlightType/payload
diagram EFSpec_p225.png
namespace http://www.jeppesen.com/aoc
type PayloadWeightType
properties
isRef 0
minOcc 0
maxOcc 1
content complex
facets
Kind Value annotation
minInclusive
maxInclusive 1000000
attributes
Name  Type  Use  Default  Fixed  annotation
unitsBasicWeightEnumTyperequired
documentation
lb = pounds
kg = kilograms
annotation
documentation
Payload.  Always include unless asking for payload calculation

element FpResponseFlightType/departureWeight
diagram EFSpec_p226.png
namespace http://www.jeppesen.com/aoc
type TotalWeightType
properties
isRef 0
content complex
facets
Kind Value annotation
maxInclusive 4000000
attributes
Name  Type  Use  Default  Fixed  annotation
unitsBasicWeightEnumTyperequired
documentation
lb = pounds
kg = kilograms
annotation
documentation
Departure weight

element FpResponseFlightType/arrivalWeight
diagram EFSpec_p227.png
namespace http://www.jeppesen.com/aoc
type TotalWeightType
properties
isRef 0
content complex
facets
Kind Value annotation
maxInclusive 4000000
attributes
Name  Type  Use  Default  Fixed  annotation
unitsBasicWeightEnumTyperequired
documentation
lb = pounds
kg = kilograms
annotation
documentation
Arrival weight

element FpResponseFlightType/flightLevel
diagram EFSpec_p228.png
namespace http://www.jeppesen.com/aoc
type AltitudeType
properties
isRef 0
content complex
facets
Kind Value annotation
minInclusive -2000
maxInclusive 250000
attributes
Name  Type  Use  Default  Fixed  annotation
unitsAltitudeHeightEnumTyperequired
documentation
ft = feet
m = meters
fl = flight level
mb = millibars
annotation
documentation
Flight level altitude.  This is the first flight level achieved.  If multiple flight levels are used, they are added using flightLevelStep.

element FpResponseFlightType/flightLevelStep
diagram EFSpec_p229.png
namespace http://www.jeppesen.com/aoc
type FpResponseFlightLevelType
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children fpResponseFlightLevelGroup
annotation
documentation
Checkpoints and flight levels for a step flight.

element FpResponseFlightType/averageWind
diagram EFSpec_p230.png
namespace http://www.jeppesen.com/aoc
type SpeedType
properties
isRef 0
content complex
facets
Kind Value annotation
minInclusive -400
maxInclusive 400
attributes
Name  Type  Use  Default  Fixed  annotation
unitsSpeedUnitsEnumTyperequired
documentation
kts - nautical miles per hour
kph - kilometers per hour
mph - statute miles per hour
annotation
documentation
Average route wind speed

element FpResponseFlightType/averageTemp
diagram EFSpec_p231.png
namespace http://www.jeppesen.com/aoc
type TemperatureType
properties
isRef 0
content complex
facets
Kind Value annotation
minInclusive -459
maxInclusive 373
attributes
Name  Type  Use  Default  Fixed  annotation
unitsTemperatureUnitsEnumTyperequired
documentation
C = Celcius
F = Fahrenheit
K = Kelvin
annotation
documentation
Average route temperature

complexType FpResponseFuelType

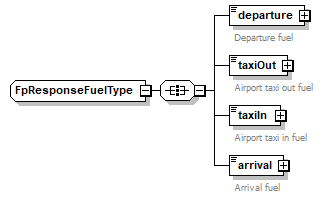

diagram EFSpec_p232.png
namespace http://www.jeppesen.com/aoc
children departure taxiOut taxiIn arrival

element FpResponseFuelType/departure
diagram EFSpec_p233.png
namespace http://www.jeppesen.com/aoc
type FuelQuantityType
properties
isRef 0
content complex
facets
Kind Value annotation
minInclusive
maxInclusive 25000000
attributes
Name  Type  Use  Default  Fixed  annotation
unitsFuelQuantityUnitsEnumrequired
documentation
kg = kilograms
lb = pounds
lt = liters
ig = imperial gallons
ug = U.S. gallons
densityxs:double
documentation
If volume is used this value will be used to convert to weight.  If not supplied, then standard densities will be used.
annotation
documentation
Departure fuel

element FpResponseFuelType/taxiOut
diagram EFSpec_p234.png
namespace http://www.jeppesen.com/aoc
type FuelQuantityType
properties
isRef 0
content complex
facets
Kind Value annotation
minInclusive
maxInclusive 25000000
attributes
Name  Type  Use  Default  Fixed  annotation
unitsFuelQuantityUnitsEnumrequired
documentation
kg = kilograms
lb = pounds
lt = liters
ig = imperial gallons
ug = U.S. gallons
densityxs:double
documentation
If volume is used this value will be used to convert to weight.  If not supplied, then standard densities will be used.
annotation
documentation
Airport taxi out fuel

element FpResponseFuelType/taxiIn
diagram EFSpec_p235.png
namespace http://www.jeppesen.com/aoc
type FuelQuantityType
properties
isRef 0
content complex
facets
Kind Value annotation
minInclusive
maxInclusive 25000000
attributes
Name  Type  Use  Default  Fixed  annotation
unitsFuelQuantityUnitsEnumrequired
documentation
kg = kilograms
lb = pounds
lt = liters
ig = imperial gallons
ug = U.S. gallons
densityxs:double
documentation
If volume is used this value will be used to convert to weight.  If not supplied, then standard densities will be used.
annotation
documentation
Airport taxi in fuel

element FpResponseFuelType/arrival
diagram EFSpec_p236.png
namespace http://www.jeppesen.com/aoc
type FuelQuantityType
properties
isRef 0
content complex
facets
Kind Value annotation
minInclusive
maxInclusive 25000000
attributes
Name  Type  Use  Default  Fixed  annotation
unitsFuelQuantityUnitsEnumrequired
documentation
kg = kilograms
lb = pounds
lt = liters
ig = imperial gallons
ug = U.S. gallons
densityxs:double
documentation
If volume is used this value will be used to convert to weight.  If not supplied, then standard densities will be used.
annotation
documentation
Arrival fuel

complexType FpResponsePlanStatisticsType
diagram EFSpec_p237.png
namespace http://www.jeppesen.com/aoc
children flightPlanKey runDate

element FpResponsePlanStatisticsType/flightPlanKey
diagram EFSpec_p238.png
namespace http://www.jeppesen.com/aoc
type String30
properties
isRef 0
content simple
facets
Kind Value annotation
maxLength 30
annotation
documentation
Specific plan ID.

element FpResponsePlanStatisticsType/runDate
diagram EFSpec_p239.png
namespace http://www.jeppesen.com/aoc
type xs:dateTime
properties
isRef 0
content simple
annotation
documentation
Date and time plan was run.

complexType FpResponseRouteType

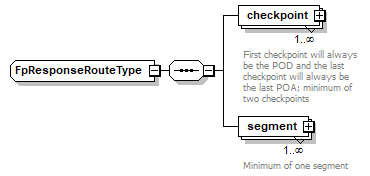

diagram EFSpec_p240.png
namespace http://www.jeppesen.com/aoc
children checkpoint segment

element FpResponseRouteType/checkpoint

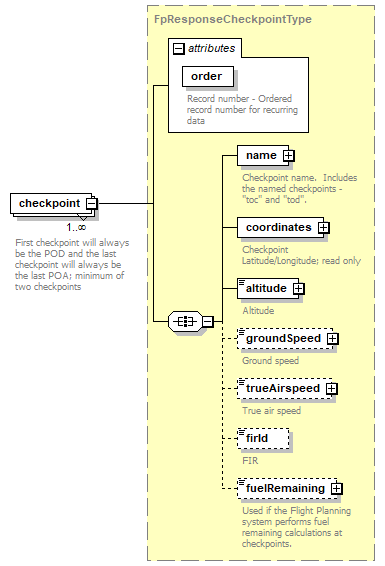

diagram EFSpec_p241.png
namespace http://www.jeppesen.com/aoc
type FpResponseCheckpointType
properties
isRef 0
minOcc 1
maxOcc unbounded
content complex
children name coordinates altitude groundSpeed trueAirspeed firId fuelRemaining
attributes
Name  Type  Use  Default  Fixed  annotation
orderInteger1to1000required
documentation
Record number - Ordered record number for recurring data
annotation
documentation
First checkpoint will always be the POD and the last checkpoint will always be the last POA; minimum of two checkpoints

element FpResponseRouteType/segment

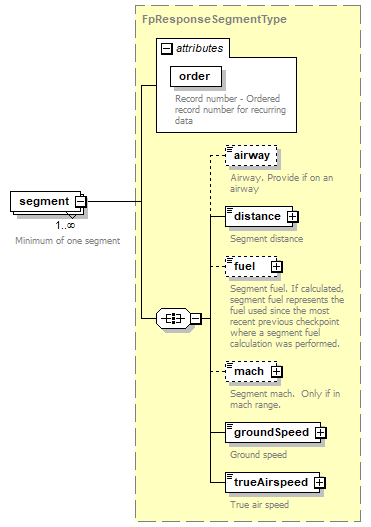

diagram EFSpec_p242.png
namespace http://www.jeppesen.com/aoc
type FpResponseSegmentType
properties
isRef 0
minOcc 1
maxOcc unbounded
content complex
children airway distance fuel mach groundSpeed trueAirspeed
attributes
Name  Type  Use  Default  Fixed  annotation
orderInteger1to1000required
documentation
Record number - Ordered record number for recurring data
annotation
documentation
Minimum of one segment

complexType FpResponseSegmentType

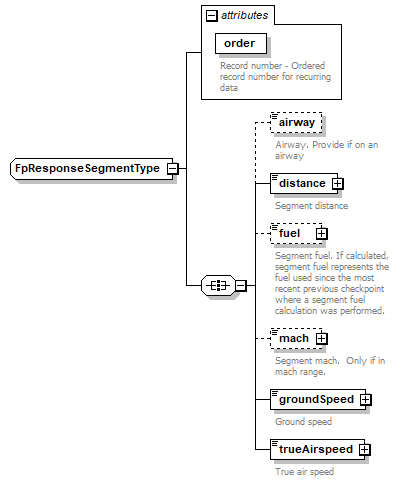

diagram EFSpec_p243.png
namespace http://www.jeppesen.com/aoc
children airway distance fuel mach groundSpeed trueAirspeed
used by
element FpResponseRouteType/segment
attributes
Name  Type  Use  Default  Fixed  annotation
orderInteger1to1000required
documentation
Record number - Ordered record number for recurring data

attribute FpResponseSegmentType/@order
type Integer1to1000
properties
isRef 0
use required
facets
Kind Value annotation
minInclusive
maxInclusive 1000
annotation
documentation
Record number - Ordered record number for recurring data

element FpResponseSegmentType/airway
diagram EFSpec_p244.png
namespace http://www.jeppesen.com/aoc
type String10
properties
isRef 0
minOcc 0
maxOcc 1
content simple
facets
Kind Value annotation
maxLength 10
annotation
documentation
Airway. Provide if on an airway

element FpResponseSegmentType/distance
diagram EFSpec_p245.png
namespace http://www.jeppesen.com/aoc
type DistanceType
properties
isRef 0
content complex
facets
Kind Value annotation
minInclusive 0.0
maxInclusive 50000.0
attributes
Name  Type  Use  Default  Fixed  annotation
unitsBasicDistanceEnumTyperequired
documentation
nm = nautical miles
km = kilometers
ft = feet
m = meters
annotation
documentation
Segment distance

element FpResponseSegmentType/fuel
diagram EFSpec_p246.png
namespace http://www.jeppesen.com/aoc
type FuelQuantityType
properties
isRef 0
minOcc 0
maxOcc 1
content complex
facets
Kind Value annotation
minInclusive
maxInclusive 25000000
attributes
Name  Type  Use  Default  Fixed  annotation
unitsFuelQuantityUnitsEnumrequired
documentation
kg = kilograms
lb = pounds
lt = liters
ig = imperial gallons
ug = U.S. gallons
densityxs:double
documentation
If volume is used this value will be used to convert to weight.  If not supplied, then standard densities will be used.
annotation
documentation
Segment fuel. If calculated, segment fuel represents the fuel used since the most recent previous checkpoint where a segment fuel calculation was performed.

element FpResponseSegmentType/mach
diagram EFSpec_p247.png
namespace http://www.jeppesen.com/aoc
type AirspeedType
properties
isRef 0
minOcc 0
maxOcc 1
content complex
facets
Kind Value annotation
minInclusive
maxInclusive 10000
attributes
Name  Type  Use  Default  Fixed  annotation
unitsAirspeedUnitsEnumTyperequired
documentation
kts - nautical miles per hour
kph - kilometers per hour
mph - statute miles per hour
mach - number times 100
annotation
documentation
Segment mach.  Only if in mach range.

element FpResponseSegmentType/groundSpeed
diagram EFSpec_p248.png
namespace http://www.jeppesen.com/aoc
type AirspeedType
properties
isRef 0
content complex
facets
Kind Value annotation
minInclusive
maxInclusive 10000
attributes
Name  Type  Use  Default  Fixed  annotation
unitsAirspeedUnitsEnumTyperequired
documentation
kts - nautical miles per hour
kph - kilometers per hour
mph - statute miles per hour
mach - number times 100
annotation
documentation
Ground speed

element FpResponseSegmentType/trueAirspeed
diagram EFSpec_p249.png
namespace http://www.jeppesen.com/aoc
type AirspeedType
properties
isRef 0
content complex
facets
Kind Value annotation
minInclusive
maxInclusive 10000
attributes
Name  Type  Use  Default  Fixed  annotation
unitsAirspeedUnitsEnumTyperequired
documentation
kts - nautical miles per hour
kph - kilometers per hour
mph - statute miles per hour
mach - number times 100
annotation
documentation
True air speed

complexType FpResponseTocTodType
diagram EFSpec_p250.png
namespace http://www.jeppesen.com/aoc
children altitude groundSpeed trueAirspeed

element FpResponseTocTodType/altitude
diagram EFSpec_p251.png
namespace http://www.jeppesen.com/aoc
type AltitudeType
properties
isRef 0
content complex
facets
Kind Value annotation
minInclusive -2000
maxInclusive 250000
attributes
Name  Type  Use  Default  Fixed  annotation
unitsAltitudeHeightEnumTyperequired
documentation
ft = feet
m = meters
fl = flight level
mb = millibars

element FpResponseTocTodType/groundSpeed
diagram EFSpec_p252.png
namespace http://www.jeppesen.com/aoc
type AirspeedType
properties
isRef 0
minOcc 0
maxOcc 1
content complex
facets
Kind Value annotation
minInclusive
maxInclusive 10000
attributes
Name  Type  Use  Default  Fixed  annotation
unitsAirspeedUnitsEnumTyperequired
documentation
kts - nautical miles per hour
kph - kilometers per hour
mph - statute miles per hour
mach - number times 100

element FpResponseTocTodType/trueAirspeed
diagram EFSpec_p253.png
namespace http://www.jeppesen.com/aoc
type AirspeedType
properties
isRef 0
minOcc 0
maxOcc 1
content complex
facets
Kind Value annotation
minInclusive
maxInclusive 10000
attributes
Name  Type  Use  Default  Fixed  annotation
unitsAirspeedUnitsEnumTyperequired
documentation
kts - nautical miles per hour
kph - kilometers per hour
mph - statute miles per hour
mach - number times 100

complexType FrequencyType
diagram EFSpec_p254.png
namespace http://www.jeppesen.com/aoc
type extension of FrequencyRangeRestriction
properties
base FrequencyRangeRestriction
facets
Kind Value annotation
minInclusive 0.0
maxInclusive 30000.0
attributes
Name  Type  Use  Default  Fixed  annotation
unitsFrequencyUnitsEnumTyperequired
documentation
khz = kilohertz
mhz = megahertz

attribute FrequencyType/@units
type FrequencyUnitsEnumType
properties
isRef 0
use required
facets
Kind Value annotation
enumeration khz
enumeration mhz
annotation
documentation
khz = kilohertz
mhz = megahertz

complexType FuelAdjustmentType
diagram EFSpec_p255.png
namespace http://www.jeppesen.com/aoc
children fuelWeight fuelPercentage

element FuelAdjustmentType/fuelWeight
diagram EFSpec_p256.png
namespace http://www.jeppesen.com/aoc
type FuelQuantityType
properties
isRef 0
content complex
facets
Kind Value annotation
minInclusive
maxInclusive 25000000
attributes
Name  Type  Use  Default  Fixed  annotation
unitsFuelQuantityUnitsEnumrequired
documentation
kg = kilograms
lb = pounds
lt = liters
ig = imperial gallons
ug = U.S. gallons
densityxs:double
documentation
If volume is used this value will be used to convert to weight.  If not supplied, then standard densities will be used.

element FuelAdjustmentType/fuelPercentage
diagram EFSpec_p257.png
namespace http://www.jeppesen.com/aoc
type FloatingPercentageRestriction
properties
isRef 0
content simple
facets
Kind Value annotation
minInclusive 0.0
maxInclusive 100.0

complexType FuelBurnRateType
diagram EFSpec_p258.png
namespace http://www.jeppesen.com/aoc
children fuelDuration fuelQuantity

element FuelBurnRateType/fuelDuration

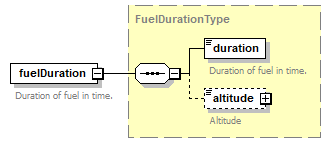

diagram EFSpec_p259.png
namespace http://www.jeppesen.com/aoc
type FuelDurationType
properties
isRef 0
content complex
children duration altitude
annotation
documentation
Duration of fuel in time.

element FuelBurnRateType/fuelQuantity
diagram EFSpec_p260.png
namespace http://www.jeppesen.com/aoc
type FuelQuantityType
properties
isRef 0
content complex
facets
Kind Value annotation
minInclusive
maxInclusive 25000000
attributes
Name  Type  Use  Default  Fixed  annotation
unitsFuelQuantityUnitsEnumrequired
documentation
kg = kilograms
lb = pounds
lt = liters
ig = imperial gallons
ug = U.S. gallons
densityxs:double
documentation
If volume is used this value will be used to convert to weight.  If not supplied, then standard densities will be used.
annotation
documentation
Fuel quantity.

complexType FuelDurationType
diagram EFSpec_p261.png
namespace http://www.jeppesen.com/aoc
children duration altitude
used by
elements FuelBurnRateType/fuelDuration FuelQuantityDurationType/fuelDuration

element FuelDurationType/duration
diagram EFSpec_p262.png
namespace http://www.jeppesen.com/aoc
type xs:duration
properties
isRef 0
content simple
annotation
documentation
Duration of fuel in time.

element FuelDurationType/altitude
diagram EFSpec_p263.png
namespace http://www.jeppesen.com/aoc
type AltitudeType
properties
isRef 0
minOcc 0
maxOcc 1
content complex
facets
Kind Value annotation
minInclusive -2000
maxInclusive 250000
attributes
Name  Type  Use  Default  Fixed  annotation
unitsAltitudeHeightEnumTyperequired
documentation
ft = feet
m = meters
fl = flight level
mb = millibars
annotation
documentation
Altitude

complexType FuelPlanAmountType
diagram EFSpec_p264.png
namespace http://www.jeppesen.com/aoc
children fuelWeight fuelMinutes

element FuelPlanAmountType/fuelWeight
diagram EFSpec_p265.png
namespace http://www.jeppesen.com/aoc
type FuelQuantityType
properties
isRef 0
content complex
facets
Kind Value annotation
minInclusive
maxInclusive 25000000
attributes
Name  Type  Use  Default  Fixed  annotation
unitsFuelQuantityUnitsEnumrequired
documentation
kg = kilograms
lb = pounds
lt = liters
ig = imperial gallons
ug = U.S. gallons
densityxs:double
documentation
If volume is used this value will be used to convert to weight.  If not supplied, then standard densities will be used.

element FuelPlanAmountType/fuelMinutes
diagram EFSpec_p266.png
namespace http://www.jeppesen.com/aoc
type FuelTimeRestriction
properties
isRef 0
content simple
facets
Kind Value annotation
maxInclusive 14400

complexType FuelQuantityDurationType
diagram EFSpec_p267.png
namespace http://www.jeppesen.com/aoc
children fuelDuration fuelQuantity

element FuelQuantityDurationType/fuelDuration
diagram EFSpec_p268.png
namespace http://www.jeppesen.com/aoc
type FuelDurationType
properties
isRef 0
content complex
children duration altitude
annotation
documentation
Duration of fuel in time.

element FuelQuantityDurationType/fuelQuantity
diagram EFSpec_p269.png
namespace http://www.jeppesen.com/aoc
type FuelQuantityType
properties
isRef 0
content complex
facets
Kind Value annotation
minInclusive
maxInclusive 25000000
attributes
Name  Type  Use  Default  Fixed  annotation
unitsFuelQuantityUnitsEnumrequired
documentation
kg = kilograms
lb = pounds
lt = liters
ig = imperial gallons
ug = U.S. gallons
densityxs:double
documentation
If volume is used this value will be used to convert to weight.  If not supplied, then standard densities will be used.
annotation
documentation
Fuel quantity.

complexType FuelQuantityType
diagram EFSpec_p270.png
namespace http://www.jeppesen.com/aoc
type extension of FuelQuantityRestriction
properties
base FuelQuantityRestriction
used by
elements FpResponseFuelType/arrival FpResponseFuelType/departure FpResponseAlternateAirportType/alternateLandingAirportGroup/fuel FpResponseSegmentType/fuel FuelBurnRateType/fuelQuantity FuelQuantityDurationType/fuelQuantity FpResponseCheckpointType/fuelRemaining FuelPlanAmountType/fuelWeight FuelAdjustmentType/fuelWeight FpResponseFuelType/taxiIn FpResponseFuelType/taxiOut
facets
Kind Value annotation
minInclusive
maxInclusive 25000000
attributes
Name  Type  Use  Default  Fixed  annotation
unitsFuelQuantityUnitsEnumrequired
documentation
kg = kilograms
lb = pounds
lt = liters
ig = imperial gallons
ug = U.S. gallons
densityxs:double
documentation
If volume is used this value will be used to convert to weight.  If not supplied, then standard densities will be used.

attribute FuelQuantityType/@units
type FuelQuantityUnitsEnum
properties
isRef 0
use required
annotation
documentation
kg = kilograms
lb = pounds
lt = liters
ig = imperial gallons
ug = U.S. gallons

attribute FuelQuantityType/@density
type xs:double
properties
isRef 0
annotation
documentation
If volume is used this value will be used to convert to weight.  If not supplied, then standard densities will be used.

complexType GeographicPointType
diagram EFSpec_p271.png
namespace http://www.jeppesen.com/aoc
children latitude longitude
used by
elements CheckpointType/coordinates CustomAirportType/coordinates FpResponseAirportType/coordinates FpResponseCheckpointType/coordinates FpResponseEtpType/etp/coordinates BoundingAreaPolygonType/point BoundingAreaCircleType/point

element GeographicPointType/latitude
diagram EFSpec_p272.png
namespace http://www.jeppesen.com/aoc
type LatitudeType
properties
isRef 0
content complex
children hemisphere degrees minutes seconds
annotation
documentation
Latitude

element GeographicPointType/longitude
diagram EFSpec_p273.png
namespace http://www.jeppesen.com/aoc
type LongitudeType
properties
isRef 0
content complex
children hemisphere degrees minutes seconds
annotation
documentation
Longitude

complexType GufiFlightKeyType
diagram EFSpec_p274.png
namespace http://www.jeppesen.com/aoc
children gufiId departureAirport
used by
element CustomFlightKeyChoiceType/gufiFlightKey

element GufiFlightKeyType/gufiId
diagram EFSpec_p275.png
namespace http://www.jeppesen.com/aoc
type restriction of GufiId
properties
isRef 0
content simple
facets
Kind Value annotation
minLength
maxLength 36

element GufiFlightKeyType/departureAirport
diagram EFSpec_p276.png
namespace http://www.jeppesen.com/aoc
type DepartureAirportType
properties
isRef 0
content complex
children pod customAirport

complexType HorizontalCoordinateType
diagram EFSpec_p277.png
namespace http://www.jeppesen.com/aoc
children altitude azimuth

element HorizontalCoordinateType/altitude
diagram EFSpec_p278.png
namespace http://www.jeppesen.com/aoc
type AltitudeType
properties
isRef 0
content complex
facets
Kind Value annotation
minInclusive -2000
maxInclusive 250000
attributes
Name  Type  Use  Default  Fixed  annotation
unitsAltitudeHeightEnumTyperequired
documentation
ft = feet
m = meters
fl = flight level
mb = millibars

element HorizontalCoordinateType/azimuth
diagram EFSpec_p279.png
namespace http://www.jeppesen.com/aoc
type AzimuthType
properties
isRef 0
content simple
facets
Kind Value annotation
minInclusive
maxInclusive 360

complexType IntegrityLevelType

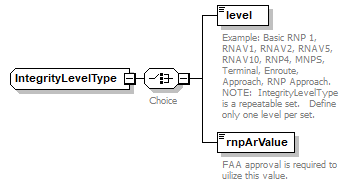

diagram EFSpec_p280.png
namespace http://www.jeppesen.com/aoc
children level rnpArValue

element IntegrityLevelType/level
diagram EFSpec_p281.png
namespace http://www.jeppesen.com/aoc
type restriction of xs:string
properties
isRef 0
content simple
annotation
documentation
Example: Basic RNP 1, RNAV1, RNAV2, RNAV5, RNAV10, RNP4, MNPS, Terminal, Enroute, Approach, RNP Approach.   NOTE:  IntegrityLevelType is a repeatable set.   Define only one level per set.

element IntegrityLevelType/rnpArValue
diagram EFSpec_p282.png
namespace http://www.jeppesen.com/aoc
type restriction of xs:decimal
properties
isRef 0
content simple
facets
Kind Value annotation
minExclusive
annotation
documentation
FAA approval is required to uilize this value.

complexType IntMinMaxType
diagram EFSpec_p283.png
namespace http://www.jeppesen.com/aoc
children min max

element IntMinMaxType/min
diagram EFSpec_p284.png
namespace http://www.jeppesen.com/aoc
type xs:int
properties
isRef 0
content simple

element IntMinMaxType/max
diagram EFSpec_p285.png
namespace http://www.jeppesen.com/aoc
type xs:int
properties
isRef 0
content simple

complexType LatitudeType
diagram EFSpec_p286.png
namespace http://www.jeppesen.com/aoc
children hemisphere degrees minutes seconds
used by
element GeographicPointType/latitude

element LatitudeType/hemisphere
diagram EFSpec_p287.png
namespace http://www.jeppesen.com/aoc
type restriction of xs:string
properties
isRef 0
content simple
facets
Kind Value annotation
enumeration
enumeration
annotation
documentation
N = north
S = south

element LatitudeType/degrees
diagram EFSpec_p288.png
namespace http://www.jeppesen.com/aoc
type restriction of xs:integer
properties
isRef 0
content simple
facets
Kind Value annotation
minInclusive
maxInclusive 90
annotation
documentation
Degrees

element LatitudeType/minutes
diagram EFSpec_p289.png
namespace http://www.jeppesen.com/aoc
type MinuteSecondRangeRestriction
properties
isRef 0
content simple
facets
Kind Value annotation
minInclusive
maxInclusive 59
annotation
documentation
Minutes

element LatitudeType/seconds
diagram EFSpec_p290.png
namespace http://www.jeppesen.com/aoc
type MinuteSecondRangeRestriction
properties
isRef 0
content simple
facets
Kind Value annotation
minInclusive
maxInclusive 59
annotation
documentation
Seconds

complexType LimitingConditionType
diagram EFSpec_p291.png
namespace http://www.jeppesen.com/aoc
children code description

element LimitingConditionType/code
diagram EFSpec_p292.png
namespace http://www.jeppesen.com/aoc
type String3
properties
isRef 0
content simple
facets
Kind Value annotation
maxLength

element LimitingConditionType/description
diagram EFSpec_p293.png
namespace http://www.jeppesen.com/aoc
type String250
properties
isRef 0
minOcc 0
maxOcc 1
content simple
facets
Kind Value annotation
maxLength 250

complexType LoginType
diagram EFSpec_p294.png
namespace http://www.jeppesen.com/aoc
children userName password

element LoginType/userName
diagram EFSpec_p295.png
namespace http://www.jeppesen.com/aoc
type String80
properties
isRef 0
content simple
facets
Kind Value annotation
maxLength 80
annotation
documentation
User name to log into the database application

element LoginType/password
diagram EFSpec_p296.png
namespace http://www.jeppesen.com/aoc
type String80
properties
isRef 0
content simple
facets
Kind Value annotation
maxLength 80
annotation
documentation
Password to log into the database application

complexType LongitudeType
diagram EFSpec_p297.png
namespace http://www.jeppesen.com/aoc
children hemisphere degrees minutes seconds
used by
element GeographicPointType/longitude

element LongitudeType/hemisphere
diagram EFSpec_p298.png
namespace http://www.jeppesen.com/aoc
type restriction of xs:string
properties
isRef 0
content simple
facets
Kind Value annotation
enumeration
enumeration
annotation
documentation
E = East
W = West

element LongitudeType/degrees
diagram EFSpec_p299.png
namespace http://www.jeppesen.com/aoc
type restriction of xs:integer
properties
isRef 0
content simple
facets
Kind Value annotation
minInclusive
maxInclusive 180
annotation
documentation
Degrees

element LongitudeType/minutes
diagram EFSpec_p300.png
namespace http://www.jeppesen.com/aoc
type MinuteSecondRangeRestriction
properties
isRef 0
content simple
facets
Kind Value annotation
minInclusive
maxInclusive 59
annotation
documentation
Minutes

element LongitudeType/seconds
diagram EFSpec_p301.png
namespace http://www.jeppesen.com/aoc
type MinuteSecondRangeRestriction
properties
isRef 0
content simple
facets
Kind Value annotation
minInclusive
maxInclusive 59
annotation
documentation
Seconds

complexType NoiseLevelType
diagram EFSpec_p302.png
namespace http://www.jeppesen.com/aoc
type extension of NoiseLevelRestriction
properties
base NoiseLevelRestriction
facets
Kind Value annotation
minInclusive
maxInclusive 194
attributes
Name  Type  Use  Default  Fixed  annotation
unitsSoundUnitsEnumTyperequired
documentation
dBA=Acoustic decibels

attribute NoiseLevelType/@units
type SoundUnitsEnumType
properties
isRef 0
use required
facets
Kind Value annotation
enumeration dBA
annotation
documentation
dBA=Acoustic decibels

complexType OperatingPeriodType
diagram EFSpec_p303.png
namespace http://www.jeppesen.com/aoc
children start end period

element OperatingPeriodType/start
diagram EFSpec_p304.png
namespace http://www.jeppesen.com/aoc
type xs:time
properties
isRef 0
content simple
annotation
documentation
Start time

element OperatingPeriodType/end
diagram EFSpec_p305.png
namespace http://www.jeppesen.com/aoc
type xs:time
properties
isRef 0
content simple
annotation
documentation
End time

element OperatingPeriodType/period
diagram EFSpec_p306.png
namespace http://www.jeppesen.com/aoc
type PeriodType
properties
isRef 0
content complex
children effectiveDate discontinueDate weekDays
annotation
documentation
Period

complexType PayloadWeightType
diagram EFSpec_p307.png
namespace http://www.jeppesen.com/aoc
type extension of PayloadWeightRestriction
properties
base PayloadWeightRestriction
used by
element FpResponseFlightType/payload
facets
Kind Value annotation
minInclusive
maxInclusive 1000000
attributes
Name  Type  Use  Default  Fixed  annotation
unitsBasicWeightEnumTyperequired
documentation
lb = pounds
kg = kilograms

attribute PayloadWeightType/@units
type BasicWeightEnumType
properties
isRef 0
use required
facets
Kind Value annotation
enumeration lb
enumeration kg
annotation
documentation
lb = pounds
kg = kilograms

complexType PeriodType
diagram EFSpec_p308.png
namespace http://www.jeppesen.com/aoc
children effectiveDate discontinueDate weekDays
used by
element OperatingPeriodType/period

element PeriodType/effectiveDate
diagram EFSpec_p309.png
namespace http://www.jeppesen.com/aoc
type xs:dateTime
properties
isRef 0
content simple
annotation
documentation
Effective Date

element PeriodType/discontinueDate
diagram EFSpec_p310.png
namespace http://www.jeppesen.com/aoc
type xs:dateTime
properties
isRef 0
content simple
annotation
documentation
Discontinue Date

element PeriodType/weekDays
diagram EFSpec_p311.png
namespace http://www.jeppesen.com/aoc
type WeekDayEnumType
properties
isRef 0
minOcc 1
maxOcc unbounded
content simple
facets
Kind Value annotation
enumeration Sunday
enumeration Monday
enumeration Tuesday
enumeration Wednesday
enumeration Thursday
enumeration Friday
enumeration Saturday
annotation
documentation
Week Days

complexType PriceType
diagram EFSpec_p312.png
namespace http://www.jeppesen.com/aoc
type extension of PriceRestriction
properties
base PriceRestriction
facets
Kind Value annotation
minInclusive 0.0
maxInclusive 1000000000.0
attributes
Name  Type  Use  Default  Fixed  annotation
unitsString3to3required
documentation
See ISO4217 for valid currency codes

attribute PriceType/@units
type String3to3
properties
isRef 0
use required
facets
Kind Value annotation
minLength
maxLength
annotation
documentation
See ISO4217 for valid currency codes

complexType PropertyType
diagram EFSpec_p313.png
namespace http://www.jeppesen.com/aoc
children propertyClass propertyName propertyValue

element PropertyType/propertyClass
diagram EFSpec_p314.png
namespace http://www.jeppesen.com/aoc
type String255
properties
isRef 0
minOcc 0
maxOcc 1
content simple
facets
Kind Value annotation
maxLength 255

element PropertyType/propertyName
diagram EFSpec_p315.png
namespace http://www.jeppesen.com/aoc
type String255
properties
isRef 0
minOcc 0
maxOcc 1
content simple
facets
Kind Value annotation
maxLength 255

element PropertyType/propertyValue

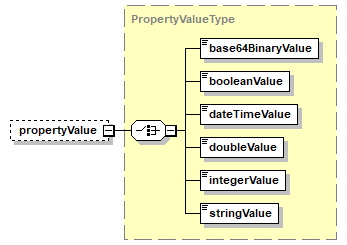

diagram EFSpec_p316.png
namespace http://www.jeppesen.com/aoc
type PropertyValueType
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children base64BinaryValue booleanValue dateTimeValue doubleValue integerValue stringValue

complexType PropertyValueType
diagram EFSpec_p317.png
namespace http://www.jeppesen.com/aoc
children base64BinaryValue booleanValue dateTimeValue doubleValue integerValue stringValue
used by
element PropertyType/propertyValue

element PropertyValueType/base64BinaryValue
diagram EFSpec_p318.png
namespace http://www.jeppesen.com/aoc
type xs:base64Binary
properties
isRef 0
content simple
nillable true

element PropertyValueType/booleanValue
diagram EFSpec_p319.png
namespace http://www.jeppesen.com/aoc
type xs:boolean
properties
isRef 0
content simple
nillable true

element PropertyValueType/dateTimeValue
diagram EFSpec_p320.png
namespace http://www.jeppesen.com/aoc
type xs:dateTime
properties
isRef 0
content simple
nillable true

element PropertyValueType/doubleValue
diagram EFSpec_p321.png
namespace http://www.jeppesen.com/aoc
type xs:double
properties
isRef 0
content simple
nillable true

element PropertyValueType/integerValue
diagram EFSpec_p322.png
namespace http://www.jeppesen.com/aoc
type xs:integer
properties
isRef 0
content simple
nillable true

element PropertyValueType/stringValue
diagram EFSpec_p323.png
namespace http://www.jeppesen.com/aoc
type xs:string
properties
isRef 0
content simple
nillable true

complexType ReasonType

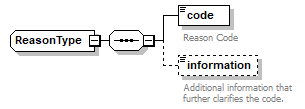

diagram EFSpec_p324.png
namespace http://www.jeppesen.com/aoc
children code information

element ReasonType/code
diagram EFSpec_p325.png
namespace http://www.jeppesen.com/aoc
type restriction of xs:string
properties
isRef 0
content simple
facets
Kind Value annotation
minLength
maxLength
annotation
documentation
Reason Code

element ReasonType/information
diagram EFSpec_p326.png
namespace http://www.jeppesen.com/aoc
type restriction of xs:string
properties
isRef 0
minOcc 0
maxOcc 1
content simple
facets
Kind Value annotation
minLength
maxLength 1000
annotation
documentation
Additional information that further clarifies the code.

complexType RouteKeyType

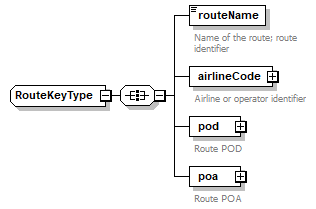

diagram EFSpec_p327.png
namespace http://www.jeppesen.com/aoc
children routeName airlineCode pod poa

element RouteKeyType/routeName
diagram EFSpec_p328.png
namespace http://www.jeppesen.com/aoc
type String11
properties
isRef 0
content simple
facets
Kind Value annotation
maxLength 11
annotation
documentation
Name of the route; route identifier

element RouteKeyType/airlineCode

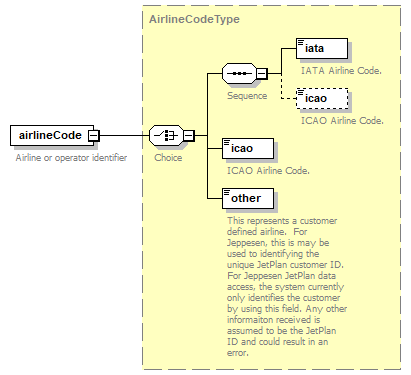

diagram EFSpec_p329.png
namespace http://www.jeppesen.com/aoc
type AirlineCodeType
properties
isRef 0
content complex
children iata icao icao other
annotation
documentation
Airline or operator identifier

element RouteKeyType/pod
diagram EFSpec_p330.png
namespace http://www.jeppesen.com/aoc
type AirportCodeType
properties
isRef 0
content complex
children iata icao icao other
annotation
documentation
Route POD

element RouteKeyType/poa
diagram EFSpec_p331.png
namespace http://www.jeppesen.com/aoc
type AirportCodeType
properties
isRef 0
content complex
children iata icao icao other
annotation
documentation
Route POA

complexType RunwayIdType

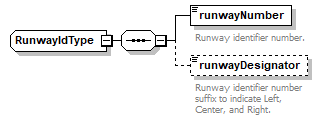

diagram EFSpec_p332.png
namespace http://www.jeppesen.com/aoc
children runwayNumber runwayDesignator

element RunwayIdType/runwayNumber
diagram EFSpec_p333.png
namespace http://www.jeppesen.com/aoc
type restriction of xs:integer
properties
isRef 0
content simple
facets
Kind Value annotation
minInclusive
maxInclusive 36
annotation
documentation
Runway identifier number.

element RunwayIdType/runwayDesignator
diagram EFSpec_p334.png
namespace http://www.jeppesen.com/aoc
type restriction of xs:string
properties
isRef 0
minOcc 0
maxOcc 1
content simple
facets
Kind Value annotation
enumeration
enumeration
enumeration
annotation
documentation
Runway identifier number suffix to indicate Left, Center, and Right.

complexType SpeedType
diagram EFSpec_p335.png
namespace http://www.jeppesen.com/aoc
type extension of SpeedRangeRestriction
properties
base SpeedRangeRestriction
used by
element FpResponseFlightType/averageWind
facets
Kind Value annotation
minInclusive -400
maxInclusive 400
attributes
Name  Type  Use  Default  Fixed  annotation
unitsSpeedUnitsEnumTyperequired
documentation
kts - nautical miles per hour
kph - kilometers per hour
mph - statute miles per hour

attribute SpeedType/@units
type SpeedUnitsEnumType
properties
isRef 0
use required
facets
Kind Value annotation
enumeration kts
enumeration kph
enumeration mph
annotation
documentation
kts - nautical miles per hour
kph - kilometers per hour
mph - statute miles per hour

complexType StatusType
diagram EFSpec_p336.png
namespace http://www.jeppesen.com/aoc
children code information

element StatusType/code
diagram EFSpec_p337.png
namespace http://www.jeppesen.com/aoc
type String4
properties
isRef 0
content simple
facets
Kind Value annotation
maxLength
annotation
documentation
Code

element StatusType/information
diagram EFSpec_p338.png
namespace http://www.jeppesen.com/aoc
type String1000
properties
isRef 0
minOcc 0
maxOcc 1
content simple
facets
Kind Value annotation
maxLength 1000
annotation
documentation
Additional information that further clarifies the code.

complexType TemperatureType
diagram EFSpec_p339.png
namespace http://www.jeppesen.com/aoc
type extension of TemperatureRangeRestriction
properties
base TemperatureRangeRestriction
used by
element FpResponseFlightType/averageTemp
facets
Kind Value annotation
minInclusive -459
maxInclusive 373
attributes
Name  Type  Use  Default  Fixed  annotation
unitsTemperatureUnitsEnumTyperequired
documentation
C = Celcius
F = Fahrenheit
K = Kelvin

attribute TemperatureType/@units
type TemperatureUnitsEnumType
properties
isRef 0
use required
facets
Kind Value annotation
enumeration
enumeration
enumeration
annotation
documentation
C = Celcius
F = Fahrenheit
K = Kelvin

complexType TotalWeightType
diagram EFSpec_p340.png
namespace http://www.jeppesen.com/aoc
type extension of TotalWeightRestriction
properties
base TotalWeightRestriction
used by
elements FpResponseFlightType/arrivalWeight FpResponseFlightType/departureWeight
facets
Kind Value annotation
maxInclusive 4000000
attributes
Name  Type  Use  Default  Fixed  annotation
unitsBasicWeightEnumTyperequired
documentation
lb = pounds
kg = kilograms

attribute TotalWeightType/@units
type BasicWeightEnumType
properties
isRef 0
use required
facets
Kind Value annotation
enumeration lb
enumeration kg
annotation
documentation
lb = pounds
kg = kilograms

complexType UserInfoType

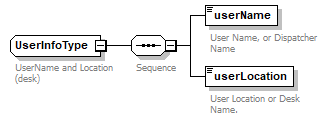

diagram EFSpec_p341.png
namespace http://www.jeppesen.com/aoc
children userName userLocation
annotation
documentation
UserName and Location (desk)

element UserInfoType/userName
diagram EFSpec_p342.png
namespace http://www.jeppesen.com/aoc
type xs:string
properties
isRef 0
content simple
annotation
documentation
User Name, or Dispatcher Name

element UserInfoType/userLocation
diagram EFSpec_p343.png
namespace http://www.jeppesen.com/aoc
type xs:string
properties
isRef 0
content simple
annotation
documentation
User Location or Desk Name.

complexType WaypointType
diagram EFSpec_p344.png
namespace http://www.jeppesen.com/aoc
children identifier icaoCode type
used by
element CheckpointType/waypoint

element WaypointType/identifier
diagram EFSpec_p345.png
namespace http://www.jeppesen.com/aoc
type String5
properties
isRef 0
content simple
facets
Kind Value annotation
maxLength
annotation
documentation
Name of the waypoint

element WaypointType/icaoCode
diagram EFSpec_p346.png
namespace http://www.jeppesen.com/aoc
type String2
properties
isRef 0
minOcc 0
maxOcc 1
content simple
facets
Kind Value annotation
maxLength
annotation
documentation
ICAO country code that represents the country that the waypoint is located

element WaypointType/type
diagram EFSpec_p347.png
namespace http://www.jeppesen.com/aoc
type String1
properties
isRef 0
minOcc 0
maxOcc 1
content simple
facets
Kind Value annotation
maxLength
annotation
documentation
Distinguishes between two waypoints with the same name in the same area, such as a VOR and NDB

complexType WindGradientType
diagram EFSpec_p348.png
namespace http://www.jeppesen.com/aoc
children windDirection windVelocity

element WindGradientType/windDirection
diagram EFSpec_p349.png
namespace http://www.jeppesen.com/aoc
type AzimuthType
properties
isRef 0
content simple
facets
Kind Value annotation
minInclusive
maxInclusive 360

element WindGradientType/windVelocity
diagram EFSpec_p350.png
namespace http://www.jeppesen.com/aoc
type AirspeedType
properties
isRef 0
content complex
facets
Kind Value annotation
minInclusive
maxInclusive 10000
attributes
Name  Type  Use  Default  Fixed  annotation
unitsAirspeedUnitsEnumTyperequired
documentation
kts - nautical miles per hour
kph - kilometers per hour
mph - statute miles per hour
mach - number times 100

simpleType AirspeedRestriction
namespace http://www.jeppesen.com/aoc
type restriction of xs:integer
properties
base xs:integer
used by
complexType AirspeedType
facets
Kind Value annotation
minInclusive
maxInclusive 10000

simpleType AirspeedUnitsEnumType
namespace http://www.jeppesen.com/aoc
type restriction of xs:string
properties
base xs:string
used by
attribute AirspeedType/@units
facets
Kind Value annotation
enumeration kts
enumeration kph
enumeration mph
enumeration mach

simpleType AltitudeHeightEnumType
namespace http://www.jeppesen.com/aoc
type restriction of xs:string
properties
base xs:string
used by
attribute AltitudeType/@units
facets
Kind Value annotation
enumeration ft
enumeration
enumeration fl
enumeration mb

simpleType AltitudeRangeRestriction
namespace http://www.jeppesen.com/aoc
type restriction of xs:integer
properties
base xs:integer
used by
complexType AltitudeType
facets
Kind Value annotation
minInclusive -2000
maxInclusive 250000

simpleType AOCMessageClassType
namespace http://www.jeppesen.com/aoc
type restriction of xs:string
properties
base xs:string
facets
Kind Value annotation
enumeration RESPONSE
enumeration REQUEST
enumeration PUBLISH
annotation
documentation
Message Class

simpleType AOCMessageNameType
namespace http://www.jeppesen.com/aoc
type restriction of xs:string
properties
base xs:string
facets
Kind Value annotation
enumeration AA001
enumeration AA002
enumeration AA003
enumeration AA004
enumeration AA005
enumeration AA006
enumeration AA007
enumeration AA008
enumeration AA009
enumeration AA010
enumeration AA011
enumeration AA012
enumeration AA013
enumeration AA014
enumeration AA015
enumeration AA016
enumeration AA017
enumeration AA018
enumeration AA019
enumeration AA020
enumeration AN001
enumeration AN002
enumeration AN003
enumeration AS001
enumeration AT001
enumeration AT002
enumeration AT003
enumeration AT011
enumeration AT012
enumeration AT013
enumeration AT014
enumeration AT015
enumeration AT016
enumeration AT018
enumeration BT001
enumeration CM001
enumeration CM002
enumeration CM003
enumeration CM004
enumeration CM005
enumeration CS001
enumeration CS002
enumeration CS004
enumeration CS005
enumeration CS007
enumeration CS008
enumeration CS009
enumeration CS010
enumeration CS012
enumeration CS013
enumeration CS014
enumeration CS015
enumeration CS016
enumeration CS017
enumeration CS018
enumeration CS019
enumeration CT001
enumeration DB001
enumeration DM001
enumeration DM002
enumeration DM003
enumeration DM004
enumeration DP001
enumeration DP002
enumeration DP003
enumeration DP004
enumeration DP005
enumeration DP006
enumeration DP007
enumeration DP008
enumeration DP009
enumeration DP010
enumeration DP011
enumeration DP012
enumeration EF003
enumeration EF004
enumeration EP001
enumeration EP002
enumeration FF001
enumeration FF002
enumeration FF003
enumeration FF004
enumeration FP001
enumeration GP001
enumeration GP002
enumeration GP003
enumeration GP004
enumeration GP005
enumeration HB001
enumeration HB002
enumeration HB003
enumeration HB004
enumeration HB005
enumeration HB006
enumeration HB007
enumeration HB008
enumeration HB009
enumeration MX001
enumeration MX002
enumeration MX003
enumeration MX004
enumeration MX005
enumeration MX006
enumeration MX007
enumeration MX008
enumeration MX009
enumeration MX010
enumeration MX011
enumeration MX012
enumeration MX013
enumeration MX014
enumeration MX015
enumeration ND001
enumeration ND002
enumeration ND003
enumeration ND004
enumeration ND005
enumeration ND006
enumeration ND007
enumeration ND008
enumeration NM001
enumeration NM002
enumeration NM003
enumeration NM004
enumeration OC001
enumeration OC002
enumeration OC003
enumeration OC004
enumeration OC005
enumeration OC008
enumeration OC009
enumeration OC010
enumeration OC011
enumeration OC012
enumeration OC013
enumeration OC014
enumeration OC015
enumeration OC016
enumeration OC017
enumeration OC018
enumeration OC020
enumeration OC021
enumeration OC022
enumeration OC023
enumeration OC024
enumeration OC025
enumeration OC026
enumeration OC027
enumeration OC028
enumeration OC029
enumeration OC030
enumeration OC031
enumeration OC032
enumeration OC033
enumeration OC034
enumeration OC035
enumeration OC036
enumeration OC037
enumeration RS001
enumeration SD001
enumeration SP001
enumeration SP002
enumeration TN001
enumeration TN002
enumeration TN003
enumeration TN004
enumeration TN005
enumeration UM001
enumeration UM002
enumeration WB001
enumeration WB002
enumeration WB003
enumeration WB004
enumeration WB005
enumeration WB006
enumeration WB007
enumeration WX001
enumeration WX002
enumeration WX003
enumeration WX004
enumeration WX005
enumeration WX006
enumeration WX007
enumeration WX008
enumeration WX009
enumeration WX010
enumeration WX011
enumeration WX012
enumeration WX013
enumeration WX014
enumeration WX015
enumeration ZZ001
enumeration ZZ002
enumeration ZZ003
enumeration ZZ004
enumeration ZZ005
enumeration ZZ006
enumeration ZZ007
enumeration ZZ008
enumeration ZZ009
annotation
documentation
Message identifier from all ICDs.  List is available in CommonICD.PDF in section 2.0 Message Summary (i.e. AA001, OC001, etc)

simpleType AOCVersionType
namespace http://www.jeppesen.com/aoc
type xs:string
properties
base xs:string
annotation
documentation
Each message is assigned a version number using number identified by each message in the applicable ICD.  For all version 1 messages, this field must contain a "v" followed by  a "1".  For all versions greater than 1, just a number is accepted.

simpleType AtmosphericUnitType
namespace http://www.jeppesen.com/aoc
type restriction of xs:string
properties
base xs:string
used by
attribute AtmosphericPressureType/@units
facets
Kind Value annotation
enumeration at
enumeration atm
enumeration bar
enumeration mbar
enumeration Pa
enumeration hPa
enumeration kPa
enumeration inchHg
enumeration psi
enumeration mmHg
enumeration Torr

simpleType AzimuthType
namespace http://www.jeppesen.com/aoc
type restriction of xs:integer
properties
base xs:integer
used by
elements HorizontalCoordinateType/azimuth WindGradientType/windDirection
facets
Kind Value annotation
minInclusive
maxInclusive 360
annotation
documentation
Compass direction in whole degrees

simpleType BasicDistanceEnumType
namespace http://www.jeppesen.com/aoc
type union of (LongDistanceEnumType, ShortDistanceEnumType)
used by
attributes DistanceType/@units DistanceBiasType/@units

simpleType BasicHeightEnumType
namespace http://www.jeppesen.com/aoc
type restriction of xs:string
properties
base xs:string
used by
attribute ElevationType/@units
facets
Kind Value annotation
enumeration ft
enumeration

simpleType BasicVolumeEnumType
namespace http://www.jeppesen.com/aoc
type restriction of xs:string
properties
base xs:string
used by
simpleType FuelQuantityUnitsEnum
facets
Kind Value annotation
enumeration ig
enumeration lt
enumeration ug

simpleType BasicWeightEnumType
namespace http://www.jeppesen.com/aoc
type restriction of xs:string
properties
base xs:string
used by
simpleType FuelQuantityUnitsEnum
attributes PayloadWeightType/@units TotalWeightType/@units
facets
Kind Value annotation
enumeration lb
enumeration kg

simpleType BiasEnumType
namespace http://www.jeppesen.com/aoc
type restriction of xs:string
properties
base xs:string
used by
attribute BiasType/@units
facets
Kind Value annotation
enumeration percent
enumeration absolute

simpleType CallSignType
namespace http://www.jeppesen.com/aoc
type restriction of xs:string
properties
base xs:string
used by
element FpResponseFlightType/callSign
facets
Kind Value annotation
minLength
maxLength
annotation
documentation
For general aviation flights, registration number is used. For airlines, ICAO call sign plus flight number is used. For air taxi operators without a registered company call sign, a prefix of T plus the registration number is used.

simpleType CruiseModeEnumType
namespace http://www.jeppesen.com/aoc
type restriction of xs:string
properties
base xs:string
used by
element CruiseModeType/cruiseMode
facets
Kind Value annotation
length
whiteSpace collapse
enumeration CMC
enumeration ECO
enumeration HSC
enumeration LRC
enumeration MSR
enumeration MRC
enumeration MCT
enumeration MSC
enumeration NCT
enumeration 925
enumeration 945
enumeration 1LE
enumeration 2LE
enumeration ECP
enumeration MCP
enumeration RCP

simpleType DepthRestriction
namespace http://www.jeppesen.com/aoc
type restriction of xs:integer
properties
base xs:integer
used by
complexType DepthType
facets
Kind Value annotation
minInclusive
maxInclusive 10000

simpleType DepthUnitsEnumType
namespace http://www.jeppesen.com/aoc
type restriction of xs:string
properties
base xs:string
used by
attribute DepthType/@units
facets
Kind Value annotation
enumeration in
enumeration ft
enumeration mm
enumeration cm
enumeration

simpleType DistanceBiasRestriction
namespace http://www.jeppesen.com/aoc
type restriction of xs:double
properties
base xs:double
used by
complexType DistanceBiasType
facets
Kind Value annotation
minInclusive 0.0
maxInclusive 2500.0

simpleType DistanceRestriction
namespace http://www.jeppesen.com/aoc
type restriction of xs:double
properties
base xs:double
used by
complexType DistanceType
facets
Kind Value annotation
minInclusive 0.0
maxInclusive 50000.0

simpleType Duration0to180Minutes
namespace http://www.jeppesen.com/aoc
type restriction of xs:duration
properties
base xs:duration
used by
elements FpResponseFlightType/taxiInTime FpResponseFlightType/taxiOutTime
facets
Kind Value annotation
minInclusive PT0M
maxInclusive PT180M
annotation
documentation

Used in both Customer Database and Operations Control (taxi time limits)

simpleType ElevationRangeRestriction
namespace http://www.jeppesen.com/aoc
type restriction of xs:integer
properties
base xs:integer
used by
complexType ElevationType
facets
Kind Value annotation
minInclusive -2000
maxInclusive 30000

simpleType FloatingPercentageRestriction
namespace http://www.jeppesen.com/aoc
type restriction of xs:float
properties
base xs:float
used by
element FuelAdjustmentType/fuelPercentage
facets
Kind Value annotation
minInclusive 0.0
maxInclusive 100.0

simpleType FrequencyRangeRestriction
namespace http://www.jeppesen.com/aoc
type restriction of xs:double
properties
base xs:double
used by
complexType FrequencyType
facets
Kind Value annotation
minInclusive 0.0
maxInclusive 30000.0

simpleType FrequencyUnitsEnumType
namespace http://www.jeppesen.com/aoc
type restriction of xs:string
properties
base xs:string
used by
attribute FrequencyType/@units
facets
Kind Value annotation
enumeration khz
enumeration mhz

simpleType FuelQuantityRestriction
namespace http://www.jeppesen.com/aoc
type restriction of xs:integer
properties
base xs:integer
used by
complexType FuelQuantityType
facets
Kind Value annotation
minInclusive
maxInclusive 25000000

simpleType FuelQuantityUnitsEnum
namespace http://www.jeppesen.com/aoc
type union of (BasicWeightEnumType, BasicVolumeEnumType)
used by
attribute FuelQuantityType/@units

simpleType FuelTimeRestriction
namespace http://www.jeppesen.com/aoc
type restriction of xs:nonNegativeInteger
properties
base xs:nonNegativeInteger
used by
element FuelPlanAmountType/fuelMinutes
facets
Kind Value annotation
maxInclusive 14400

simpleType GufiId
namespace http://www.jeppesen.com/aoc
type restriction of xs:string
properties
base xs:string
used by
elements CustomBagaFlightKeyType/gufiId CustomCommercialFlightKeyType/gufiId GufiFlightKeyType/gufiId
facets
Kind Value annotation
minLength
maxLength 36
annotation
documentation
Globally Unique Flight Identifier - 32 character string

simpleType IataAirlineType
namespace http://www.jeppesen.com/aoc
type restriction of xs:string
properties
base xs:string
used by
element AirlineCodeType/iata
facets
Kind Value annotation
pattern [0-9A-Z]{2}

simpleType IataAirportType
namespace http://www.jeppesen.com/aoc
type restriction of xs:string
properties
base xs:string
used by
element AirportCodeType/iata
facets
Kind Value annotation
pattern [0-9A-Z]{3}

simpleType IataEquipmentCodeType
namespace http://www.jeppesen.com/aoc
type restriction of xs:string
properties
base xs:string
used by
element EquipmentCodeType/iata
facets
Kind Value annotation
pattern [0-9A-Z]{3}

simpleType IcaoAirlineType
namespace http://www.jeppesen.com/aoc
type restriction of xs:string
properties
base xs:string
used by
elements AirlineCodeType/icao AirlineCodeType/icao
facets
Kind Value annotation
pattern [0-9A-Z]{3}

simpleType IcaoAirportType
namespace http://www.jeppesen.com/aoc
type restriction of xs:string
properties
base xs:string
used by
elements AirportCodeType/icao AirportCodeType/icao
facets
Kind Value annotation
pattern [0-9A-Z]{4}

simpleType IcaoEquipmentCodeType
namespace http://www.jeppesen.com/aoc
type restriction of xs:string
properties
base xs:string
used by
elements EquipmentCodeType/icao EquipmentCodeType/icao
facets
Kind Value annotation
pattern [0-9A-Z]{4}

simpleType IndicatedAirspeedRestriction
namespace http://www.jeppesen.com/aoc
type restriction of xs:integer
properties
base xs:integer
used by
element CruiseModeType/indicatedAirspeed
facets
Kind Value annotation
minInclusive 100
maxInclusive 400

simpleType Integer0to999
namespace http://www.jeppesen.com/aoc
type restriction of xs:integer
properties
base xs:integer
facets
Kind Value annotation
minInclusive
maxInclusive 999

simpleType Integer0to9999
namespace http://www.jeppesen.com/aoc
type restriction of xs:integer
properties
base xs:integer
facets
Kind Value annotation
minInclusive
maxInclusive 9999

simpleType Integer1to10
namespace http://www.jeppesen.com/aoc
type restriction of xs:integer
properties
base xs:integer
facets
Kind Value annotation
minInclusive
maxInclusive 10

simpleType Integer1to1000
namespace http://www.jeppesen.com/aoc
type restriction of xs:integer
properties
base xs:integer
used by
attributes FpResponseCheckpointType/@order FpResponseEtpType/etp/@order FpResponseSegmentType/@order
facets
Kind Value annotation
minInclusive
maxInclusive 1000

simpleType LongDistanceEnumType
namespace http://www.jeppesen.com/aoc
type restriction of xs:string
properties
base xs:string
used by
simpleType BasicDistanceEnumType
facets
Kind Value annotation
enumeration nm
enumeration km

simpleType MachAirspeedRestriction
namespace http://www.jeppesen.com/aoc
type restriction of xs:string
properties
base xs:string
used by
element CruiseModeType/machAirspeed
facets
Kind Value annotation
pattern M[6-9][0-9]

simpleType MinuteSecondRangeRestriction
namespace http://www.jeppesen.com/aoc
type restriction of xs:integer
properties
base xs:integer
used by
elements LatitudeType/minutes LongitudeType/minutes LatitudeType/seconds LongitudeType/seconds
facets
Kind Value annotation
minInclusive
maxInclusive 59

simpleType MonthType
namespace http://www.jeppesen.com/aoc
type restriction of xs:string
properties
base xs:string
facets
Kind Value annotation
enumeration Jan
enumeration Feb
enumeration Mar
enumeration Apr
enumeration May
enumeration Jun
enumeration Jul
enumeration Aug
enumeration Sep
enumeration Oct
enumeration Nov
enumeration Dec
annotation
documentation
3 letter Abbreviation for each month

simpleType NoiseLevelRestriction
namespace http://www.jeppesen.com/aoc
type restriction of xs:integer
properties
base xs:integer
used by
complexType NoiseLevelType
facets
Kind Value annotation
minInclusive
maxInclusive 194

simpleType NoseNumberType
namespace http://www.jeppesen.com/aoc
type restriction of xs:string
properties
base xs:string
used by
elements AircraftIdType/noseNumber AircraftIdType/noseNumber AircraftIdentType/noseNumber AircraftIdentType/noseNumber CustomBagaFlightKeyType/aircraftIdentifier/regNoseSerial/noseNumber CustomBagaFlightKeyType/aircraftIdentifier/noseSerial/noseNumber
facets
Kind Value annotation
pattern [A-Z\d]{1,12}

simpleType PayloadWeightRestriction
namespace http://www.jeppesen.com/aoc
type restriction of xs:integer
properties
base xs:integer
used by
complexType PayloadWeightType
facets
Kind Value annotation
minInclusive
maxInclusive 1000000

simpleType PriceRestriction
namespace http://www.jeppesen.com/aoc
type restriction of xs:double
properties
base xs:double
used by
complexType PriceType
facets
Kind Value annotation
minInclusive 0.0
maxInclusive 1000000000.0

simpleType SerialNumberType
namespace http://www.jeppesen.com/aoc
type restriction of xs:string
properties
base xs:string
used by
elements AircraftIdType/serialNumber AircraftIdType/serialNumber AircraftIdType/serialNumber AircraftIdentType/serialNumber AircraftIdentType/serialNumber AircraftIdentType/serialNumber CustomBagaFlightKeyType/aircraftIdentifier/regNoseSerial/serialNumber CustomBagaFlightKeyType/aircraftIdentifier/noseSerial/serialNumber CustomBagaFlightKeyType/aircraftIdentifier/serialNumber
facets
Kind Value annotation
minLength
maxLength 25

simpleType ShortDistanceEnumType
namespace http://www.jeppesen.com/aoc
type restriction of xs:string
properties
base xs:string
used by
simpleType BasicDistanceEnumType
facets
Kind Value annotation
enumeration ft
enumeration

simpleType SoundUnitsEnumType
namespace http://www.jeppesen.com/aoc
type restriction of xs:string
properties
base xs:string
used by
attribute NoiseLevelType/@units
facets
Kind Value annotation
enumeration dBA

simpleType SpeedRangeRestriction
namespace http://www.jeppesen.com/aoc
type restriction of xs:integer
properties
base xs:integer
used by
complexType SpeedType
facets
Kind Value annotation
minInclusive -400
maxInclusive 400

simpleType SpeedUnitsEnumType
namespace http://www.jeppesen.com/aoc
type restriction of xs:string
properties
base xs:string
used by
attribute SpeedType/@units
facets
Kind Value annotation
enumeration kts
enumeration kph
enumeration mph

simpleType StateType
namespace http://www.jeppesen.com/aoc
type restriction of xs:string
properties
base xs:string
facets
Kind Value annotation
enumeration AL
enumeration AK
enumeration AR
enumeration AS
enumeration AZ
enumeration CA
enumeration CO
enumeration CT
enumeration DC
enumeration DE
enumeration FL
enumeration FM
enumeration GA
enumeration GU
enumeration HI
enumeration IA
enumeration ID
enumeration IL
enumeration IN
enumeration KS
enumeration KY
enumeration LA
enumeration MA
enumeration MD
enumeration ME
enumeration MH
enumeration MI
enumeration MN
enumeration MO
enumeration MP
enumeration MS
enumeration MT
enumeration NC
enumeration ND
enumeration NE
enumeration NH
enumeration NJ
enumeration NM
enumeration NV
enumeration NY
enumeration OH
enumeration OK
enumeration OR
enumeration PA
enumeration PR
enumeration PW
enumeration RI
enumeration SC
enumeration SD
enumeration TN
enumeration TX
enumeration UT
enumeration VA
enumeration VI
enumeration VT
enumeration WA
enumeration WI
enumeration WV
enumeration WY

simpleType String1
namespace http://www.jeppesen.com/aoc
type restriction of xs:string
properties
base xs:string
used by
elements BagaFlightKeyType/operationalSuffix CustomBagaFlightKeyType/operationalSuffix FlightIdentifierType/operationalSuffix WaypointType/type
facets
Kind Value annotation
maxLength

simpleType String10
namespace http://www.jeppesen.com/aoc
type restriction of xs:string
properties
base xs:string
used by
elements FpResponseSegmentType/airway ErrorType/code
facets
Kind Value annotation
maxLength 10

simpleType String1000
namespace http://www.jeppesen.com/aoc
type restriction of xs:string
properties
base xs:string
used by
elements DelayCodeType/information ErrorType/information StatusType/information
facets
Kind Value annotation
maxLength 1000

simpleType String11
namespace http://www.jeppesen.com/aoc
type restriction of xs:string
properties
base xs:string
used by
element RouteKeyType/routeName
facets
Kind Value annotation
maxLength 11

simpleType String12
namespace http://www.jeppesen.com/aoc
type restriction of xs:string
properties
base xs:string
used by
element CheckpointType/userDefinedName
facets
Kind Value annotation
maxLength 12

simpleType String15
namespace http://www.jeppesen.com/aoc
type restriction of xs:string
properties
base xs:string
facets
Kind Value annotation
maxLength 15

simpleType String16
namespace http://www.jeppesen.com/aoc
type restriction of xs:string
properties
base xs:string
facets
Kind Value annotation
maxLength 16

simpleType String1to5
namespace http://www.jeppesen.com/aoc
type restriction of xs:string
properties
base xs:string
facets
Kind Value annotation
minLength
maxLength

simpleType String2
namespace http://www.jeppesen.com/aoc
type restriction of xs:string
properties
base xs:string
used by
element WaypointType/icaoCode
facets
Kind Value annotation
maxLength

simpleType String20
namespace http://www.jeppesen.com/aoc
type restriction of xs:string
properties
base xs:string
facets
Kind Value annotation
maxLength 20

simpleType String200
namespace http://www.jeppesen.com/aoc
type restriction of xs:string
properties
base xs:string
facets
Kind Value annotation
maxLength 200

simpleType String2048
namespace http://www.jeppesen.com/aoc
type restriction of xs:string
properties
base xs:string
facets
Kind Value annotation
maxLength 2048

simpleType String24
namespace http://www.jeppesen.com/aoc
type restriction of xs:string
properties
base xs:string
facets
Kind Value annotation
maxLength 24

simpleType String25
namespace http://www.jeppesen.com/aoc
type restriction of xs:string
properties
base xs:string
facets
Kind Value annotation
maxLength 25

simpleType String250
namespace http://www.jeppesen.com/aoc
type restriction of xs:string
properties
base xs:string
used by
elements LimitingConditionType/description AccessType/key AccessType/name
facets
Kind Value annotation
maxLength 250

simpleType String255
namespace http://www.jeppesen.com/aoc
type restriction of xs:string
properties
base xs:string
used by
elements ClassNameType/propertyClass PropertyType/propertyClass ClassNameType/propertyName PropertyType/propertyName
facets
Kind Value annotation
maxLength 255

simpleType String2to10
namespace http://www.jeppesen.com/aoc
type restriction of xs:string
properties
base xs:string
facets
Kind Value annotation
minLength
maxLength 10

simpleType String3
namespace http://www.jeppesen.com/aoc
type restriction of xs:string
properties
base xs:string
used by
element LimitingConditionType/code
facets
Kind Value annotation
maxLength

simpleType String30
namespace http://www.jeppesen.com/aoc
type restriction of xs:string
properties
base xs:string
used by
element FpResponsePlanStatisticsType/flightPlanKey
facets
Kind Value annotation
maxLength 30

simpleType String30MB
namespace http://www.jeppesen.com/aoc
type restriction of xs:string
properties
base xs:string
facets
Kind Value annotation
maxLength 31457280

simpleType String32
namespace http://www.jeppesen.com/aoc
type restriction of xs:string
properties
base xs:string
facets
Kind Value annotation
maxLength 32

simpleType String36
namespace http://www.jeppesen.com/aoc
type restriction of xs:string
properties
base xs:string
facets
Kind Value annotation
maxLength 36

simpleType String3to3
namespace http://www.jeppesen.com/aoc
type restriction of xs:string
properties
base xs:string
used by
attribute PriceType/@units
facets
Kind Value annotation
minLength
maxLength

simpleType String3to4
namespace http://www.jeppesen.com/aoc
type restriction of xs:string
properties
base xs:string
facets
Kind Value annotation
minLength
maxLength

simpleType String4
namespace http://www.jeppesen.com/aoc
type restriction of xs:string
properties
base xs:string
used by
elements DelayCodeType/code StatusType/code
facets
Kind Value annotation
maxLength

simpleType String4to4
namespace http://www.jeppesen.com/aoc
type restriction of xs:string
properties
base xs:string
used by
element FpResponseCheckpointType/firId
facets
Kind Value annotation
minLength
maxLength

simpleType String5
namespace http://www.jeppesen.com/aoc
type restriction of xs:string
properties
base xs:string
used by
element WaypointType/identifier
facets
Kind Value annotation
maxLength

simpleType String50
namespace http://www.jeppesen.com/aoc
type restriction of xs:string
properties
base xs:string
facets
Kind Value annotation
maxLength 50

simpleType String512
namespace http://www.jeppesen.com/aoc
type restriction of xs:string
properties
base xs:string
facets
Kind Value annotation
maxLength 512

simpleType String6
namespace http://www.jeppesen.com/aoc
type restriction of xs:string
properties
base xs:string
facets
Kind Value annotation
maxLength

simpleType String60
namespace http://www.jeppesen.com/aoc
type restriction of xs:string
properties
base xs:string
facets
Kind Value annotation
maxLength 60

simpleType String7
namespace http://www.jeppesen.com/aoc
type restriction of xs:string
properties
base xs:string
facets
Kind Value annotation
maxLength

simpleType String8
namespace http://www.jeppesen.com/aoc
type restriction of xs:string
properties
base xs:string
used by
element EquipmentCodeType/other
facets
Kind Value annotation
maxLength

simpleType String80
namespace http://www.jeppesen.com/aoc
type restriction of xs:string
properties
base xs:string
used by
elements LoginType/password LoginType/userName
facets
Kind Value annotation
maxLength 80

simpleType String9
namespace http://www.jeppesen.com/aoc
type restriction of xs:string
properties
base xs:string
used by
element CheckpointType/dmeFix
facets
Kind Value annotation
maxLength

simpleType TemperatureRangeRestriction
namespace http://www.jeppesen.com/aoc
type restriction of xs:integer
properties
base xs:integer
used by
complexType TemperatureType
facets
Kind Value annotation
minInclusive -459
maxInclusive 373

simpleType TemperatureUnitsEnumType
namespace http://www.jeppesen.com/aoc
type restriction of xs:string
properties
base xs:string
used by
attribute TemperatureType/@units
facets
Kind Value annotation
enumeration
enumeration
enumeration

simpleType TotalWeightRestriction
namespace http://www.jeppesen.com/aoc
type restriction of xs:nonNegativeInteger
properties
base xs:nonNegativeInteger
used by
complexType TotalWeightType
facets
Kind Value annotation
maxInclusive 4000000

simpleType WeekDayEnumType
namespace http://www.jeppesen.com/aoc
type restriction of xs:string
properties
base xs:string
used by
element PeriodType/weekDays
facets
Kind Value annotation
enumeration Sunday
enumeration Monday
enumeration Tuesday
enumeration Wednesday
enumeration Thursday
enumeration Friday
enumeration Saturday

simpleType WholePercentageRestriction
namespace http://www.jeppesen.com/aoc
type restriction of xs:int
properties
base xs:int
facets
Kind Value annotation
minInclusive
maxInclusive 100


XML Schema documentation generated by XMLSpy Schema Editor http://www.altova.com/xmlspy
